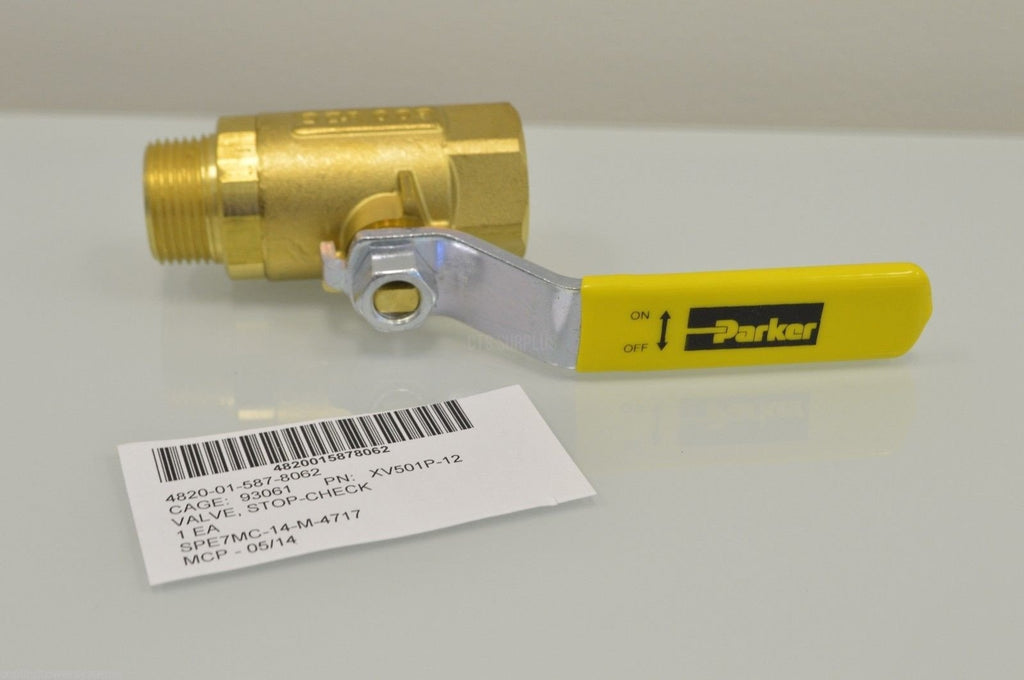

3/4" Parker Ball Valve Box of 8 P/N:XV501P-12 NSN:4820-01-587-8062
Regular price
$64.00

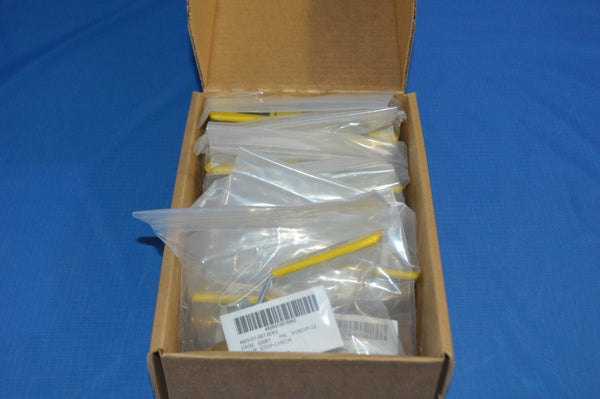

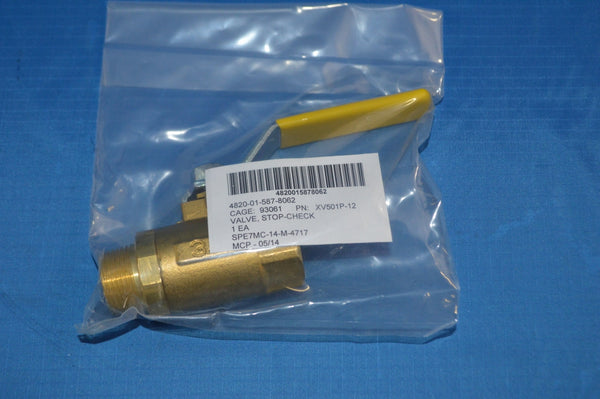

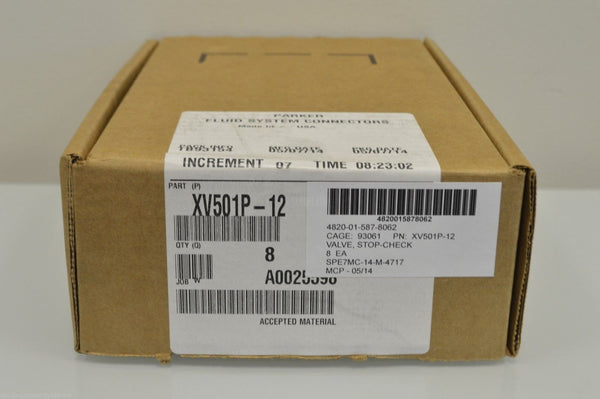

Parker Ball Valve- Complete new, unused box, QTY: 8 per box
NSN:4820-01-587-8062
A valve with a bolt or stem that may be mechanically actuated to two different positions by rotary or linear motion. in the first position, the valve disk is located and locked against the seat permitting no fluid flow through the valve. in the second position, one side of the valve disk is located against the seat permitting movement of the disk in a manner that will allow a flow of fluid in one direction through the valve. the valve disk may be spring loaded. it may be inline or cartridge (manifold) design. see also valve (1), lift-check and valve (1), stop-lift-check.
| ITEM | Ball Valve |
|---|---|
| CONNECTION | MNPT x FNPT |
| MAX. PRESSURE | 600 psi |
| MAX. STEAM PRESSURE | 150 psi |
| PIPE SIZE | 3/4" |
| MATERIAL OF CONSTRUCTION | Brass |
| SEATS | PTFE |
| SEALS | PTFE |
| BALL MATERIAL | Chrome Plated Brass |
| HANDLE | Steel |
| TEMP. RANGE (F) | 0 to 350 Degrees |
| OVERALL LENGTH (IN.) | 5.83 |
| STANDARDS | ANSI B1.20.3 (DRYSEAL PIPE THREAD) |
| UNSPSC | 40141607 |
| WEIGHT | 1.050000 |
