NSN 5910-00-020-8667
Paper Dielectric Fixed Capacitor 200VDC P/N 54130596 NSN: 5910-00-020-8667
Regular price
$12.99

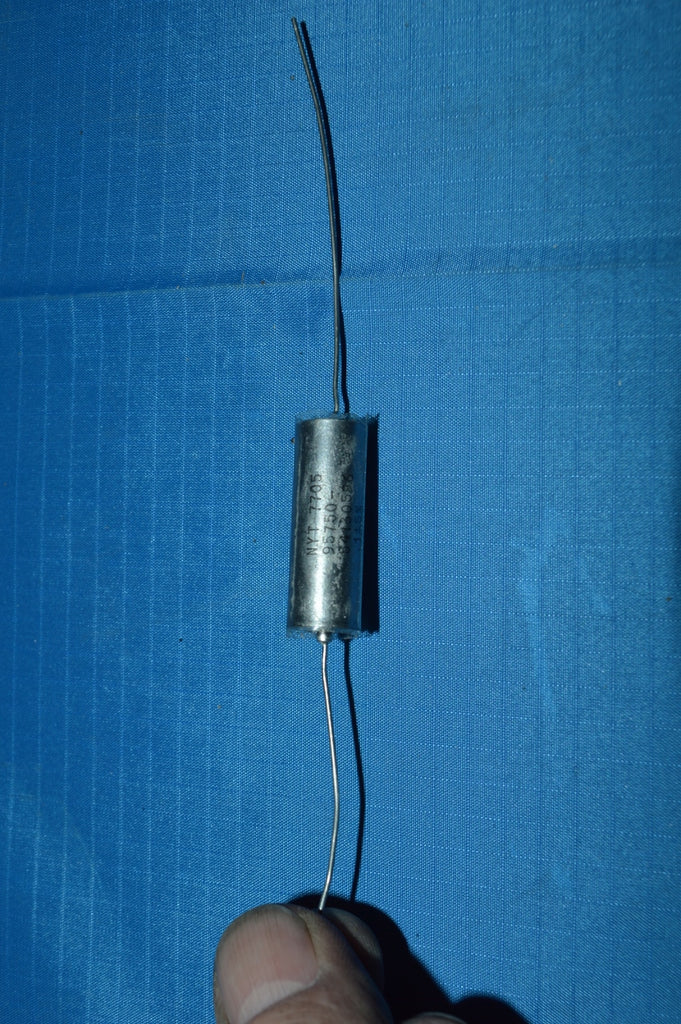

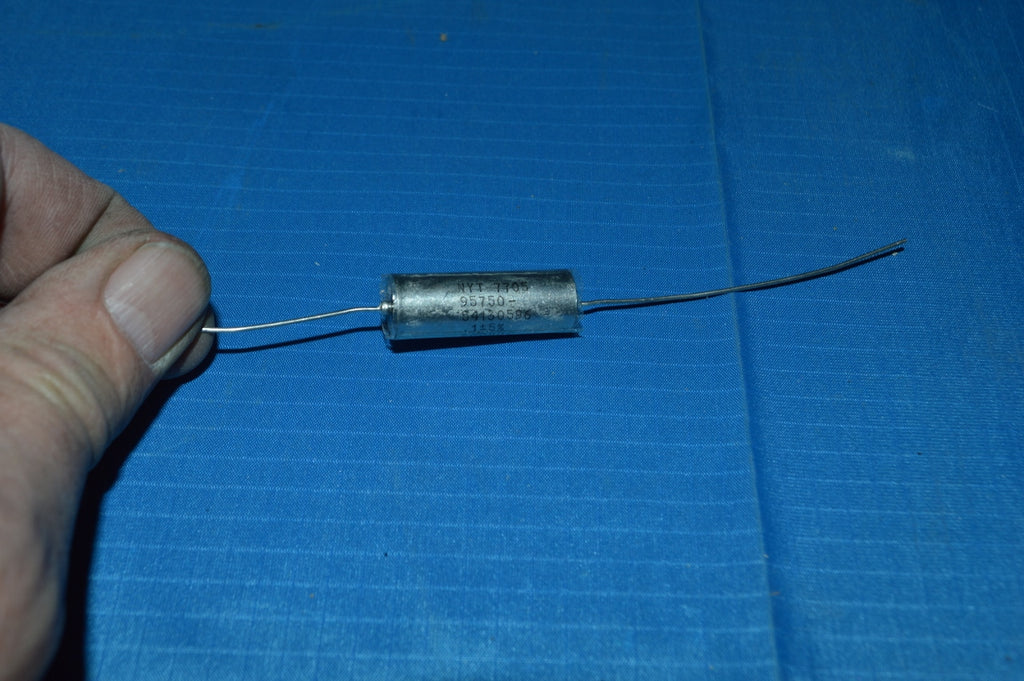

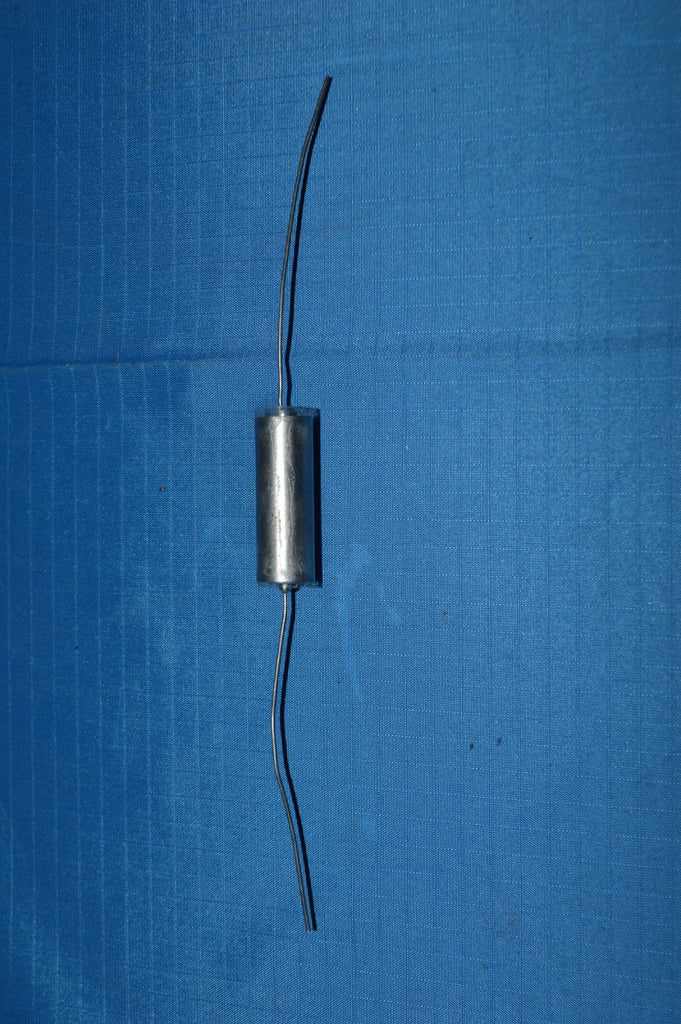

Paper Dielectric Fixed Capacitor
SKU: 5910000208667 | Model: 54130596NSN 5910-00-020-8667
Description:

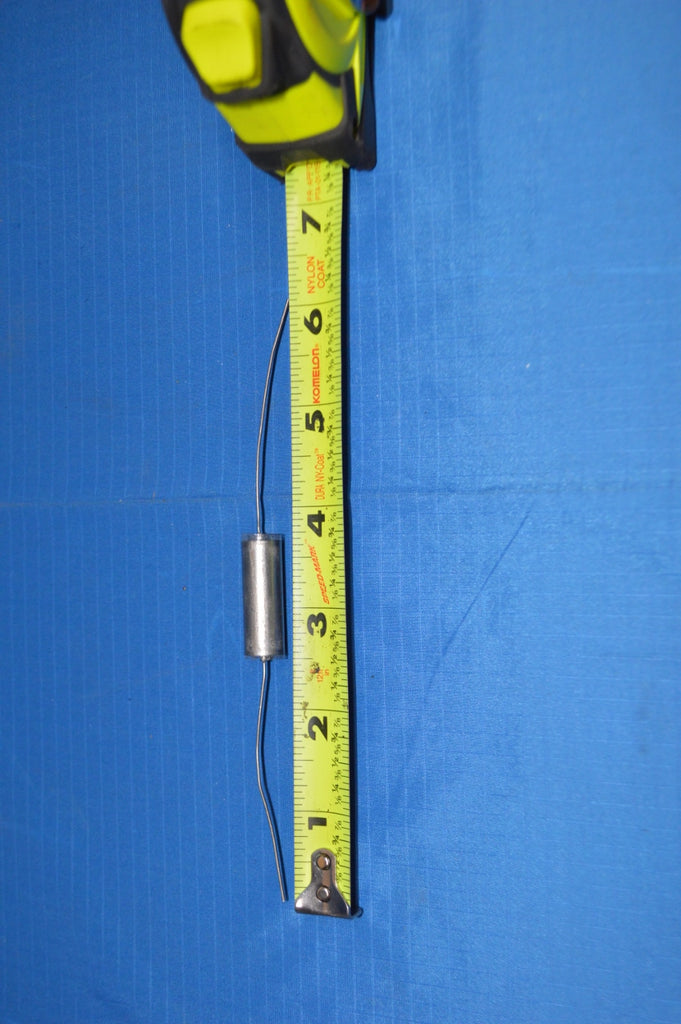

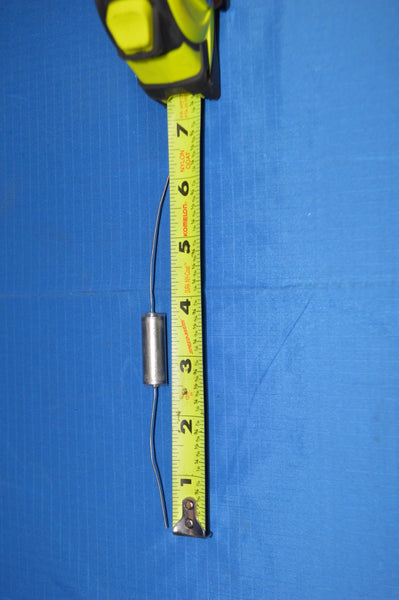

W/o mtg facilities, axial terminals body style, 1.625" terminal length, 0.450" body diameter, 1.156" body length, 0.032" terminal diameter
Specifications from the Manufacturer
Body Style:
W/o mtg facilities, axial terminals
Reliability Indicator:
Not established
Terminal Length:
1.625 inches minimum
Body Diameter:
0.450 inches maximum
Body Length:
1.156 inches maximum
Terminal Diameter:
0.032 inches nominal
Schematic Diagram Designator:
No common or grounded electrode(s)
Internal Electrical Connection Type:
Extended foil
Insulation Resistance At Maximum Operating Temp:
10.0 megohm-microfarads
Capacitance Value Per Section:
0.100 microfarads single section
Nonderated Operating Temp:
-55.0 deg celsius minimum and 125.0 deg celsius maximum
Nonderated Continuous Voltage Rating And Type Per Section:
200.0 dc single section
Tolerance Range Per Section:
-5.00 to 5.00 percent single section
Case Material:
Metal
Insulation Resistance At Reference Temp:
6000.0 megohm-microfarads
Dissipation Factor At Reference Temp In Percent:
1.0000
Terminal Surface Treatment:
Solder
Case Insulation Material:
Plastic
Terminal Type And Quantity:
2 uninsulated wire lead
