Oscillator Subassembly

NSN: 6625-00-006-9903 | Model: 10029
ITAR Registered seal

Two or more different types of items, having a common mounting or mounted on each other, which together form a portion of an oscillator but which in itself is not a complete functioning item and cannot be assigned a more definite item name.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Overall Length
4.650 inches
Overall Height
0.562 inches
Overall Width
3.750 inches
Special Features

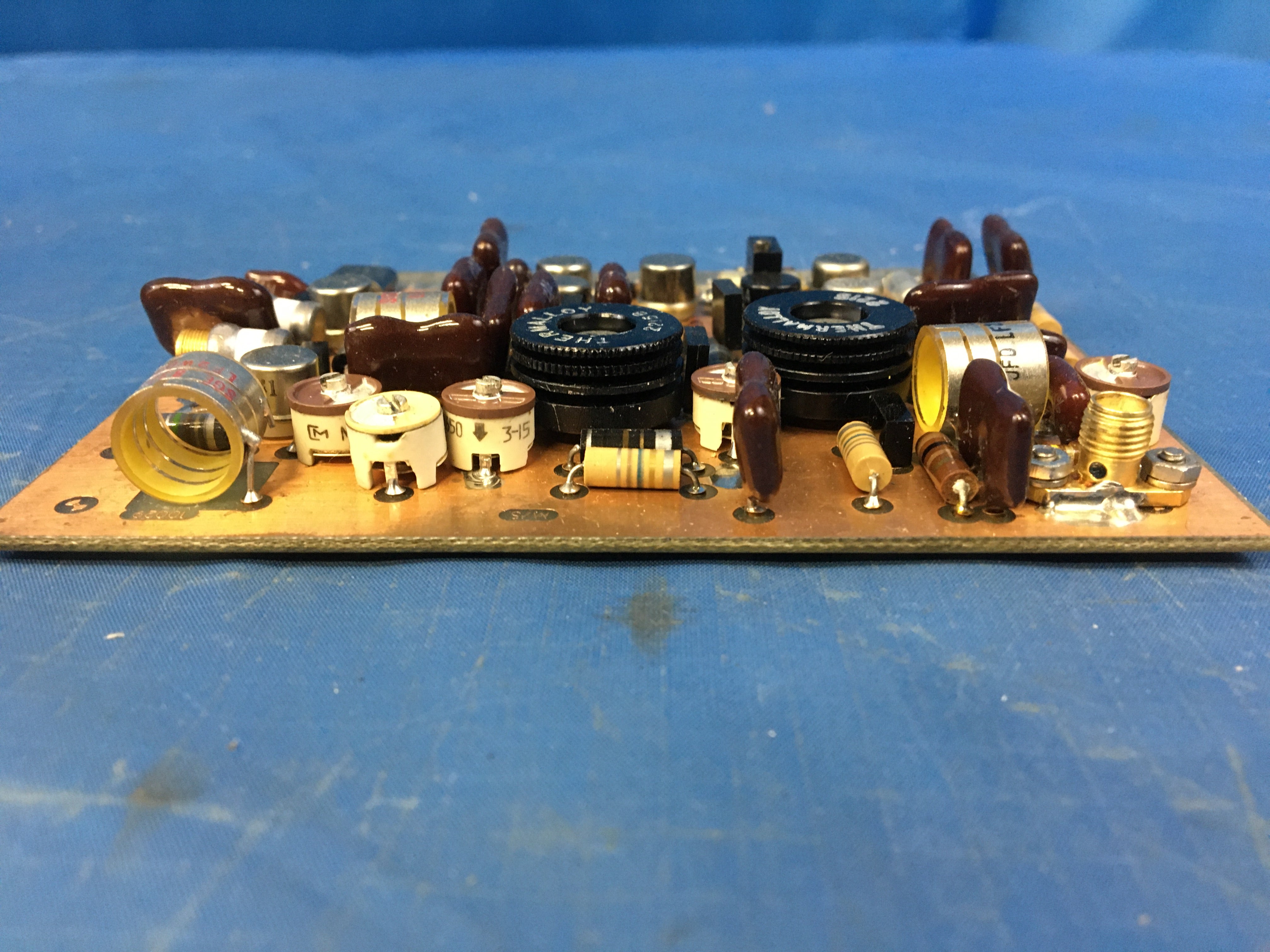

Major components and quantity: capacitor; connector; crystal; diode; heatsink; inductor; integrated circuit pad; printed wiring board; resistor; transistor; 108; mounting method: connector

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
