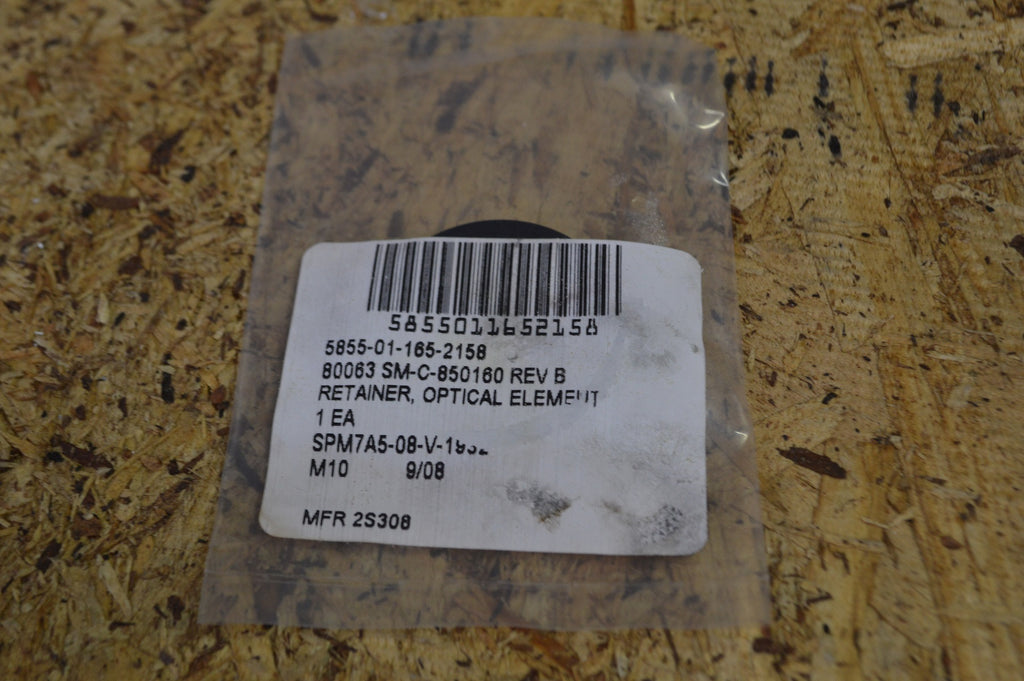

Optical Element Retainer NSN:5855-01-165-2158 P/N:Sm-C-850160
Please fill out the form below for a price quote and availability on this item.
Optical Element Retainer- A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. it must have drilled holes or slots to facilitate assembly and disassembly. for items which house the optical element(s), and form the internal or central portions of an optical system, see cell, optical element. excludes ring, externally threaded.
|Diameter:||1.580 inches nominal|
|FSC Application Data:||Night vision equipment,emitted and reflected radiation|
|Guide Design:||Thread chamfer|
|Hole Chamfer Angle In Deg:||45.0|
|Hole Chamfer Diameter:||1.300 inches nominal|
|Hole Diameter:||1.300 inches nominal|
|Hole Or Slot Quantity:||4|
|Overall Length:||0.140 inches nominal|
|Internal Annular Serration:||Not provided|
|Recess Depth:||0.070 inches nominal|
|Recess Diameter:||1.300 inches nominal|
|Setscrew Notch:||Not provided|
|Special Test Features:||Interpret drawing iaw standards prescribed by mil-d-1000|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
