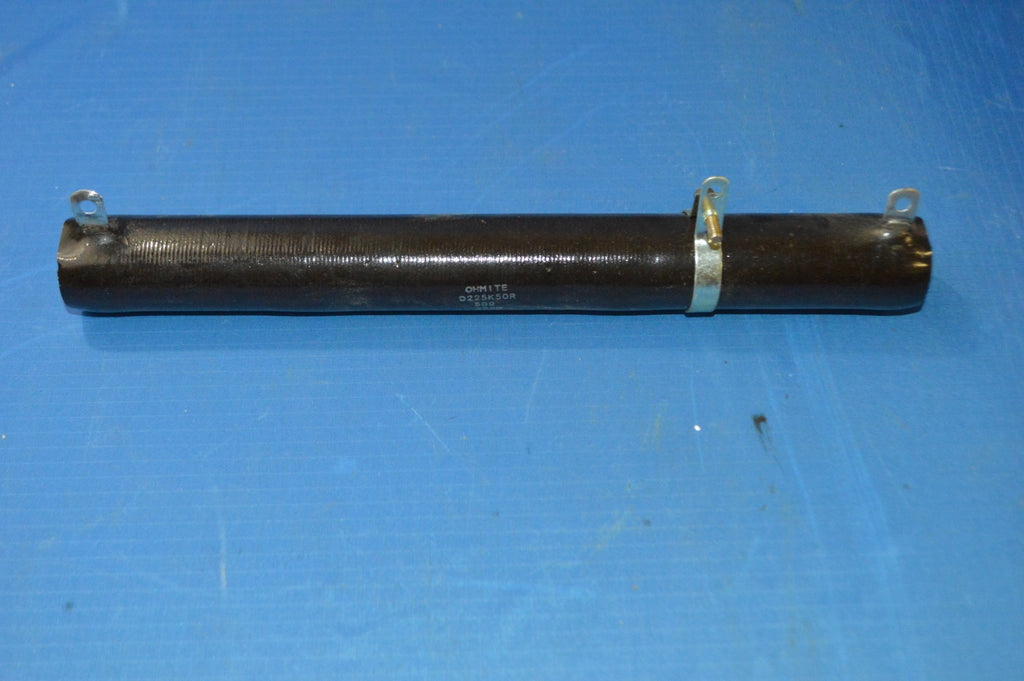

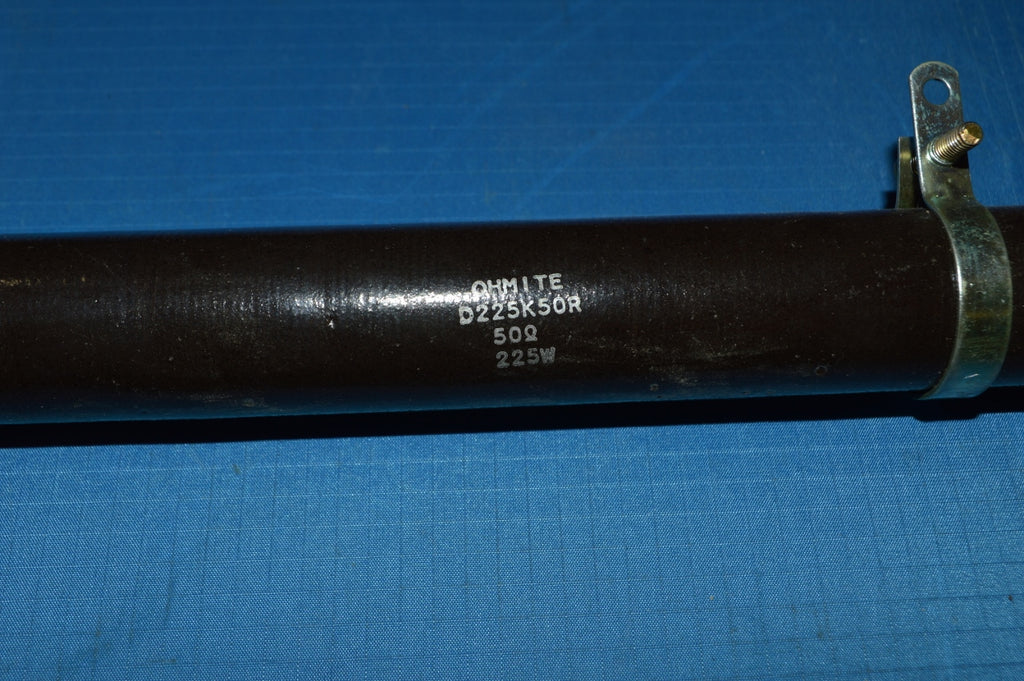

OHMITE USA D225K50R OHM 225 WATT RESISTOR Adjustable Vitreous Enamal Ceramic NSN: 5905-00-283-7271

Regular price $19.99

Default Title - $19.99 USD

Quantity

Add to Cart

Adjustable Resistor

SKU: 5905002837271 | Model: D225K50R

NSN 5905-00-283-7271

Specifications from the Manufacturer

Electrical Resistance:

50.000 ohms

Resistance Tolerance In Percent:

-10.000/+10.000

Ambient Temp In Deg Celsius At Full Rated Power:

40.0

Ambient Temp In Deg Celsius At Zero Percent Rated Power:

340.0

Inclosure Method:

Encased

Terminal Type:

Tab, solder lug

Reactance Characteristic:

Inductive

Reliability Indicator:

Not established

Terminal Length:

0.625 inches nominal

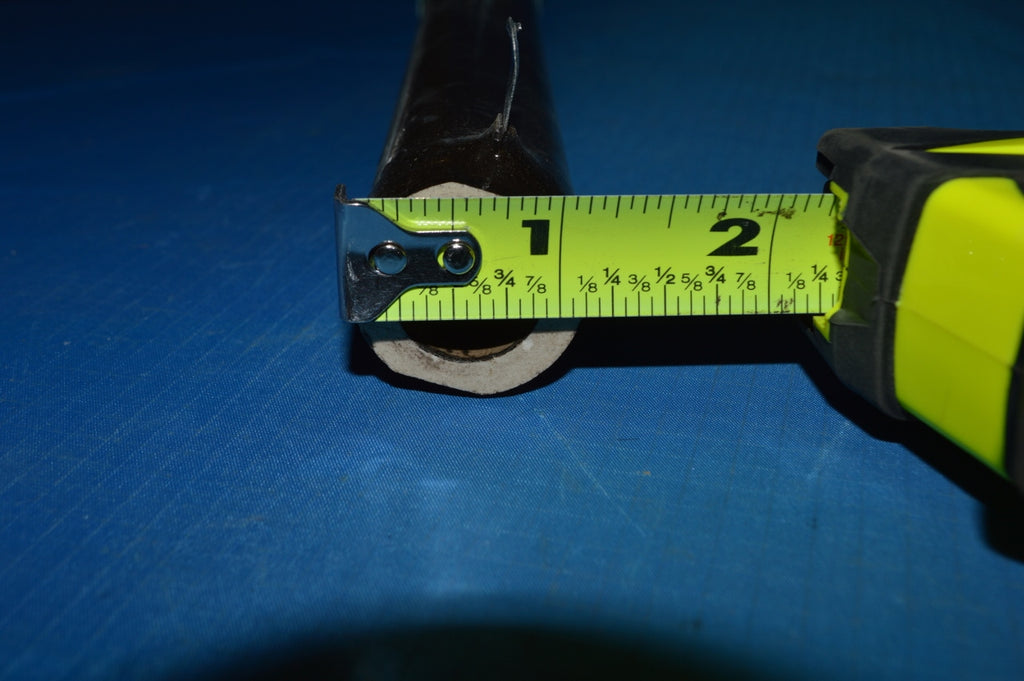

Body Diameter:

1.125 inches nominal

Body Length:

10.500 inches nominal

Power Dissipation Rating In Watts:

200.000 free air

Terminal Width:

0.375 inches nominal

Style Designator:

Radial terminal each end
