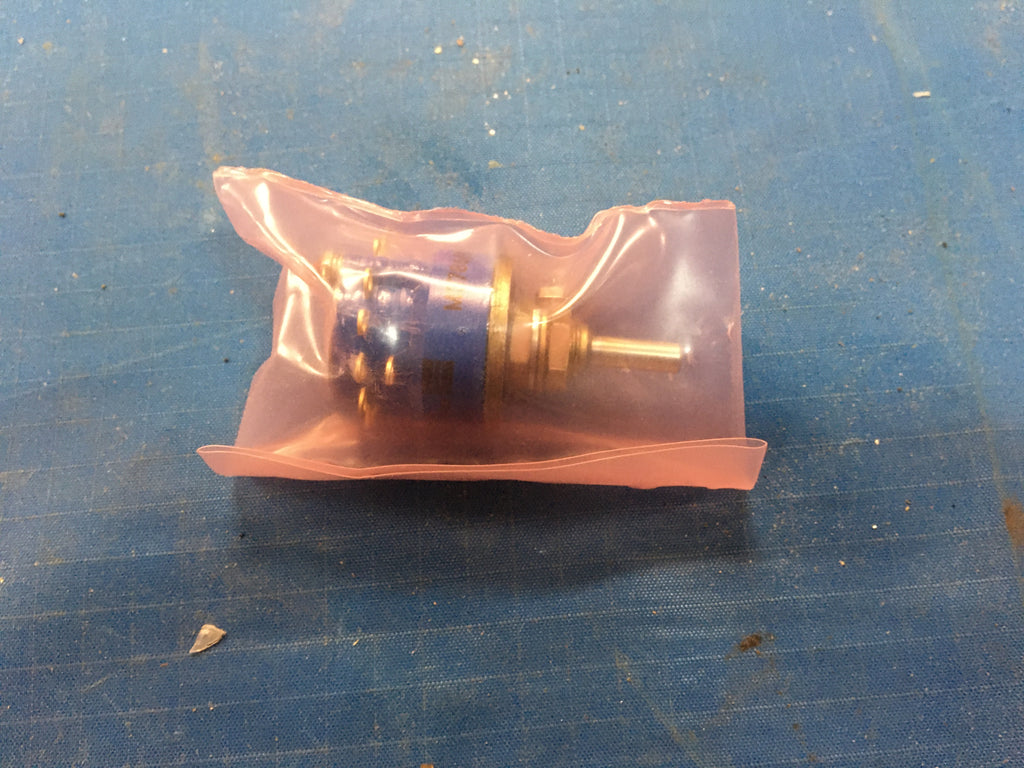

NOS Grayhill M3786/13-5003 Rotary Switch NSN:5930-01-141-8565

Regular price $34.99

Rotary Switch

NSN: 5930-01-141-8565 | Model: M3786/13-5003
ITAR Registered seal

A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see switch, sensitive. Excludes relay, rotary; switch, stepping; and switch, telephone (as modified).

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Thread Class
2A single mounting facility
Thread Length
0.312 inches single mounting facility
Hazardous Locations/environmental Protection
Explosion proof
Overall Length
1.697 inches
First Flat Length
0.250 inches single actuator
Flat Height
0.094 inches single actuator
Shaft Diameter
0.125 inches single actuator
Shaft Length
0.375 inches single actuator
Overall Diameter
Between 0.670 inches and 0.800 inches
Individual Section Quantity
Nonturn Device Type
Flatted bushing at 3: 00 o'clock
Operating Tempurature Range
-65.0/+125.0 degrees celsius
End Application
Switch Contact Basic Design
Nonpile-up symmetrical
Pole Quantity
1 single section front
Throw Quantity
4 single section rear
Mounting Method
Threaded bushing w/panel seal single mounting facility
Thread Size
0.250 inches single mounting facility
Contact Voltage Rating In Volts
28.0 dc at sea level
Shaft Flat/slot Angular Location
195.0 degrees from non turn device single actuator
Rotor Through Connection Quantity
1 single section
Switch Actuator Indexing Position Quantity
4 single actuator
Shaft Type
Round, flatted single actuator
Terminal Type
Tab, solder lug
Contact Switching Action
Breaks before makes single section rear
Switch Actuator Positioning Increment
30.0 degrees single actuator
Detent Rotational Torque Range
+0.320/+1.700 inch-pounds single actuator
Switch Actuator Stop Device Type
Fixed stop single actuator
Contact Load Current Rating
75.0 milliamperes restive load ac at sea level
Style Designator
Tap, circular, bushing mount
Test Data Document
81349-MIL-S-3786 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Unef single mounting facility
Specification Data
81349-MIL-S-3786/13 government specification
