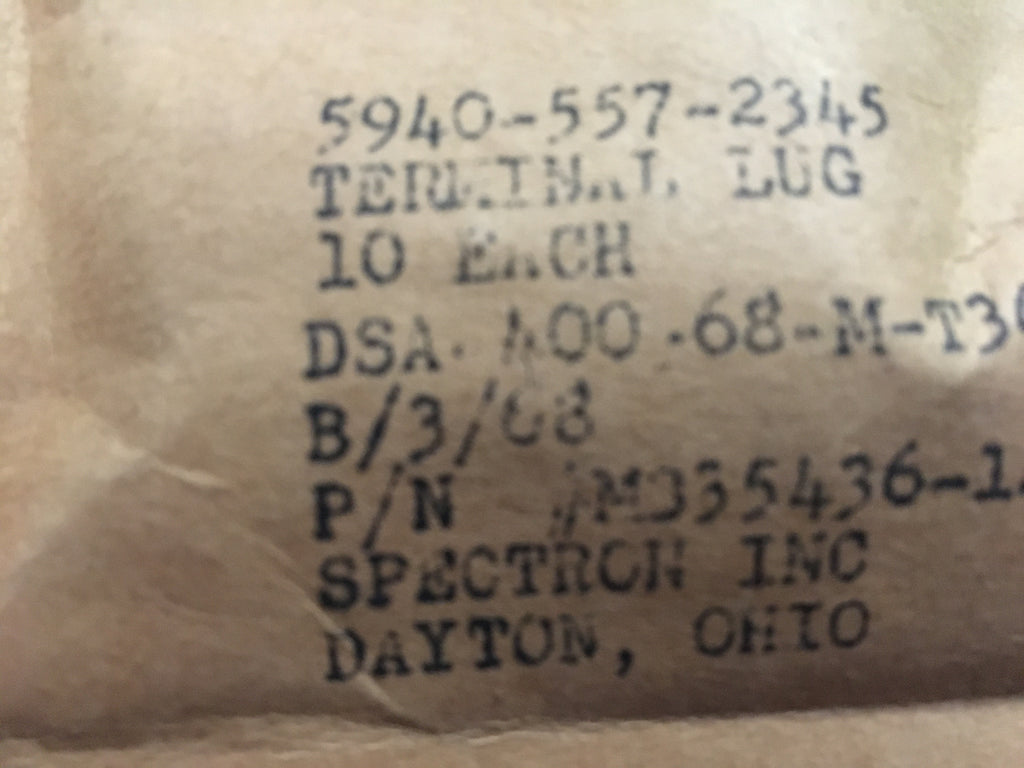

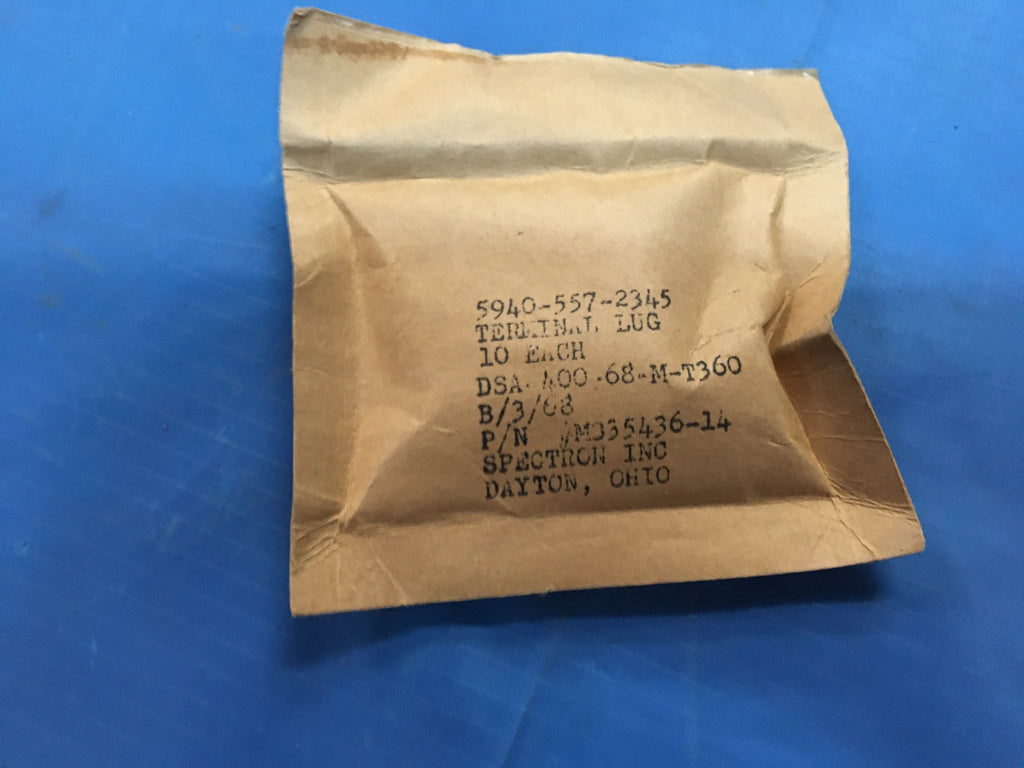

NOS Daimler Chrysler Lug Terminal NSN:5940-00-557-2345 Model:MS35436-14

Regular price $3.99

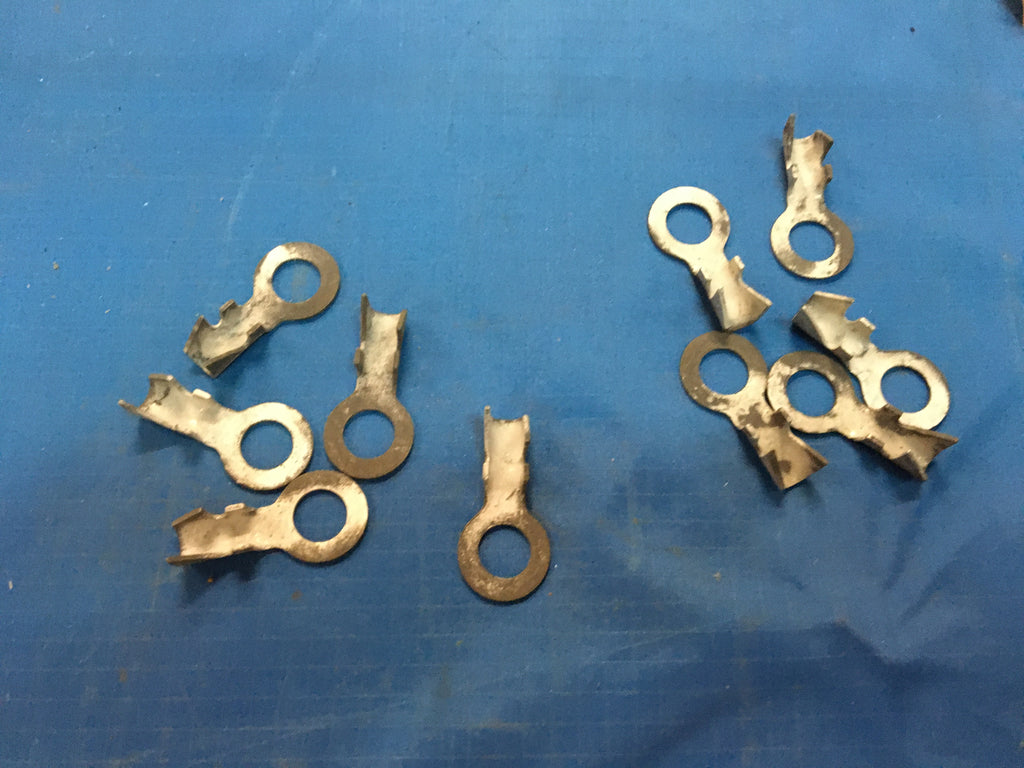

Lug Terminal

NSN: 5940-00-557-2345 | Model: MS35436-14
ITAR Registered seal
  • 5940-00-557-2345 replaces 5940-00-020-0019
  • 5940-00-557-2345 replaces 5940-00-020-0056
  • 5940-00-557-2345 replaces 5940-00-020-0321
  • 5940-00-557-2345 replaces 5940-01-070-6809
Schedule B & Trade:
  • Schedule B: 8536904000 (NAICS 335931)

    Terminals, electrical splices and electrical couplings; wafer probers with a voltage not exceeding 1000 volts

  • SITC: 77259

    Electrical apparatus for switching or protecting electrical circuits or making connections to or in electrical circuits, n.E.S., not exceeding 1, 000 v

  • End Use: 20005

    Electric apparatus

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Overall Length
1.375 inches
Overall Width
0.688 inches
Material Thickness
0.040 inches
Maximum Conductor Size Accommodated
10 awg
Largest Width
0.330 inches single end
Electrical Insulation Feature
Mounting Method Style
Mounting Hole Diameter
0.410 inches
Mounting Tongue Width
0.688 inches
Mounting Facility Thickness
0.040 inches
Basic Shape Style
Conductor Accommodation Type
Clamping tang ears single end
Copper mounting facility
Material Specification
QQ-C-576 federal specification single material response mounting facility
Surface Treatment
Tin mounting facility single layer
