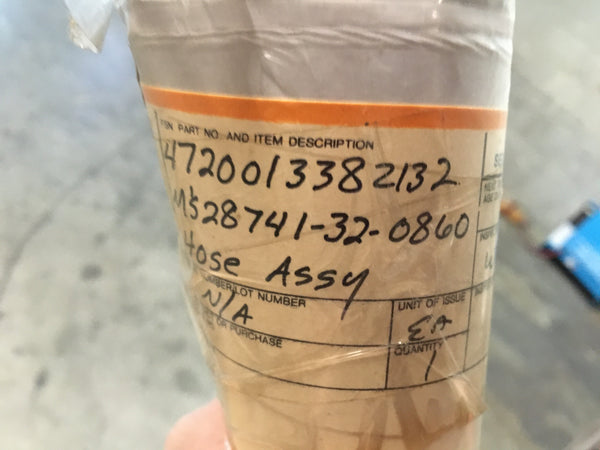

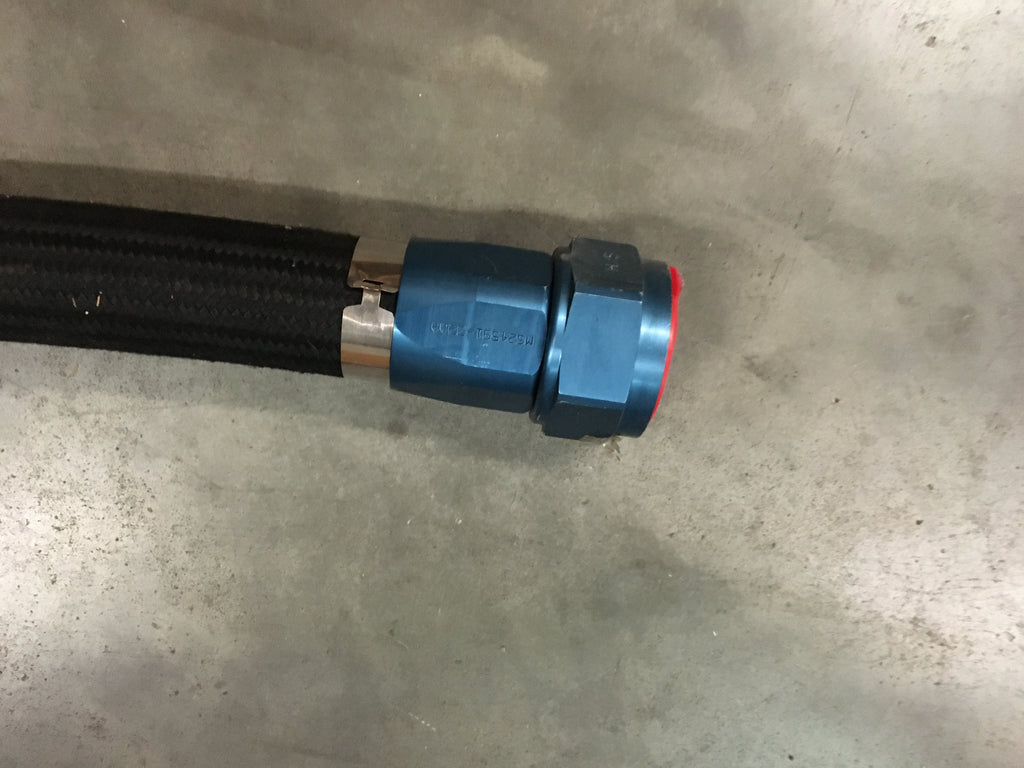

AMG Air Pro Nonmetallic Hose Assembly, P/N MS28741-32-0860, NSN: 4720-01-338-2132

Regular price $799.99

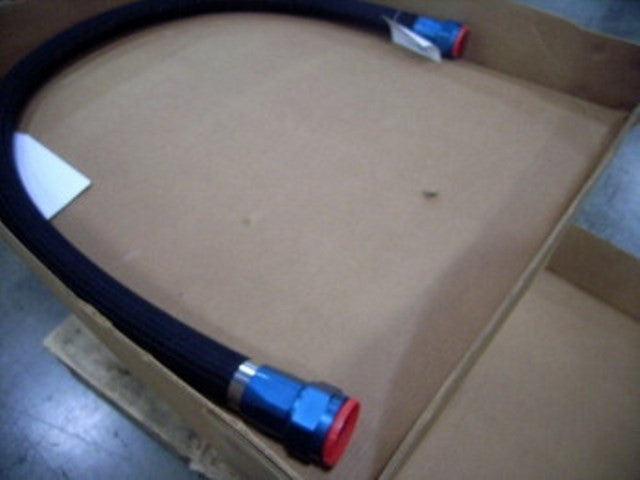

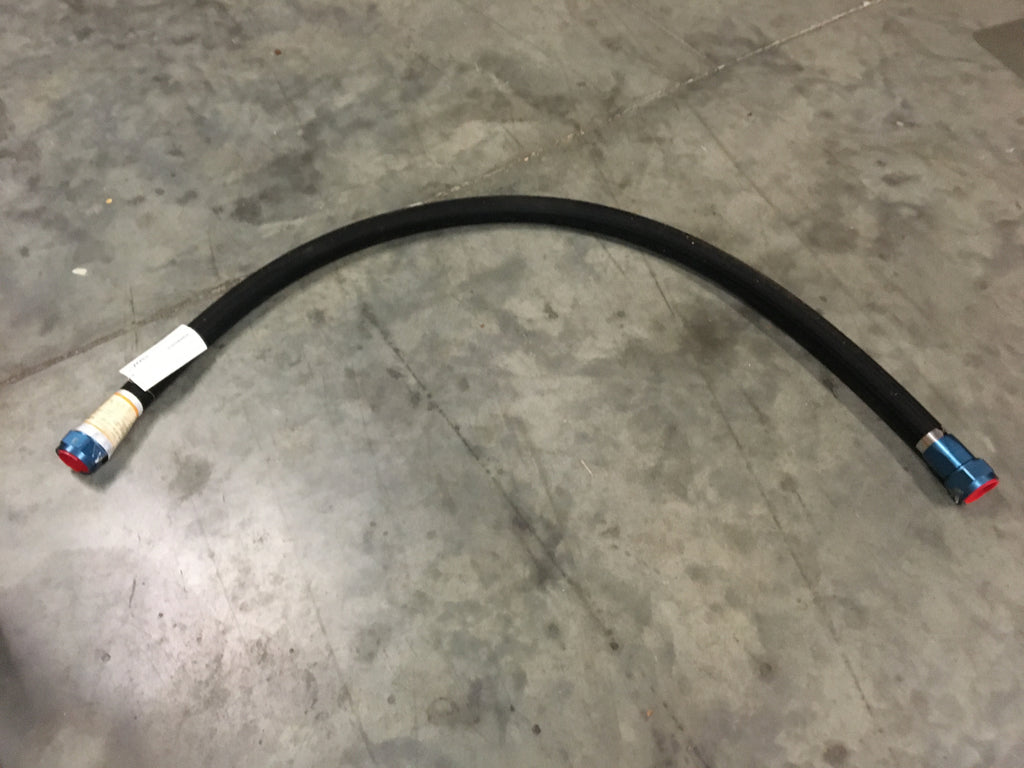

Nonmetallic Hose Assembly

NSN: 4720-01-338-2132 | Model: MS28741-32-0860
ITAR Registered seal

A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see hose, nonmetallic. Excludes hose assembly, air duct; and hose assembly, air duct, air breathing.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Cross Sectional Shape
Thread Class
3B 1ST end
Thread Direction
Right-hand 1ST end
Inside Diameter
1.812 inches
Tempurature Rating
-65.0 degrees Fahrenheit and 250.0 degrees Fahrenheit single response
Outside Diameter
2.219 inches
Minimum Inside Bending Radius
13.250 inches

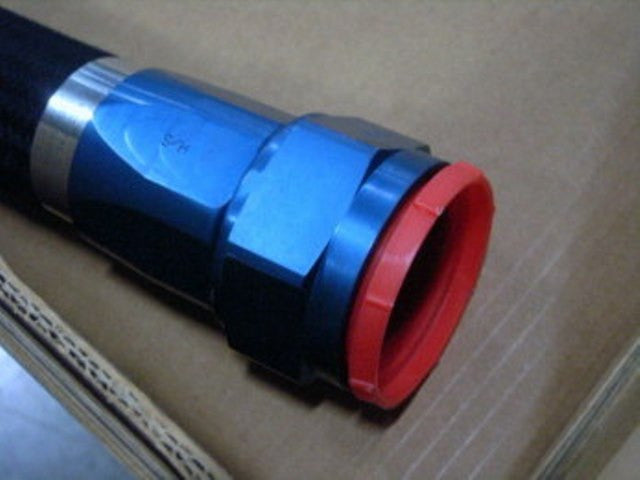

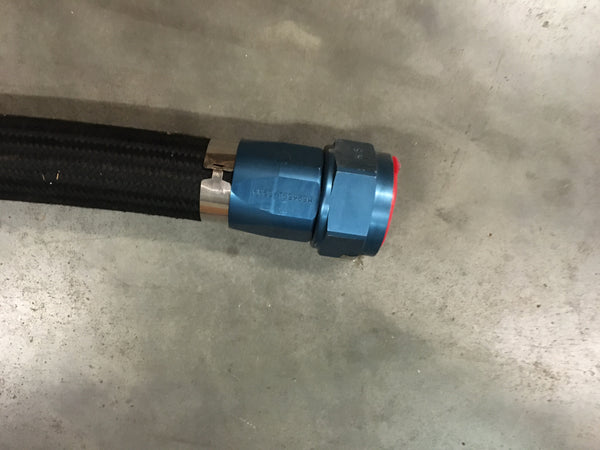

Connection Style
Swivel nut flare 1ST end
End Connection Design
Straight 1ST end
Connection Type
Threaded internal tube 1ST end
Thready Qty Per Inch (tpi)
12 1ST end
Burst Test Pressure
700.0 pounds per square inch
Layer Composition And Location
1ST layer braided cotton cord and 2ND layer braided corrosion resistant steel wire and outer layer braided cotton cord
Maximum Operating Pressure
350.0 pounds per square inch
Thread Size
2.500 inches 1ST end
Seat Angle
37.0 degrees 1ST end
Inside Surface Condition
Measuring Method And Length
86.000 inches
Media For Which Designed
Fuel/oil, hydrocarbon single response
Thread Series Designator
Un 1ST end
