Nonmetallic Hose Assembly NSN: 4720-01-394-3746 1C02033KKK0582A

Please fill out the form below for a price quote and availability on this item.

A length of nonmetallic hose with fittings on one or both ends. for items without fittings, see hose, nonmetallic. excludes hose assembly, air duct; and hose assembly, air duct, air breathing.

4720-01-394-3746 Datasheet

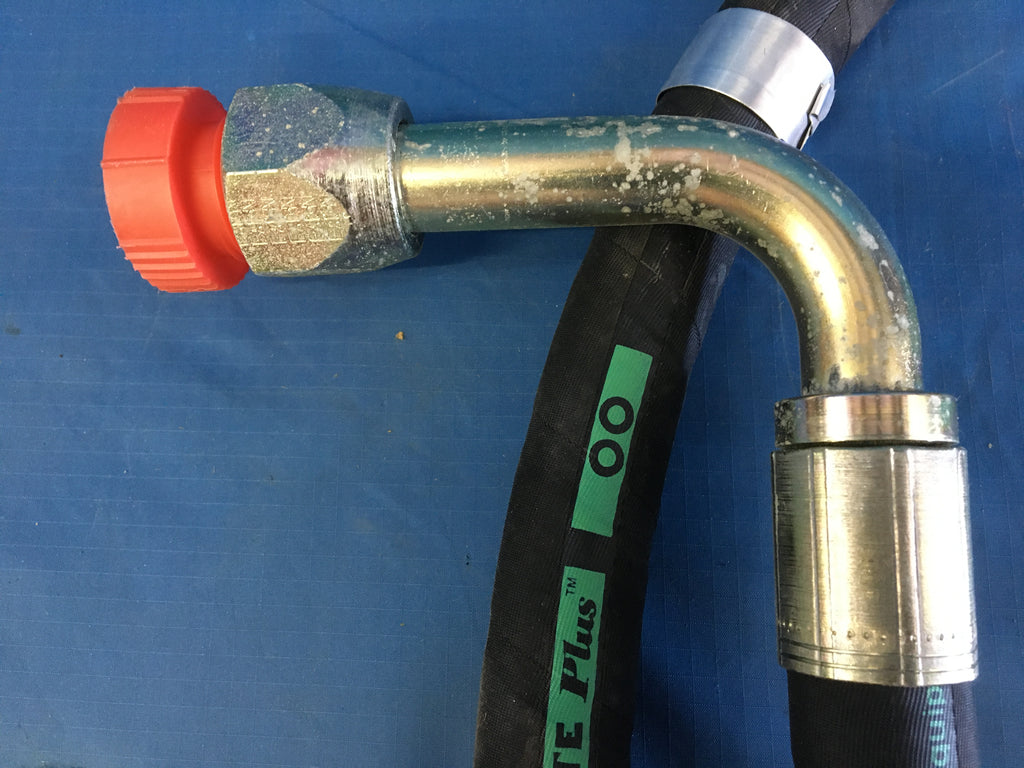

End Connection Design: Elbow 2nd end
End Connection Design: Straight 1st end
For Use With/On: 3930-01-330-8907
Burst Test Pressure: 12500.0 pounds per square inch
Connection Style: Swivel nut flare 1st end
Connection Style: Swivel nut flare 2nd end
Connection Type: Threaded internal tube 1st end
Connection Type: Threaded internal tube 2nd end
Cross-sectional Shape Style: Round
Exterior Color: Natural
Flow Angle: 90.0 degrees 2nd end
Hydrostatic Test Pressure: 6250.0 pounds per square inch
Maximum Operating Pressure: 3125.0 pounds per square inch
Measuring Method And Length: 58.250 inches nominal overall
Media For Which Designed: Fuel/oil, hydrocarbon single response
Minimum Inside Bending Radius: 4.750 inches
Nominal Thread Size: 1.062 inches 1st end
Nominal Thread Size: 1.062 inches 2nd end
Outside Diameter: 1.100 inches nominal
Inside Diameter: 0.750 inches nominal
Inside Surface Condition: Smooth
Layer Composition And Location: 1st layer braided wire and 2nd layer braided wire and outer layer molded rubber, synthetic
Seat Angle: 37.0 degrees 1st end
Seat Angle: 37.0 degrees 2nd end
Temp Rating: -40.0 deg fahrenheit and 212.0 deg fahrenheit single response
Thread Class: 3b 1st end
Thread Class: 3b 2nd end
Thread Direction: Right-hand 1st end
Thread Direction: Right-hand 2nd end
Thread Series Designator: Unjf 1st end
Thread Series Designator: Unjf 2nd end
Vacuum In Torr: 24.0

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
