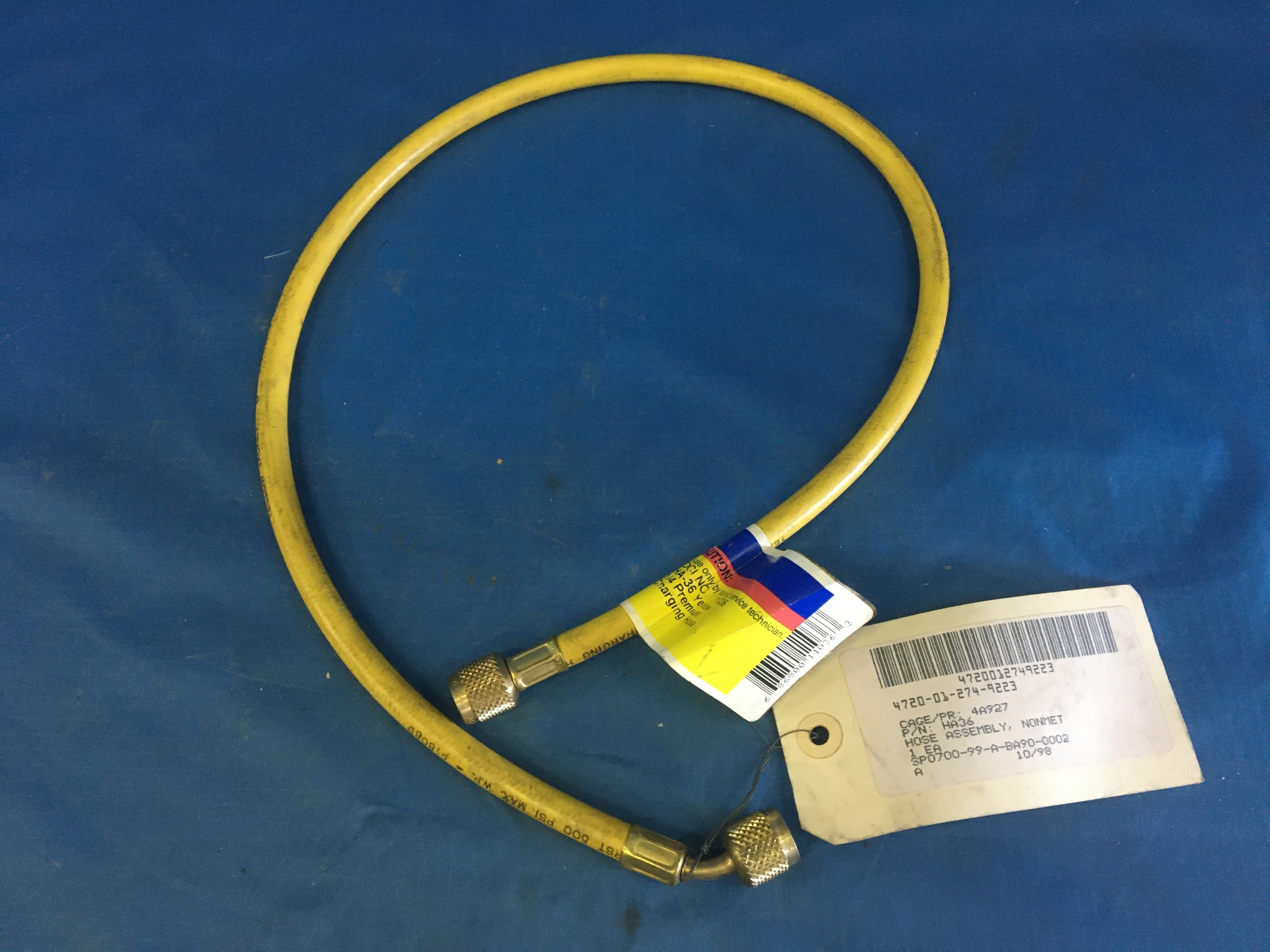

Nonmetallic Hose Assembly NSN: 4720-01-274-9223 P/N: HA36Y
Please fill out the form below for a price quote and availability on this item.
A length of nonmetallic hose with fittings on one or both ends. for items without fittings, see hose, nonmetallic. excludes hose assembly, air duct; and hose assembly, air duct, air breathing.
|End Connection Design:||Elbow 2nd end|
|End Connection Design:||Straight 1st end|
|Burst Test Pressure:||2500.0 pounds per square inch|
|Connection Style:||Swivel nut flare 1st end|
|Connection Style:||Swivel nut flare 2nd end|
|Connection Type:||Threaded internal tube 1st end|
|Connection Type:||Threaded internal tube 2nd end|
|Cross-sectional Shape Style:||Round|
|Features Provided:||Perforated outer cover|

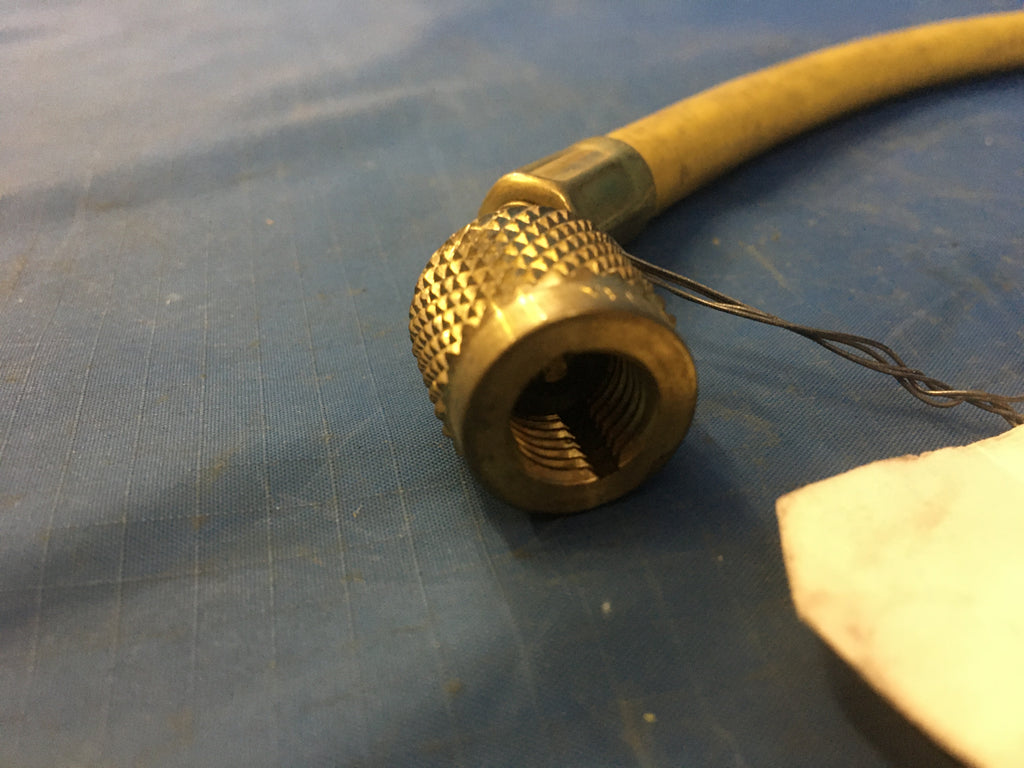

|Flow Angle:||45.0 degrees 2nd end|
|Maximum Operating Pressure:||500.0 pounds per square inch|
|Measuring Method And Length:||36.000 inches nominal working|
|Media For Which Designed:||Air single response|
|Inside Diameter:||0.250 inches nominal|
|Inside Surface Condition:||Smooth|
|Seat Angle:||37.0 degrees 1st end|
