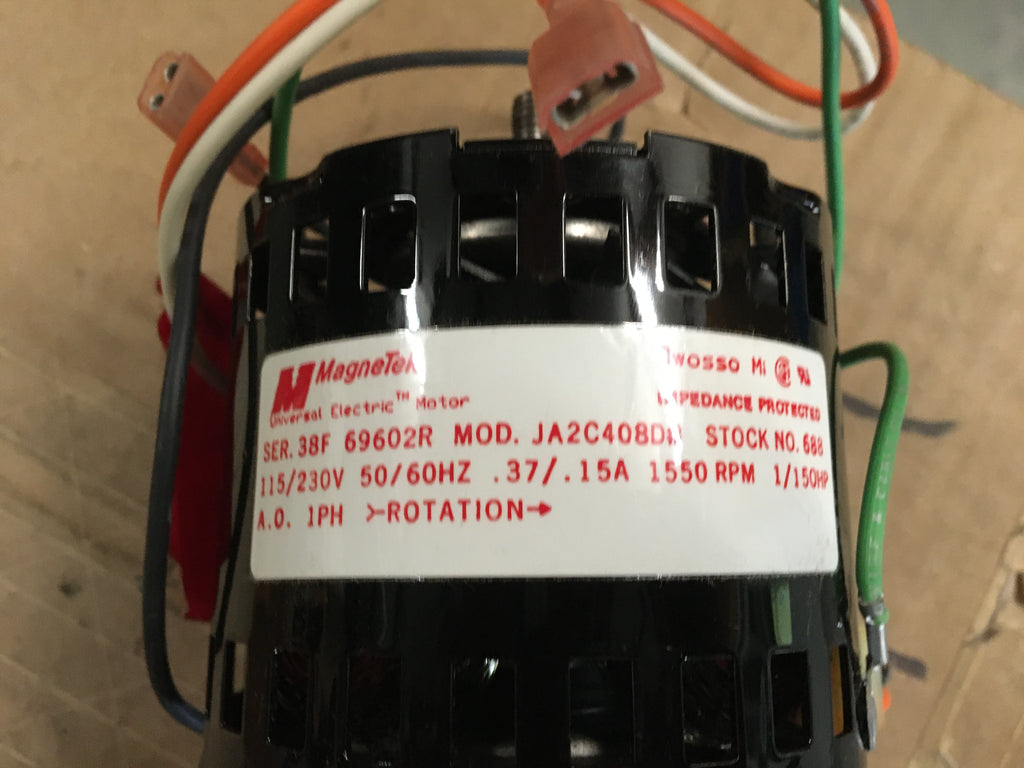

New Magnetek 1/150 HP Blower Motor, Stock # 688 Model # JA2C408D NSN:6105-00-032-0361

Regular price $59.99

Alternating Current Motor

NSN: 6105-00-032-0361 | Model: JA2C004D
ITAR Registered seal

A motor which is designed for operation from an alternating current source. See also motor, control.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Overall Height
3.500 inches
Overall Length
4.000 inches
Overall Width
3.500 inches
Thread Length
0.5938 inches single end
Shaft Diameter
0.2500 inches single end
Flatted Portion Length
0.2500 inches single end
Flat Depth
0.1250 inches single end
Shaft Rotation Direction
Clockwise single end
Duty Cycle
Inclosure Feature
Drip proof PROTECTED-15 deg
Winding Type
Induction-shaded pole
Mounting Method
Mounting Facility Type And Quantity
2 threaded stud
Cooling Method
Fan cooled
Flat Center To Shaft End Distance
0.7500 inches single end
Current Rating Method
Inclosure Specificationification
Features Provided
Thermal protective device and horizontal mounting position and vertical mounting position
Thread Size
0.250 inches single end
Length Of Shaft From Housing
1.000 inches single end
Mounting Facility Circle Diameter
2.875 inches
Rotor Speed Rating In Rpm
1550.0 single full load
Current Rating In Amps
0.370 single input
Connection Type And Voltage Rating In Volts
115.0 line to neutral single input
Shaft End Characteristic
A2 first style single end and A6 second style single end
Single input
Frequency In Hertz
50.0 input or 60.0 input
Thread Series Designator
Unc single end
Terminal Type And Quantity
2 wire lead
