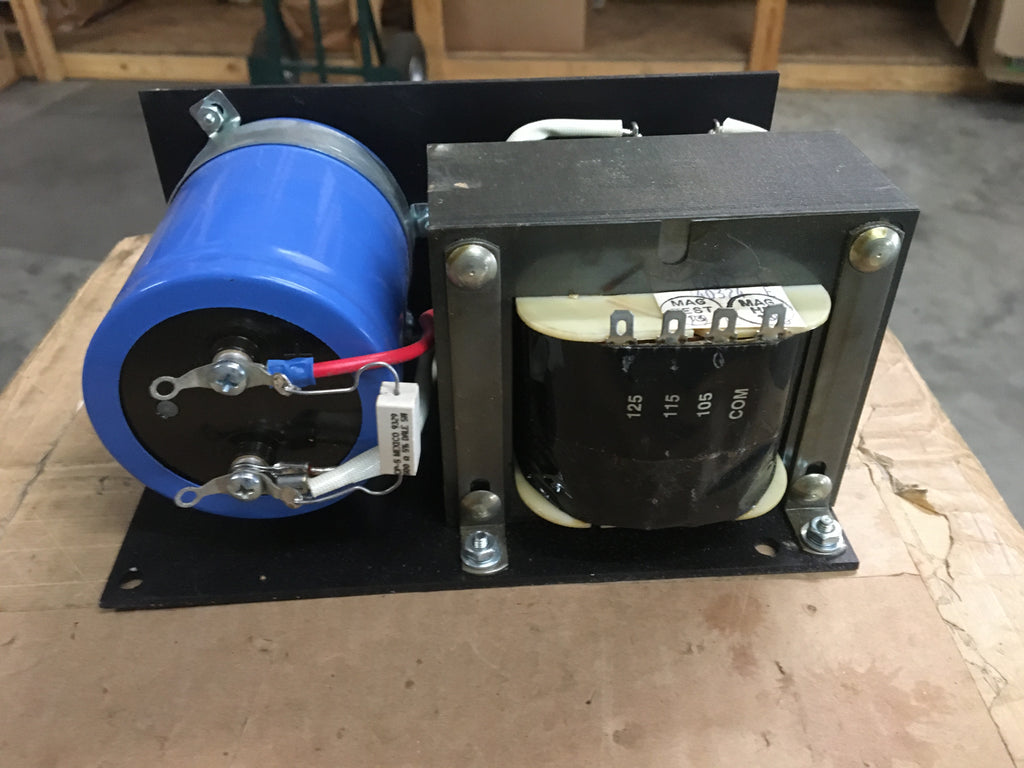

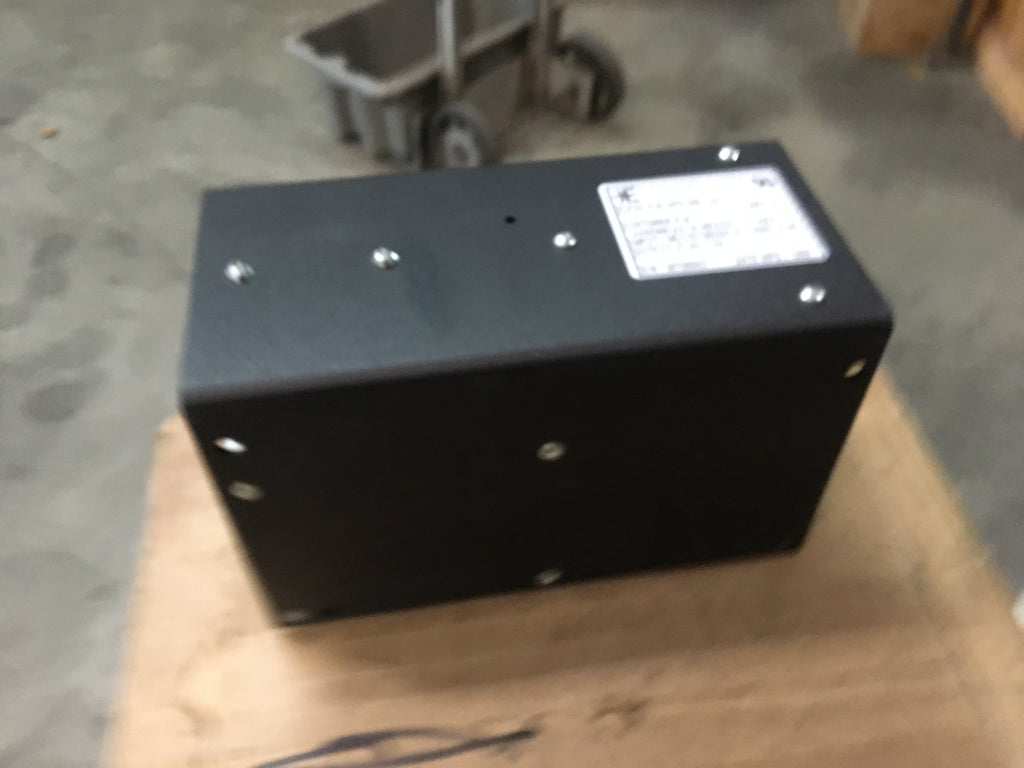

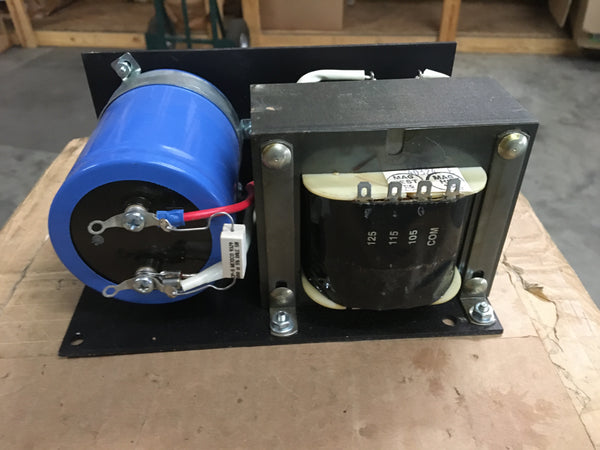

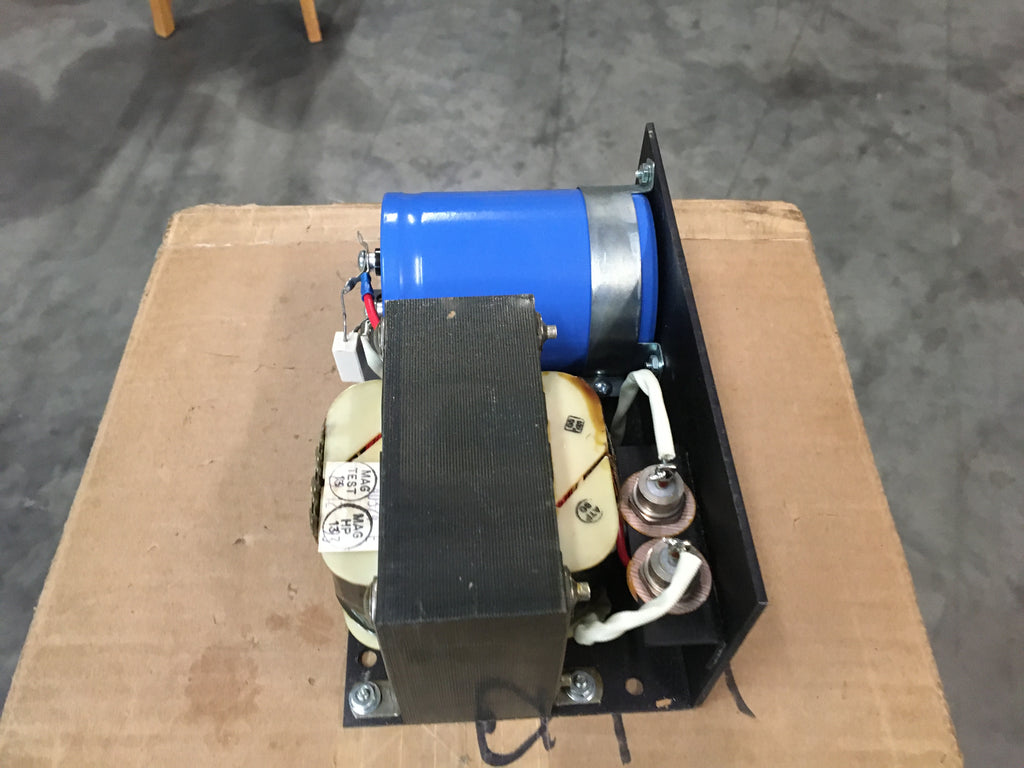

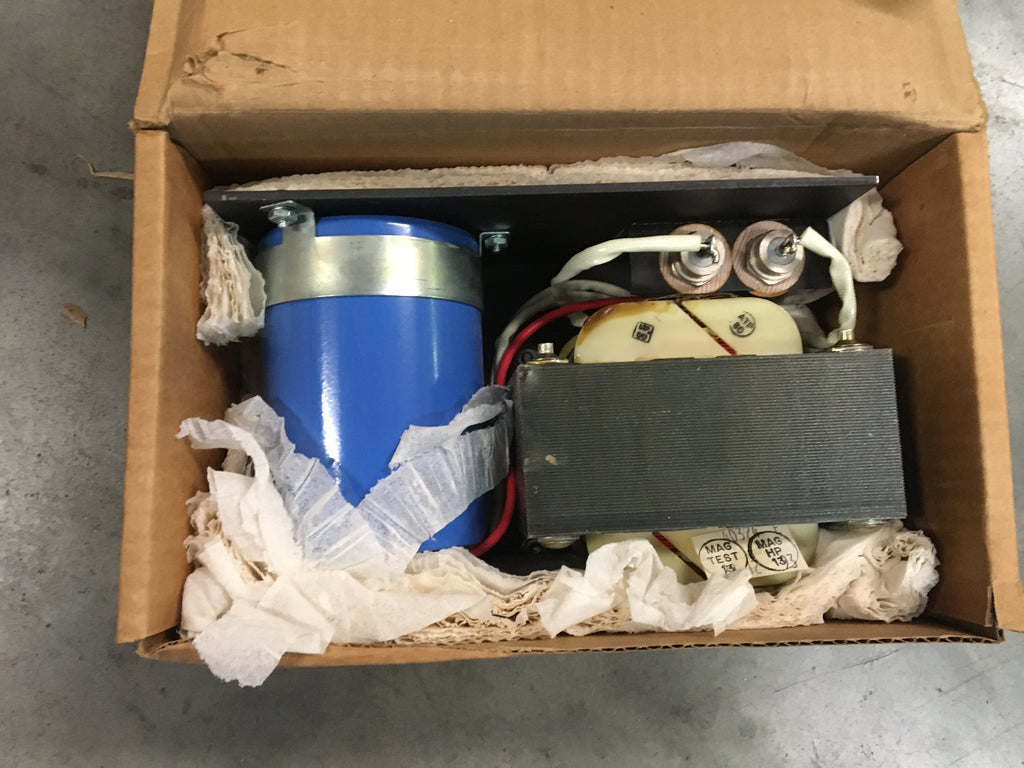

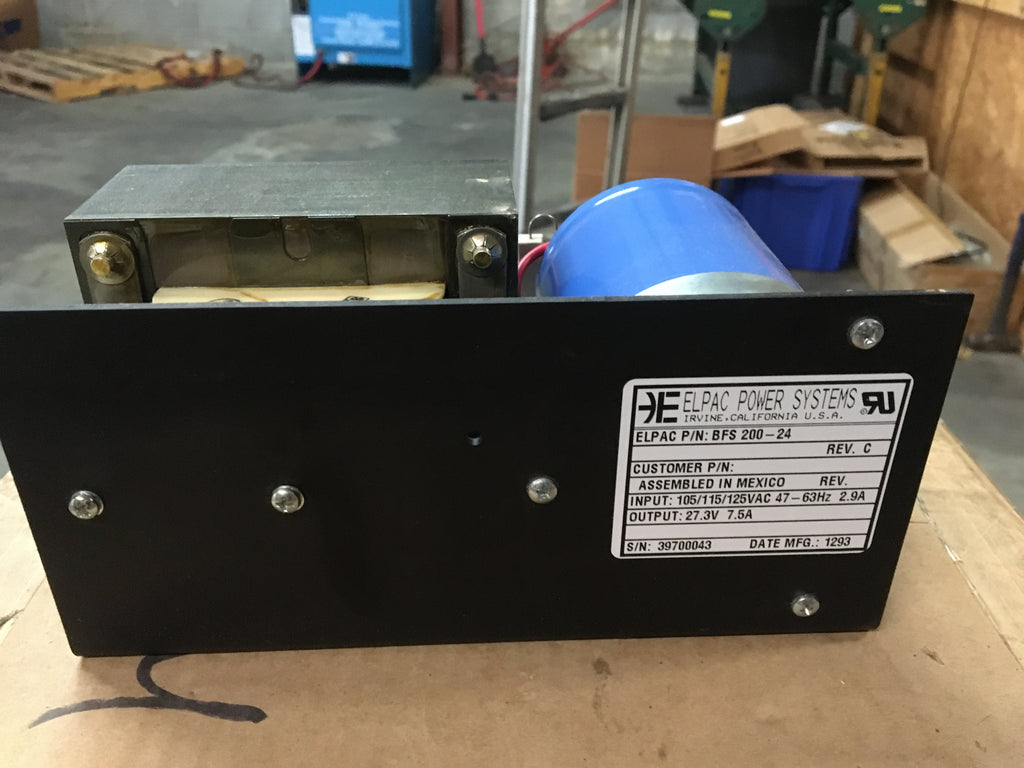

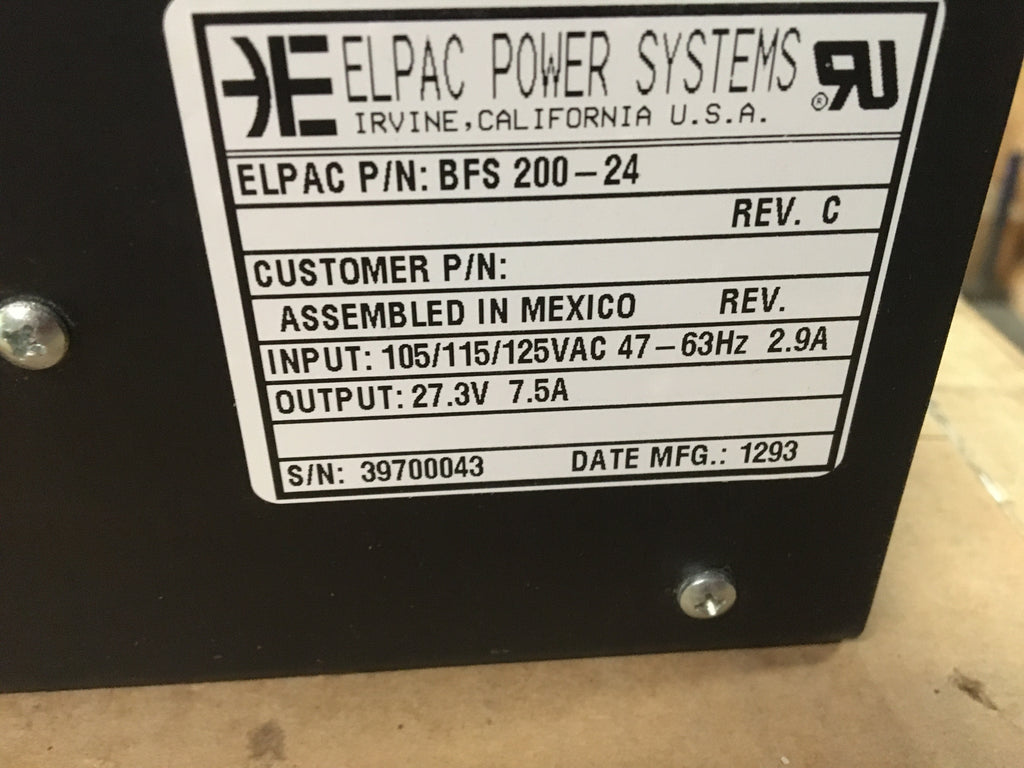

NEW!! Elpac Power Supply BFS200-24, 27.3V, 7.5AMP, 105/115/125VAC, NSN:6130-01-303-4294 Model:13027828

Regular price $99.99

Power Supply

NSN: 6130-01-303-4294 | Model: 13027828
ITAR Registered seal

A component which converts available alternating current or direct current electrical power into a form required to operate another component or set. The item may consist of a combination of an invertor, vibrator; vibrator, interrupter; vibrator, self-rectifying; invertor, power, static; with a transformer and rectifier (s) employing electron tubes, semiconductor diode or metallic (dry disc) type components, or the synchronized secondary contact(s) of a vibrator, self-rectifying; or may consist of electron tubes, semiconductor diode or metallic (dry disc) type rectifiers and capacitors in transformerless (alternating current-direct current type) circuits which may be of the voltage-multiplier type. The item may incorporate a filter, direct current power and provisions for regulation of input and/or output voltage. The item may have special input, output, control or other facilities for applications in specialized environments such as medical, dental or other operations. Excludes battery chargers and rotating machinery types of items, such as motor generators and dynamotors.

NSN Properties and Flags
NATO Stock Number
6130-01-303-4294
DEMIL
Yes - ITAR Controlled

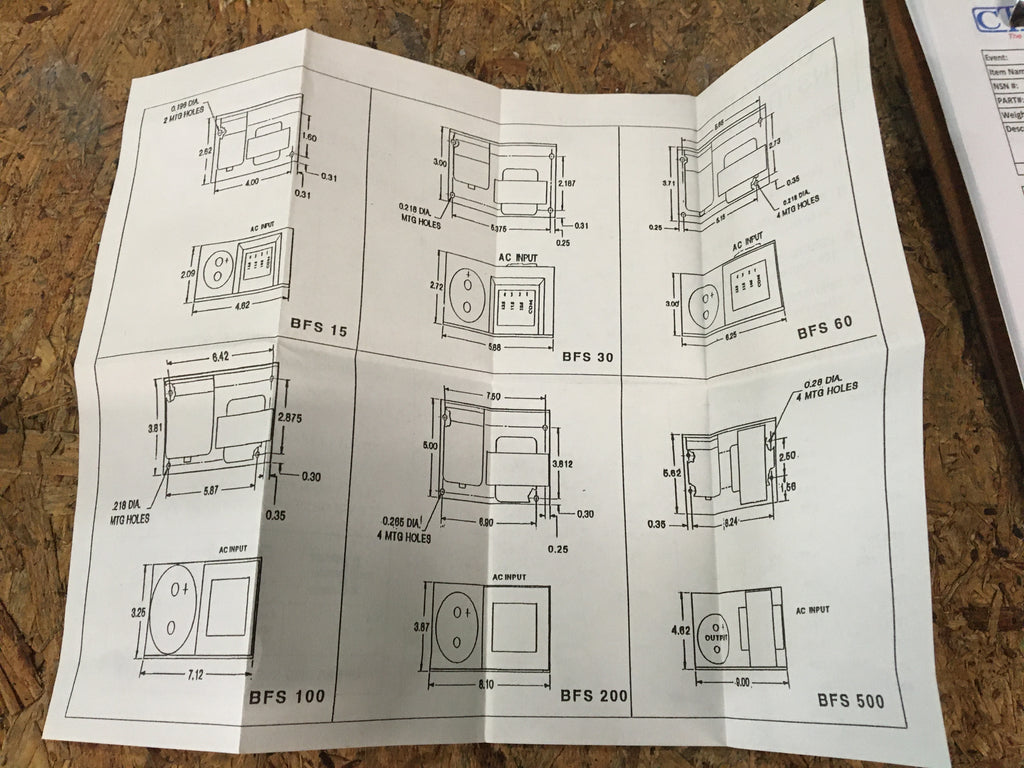

Overall Length
8.100 inches
Overall Height
3.870 inches
Overall Width
5.000 inches
Electrical Power Source Relationship
Operating
Input Phase
Single single operating power rqmt
Input Voltage Rating
105.0 ac pounds per hour dry single operating power rqmt and 125.0 ac pounds per hour with retaining chain single operating power rqmt
Output Voltage Rating
24.0 dc volts single power output
Input Frequency Rating
47.0 hertz single operating power rqmt and 440.0 hertz single operating power rqmt
Operating Ambient Tempurature Range
+0.1/+55.0 degrees celsius
Output Control Quantity
1 single power output
Output Control Type
Fixed voltage single power output
Output Current Rating
7.5 dc amperes single power output
Output Connection Quantity
2 single power output
Output Connection Type
Solder lug single power output
