Naval Ship Systems Command

Naval Ship Systems Command 2588375-1 Air Duct Hose NSN:4720-01-119-3788

Regular price $37.99

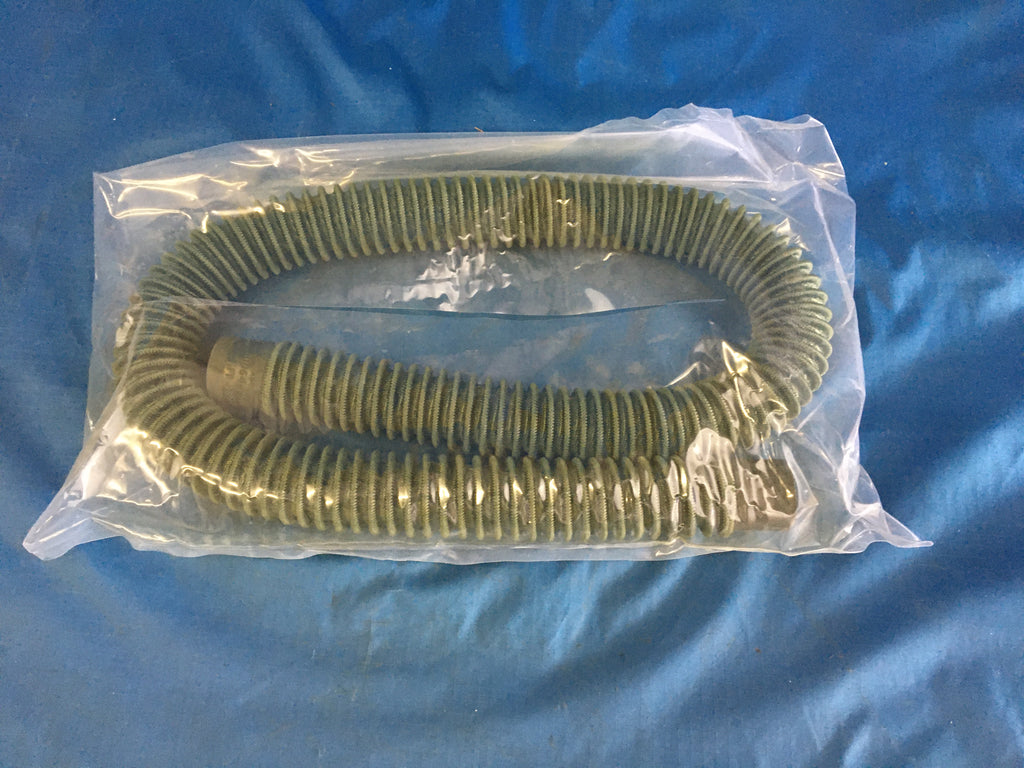

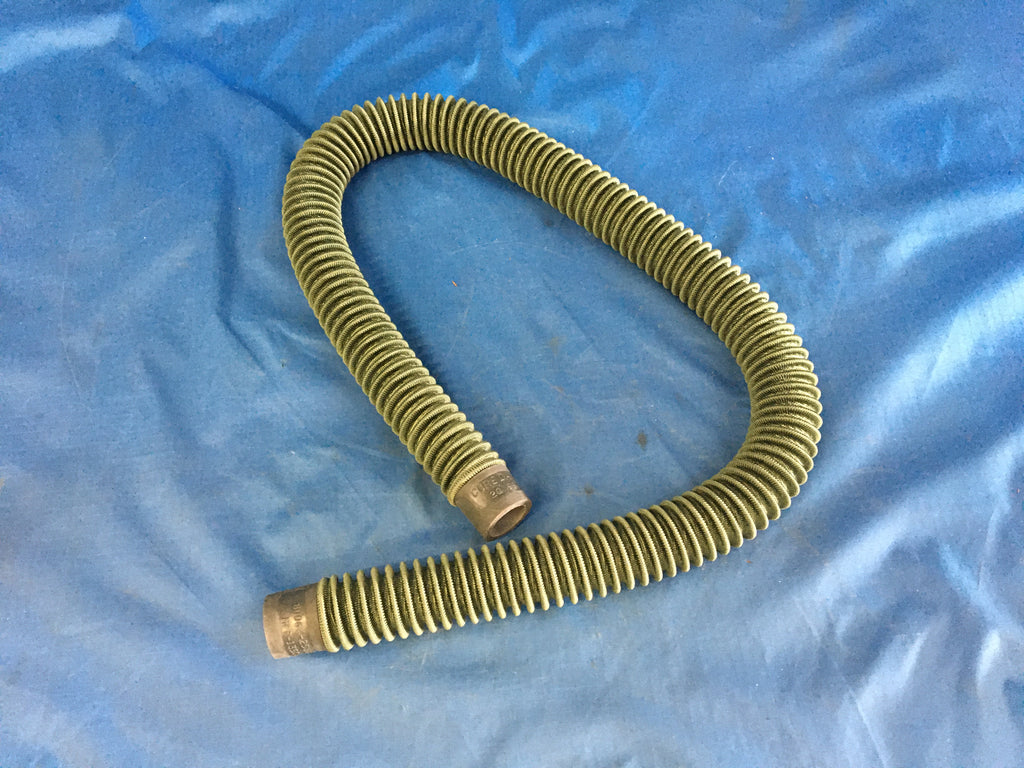

Air Duct Hose

NSN: 4720-01-119-3788 | Model: 2588375-1
ITAR Registered seal

A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see hose assembly, air duct. For items of sleeve section design rated for high pressure use, see sleeve, seal, coupling. Excludes hose, nonmetallic.

NSN Properties and Flags
NATO Stock Number
Cross Sectional Shape
Wall Thickness
0.219 inches
Inside Diameter
0.906 inches first end
0.880 inches both ends
Connection Style
Round both ends
Hose Weight
5.000 ounces per linear foot
Connection Type
Preformed both ends
Features Provided
Ozone resistant

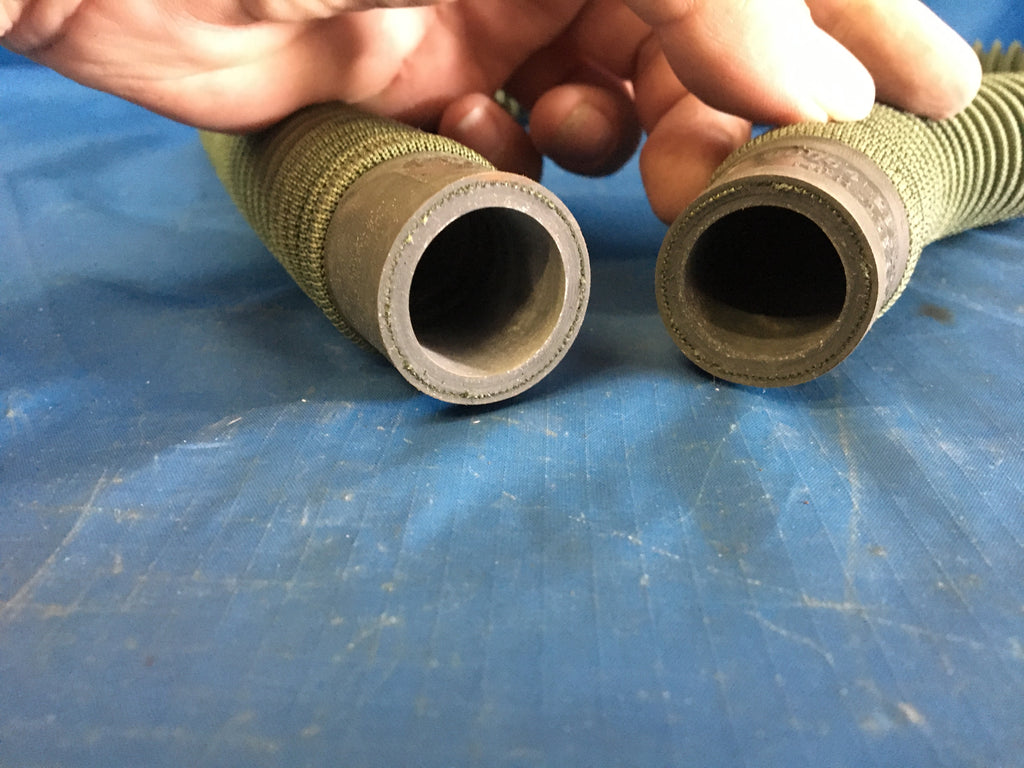

End Inside Diameter
0.906 inches both ends
Maximum Operating Pressure
4.0 pounds per square inch
Measuring Method And Length
36.000 inches
Steel reinforcing wire
Style Designator
Helically wound continous wire supported
Test Data Document
81349-mil-h-14506e specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
