U.S Army Tank Automotive Command 12412065 Mounting Plate NSN:5340-01-374-2145

Please fill out the form below for a price quote and availability on this item.

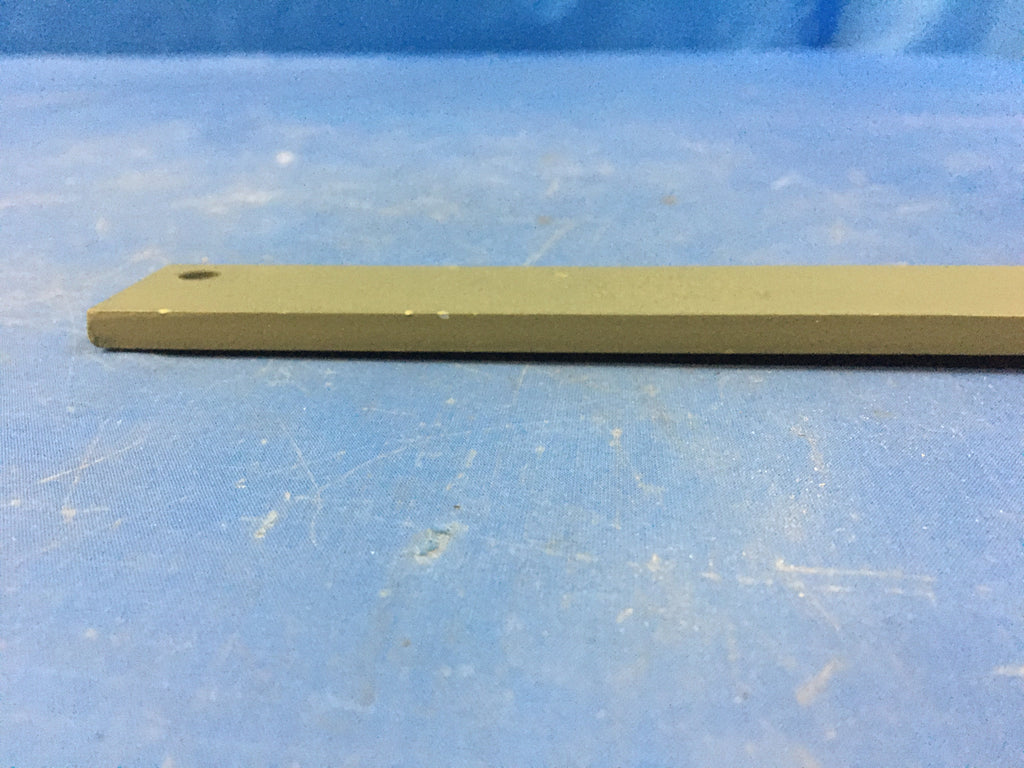

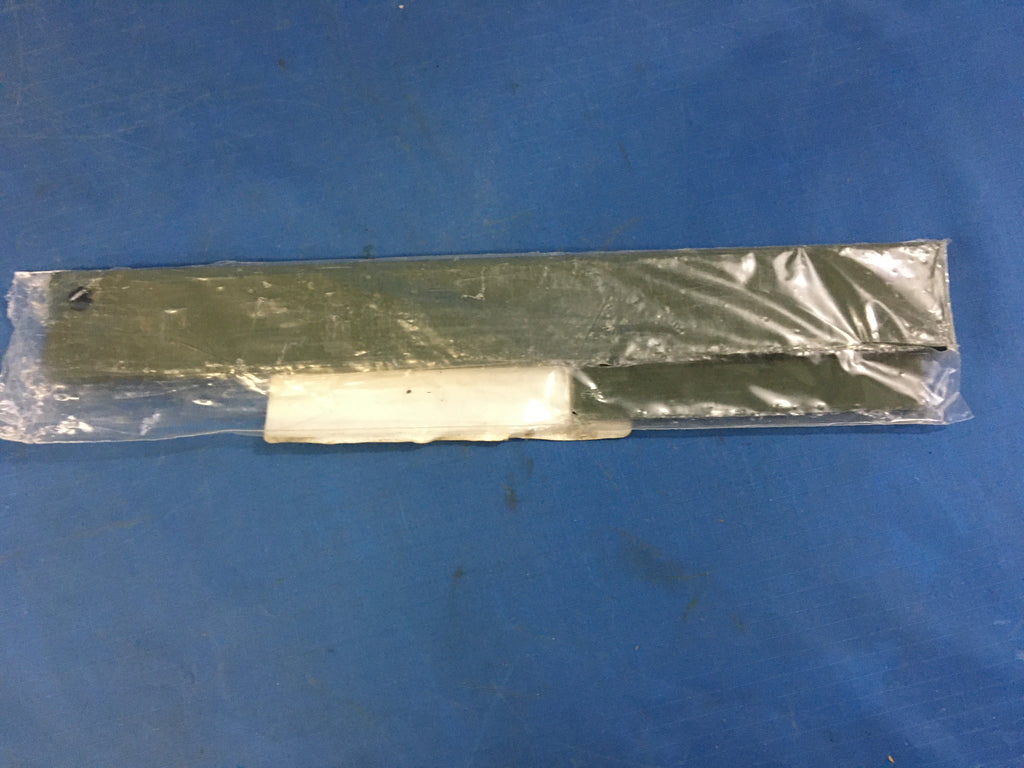

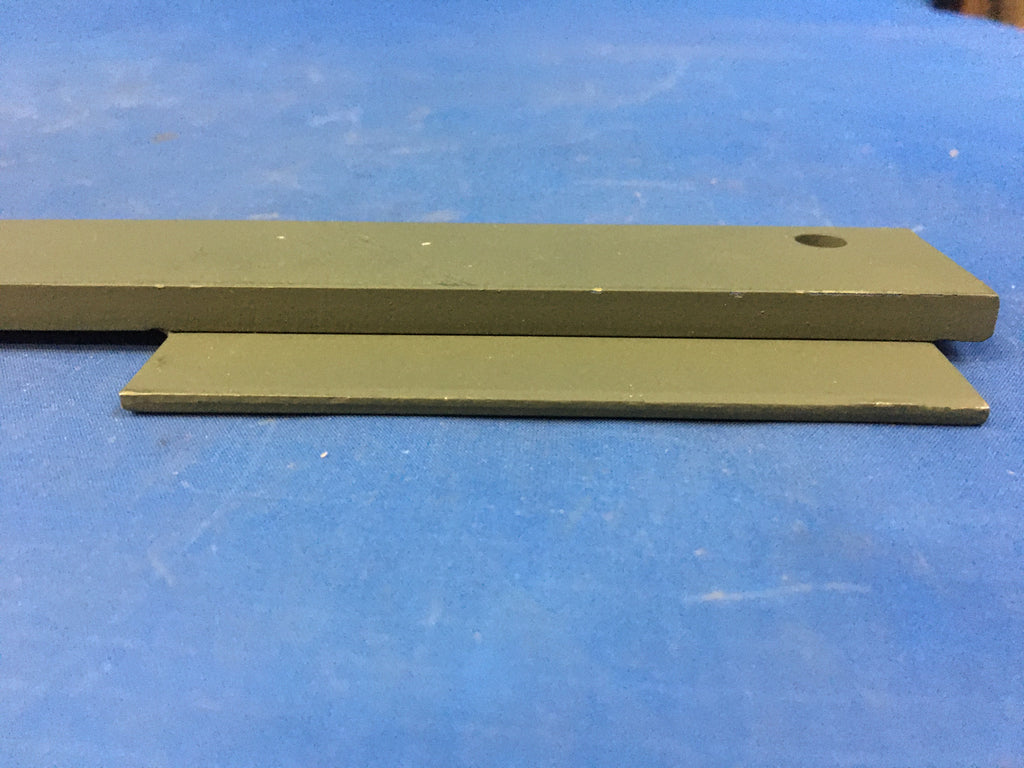

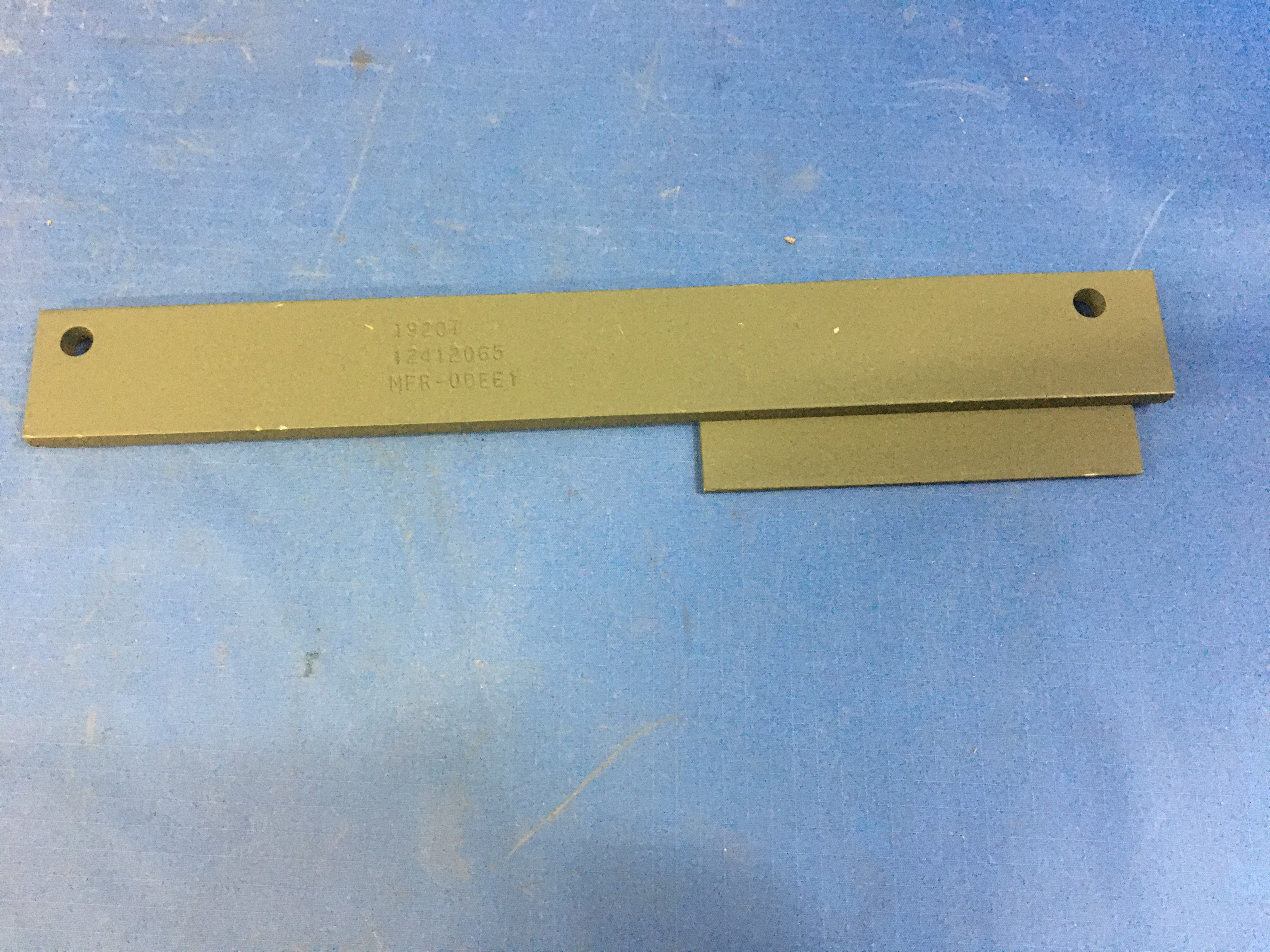

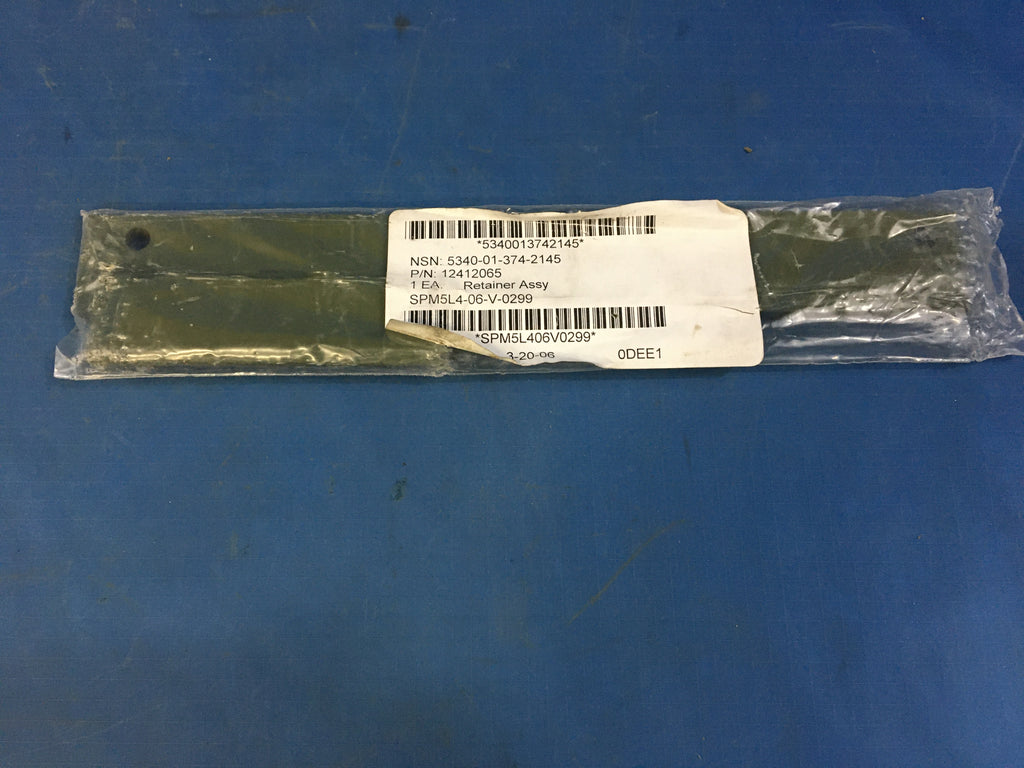

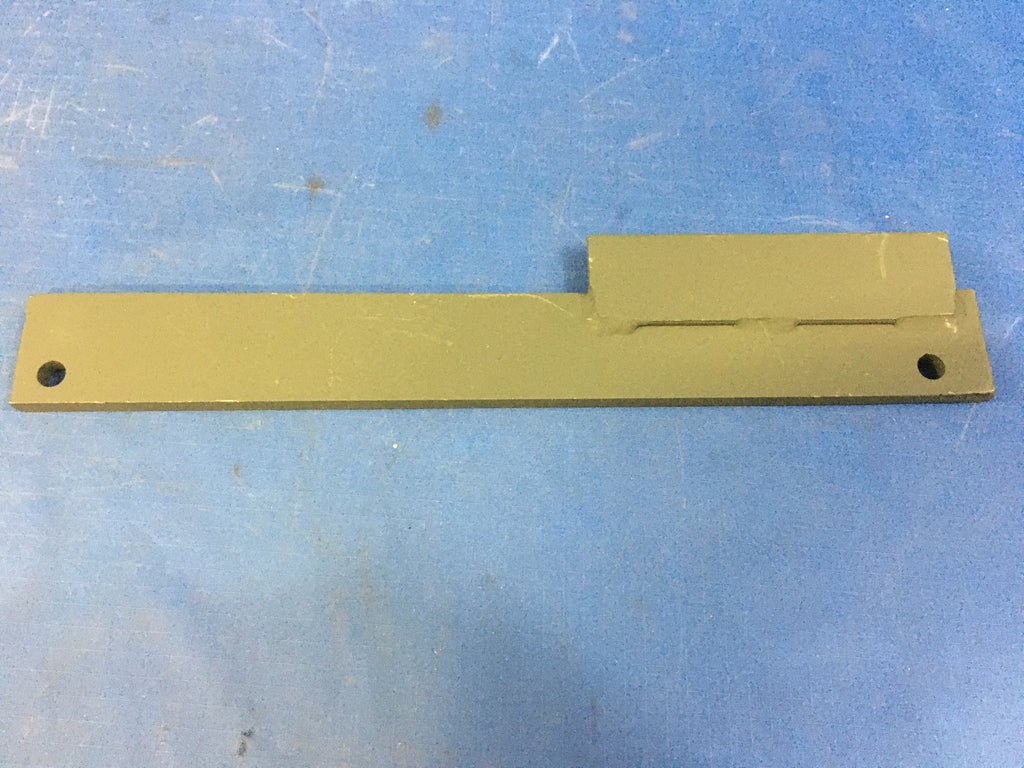

Mounting Plate

NSN: 5340-01-374-2145 | Model: 12412065
ITAR Registered seal

A metallic or nonmetallic item which is rigid, flat and generally smooth. Its thickness is small in comparison to its length and width. It is designed for mounting another item and may have drilled or threaded holes or other facilities for mounting to a supporting object or surface. See support, as modified. Do not use if a more specific name applies.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
1.190 inches
0.250 inches
9.750 inches
Mounting Hole Diameter
0.276 inches all holes and 0.286 inches all holes
Mounting Hole Quantity
Mounting Hole Type
Mounting Configuration
Ctr 8.750" apart, 0.310" fm one edge along lg, 0.620" fm one end
Features Provided
Raised surface
Raised Surface Length
3.750 inches
Raised Surface Width
1.000 inches
Raised Surface Height
0.1196 inches
Special Features
Tt-c-490 and primer b4 coat per mil-c-46168 or -53039, color green 383; raised surf 0.250" fm one end, ext 0.625" one side
Steel or steel uns k02600
Material Specification
Astm a366 assn standard 1st material response or astm a569 assn standard 2nd material response or astm a108 assn standard 3rd material response or astm a36 assn standard 4th material response
Surface Treatment

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
