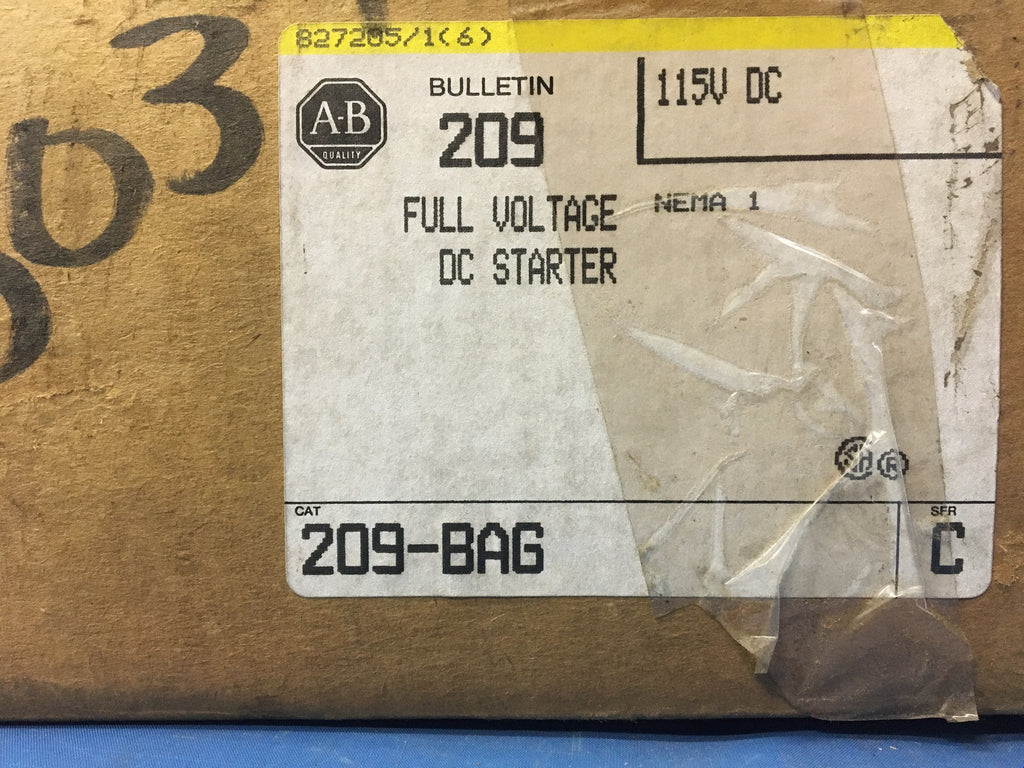

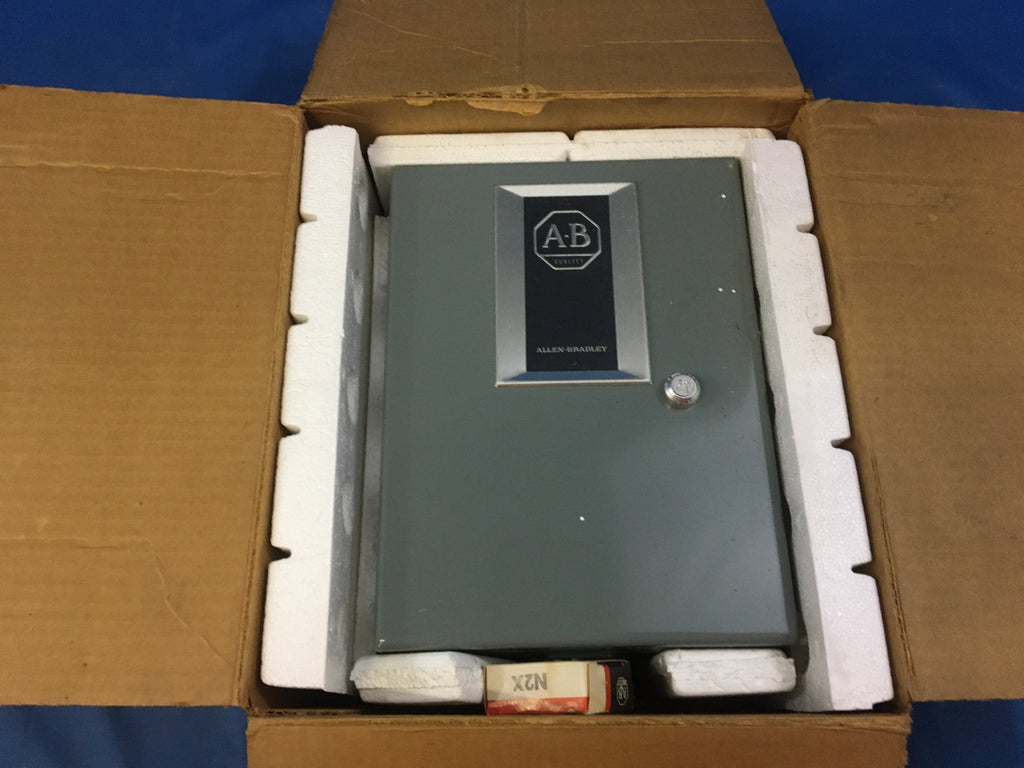

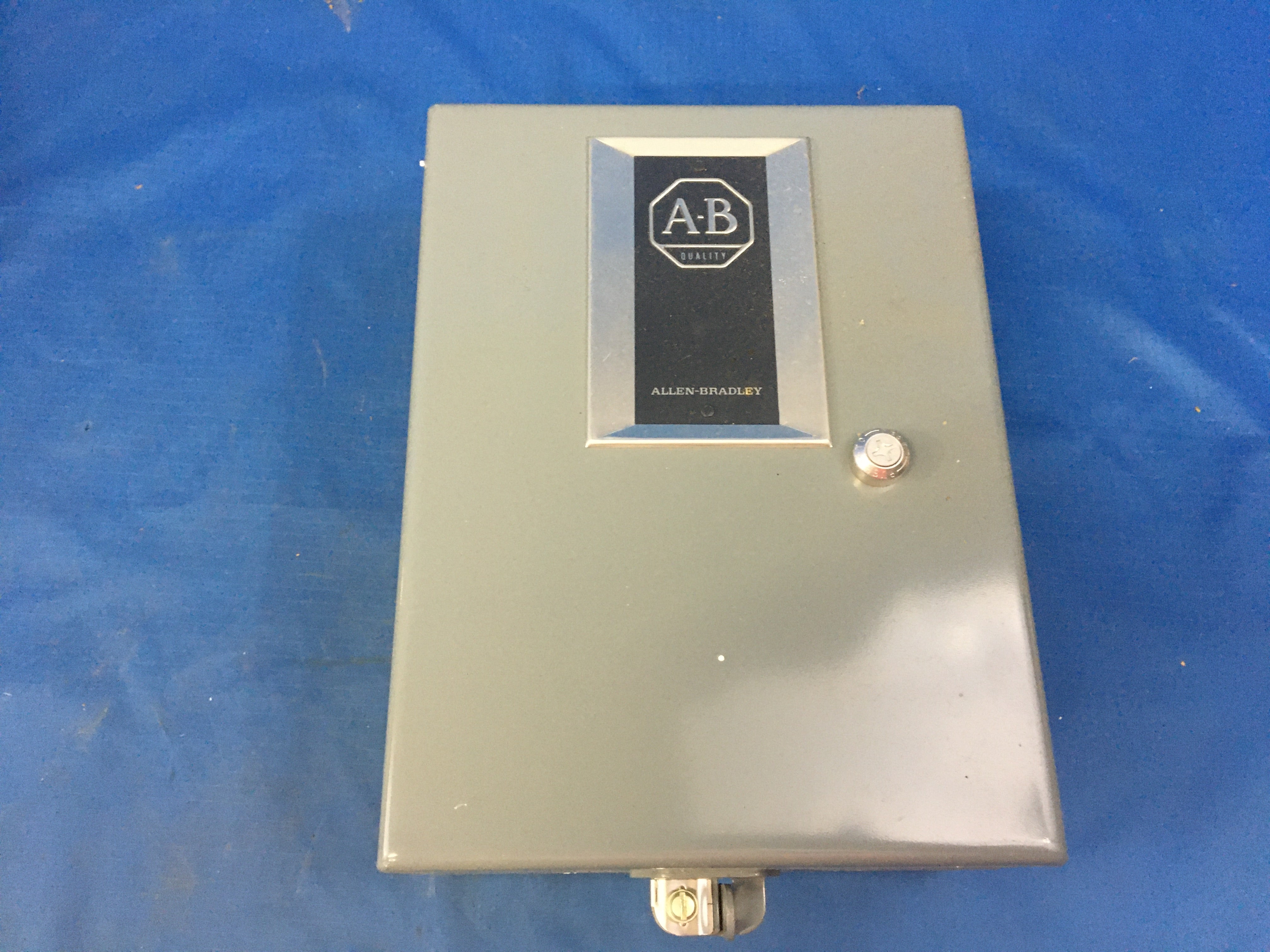

Allen-Bradley 209-BAG-N2X Full Voltage DC Starter 115VDC NSN:6110-01-126-5034

Please fill out the form below for a price quote and availability on this item.

Motor Starter

NSN: 6110-01-126-5034 | Model: 209-BAG-N2X
ITAR Registered seal

A device primarily designed to control the supply circui (s) of a motor in order to accelerate the motor from rest to normal speed. Includes manual starters with overload protection and manual, automatic or semiautomatic starters consisting of combinations of items such as relays, resistors, switches, circuit breakers, etc. Excludes relay-switch; circuit breaker; switch (as modified) and relay (as modified). For devices, which in addition to starting and stopping, reverse, select and/or regulate the speed of a motor, see controller (as modified) .

NSN Properties and Flags
NATO Stock Number
6110-01-126-5034
DEMIL
Yes - ITAR Controlled
Speed Adjustments
0 to full speed
Hazardous Locations/environmental Protection
General purpose-nema type 1
Overall Length
4.625 inches
Overall Height
10.000 inches
Overall Width
6.812 inches
Actuation Method
Magnetic
Performance Type
Automatic and manual
Duty Cycle
Continuous

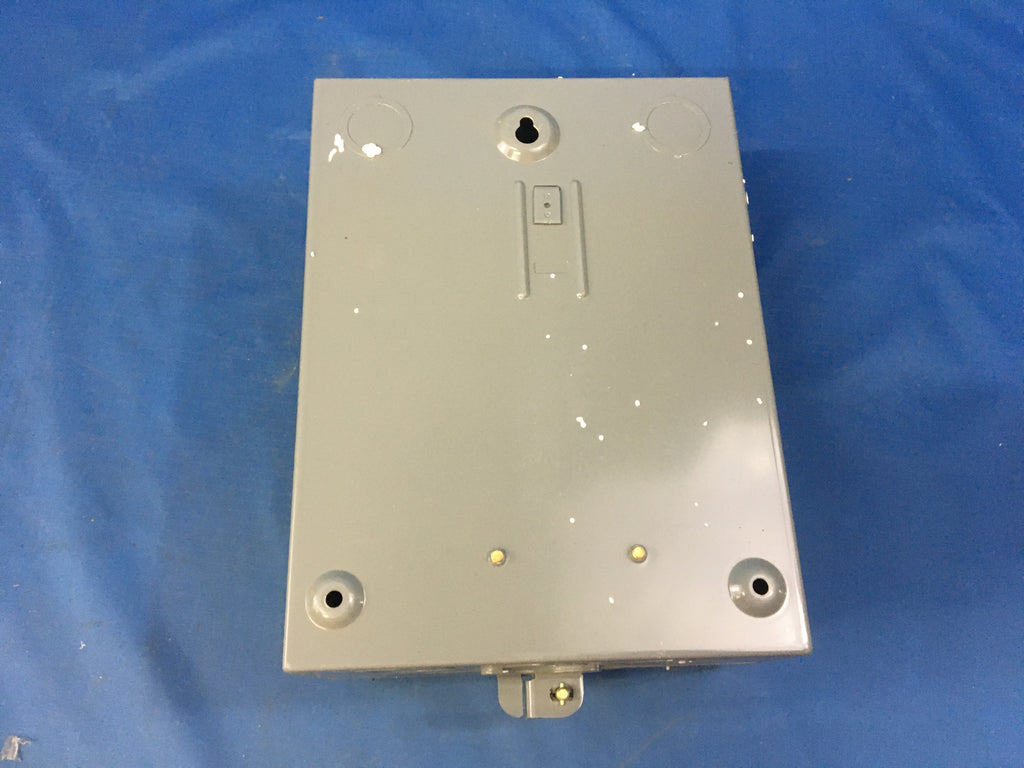

Mounting Configuration
Four mtg holes on 7-1/4 in. By 5-1/2 in. Mtg ctr
Operating Voltage Characteristic
Full
Horsepower Rating
1.500
Actuator Voltage
115.0 dc
Load Protection Type
Overload
Inclosure Feature
General purpose
National Electrical Manufacturers Association Standards Design
Not designed per nema std
Switch Functional Positions
Reset
Control Type
Local
Features Provided
Accessory location external



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
