Hunter DC Motor for M9 Ace Excavator 7.5A 24VDC 4100RPM NSN:6105-01-211-6635 P/N:12342810000-060

Hunter Manufacturing

Translation missing: en.products.product.out_of_stock_msg

Please fill out the form below for a price quote and availability on this item.


Direct Current Motor

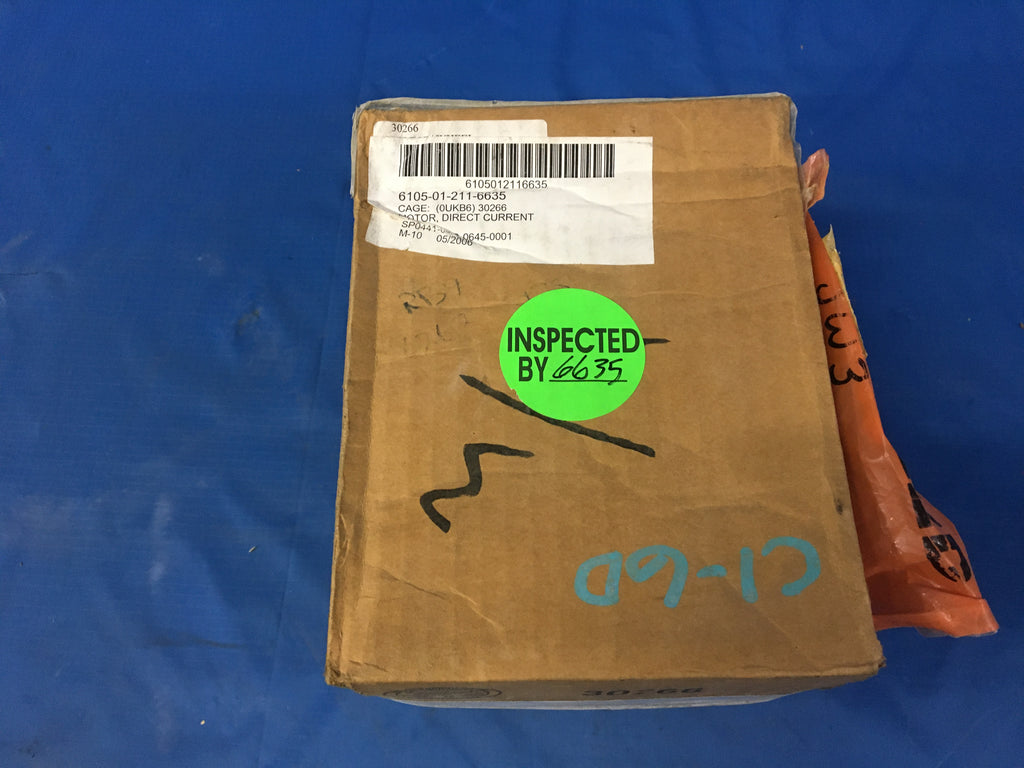

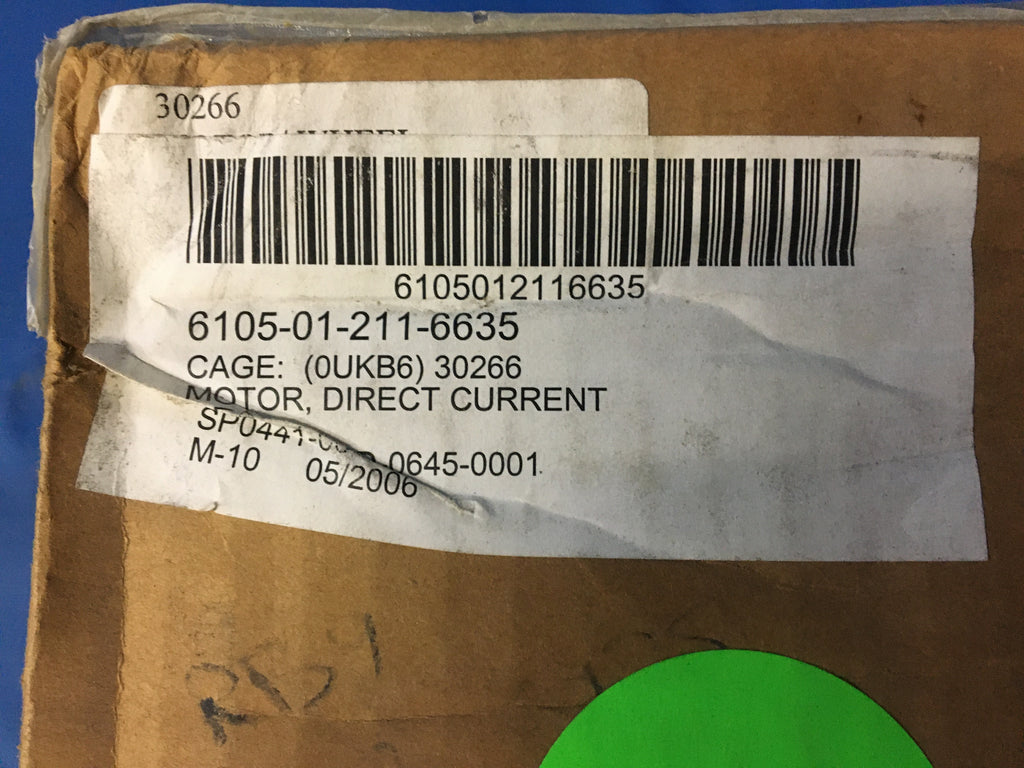

NSN:6105-01-211-6635  Model:30266  P/N:12342810000-060
ITAR Registered seal

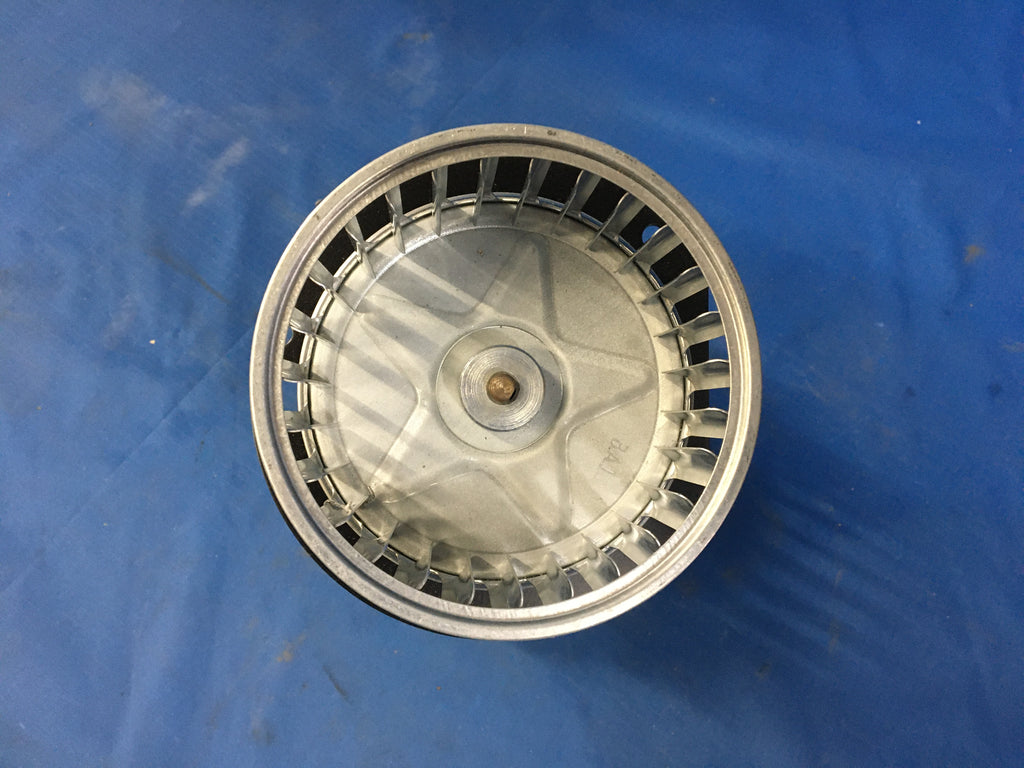

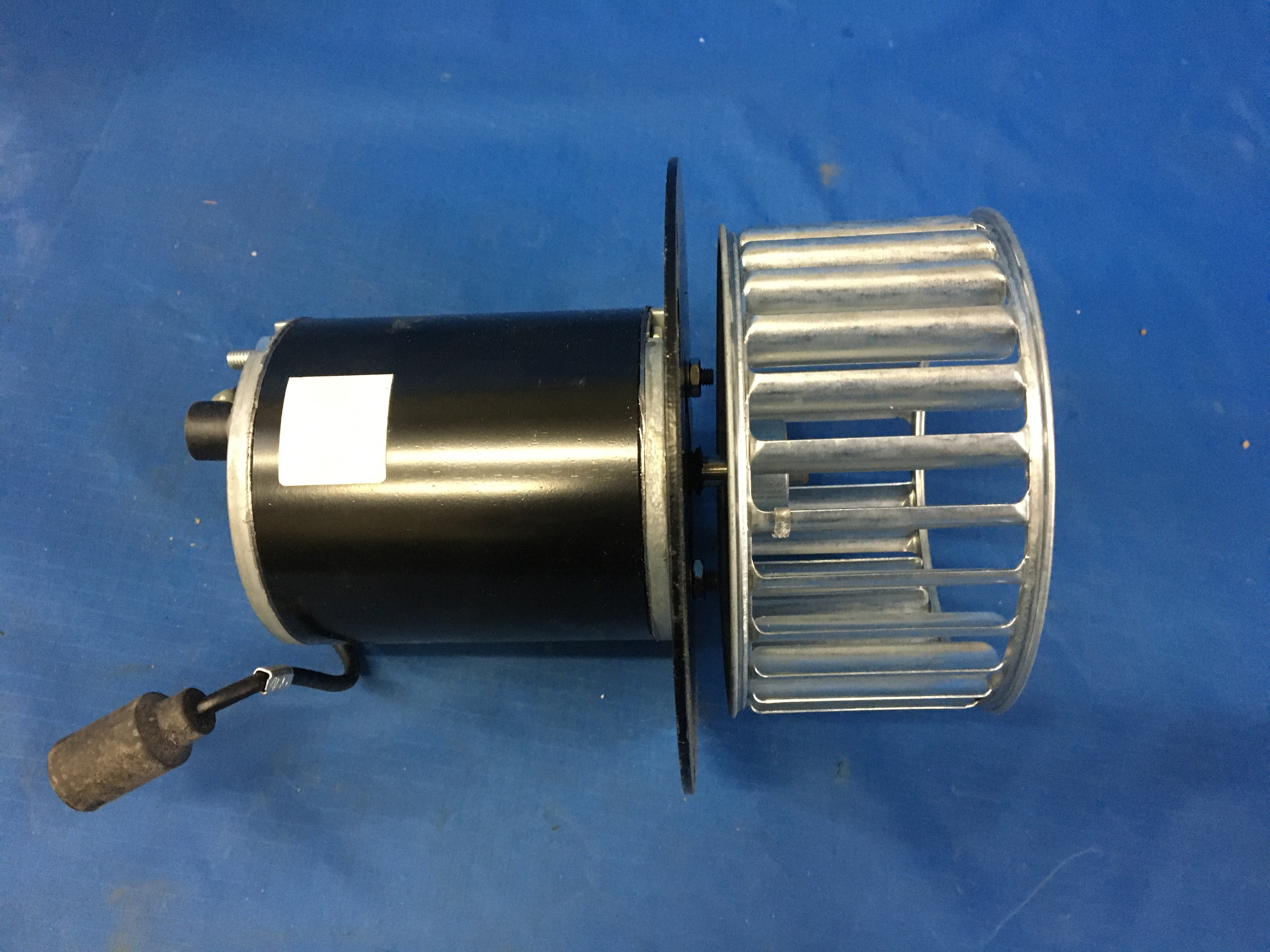

This is a brand new DC motor from military surplus. This is both the motor and fan cage (squirrel cage) as pictured. This is a 7.5A 24V fan operating at 4100rpm with 40 inch-ounces of torque. Theses fans were originally purchased by the military at nearly $300 each, with an end-use ID intended for the M9 ACE Armored Excavator / Earthmover. Being manufactured for heavy military equipment, they are nearly indestructible solid heavy-duty fans that can be used in a wide variety of heavy use applications.

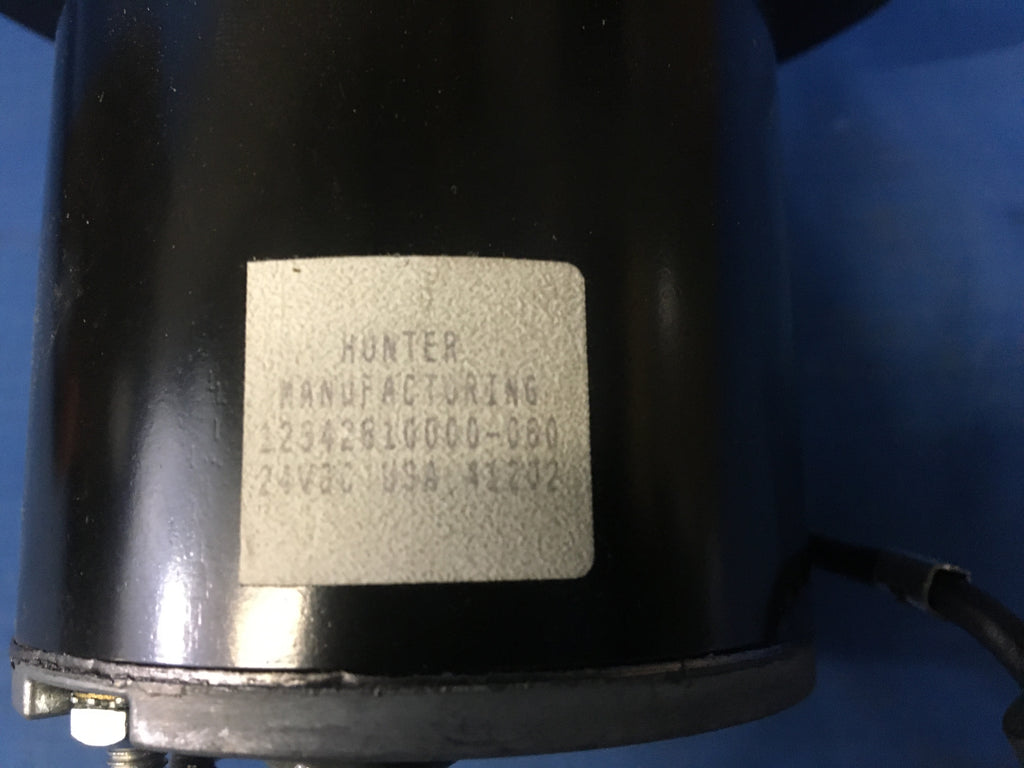

The part number of this fan assembly is Hunter 12342810000-60. Cross reference part number is HDT Expeditionary Systems 30222. The military NSN is 6105013867915


According to the military tags these fan motor enclosures are waterproof.

Technical Data | NSN 6105-01-386-7915

6105-01-386-7915 Features

MRC Parameter Characteristics
AAJT Overall Height   3.060 inches
AAJU III Overall Length   6.120 inches
AAJV Overall Width   3.060 inches
AKPS Duty Cycle   Continuous
ANPZ Inclosure Feature   Waterproof
BFMF Cooling Method
  Fan cooled
BKPB Current Rating Method   LOAD
BKPH Torque Rating and Type   40.0 inch-ounces running
CWCS Length of Shaft from Housing   0.950 inches single end
CWDY Temp Rating   -25.0 ambient deg celsius and 185.0 ambient deg fahrenheit
CWFX Rotor Speed Rating in RPM   4100.0 single full load
CWGL Current Rating in Amps   7.500 single input
CWGQ Connection Type and Voltage Rating in Volts   28.0 line to neutral single input

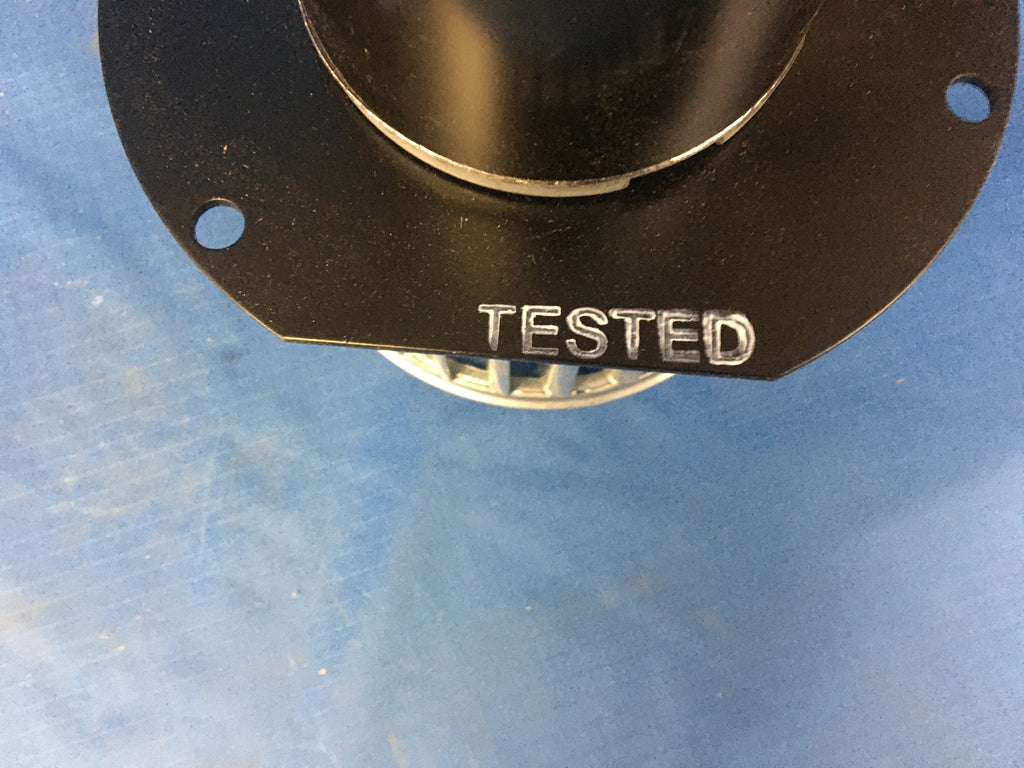

This is fully guaranteed to be functional and in new condition as pictured upon receipt.

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
