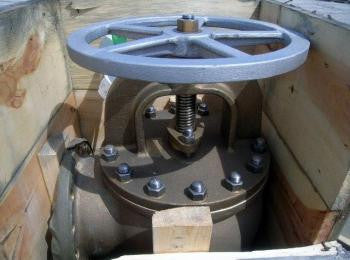

Milwaukee Valve Co. 8" Manual Stop Check Valve NSN:4820-00-184-9182 P/N:1024C001J
Regular price
$2,895.00
Milwaukee Valve Co. 8" Manual Stop Check Valve-A valve with a bolt or stem that may be mechanically actuated to two different positions by rotary or linear motion. in the first position, the valve disk is located and locked against the seat permitting no fluid flow through the valve. in the second position, one side of the valve disk is located against the seat permitting movement of the disk in a manner that will allow a flow of fluid in one direction through the valve. the valve disk may be spring loaded. it may be inline or cartridge (manifold) design. see also valve (1), lift-check and valve (1), stop-lift-check.
| Bolt Circle Nominal Diameter: | 11.062 inches all ends |
| Bolt Hole Quantity: | 14 all ends |
| Bonnet Attachment Method: | Bolted |
| Bonnet Type: | Outside screw-yoke |
| Bolt Hole Nominal Diameter: | 0.687 inches all ends |
| Connection Type: | Flange all ends |
| First Connection Face To Centerline Distance: | 9.750 inches |
| Flange Face Design: | Plain all ends |
| Flange Shape: | Round with holes 1st end |
| Flow Control Device: | Disk |
| Material Document And Classification: | Qq-c-390, alloy d4 fed spec single material response body |
| Material: | Copper alloy 922 body |
| Material: | Nickel alloy r-405 stem |
| Maximum Operating Pressure: | 100.0 pounds per square inch single response |
| Maximum Operating Temp: | 425.0 deg fahrenheit single response |
| Media For Which Designed: | Steam single response |
| Mounting Position: | Vertical |
| Nominal Outside Diameter: | 12.375 inches all ends |
| Nominal Thickness: | 0.625 inches all ends |
| Material Document And Classification: | Mil-n-894. class b-canceled mil spec single material response flow control device |
| Renewable Seat Ring Type: | Threaded |
| Second Connection Face To Centerline Distance: | 9.750 inches |
| Style Designator: | Angle flanged ends |
| Test Data Document: | 03950-882032968 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| Valve Operation Method: | Manual |
| Valve Size: | 8.000 inches |
