micro switch

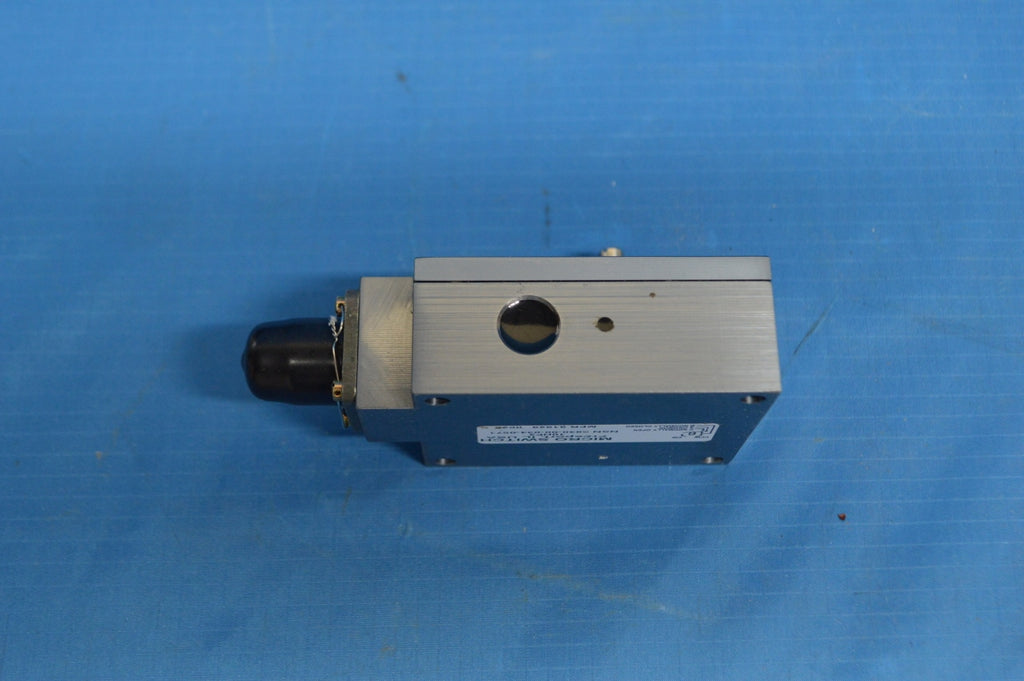

Micro Switch, Switch Sensitive/Circuit Breaker P/N:10HF3 NSN:5930-00-034-0571

Regular price $199.99

Sensitive Switch

SKU: 5930000340571 | Model: 8532047
NSN 5930-00-034-0571NSN 5930-00-034-0571
Description:

3.937" length, 1.984" height, 2.547" width, round actuator style, 0.244" actuator diameter, 0.562" actuator height

Specifications from the Manufacturer

Overall Length:
3.937 inches nominal
Overall Height:
1.984 inches nominal
Overall Width:
2.547 inches nominal
Actuator Style:
Round
Actuator Diameter:
0.244 inches nominal
Actuator Height:
0.562 inches nominal
Actuator Free Position Height:
0.562 inches nominal
Housing Height:
1.125 inches nominal
Housing Length:
2.812 inches nominal
Housing Width:
2.250 inches nominal
Center To Center Distance Between Housing Mounting Facilities Parallel To Length:
2.437 inches nominal
Center To Center Distance Between Housing Mounting Facilities Parallel To Width:
1.875 inches nominal
Maximum Voltage Rating In Volts:
120.0 dc
Inclosure Type:
Fully inclosed
Mounting Method:
Terminal
Nonpile-up Contact Arrangement:
1 pole, double throw, one position momentary single switch unit
Actuator Movement:
10.0 differential degrees maximum
Contact Load Current Rating At Maximum Rated Voltage:
800.000 milliamperes resistive dc
Terminal Type And Quantity:
1 connector, receptacle
