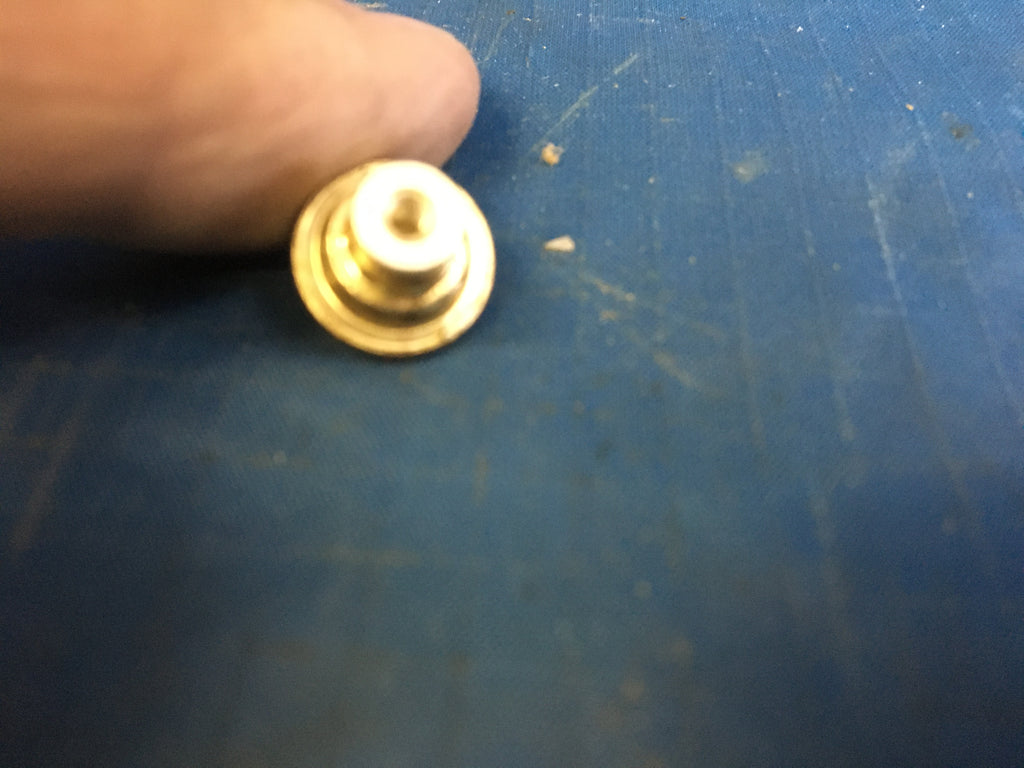

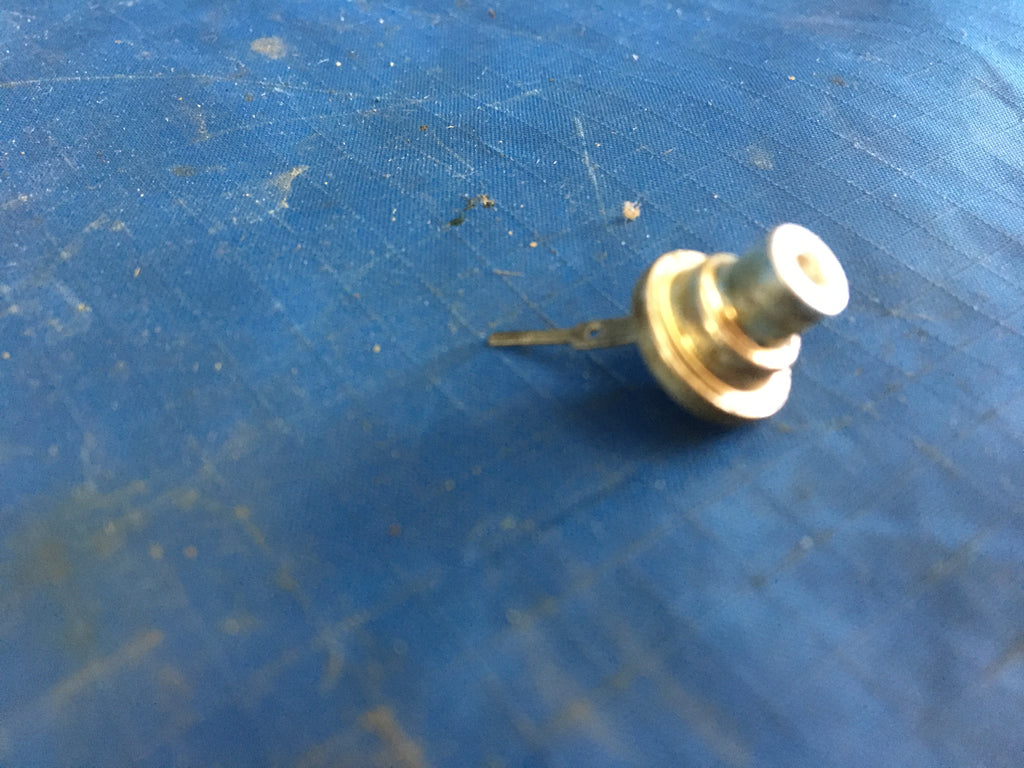

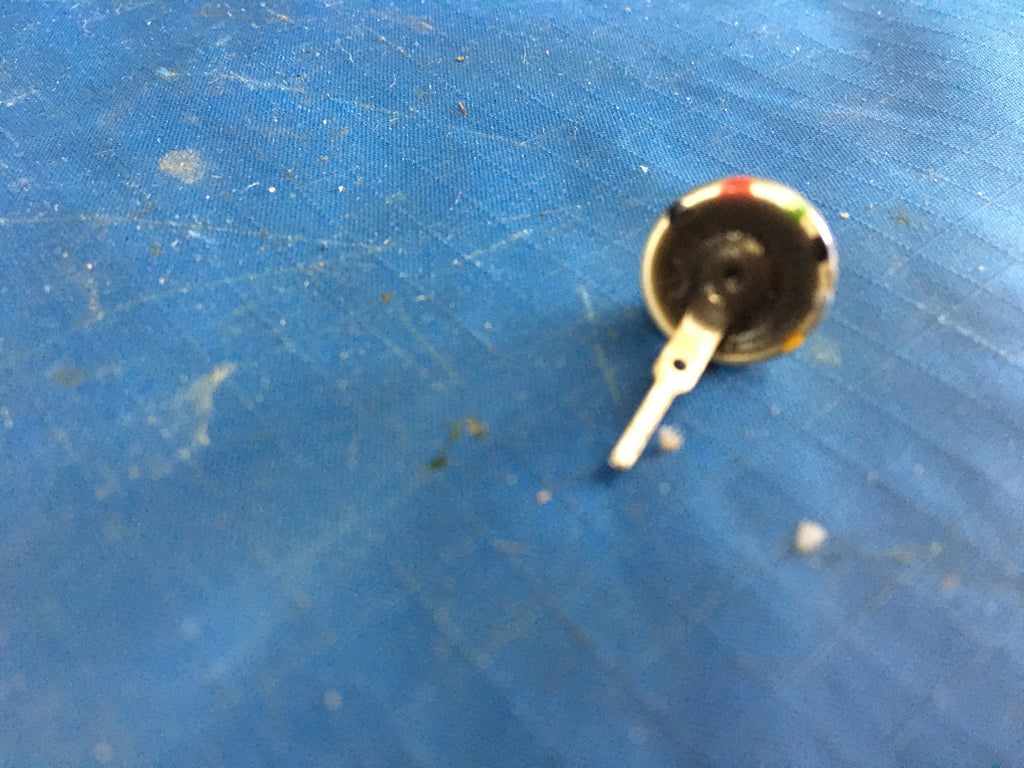

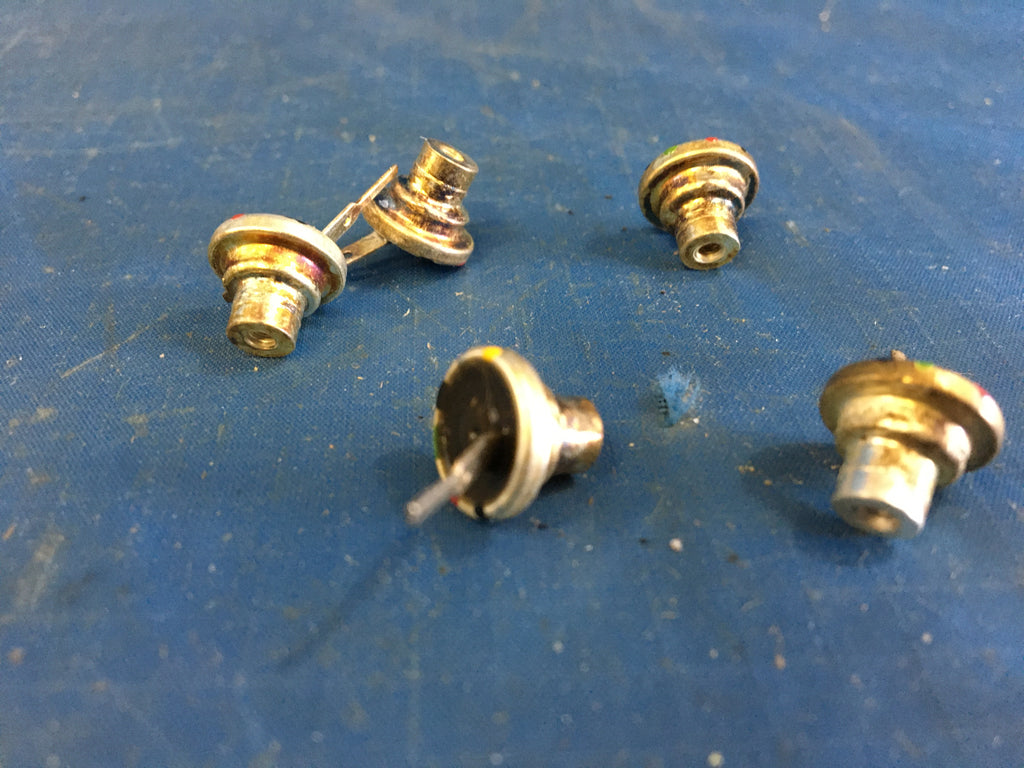

(5) Lucent Technologies 658-0171A4-250K Mica Dielectric Fixed Capacitor NSN:5910-00-183-9118

Please fill out the form below for a price quote and availability on this item.

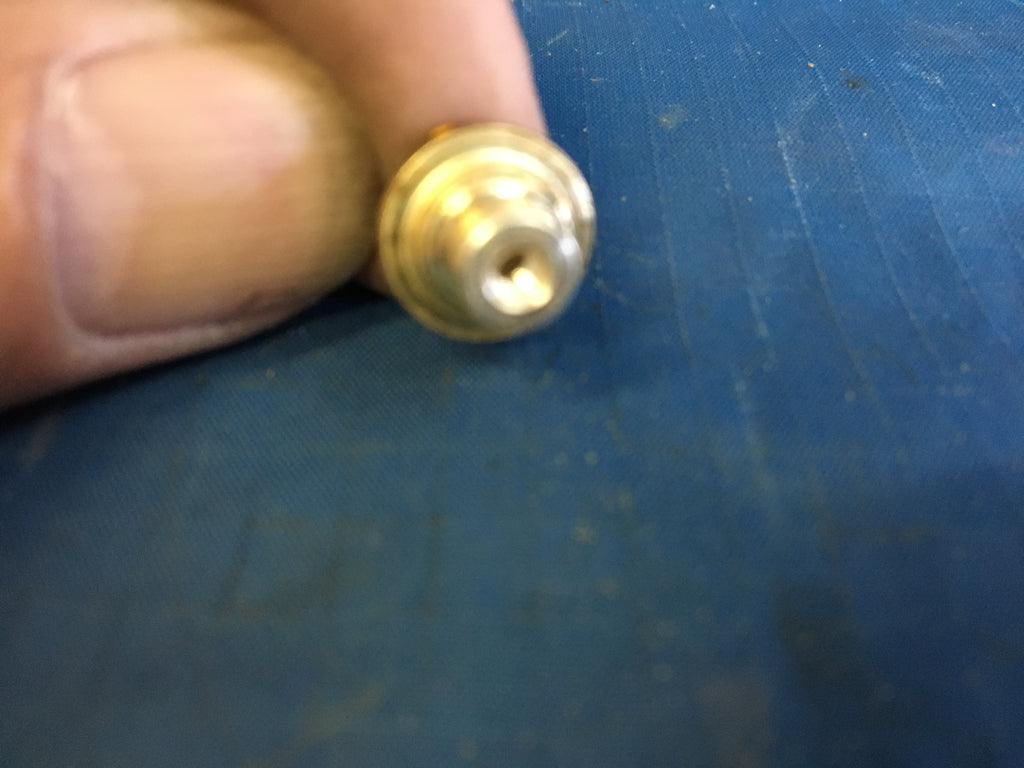

Mica Dielectric Fixed Capacitor

NSN: 5910-00-183-9118 | Model: 658-0171A4-250K
ITAR Registered seal

A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. it may be a single unit, or consist of two or more fixed units which cannot be separated.

NSN Properties and Flags
NATO Stock Number
Body Style
Button type, w/thd mtg hole/stud
Reliability Indicator
Not established
Terminal Length
0.328 inches
Body Diameter
0.463 inches
Body Length
0.328 inches
Schematic Diagram Designator
Electrod (s) grounded to case
Mounting Facility Type And Quantity
1 threaded mounting holes
Capacitance Value Per Section
25.000 picofarads single section
Nonderated Operating Temp
Between -55.0 degrees celsius and 85.0 degrees celsius
Nonderated Continuous Voltage Rating And Type Per Section
500.0 dc single section
Tempurature Coefficient Of Capacitance Range Per Section In Ppm Per Deg Celsius
-200.0 to 200.0 single section
Tolerance Range Per Section
-2.50 to 2.50 percent single section
Case Material
Terminal Surface Treatment
Terminal Type And Quantity
1 tab, solder lug

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
