Dean Tech Metallic Rectifier NSN:6130-00-820-0922 P/N:SD-4046

Please fill out the form below for a price quote and availability on this item.

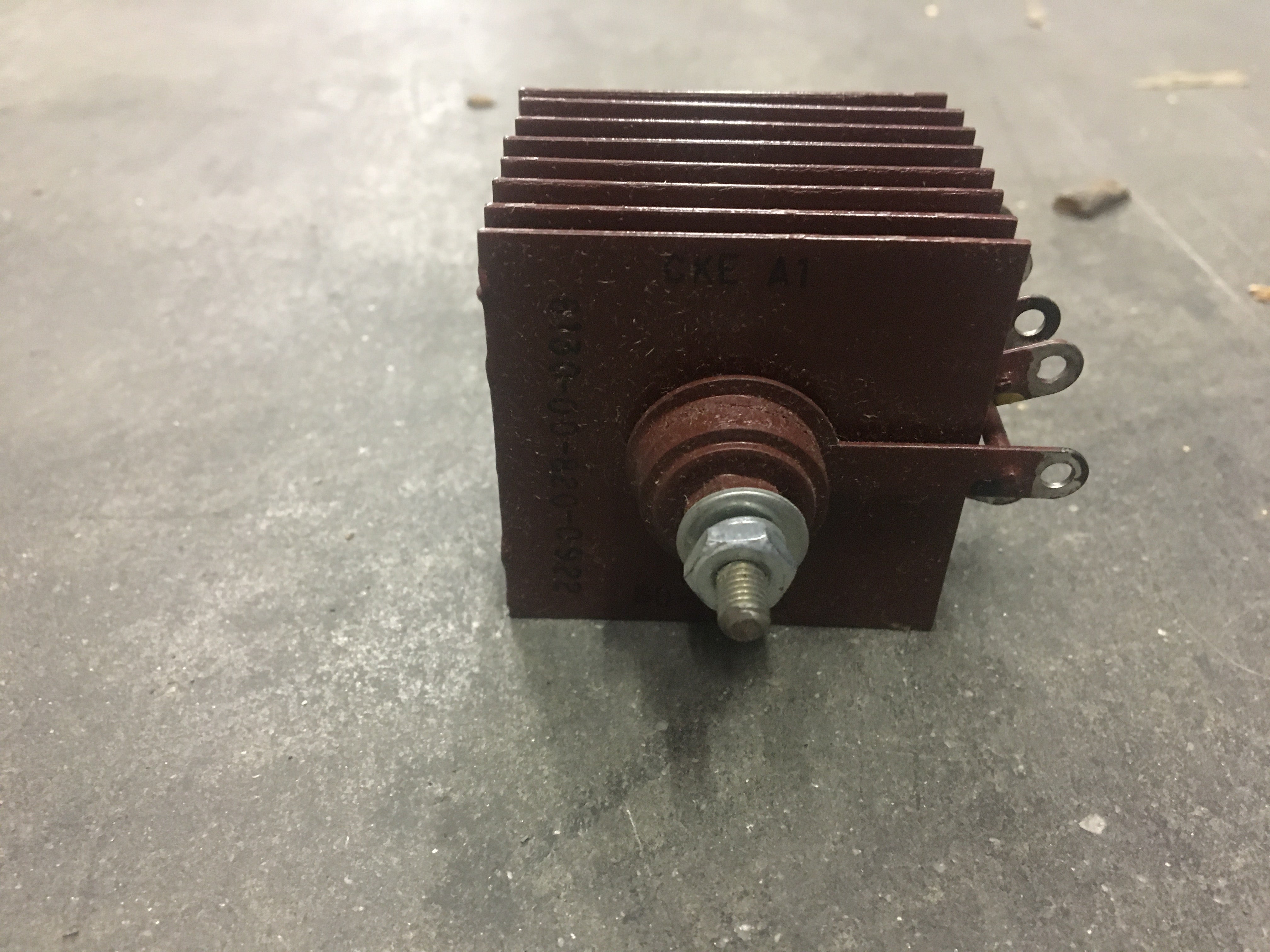

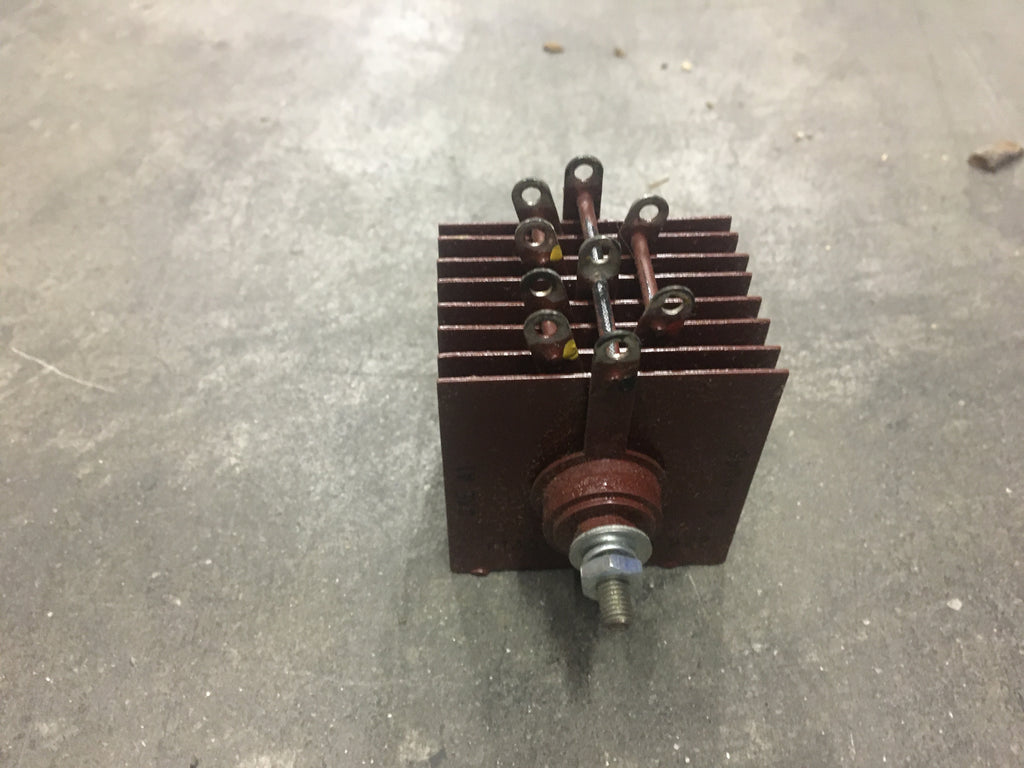

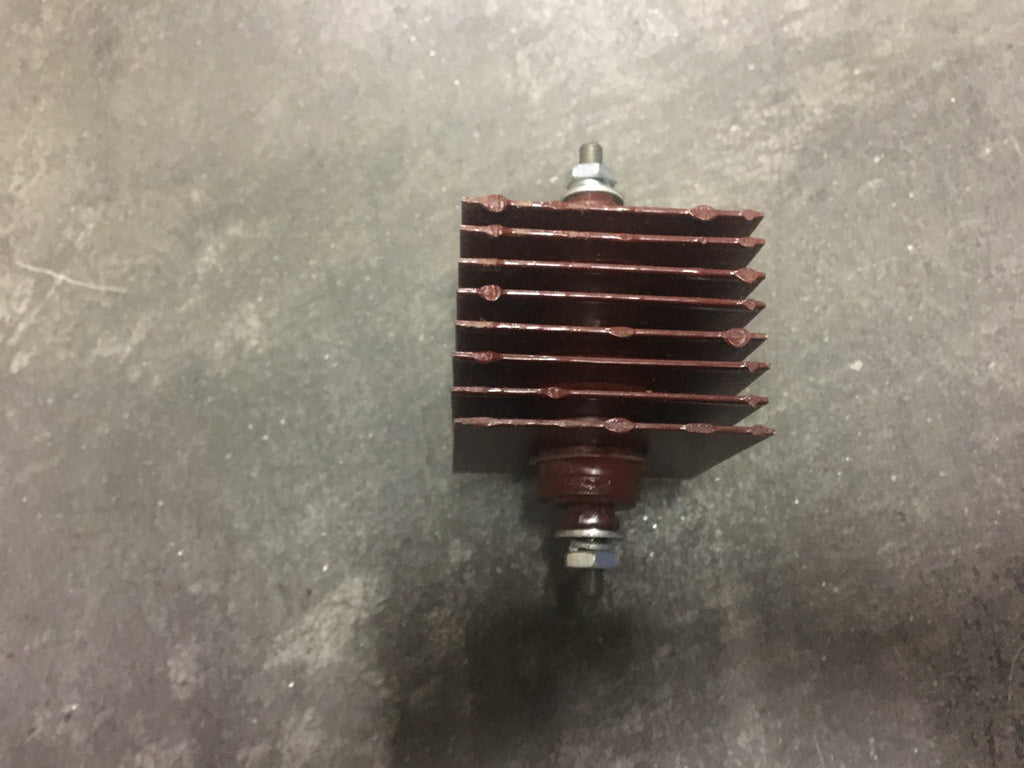

Metallic Rectifier

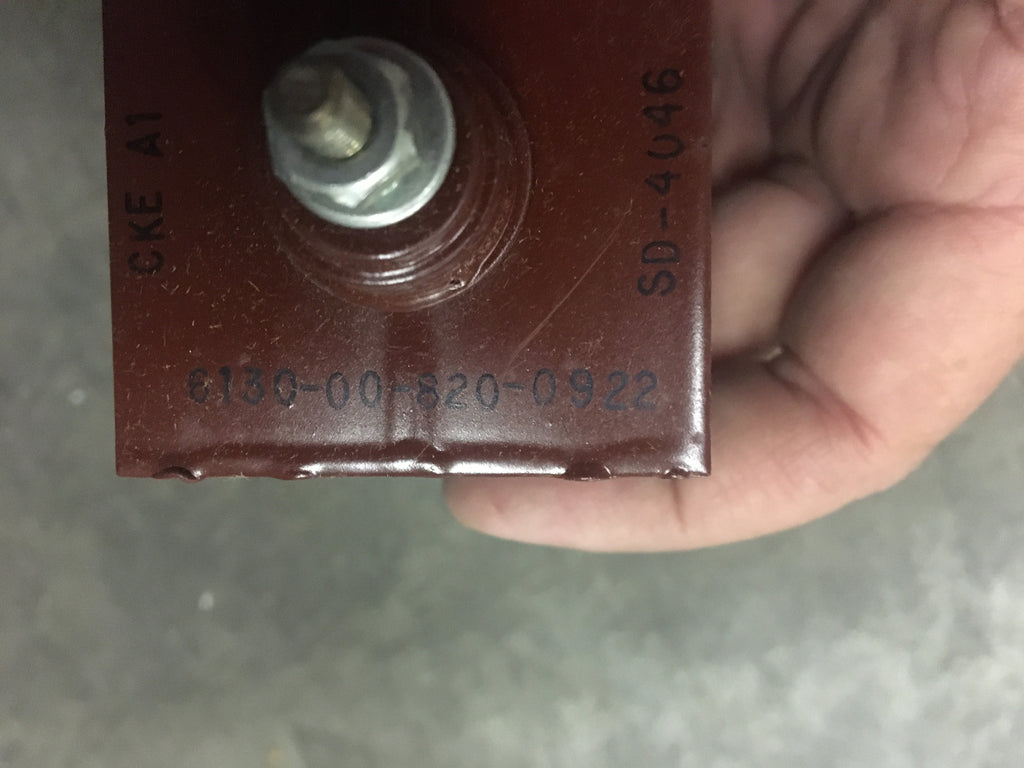

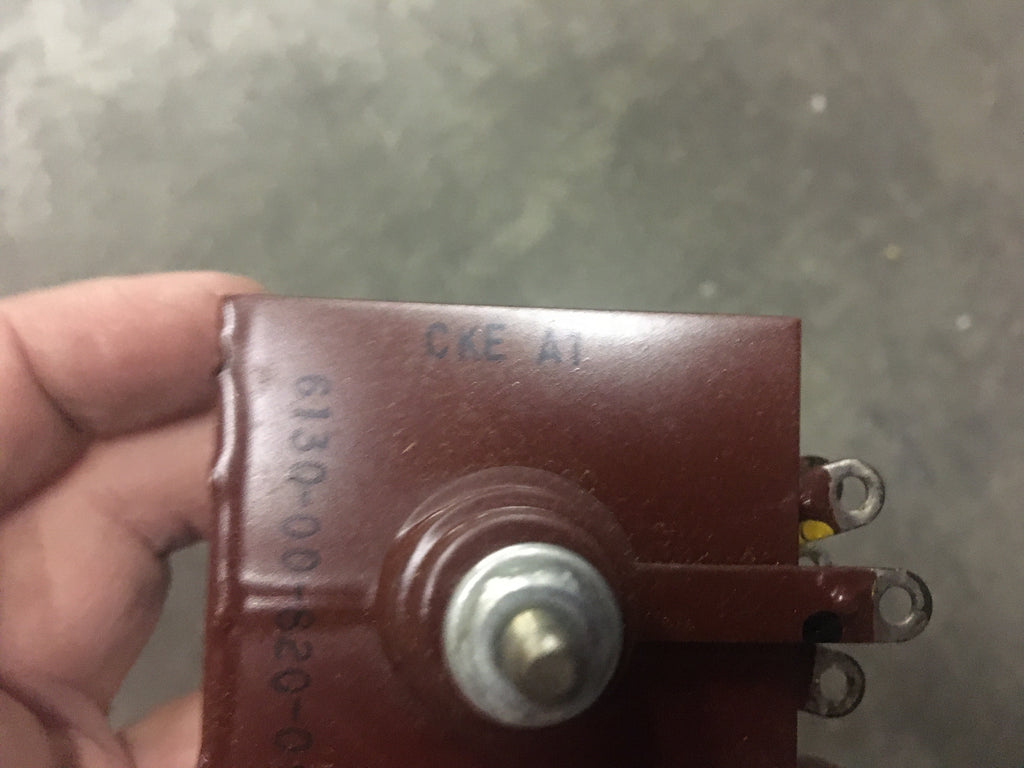

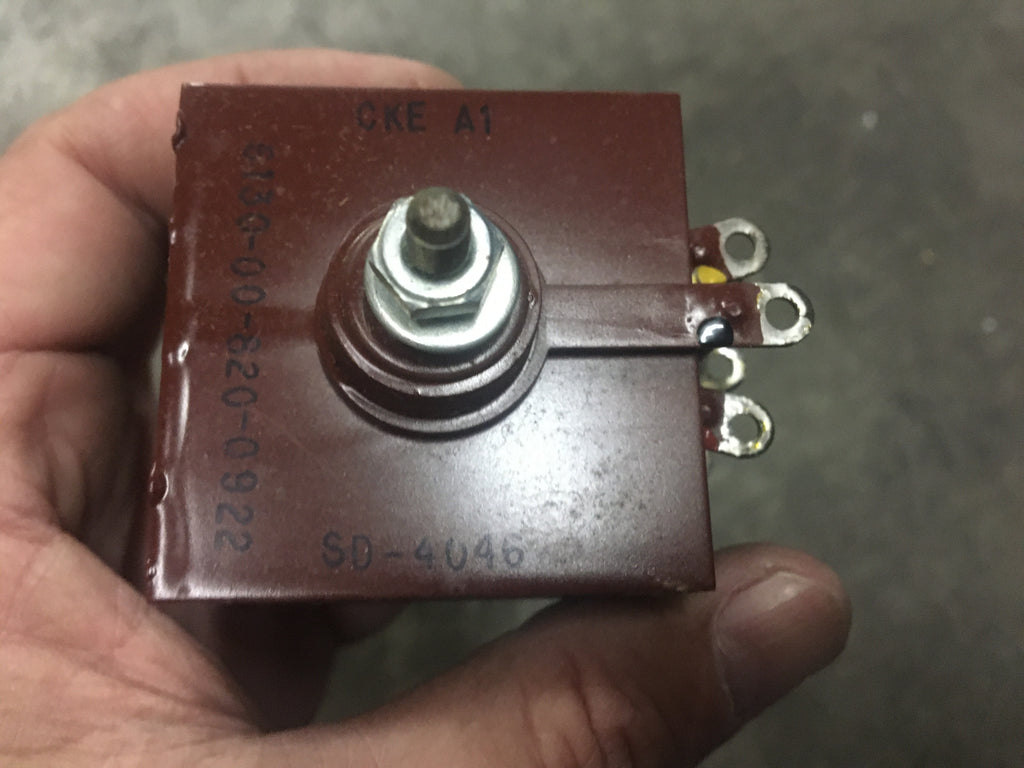

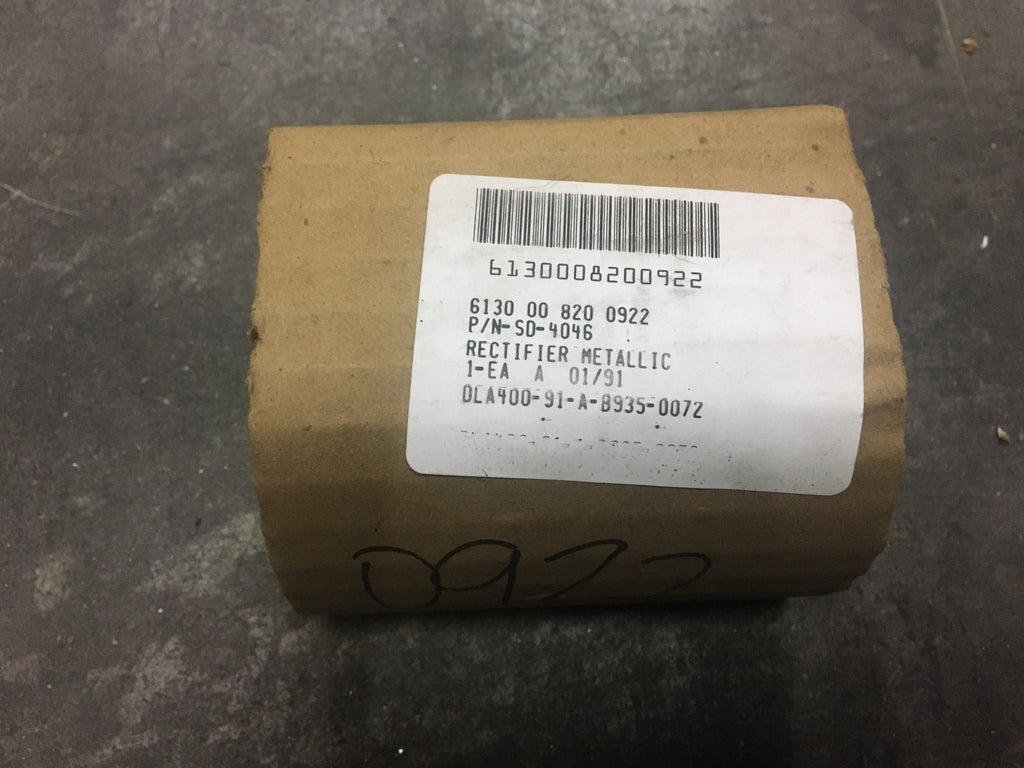

NSN: 6130-00-820-0922 | Model: SD-4046
ITAR Registered seal

An electrical item (the working element of which is constructed essentially of metallic substances) which changes alternating current to direct current by the rectifying action occurring at the junction interface between a metallic conductor and a semiconductor. Excludes sets of metallic rectifiers which are not rated for rectifying capabilities but are used as suppressors. For items containing germanium or silicon, see semiconductor device (1), diode; semiconductor device set and rectifier, semiconductor device. For a complete power supply utilizing metallic rectifiers, see power supply.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Terminal Quantity
Terminal Type
Solder lug
Overall Length
2.500 inches
Tempurature Rating
55.0 degrees celsius
Overall Height
2.625 inches
Overall Width
2.625 inches
Mounting Method
Environmental Protection
Circuit Connection Style Designator
Bridge 1 phase
Mounting Configuration
One no. 10-32 thd stud axially located
Rms Input Maximum Voltage Rating
42.0 volts
Dc Output Maximum Current Rating
6.000 amperes
Load Type
Dc Output Maximum Voltage Rating
40.0 volts new and 38.0 volts aged
Stack Quantity
Grounded Terminal
Not included

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
