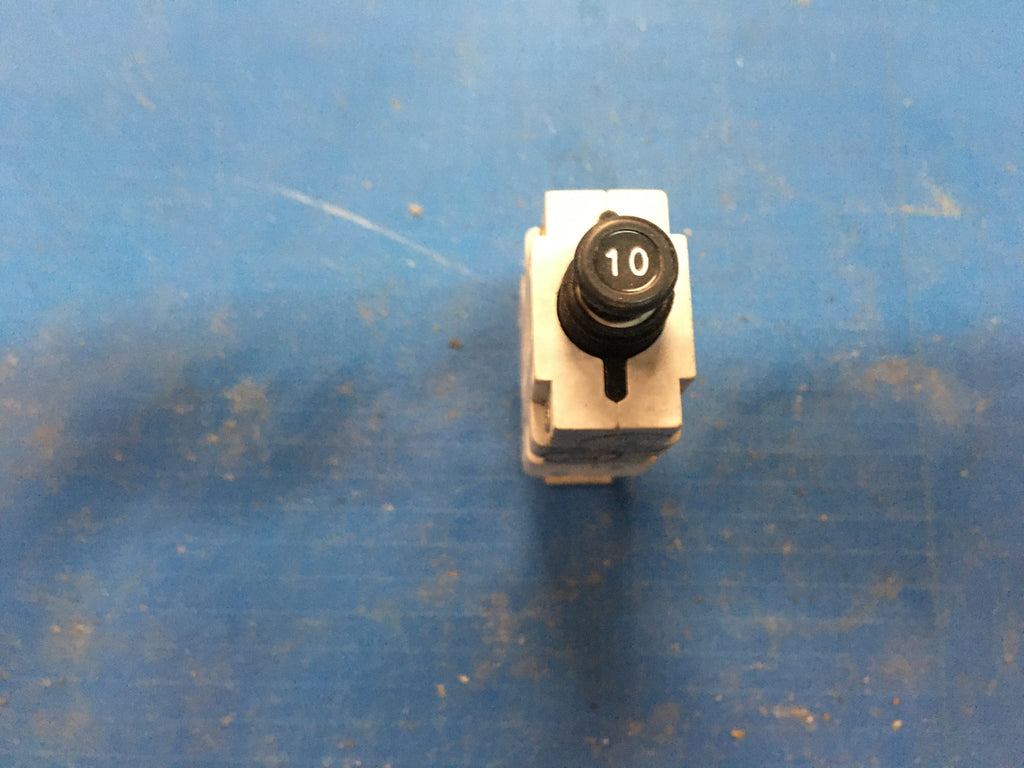

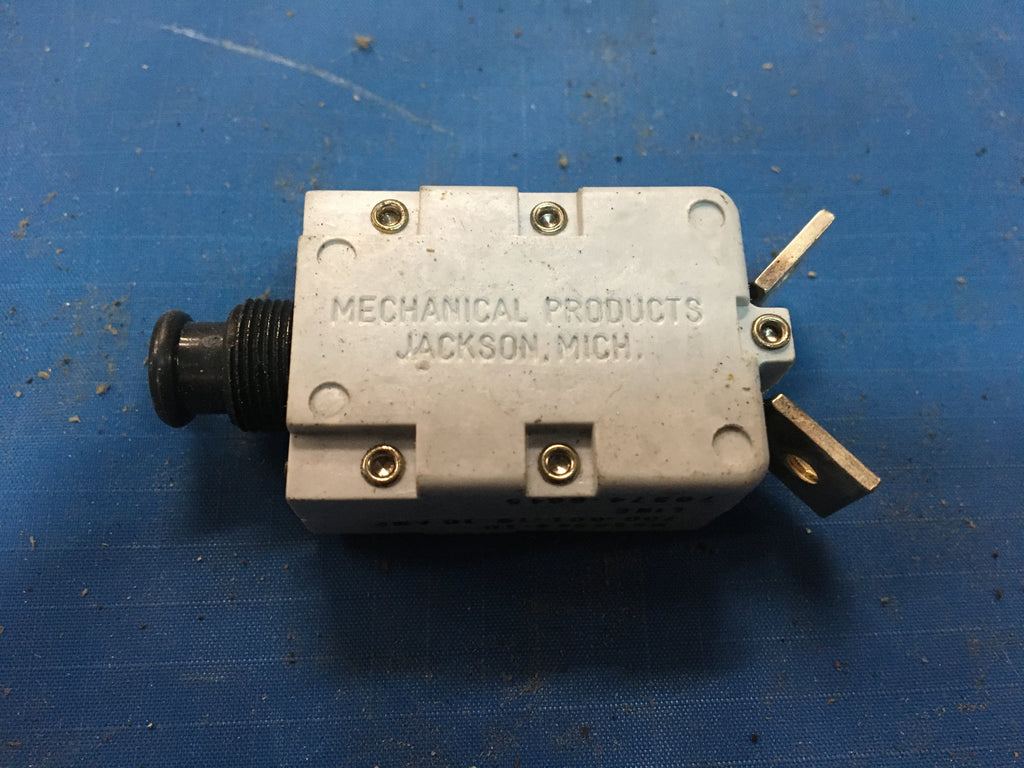

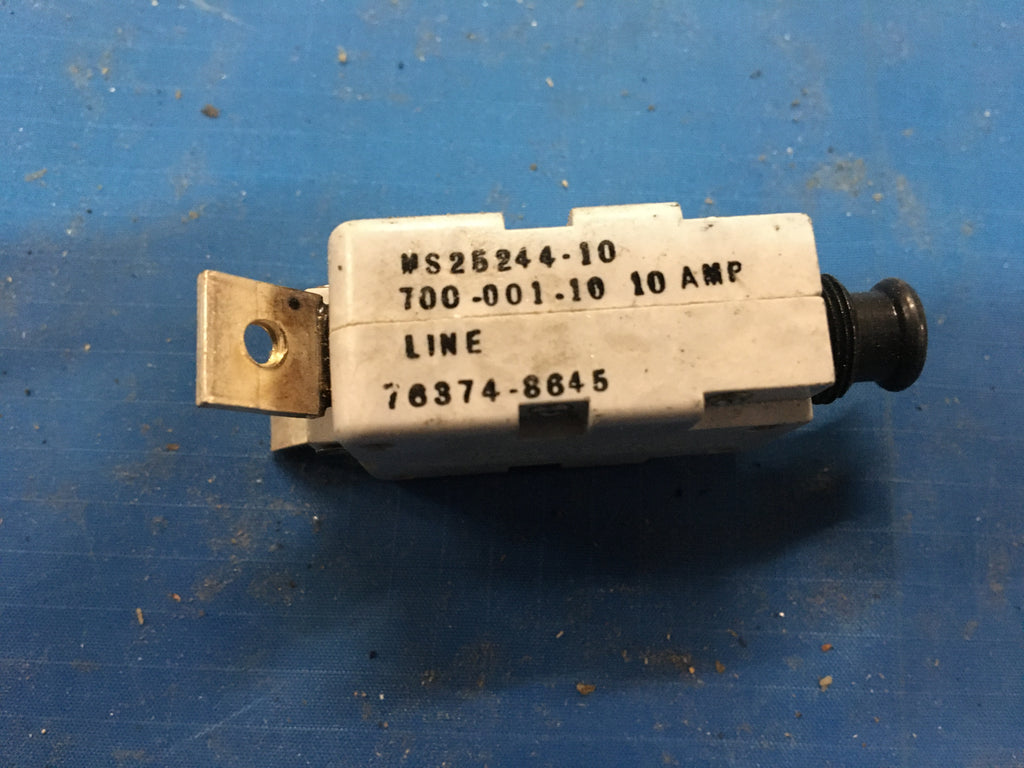

Mechanical Products 700-001-10, 10Amp Circuit Breaker NSN:5925-00-686-3297 Model:MS25244-10

Regular price $12.99

Circuit Breaker

NSN:5925-00-686-3297  Model:MS25244-10  Model:CVC2523-5
ITAR Registered seal

A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating elem en (s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. Excludes circuit breaker box and magneto breaker assemblies. See also switch (as modified) ; and controller.

NSN Properties and Flags
NATO Stock Number
5925-00-686-3297
DEMIL
Yes - ITAR Controlled
Body Style
Single pole type
Bushing Length
0.250 inches
Body Length
1.094 inches
Body Width
0.750 inches
Case Material
Metal
Center To Center Distance Between Terminals Parallel To Length
0.703 inches
Mounting Surface To Terminal End Distance
1.812 inches
Pole Quantity
1
Mounting Facility Type And Quantity
1 threaded bushing
Thready Qty Per Inch (tpi)
32
Maximum Continuous Load Current Rating Per Pole
5.0 amperes ac single location and 5.0 amperes dc single location
Operating Voltage Type And Rating Per Pole In Volts
115.0 ac single location and 28.0 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps
3500.0 ac single location and 6000.0 dc single location
Circuit Protection Type
Overcurrent single location
Trip Release Method
Thermal single location
Trip Release Characteristic
Time delay single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent
138.0 single location
Reset Method
Manual
Main Contact Tripping Mechanism Type
Trip free
Manual Actuator Type And Quantity
1 push-pull
Actuator Function
Trip-reset
Actuator Position Designation
At pole one
Internal Trip Release Configuration
Series trip single location
Thread Size
0.469 inches
Trip Delay Time In Seconds Per Rated Continuous Current
15.000 at 200 pct single location and 55.000 at 200 pct single location and 2.000 at 400 pct single location and 7.000 at 400 pct single location
Inclosure Protection Type For Which Designed
Explosion resistant and moisture resistant
Trip Release Ambient Tempurature Rating
25.0 degrees celsius single location
Frequency In Hertz
400.0 single location
Test Data Document
81349-MIL-C-5809 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Uns
Terminal Type And Quantity
2 screw
Specification Data
96906-MS25244 government standard
