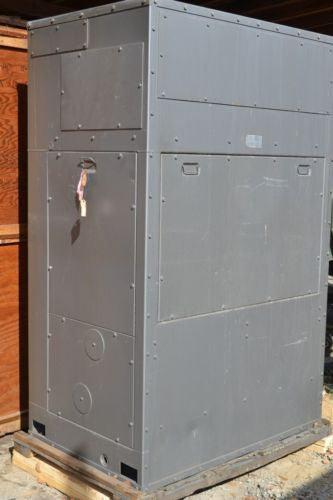

Fan Coil Unit Air Conditioner NSN 4120-00-937-0017
Marlo Fan - Coil Assembly

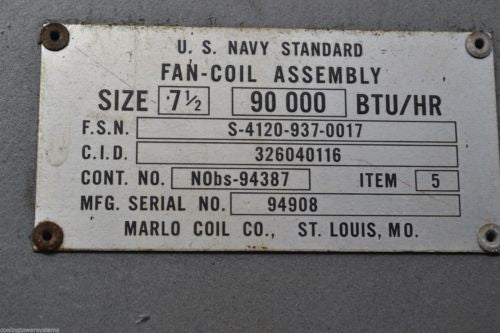

NSN: 4120-00-937-0017
Unused with original packaging, HVACFan Coil Assemblies (FCAs) are designed for floor mounting, used in condition with a chilled water system, a drainage system, an air distribution system and a power source for air conditioning spaces on board surface ships. Features of the type II FCAs are used when no duct sections are to be attached to the unit when it is placed in service.
- Type:

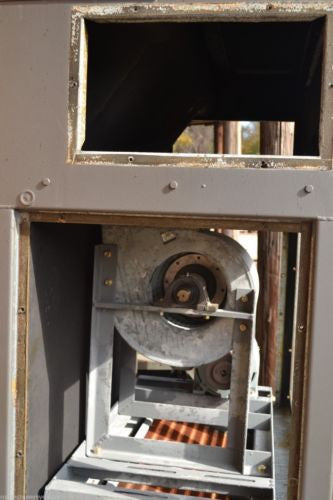

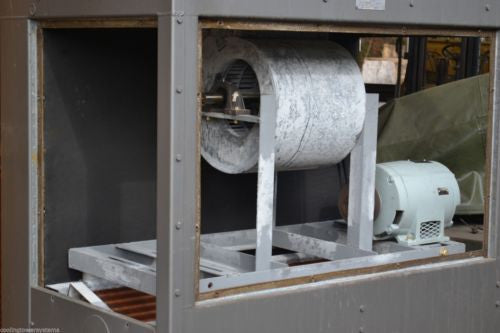

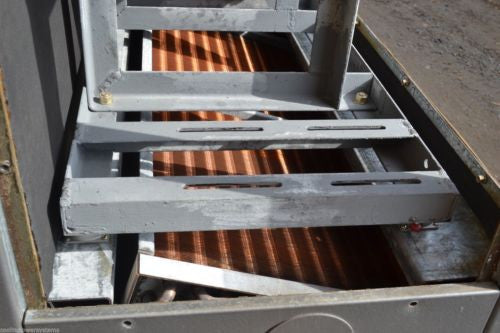

Type II - Three section unit: cooling coil, fan motor, and air distribution plenum
Model- FCA 23
Capacity BTU/Hr- 90,900
Cabinet Size L" x W" x D" - 48 X 32 X 75
Air Flow CFM- 1880
Weight(Lbs - Dry: 1429; Wet: 1472)
- Grade:
High impact shock
Type X - (Non-hi Shock)
- Composition:
M- Magnetic

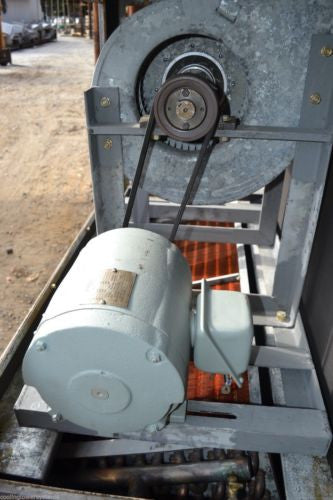

- Motor
Sealed
Non-Sis (Not sealed)
1EEE45 MARINE DUTY
- Grille requirements
Inlet
Outlet

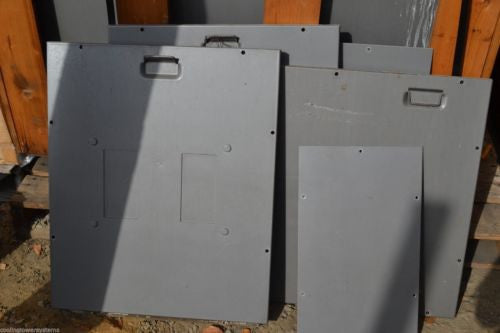

- Cover plate requirements
Inlet
Outlet
BTU rating based on the following conditions:
Entering air: 80F DB, 67F Wb
Entering water: 45F
Water flowrate: 3.6 GPM per Ton
