Marathon Electric Corp

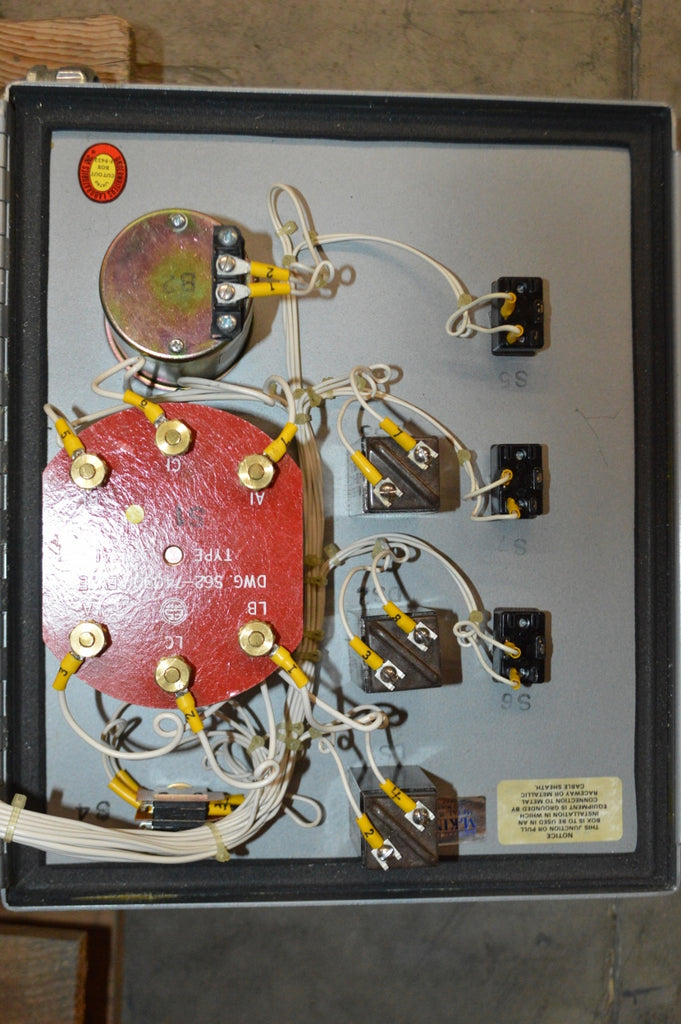

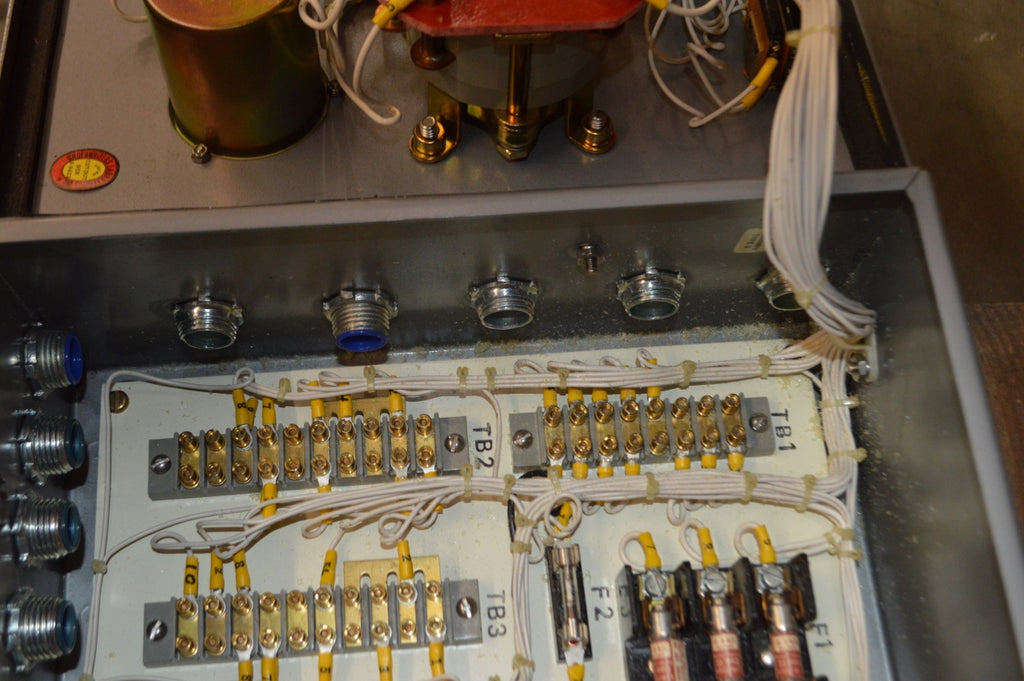

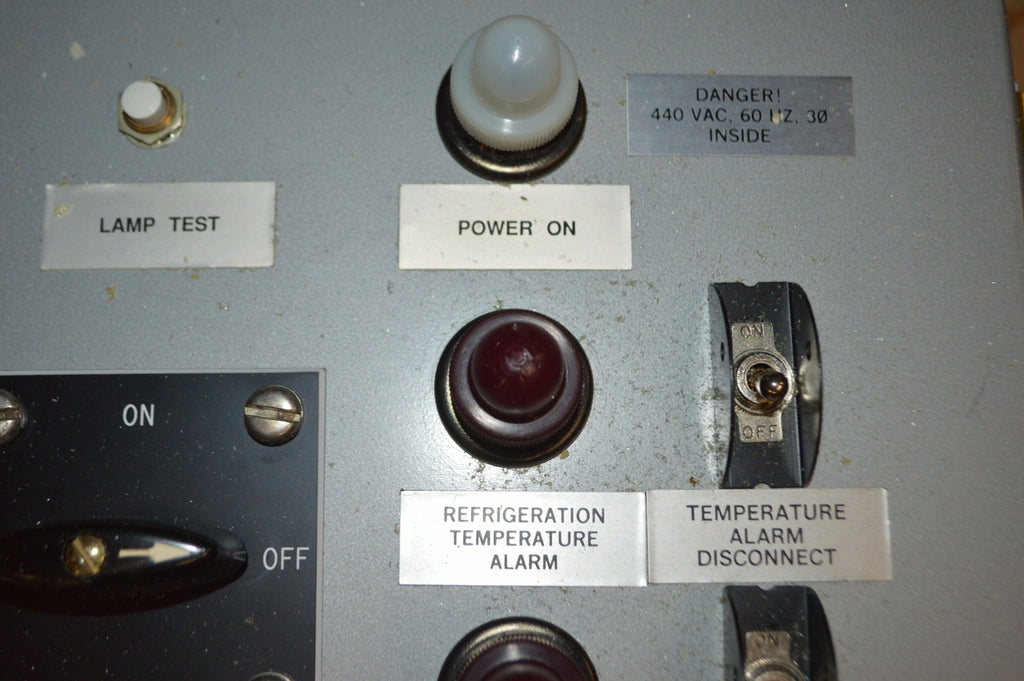

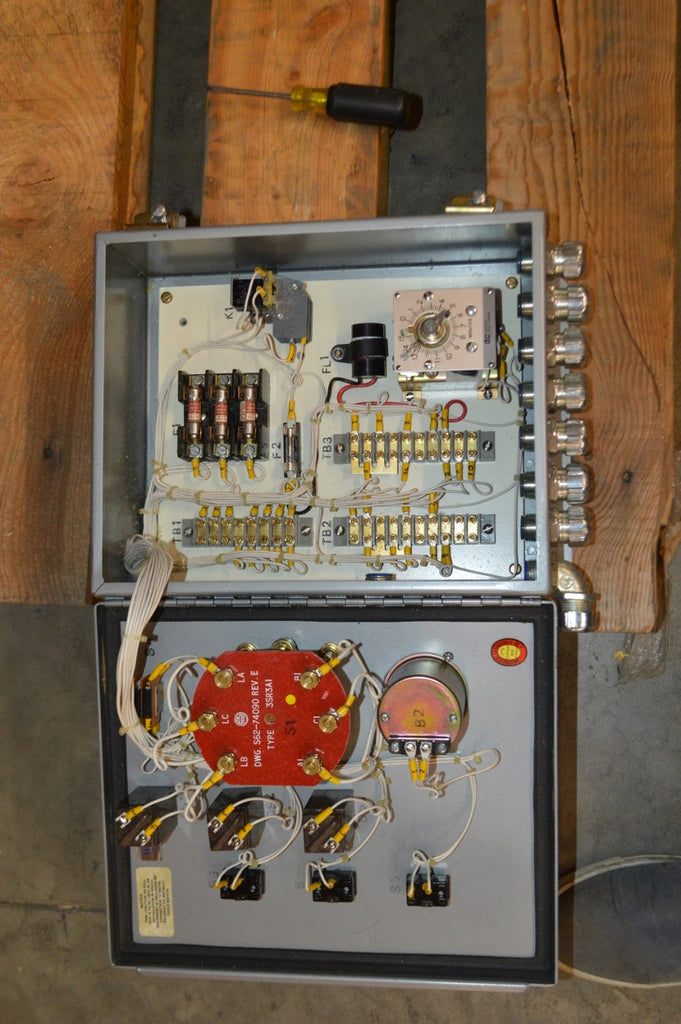

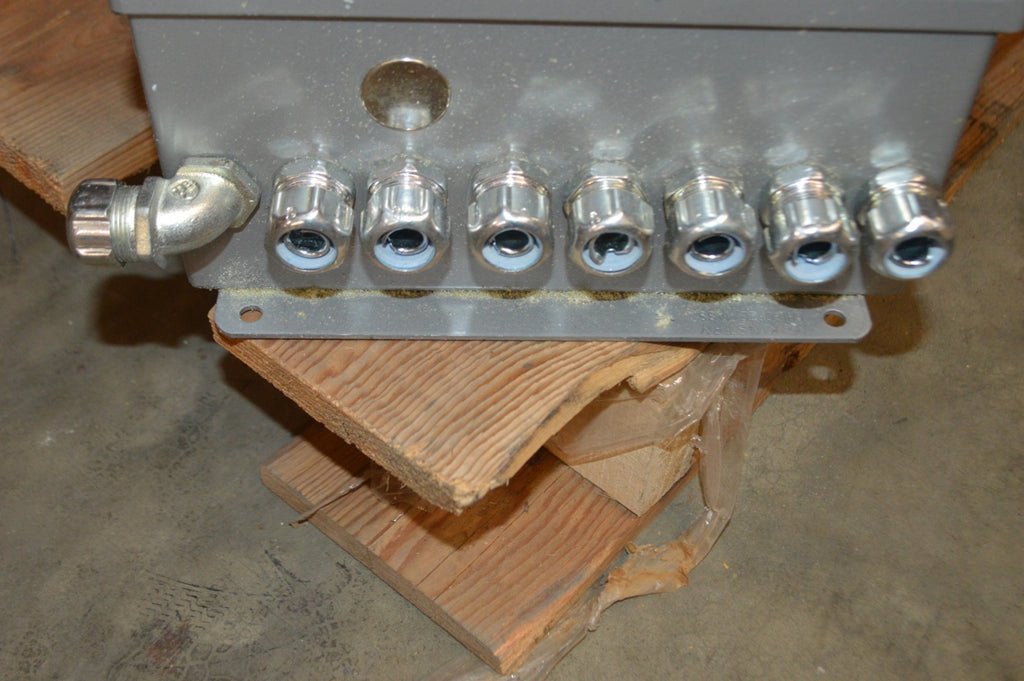

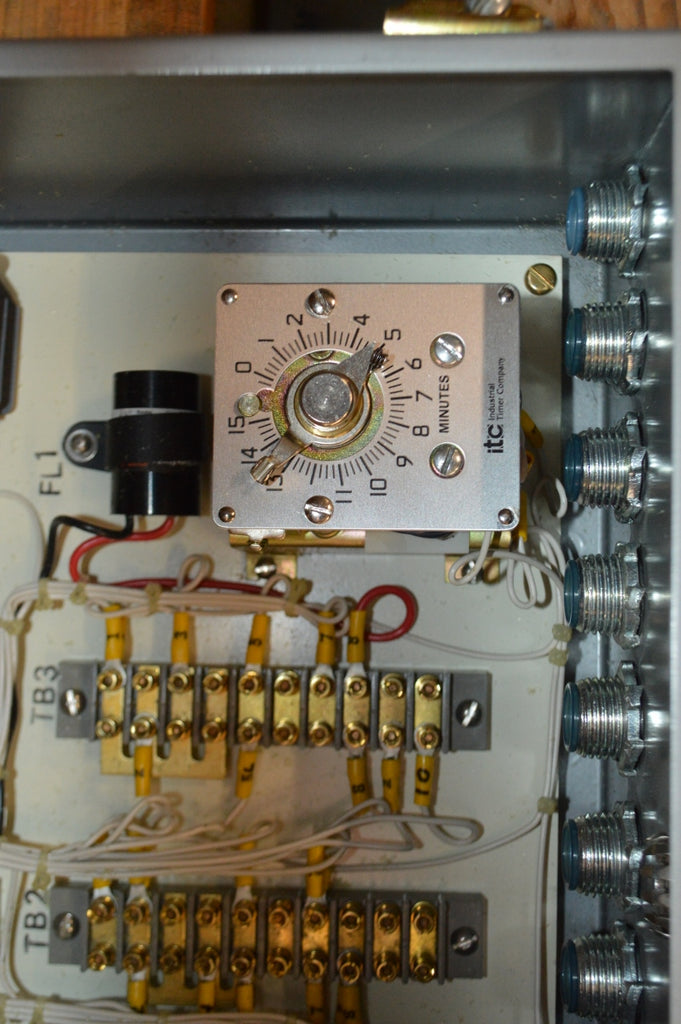

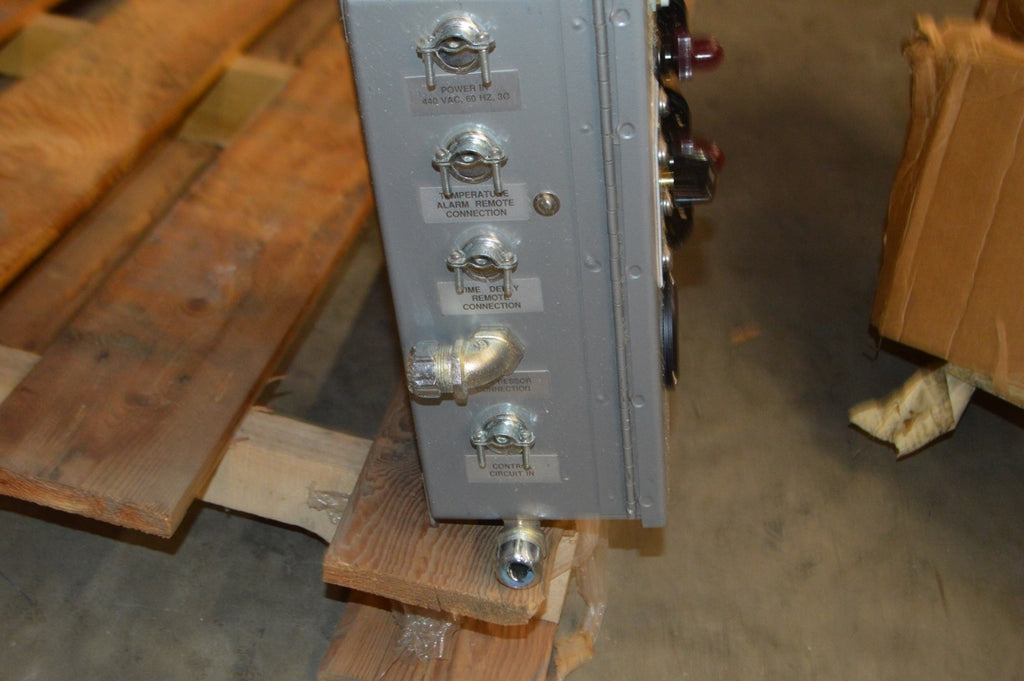

Marathon Electric Corp Power Distribution Panel NSN: 6110-01-049-7200
Regular price
$1,299.99
| Technical Characteristics ( ILs ) 6105-01-476-3844 | ||
|---|---|---|
| MRC | Requirement | Reply |
| AAJT | OVERALL HEIGHT | 22.060 INCHES |
| AAJU | OVERALL LENGTH | 31.130 INCHES |
| AAJV | OVERALL WIDTH | 29.970 INCHES |
| AASA | THREAD LENGTH | 2.230 INCHES NOMINAL SINGLE END |
| ABWV | SHAFT DIAMETER | 1.249 INCHES NOMINAL SINGLE END |
| AKCT | SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| AKPS | DUTY CYCLE | CONTINUOUS |
| ANPZ | INCLOSURE FEATURE | GENERAL PURPOSE |
| AXCP | WINDING TYPE | INDUCTION-SQUIRREL CAGE |
| BFMF | COOLING METHOD | SELF-VENTILATED |
| CWGQ | CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 440.0 LINE TO NEUTRAL SINGLE INPUT |
| FREQ | FREQUENCY IN HERTZ | 60.0 INPUT |
| TTQY | TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| CWHZ | SHAFT END CHARACTERISTIC | A3 SINGLE STYLE SINGLE END |
| FAAZ | PHASE | THREE INPUT |
| AXGY | MOUNTING METHOD | FIXED BASE |
| AXHR | MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| BKPQ | INCLOSURE SPECIFICATION | NEMA |
| CQJX | NOMINAL THREAD SIZE | 0.500 INCHES SINGLE END |
| CWCS | LENGTH OF SHAFT FROM HOUSING | 5.250 INCHES SINGLE END |
| CWFQ | MOUNTING FACILITY CIRCLE DIAMETER | 0.660 INCHES |
| CWFX | ROTOR SPEED RATING IN RPM | 1180.0 SINGLE FULL LOAD |
| CWFY | NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 10.250 INCHES |
| CWGD | NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 12.500 INCHES |
