(3000) Military Standards MS51849-78C Machine Screw NSN:5305-01-368-3229

Please fill out the form below for a price quote and availability on this item.

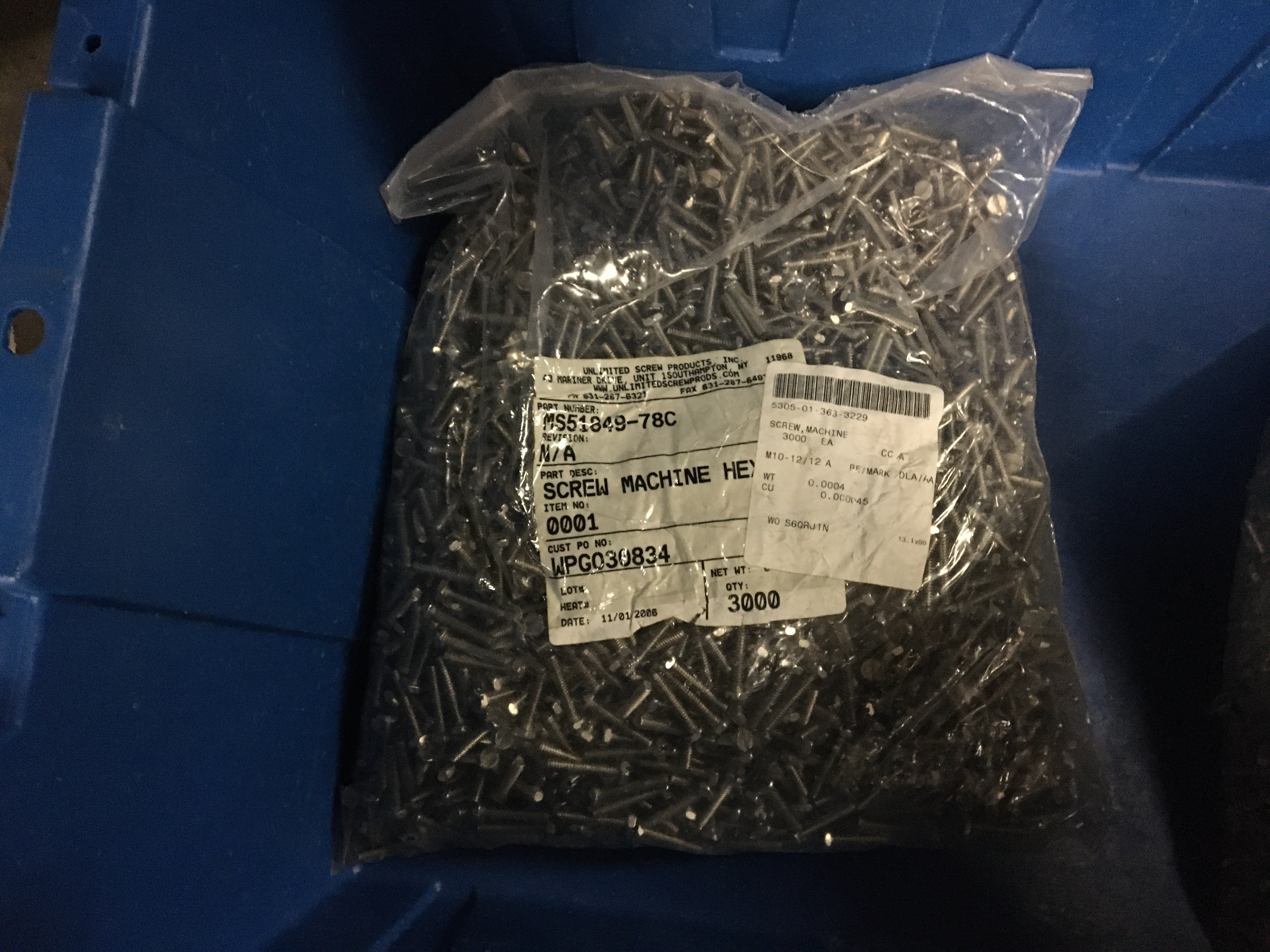

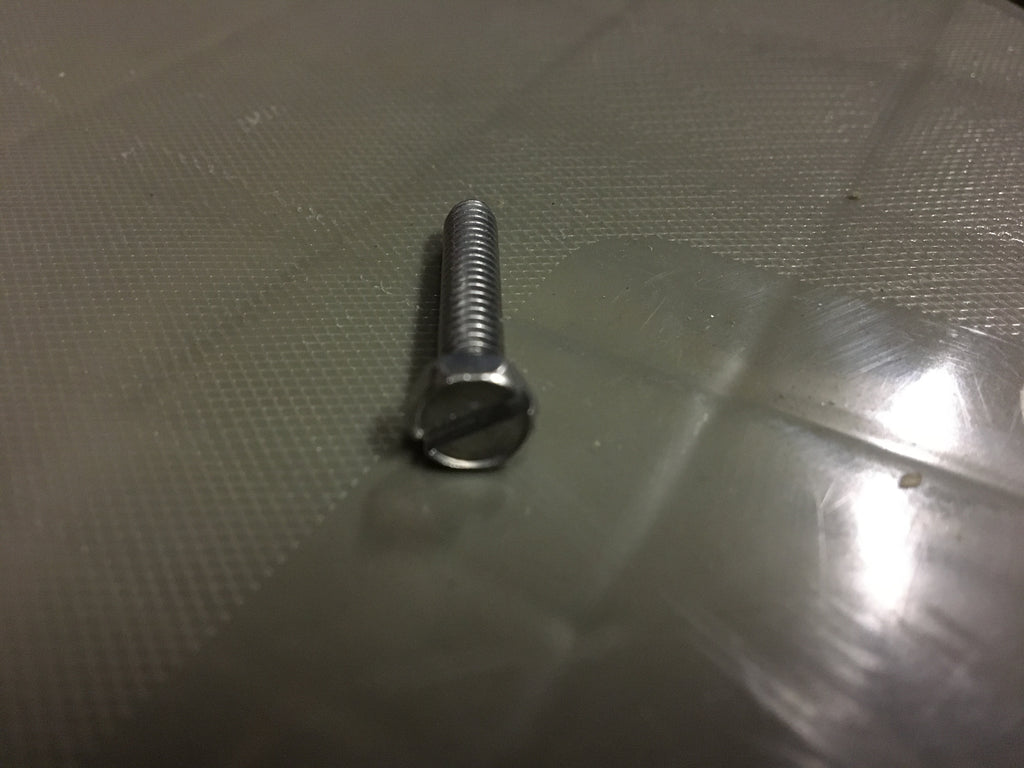

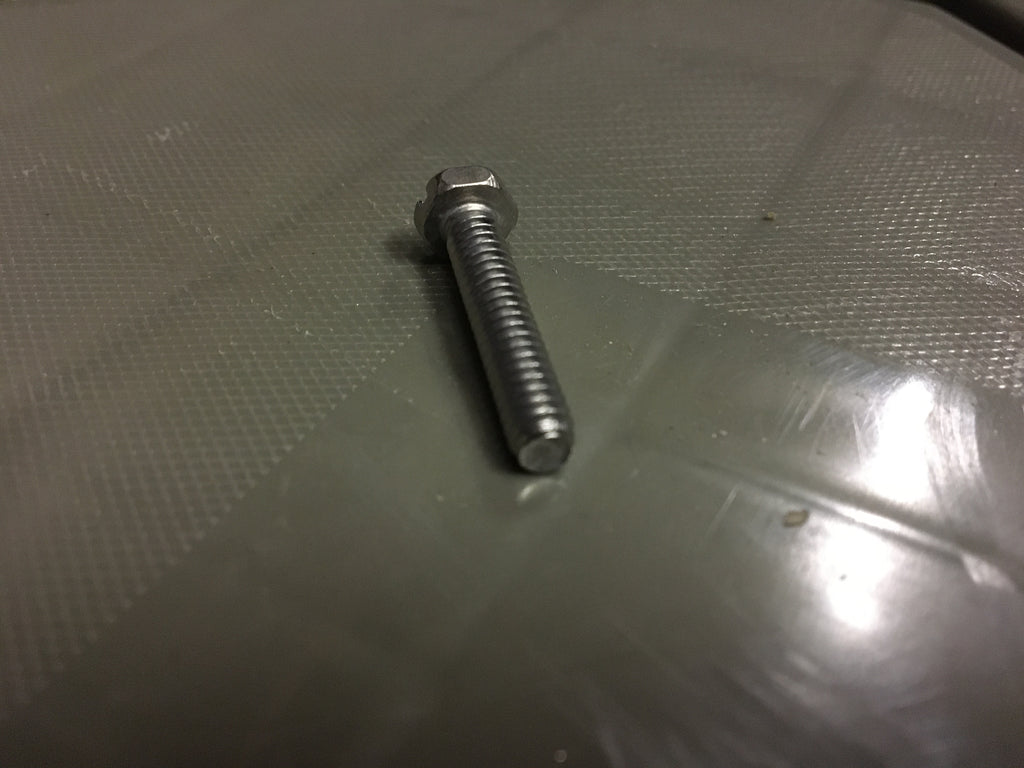

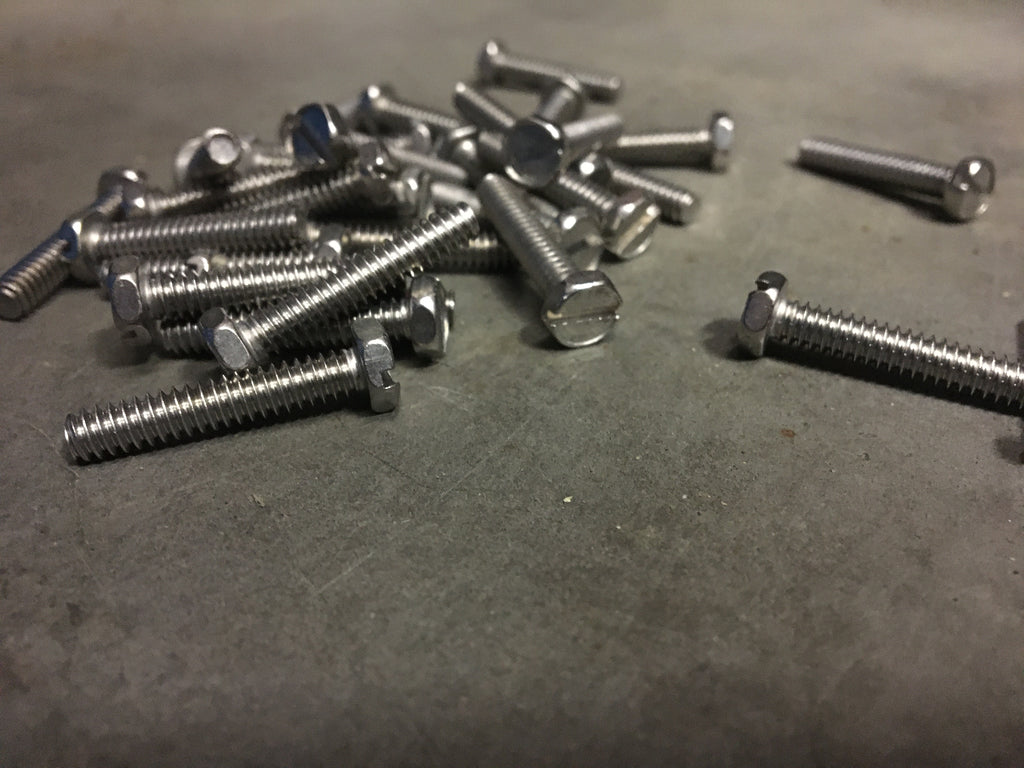

Machine Screw

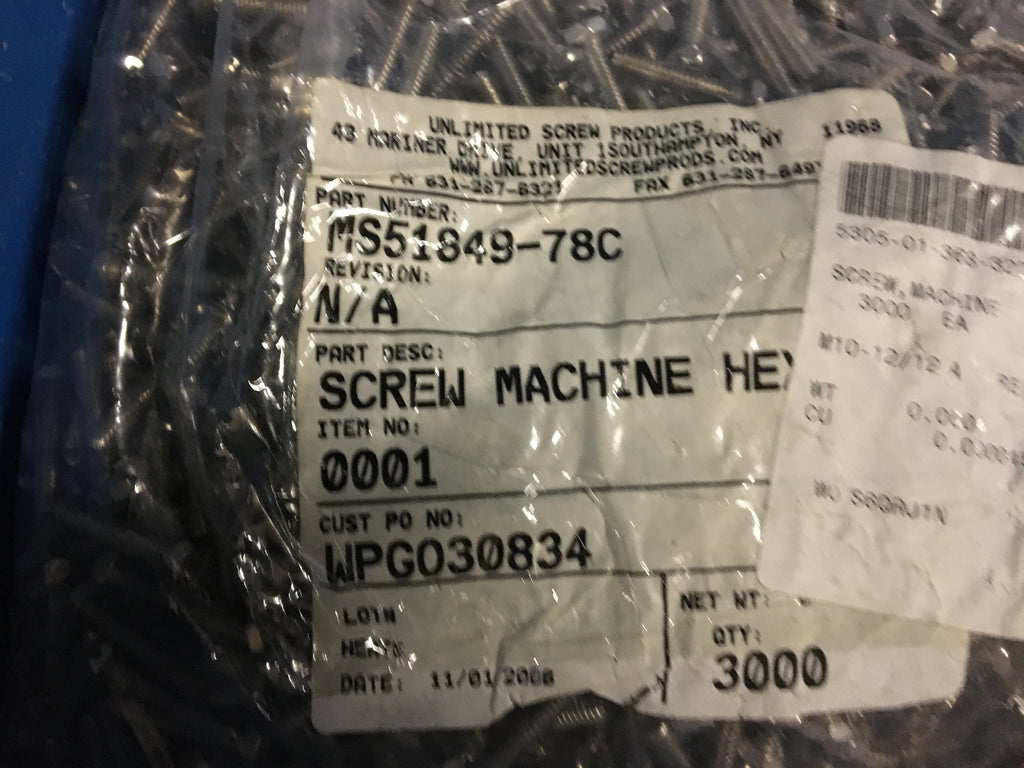

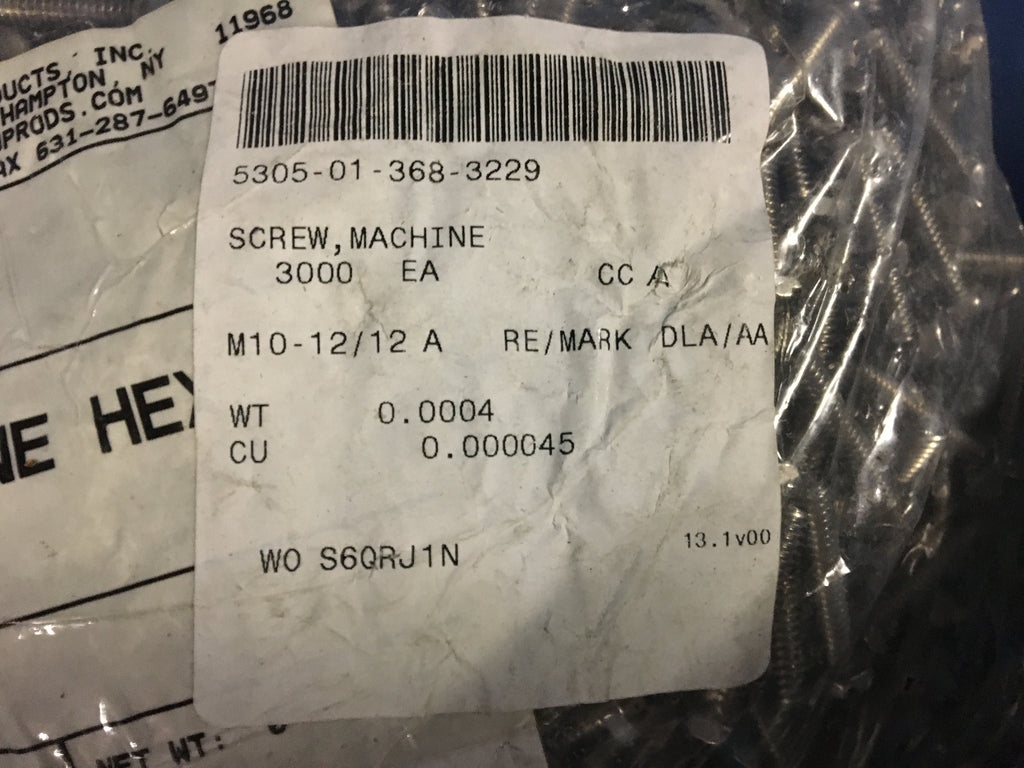

NSN: 5305-01-368-3229 | Model: MS51849-78C
ITAR Registered seal

An externally threaded fastener whose threaded portion is of one diameter, no 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below no. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes bolt, clevis; bolt, externally relieved body; screw, externally relieved body; and screw, assembled washer. See also, screw, instrument; bolt, machine; bolt, internal wrenching; and screw, cap socket head.

NSN Properties and Flags
NATO Stock Number
Thread Class
Thread Direction
Thread Length
0.887 inches
Fastener Length
Between 0.970 inches and 1.000 inches
Head Style
Head Height
Between 0.105 inches and 0.120 inches
Width Between Flats
Between 0.305 inches and 0.312 inches
Internal Drive Style
Thread Diameter
0.190 inches
Thready Qty Per Inch (tpi)
Screw Material
Steel comp 301 or steel comp 302 or steel comp 302b or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s or steel comp 314 or steel comp 316 or steel comp 316l or steel comp 317 or steel comp 321 or steel comp 347 or steel comp 348 or steel comp 384 or steel comp 385
Screw Surface Treatment
Thread Series Designator

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
