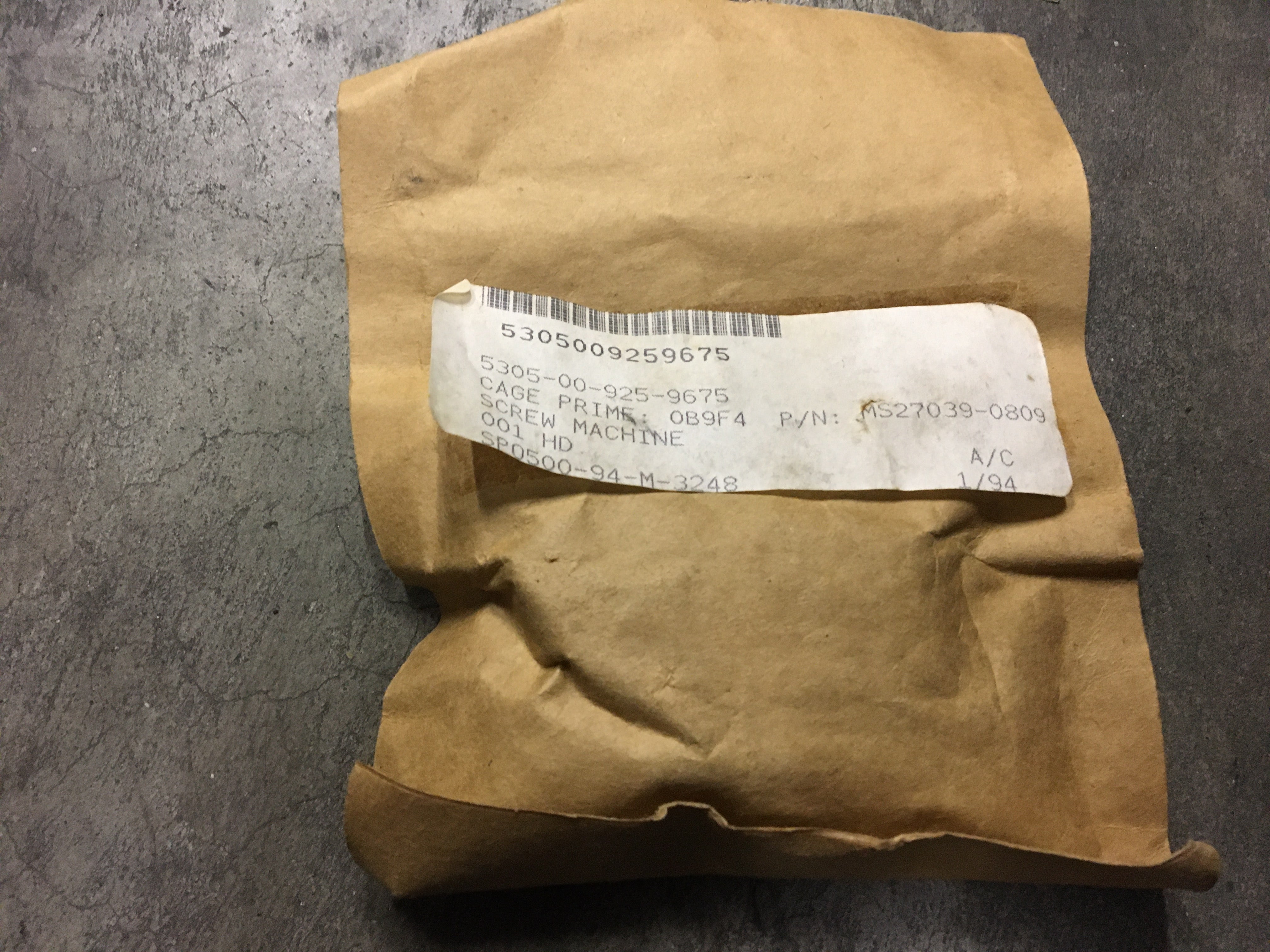

(100) MS27039-0809 Machine Screw NSN: 5305-00-925-9675

Please fill out the form below for a price quote and availability on this item.

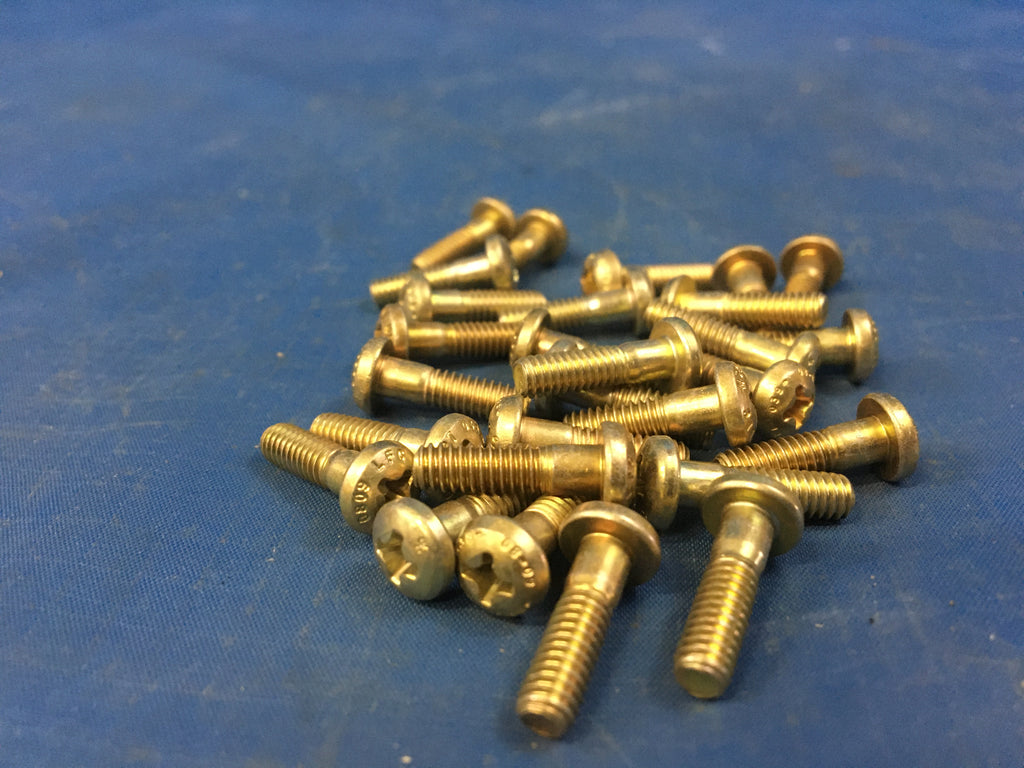

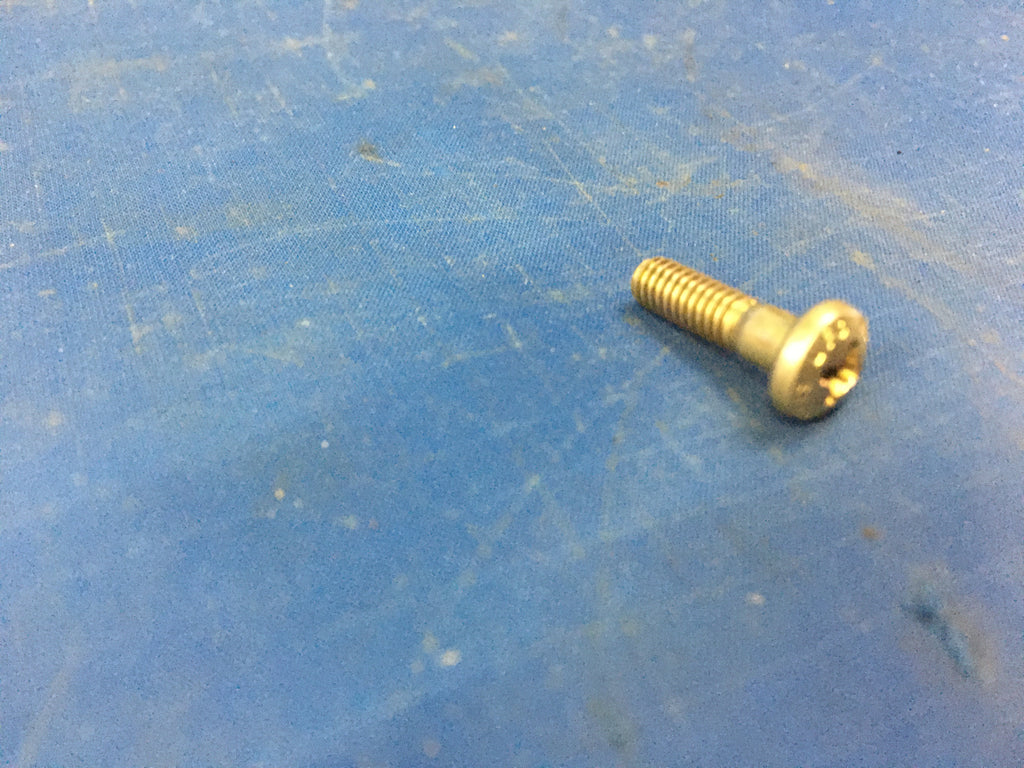

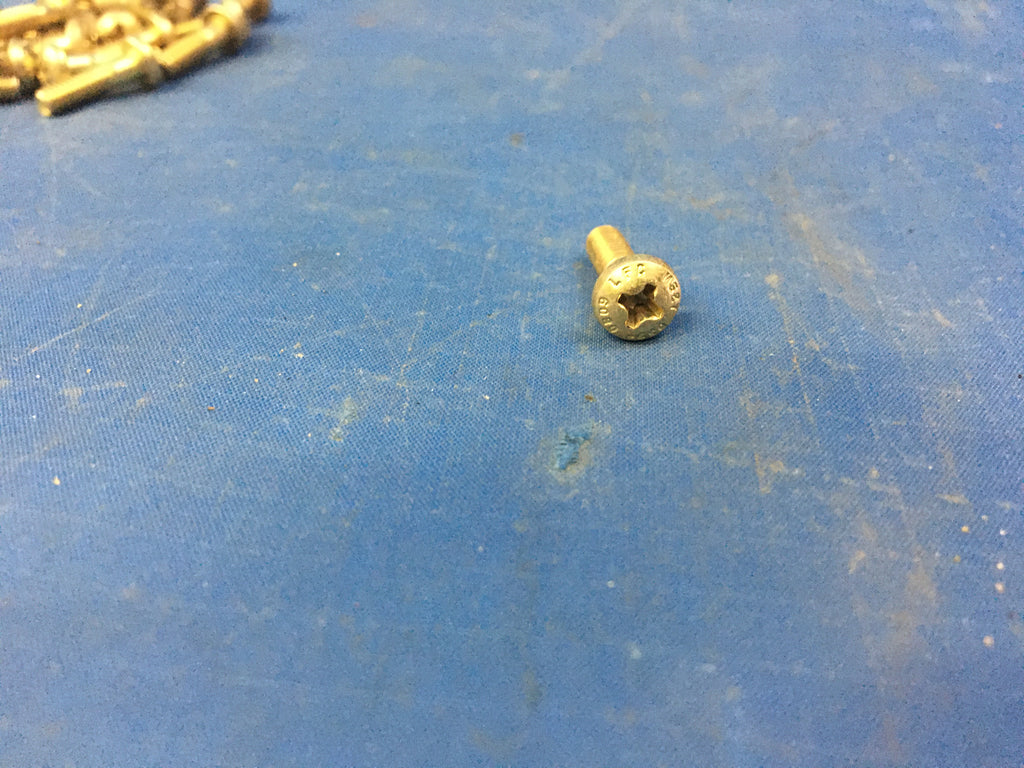

Machine Screw

NSN: 5305-00-925-9675 | Model: 935.63.31.009
ITAR Registered seal

An externally threaded fastener whose threaded portion is of one diameter, no 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below no. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes bolt, clevis; bolt, externally relieved body; screw, externally relieved body; and screw, assembled washer. See also, screw, instrument; bolt, machine; bolt, internal wrenching; and screw, cap socket head.

NSN Properties and Flags
NATO Stock Number
5305-00-925-9675
DEMIL
Yes - ITAR Controlled
Thread Class
3a
Thread Direction
Right-hand
Thread Length
Between 0.408 inches and 0.455 inches
Fastener Length
Between 0.579 inches and 0.596 inches
Head Style
Pan
Head Diameter
Between 0.306 inches and 0.322 inches
Head Height
Between 0.105 inches and 0.115 inches
Internal Drive Style
Cross recess type 1
Thread Diameter
0.164 inches
Thready Qty Per Inch (tpi)
32
Min. Tensile Strength (psi)
125000 pounds per square inch
Hardness Rating
Between 26.0 rockwell c and 32.0 rockwell c
Screw Material
Steel comp 4037 or steel comp 8630
Screw Surface Treatment
Cadmium and chromate
Screw Surface Treatment Specification
Qq-p-416, type 2, class 3 federal specification all treatment responses
Thread Series Designator
Unc

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
