Thomas & Betts D805 Lug Terminal NSN:5940-00-729-0835

Please fill out the form below for a price quote and availability on this item.

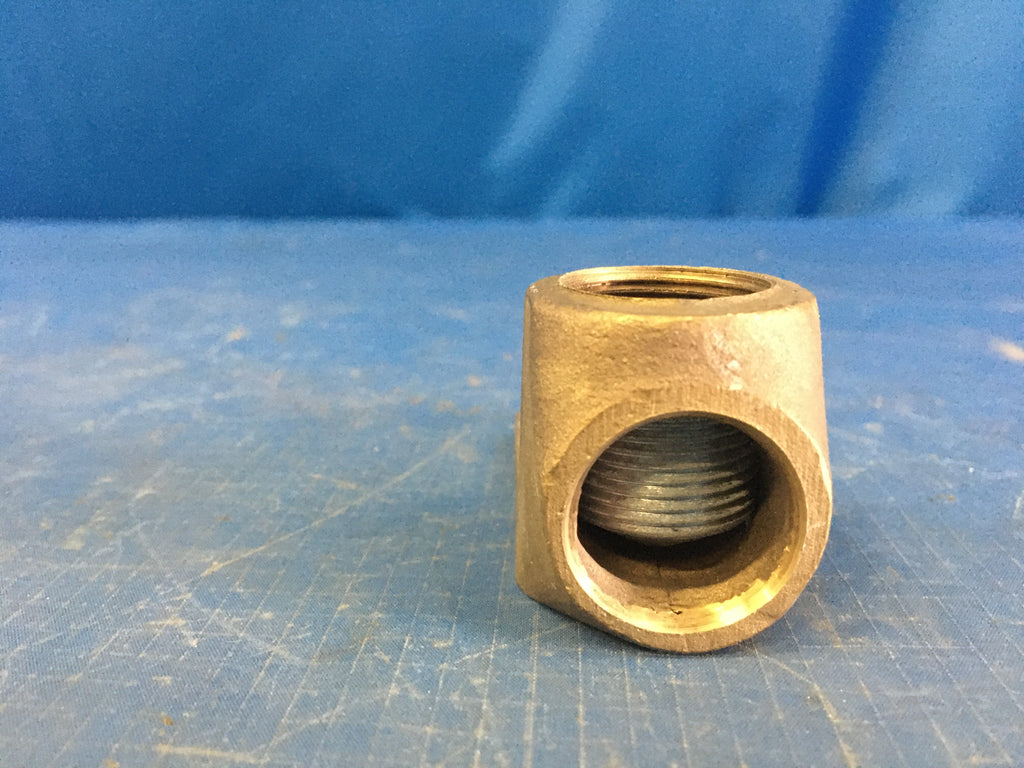

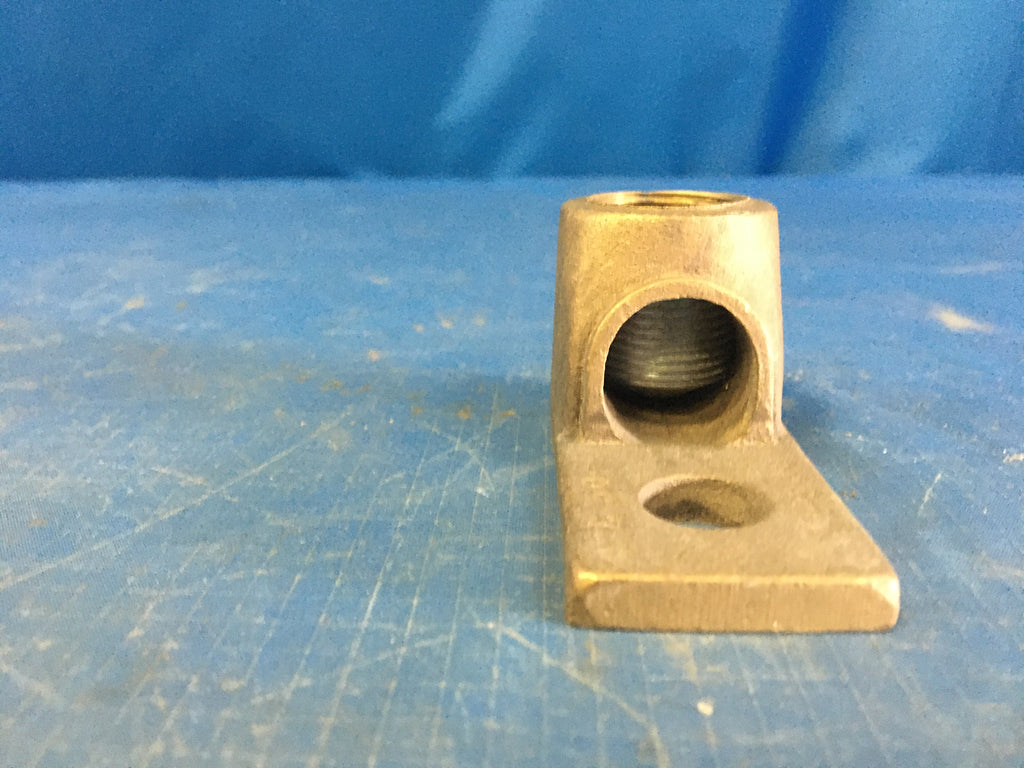

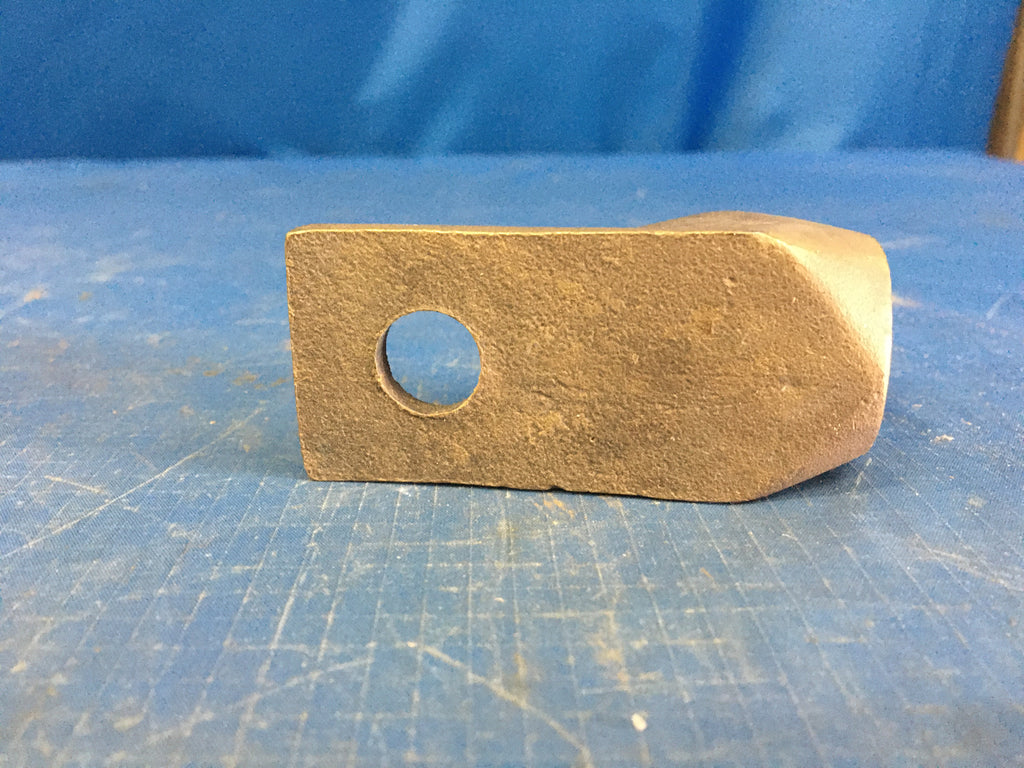

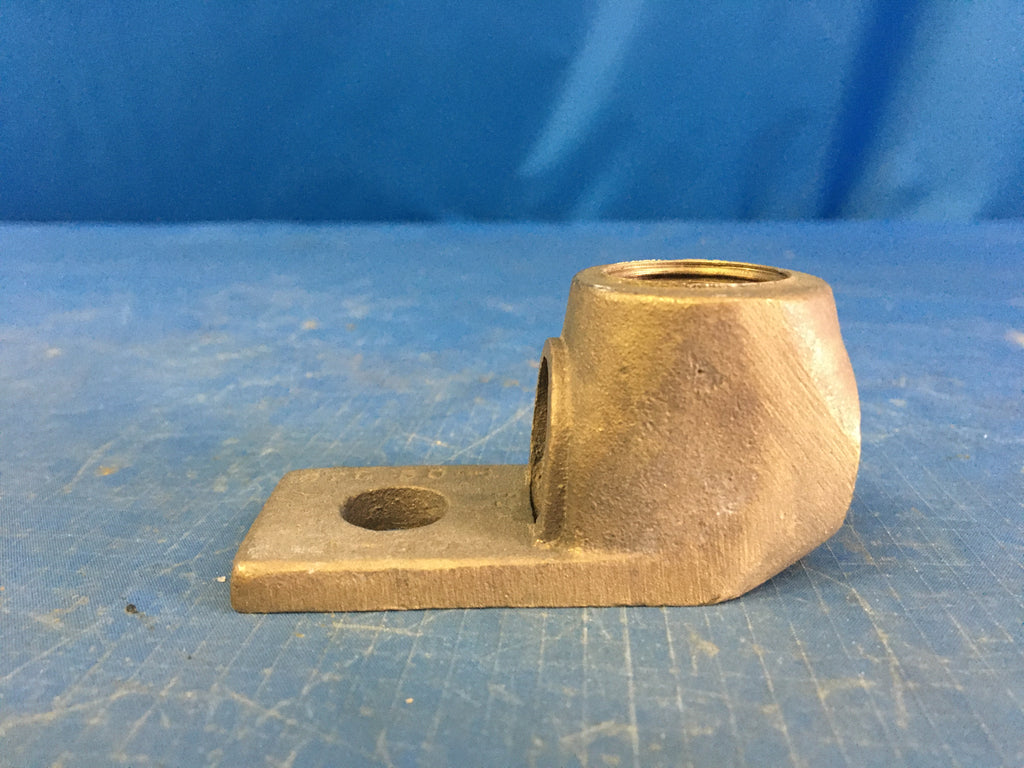

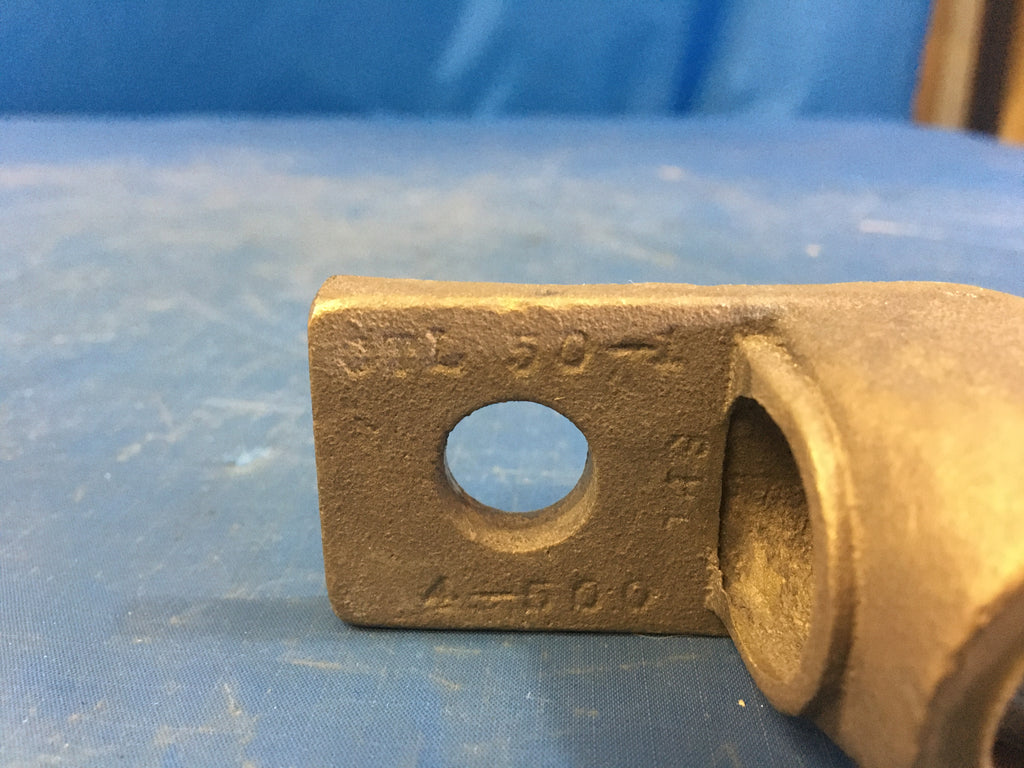

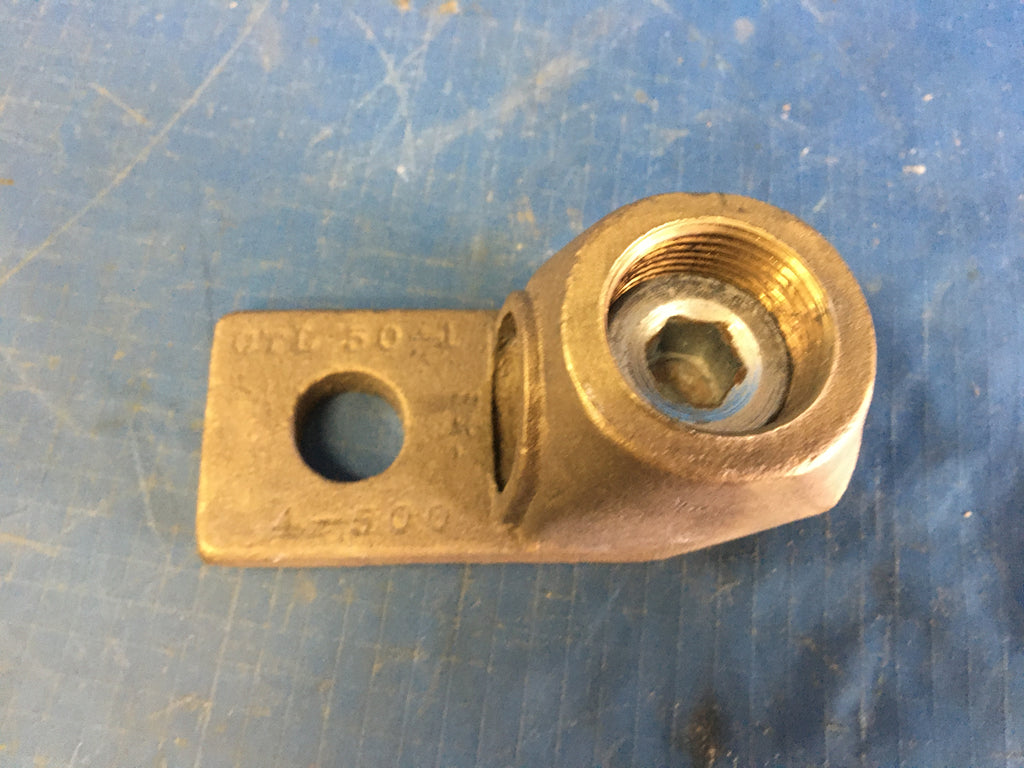

Lug Terminal

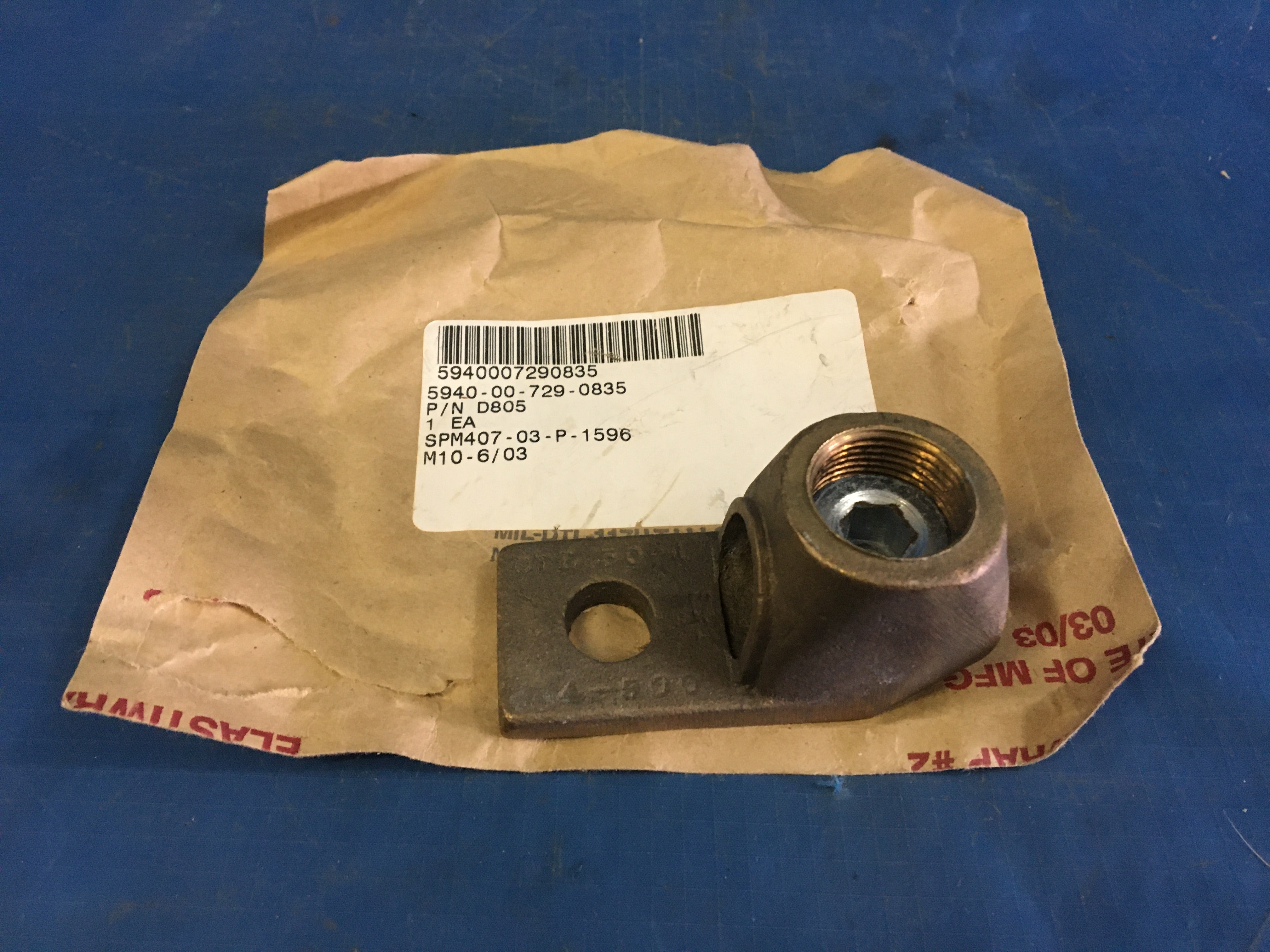

NSN: 5940-00-729-0835 | Model:D805
ITAR Registered seal

A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. it has provisions for attachment of wir (s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. for post like terminals, see terminal stud. excludes clip, electrical; terminal, quick disconnect and terminal feedthru.

NSN Properties and Flags
NATO Stock Number
Overall Length
3.062 inches
Overall Width
1.375 inches
Maximum Conductor Size Accommodated
500 mcm
Largest Diameter
1.375 inches single end
Electrical Insulation Feature
Mounting Method Style
Mounting Hole Diameter
0.500 inches
Mounting Tongue Width
2.000 inches
Mounting Facility Thickness
0.344 inches
Basic Shape Style
Mechanical compression
Conductor Accommodation Type
Barrel setscrew w/hole single end
Copper mounting facility

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
