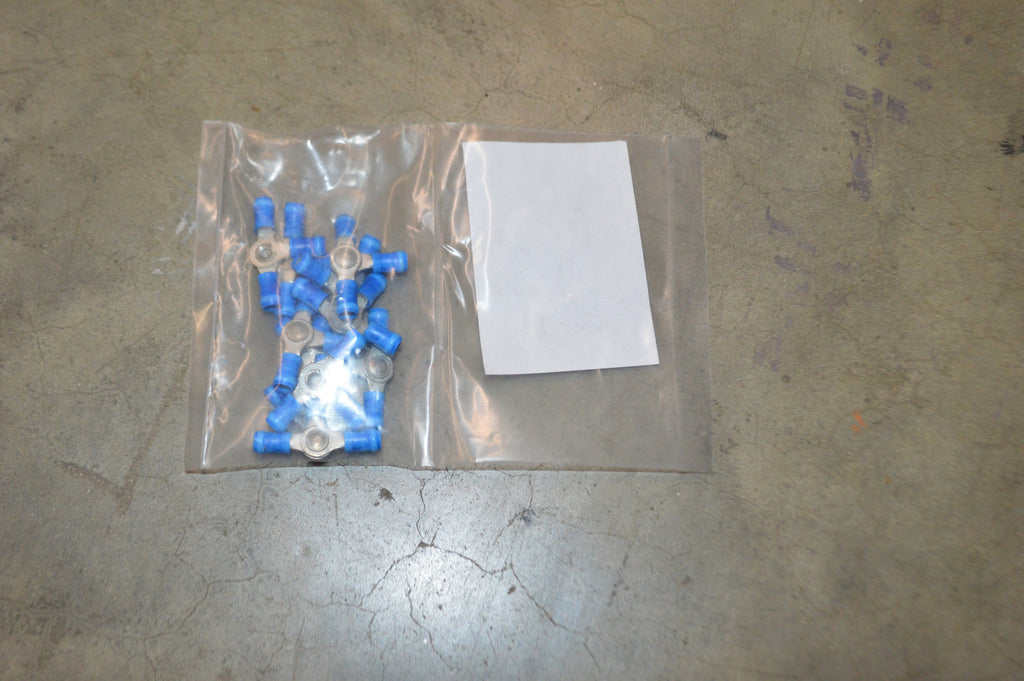

Lug Terminal NSN: 5940-00-078-2846 P/N: 34073

Please fill out the form below for a price quote and availability on this item.

A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. it has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. for post like terminals, see terminal stud. excludes clip, electrical; terminal, quick disconnect and terminal feedthru.

Technical Characteristics

Electrical Insulation Feature: Insulating sleeve
Basic Shape Style: Crimp
Conductor Accommodation Type: Straight barrel all ends
Identification Code Color: Blue
Material Thickness: 0.031 inches
Material: Copper overall except insulation
Material: Plastic insulation
Mounting Facility Thickness: 0.031 inches
Mounting Hole Diameter: 0.196 inches
Mounting Method Style: Ring
Mounting Tongue Width: 0.844 inches
Overall Length: 1.328 inches
Overall Width: 0.844 inches
Surface Treatment: Tin overall except insulation single layer

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
