NSN 5940-00-556-7801

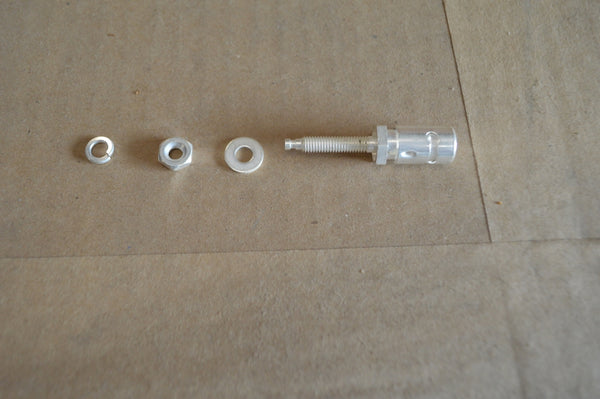

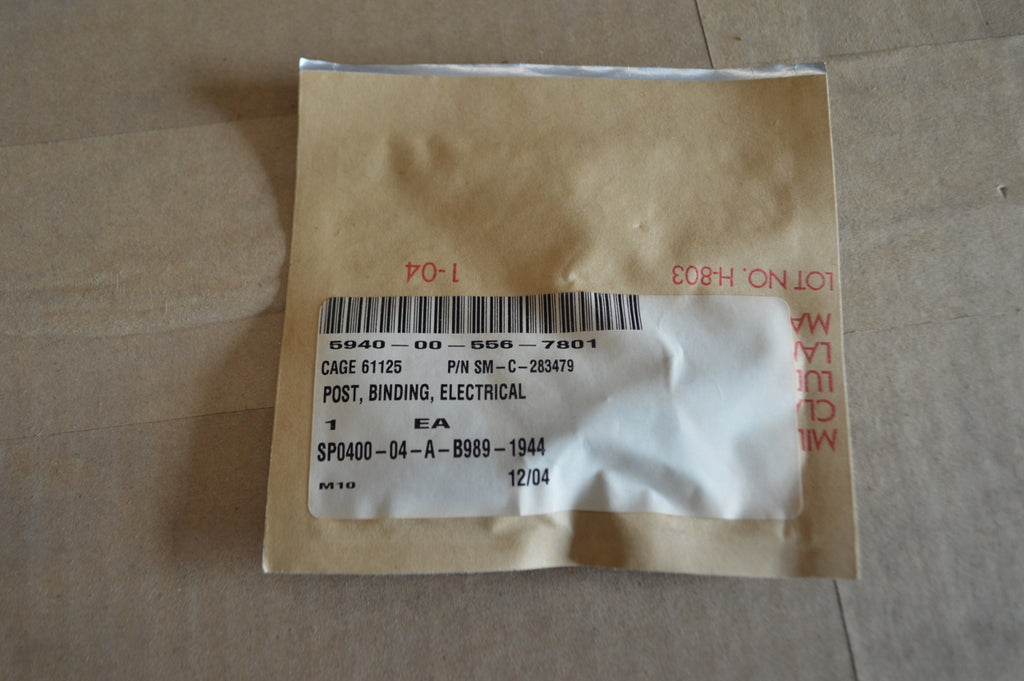

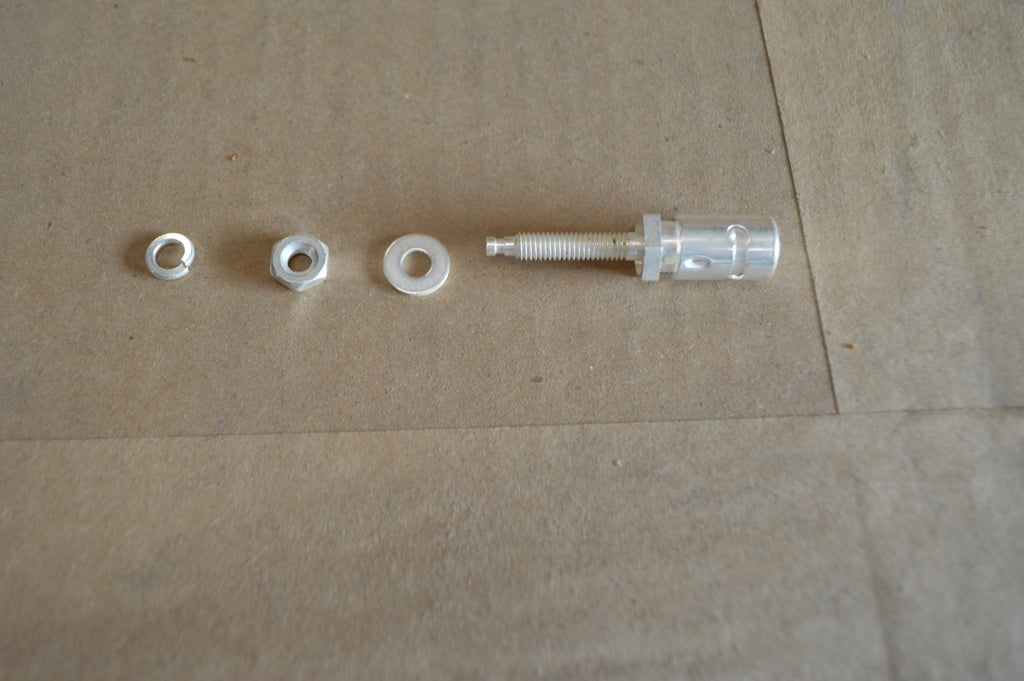

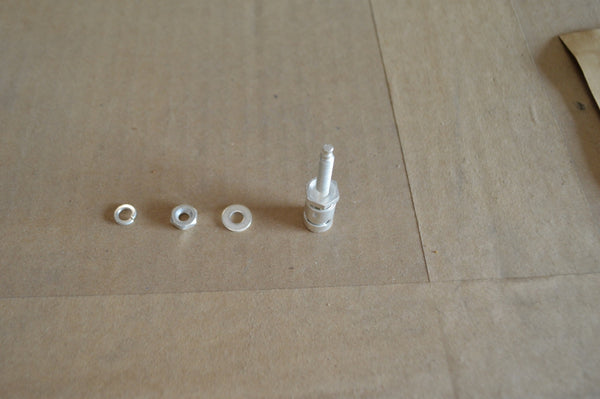

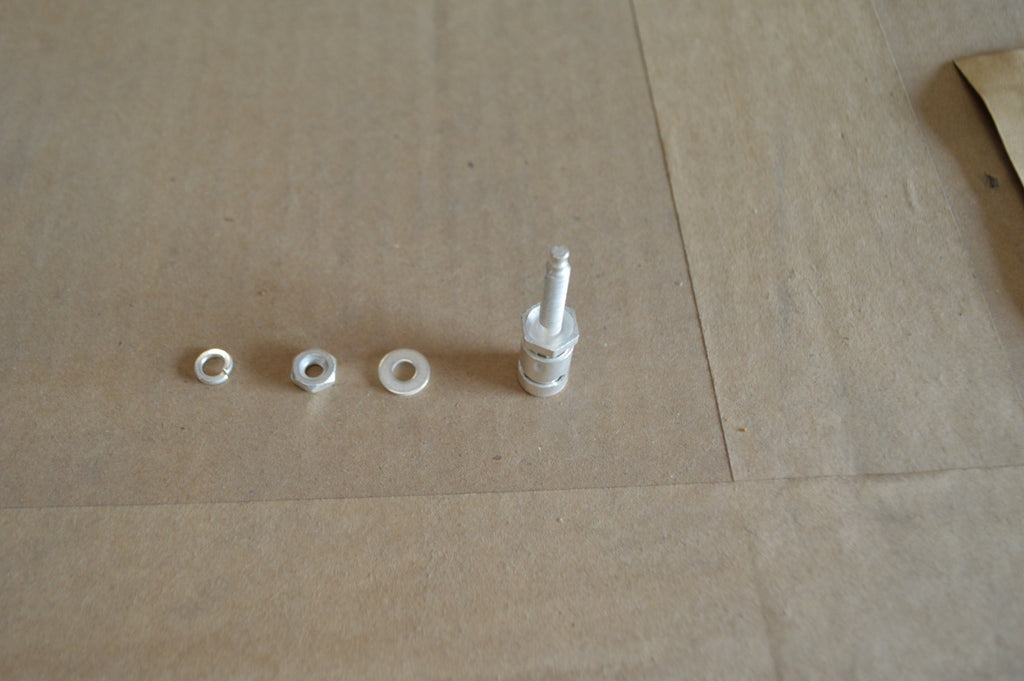

Lot Of 8 High Quality Silver Plated Terminal Binding Post P/N:SM-C-283479 NSN:5940-00-556-7801
Regular price
$56.00
Electrical Binding Post
SKU: 5940005567801 | Model: SMC283479NSN 5940-00-556-7801
Specifications from the Manufacturer
Overall Height:
1.875 inches
Overall Diameter:
0.437 inches
Maximum Height Above Mounting Surface:
0.875 inches
Electrical Insulation Feature:
Uninsulated caps with uninsulated studs
Mounting Method Style:
Stud
Mounting Thread Diameter:
0.190 inches
Thread Length:
1.000 inches
Basic Shape Style:
Single post, round (post binding)
Mounting Thread Series:
Unf
Features Provided:
Mounting hardware
Conductor Accommodation Type:
Screw cap w/jaw single end
Cap Outside Diameter:
0.437 inches
Material:
Copper alloy overall
Precious Material And Location:
Outer surfaces silver
Precious Material:
Silver
Surface Treatment:
Silver overall single layer
