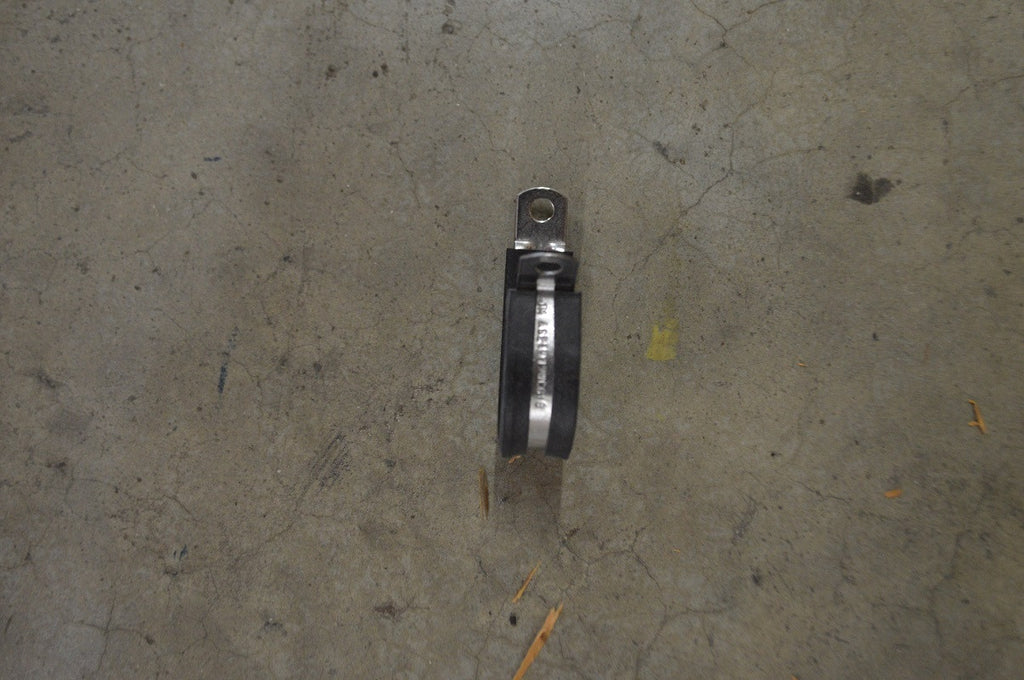

Loop Clamp NSN: 5340-01-169-8331 P/N: MS21919WCG18
Please fill out the form below for a price quote and availability on this item.
A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. includes straight flexible items. for items specifically designed to clamp a hose to a connection to prevent leakage, see clamp, hose. see also hanger, pipe and clip, spring tension. for retaining straps with a bridge, see strap, retaining. excludes clamp, electrical; band, retaining; clamp (1), c; bracket pipe.
Technical Characteristics |
|
| Distance From Loop Center To Tongue End: | 1.248 inches nominal |
| For Use With/On: | Nsn 2330-01-275-7474 hemat trailer |
| Center To Center Distance Between Loop And Mounting Hole: | 1.015 inches minimum and 1.045 inches maximum |
| Cushioning Environmental Protection: | Weather resistant |
| Diameter: | 0.199 inches minimum and 0.209 inches maximum |
| Material Thickness: | 0.032 inches nominal |
| Material: | Rubber chloroprene class cr cushion |
| Material: | Steel comp 321 band |
| Loop Inside Diameter: | 1.110 inches minimum and 1.140 inches maximum |
| Material Document And Classification: | Ams 5510 assn std single material response band |
| Material Document And Classification: | Ams 3209 assn std single material response cushion |
| Overall Width: | 0.490 inches minimum and 0.510 inches maximum |
| Special Features: | Cushion ozone resistant |
| Style Designator: | Offset mount |
| Surface Treatment Document And Classification: | Qq-p-35 fed spec single treatment response band |
| Surface Treatment: | Passivate band |
| Tongue Hole Type: | Round, unthreaded |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
