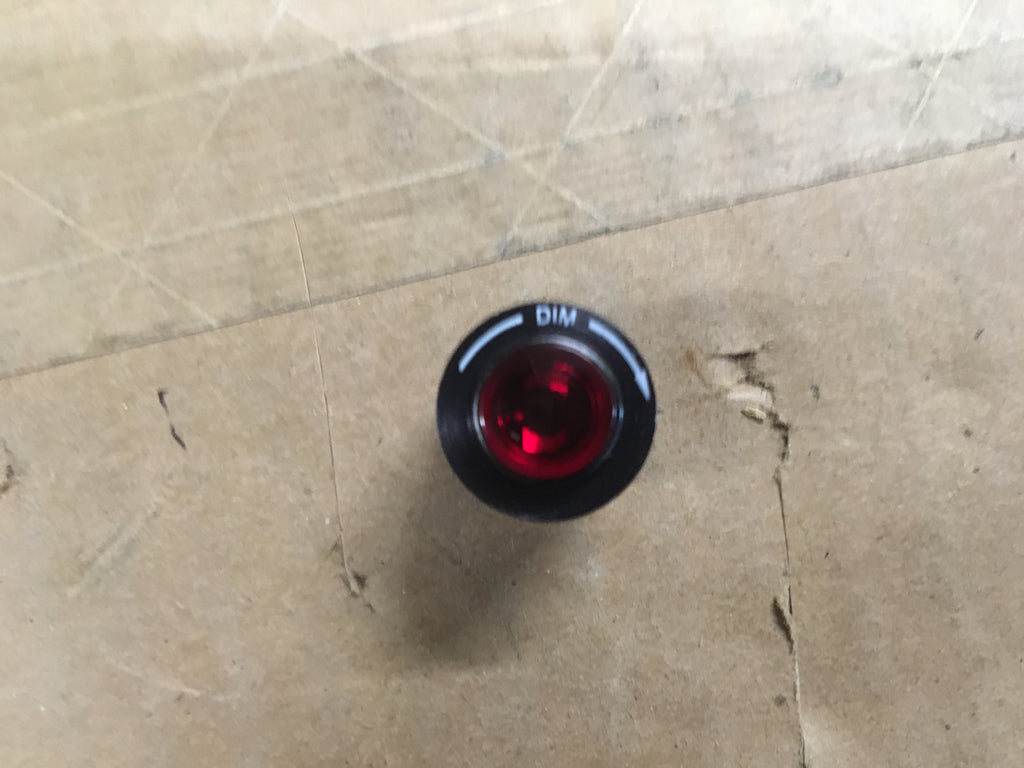

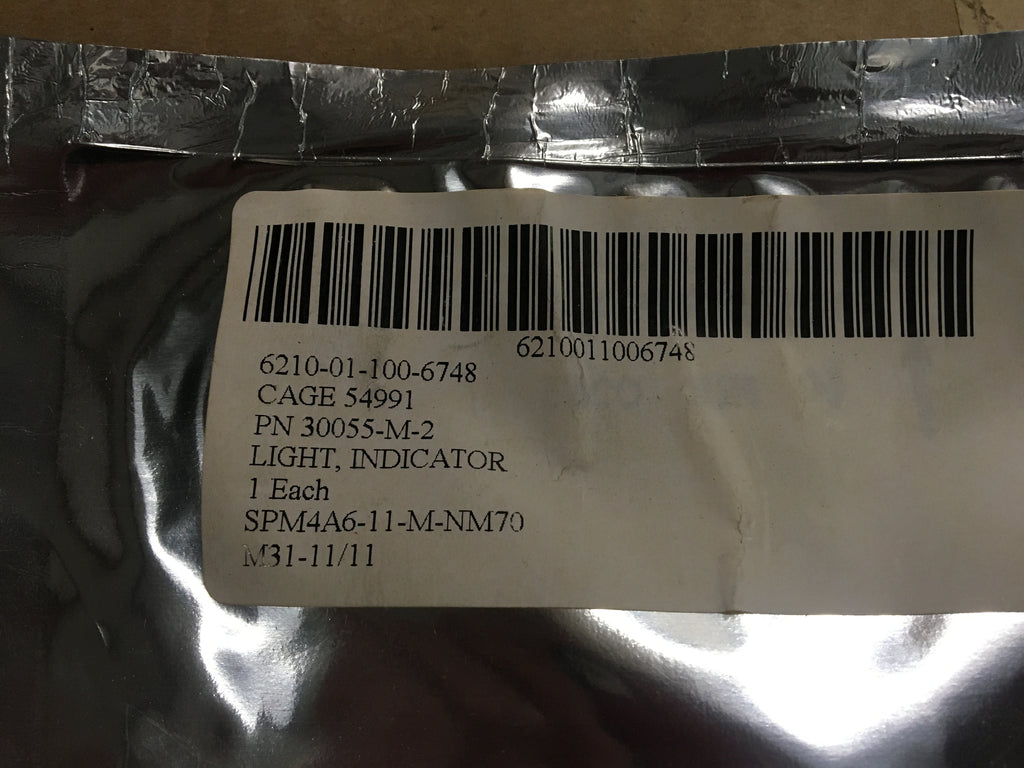

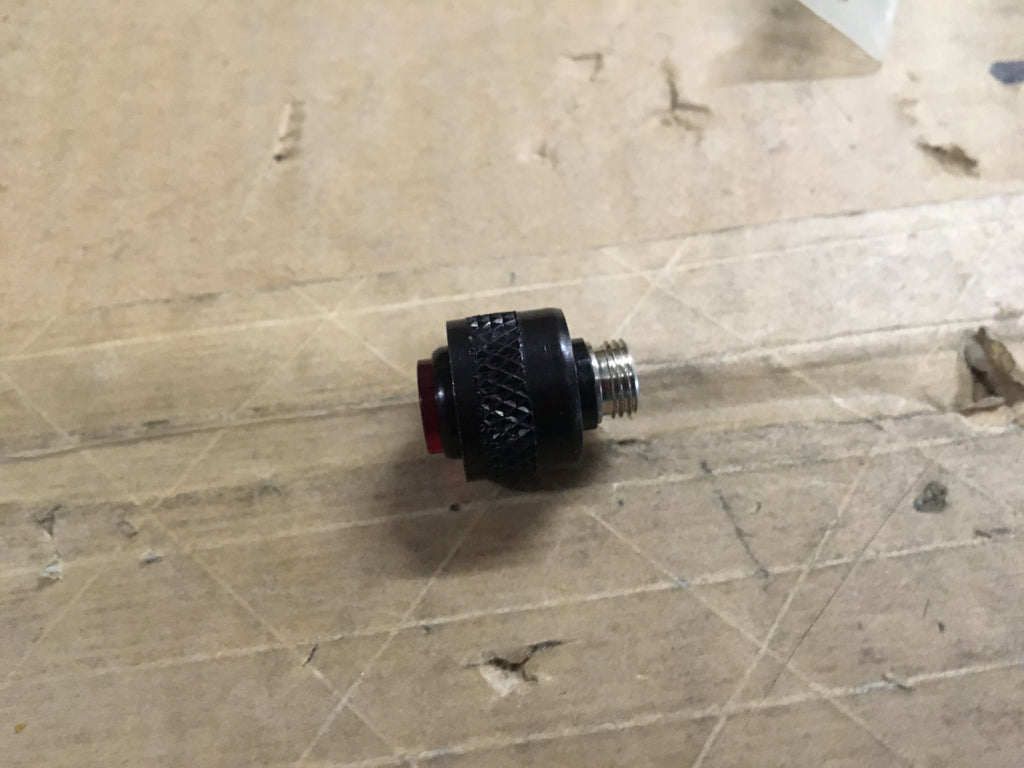

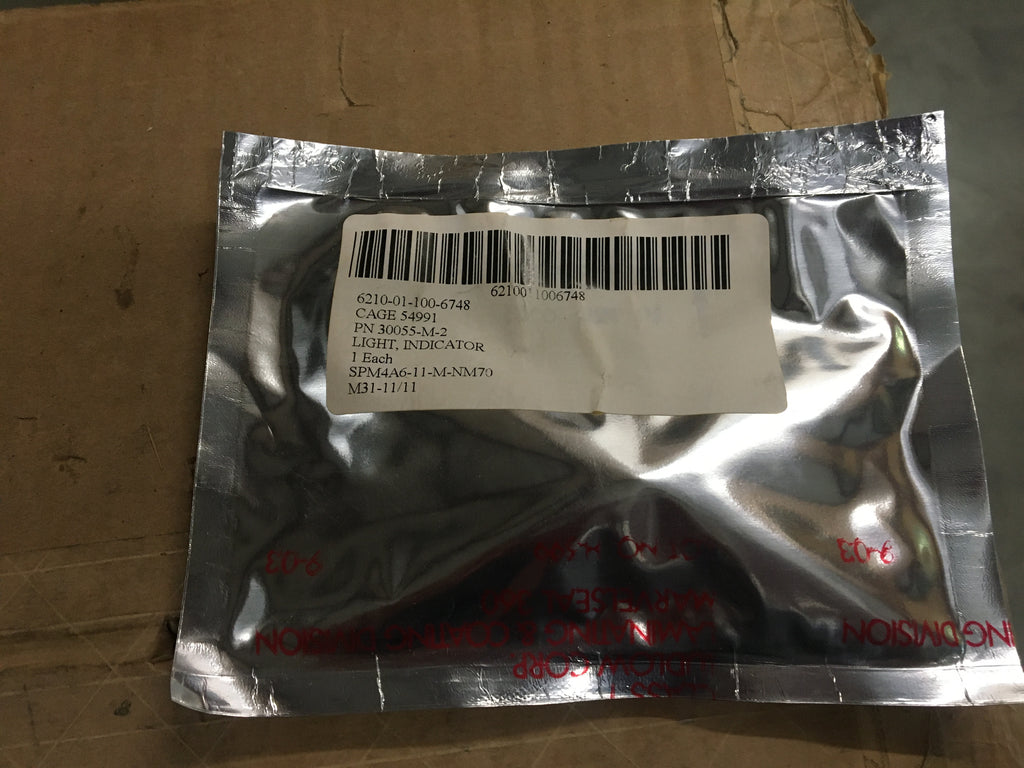

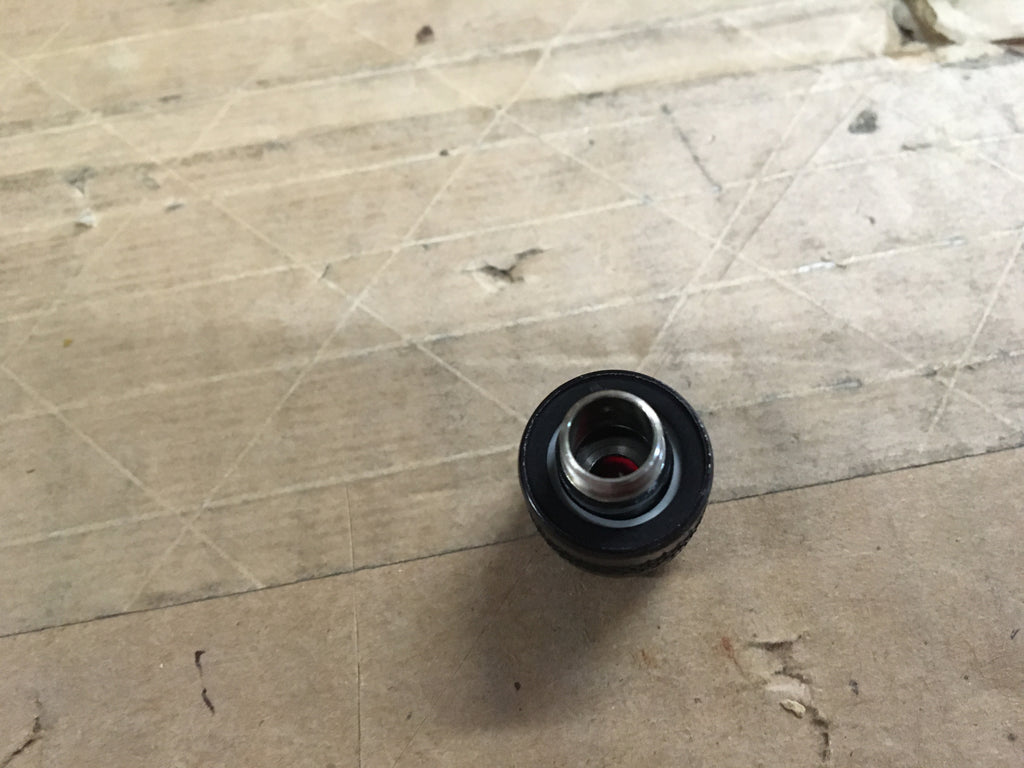

Light Lens NSN:6210-01-100-6748 P/N:30055-M-2

Please fill out the form below for a price quote and availability on this item.

Light Lens- A transparent or translucent item designed to enclose or be placed in front of a light source. sections of the lens may be opaque. it may or may not include a holder. it is designed to be either a replacement unit for a specific type of light, such as light, indicator; light, navigational, marine; stop light, vehicular; and lantern, electric or that portion of a switch, (as modified) used as an actuator and having provisions for illumination. see also, window, lighting fixture; globe; electric light; and filter (2), (as modified).

Effective Diameter: 0.360 inches nominal
Blackout Degree: Complete
Color: Black holder
Color: Red lens
Dimming Device Type: Mechanical shutter
Furnished Items: Boot
Holder Surface Treatment: Anodize
Material: Aluminum holder
Material: Plastic lens
Mounting Device Quantity: 1
Mounting Method: External thread
Overall Diameter: 0.620 inches nominal
Light Transmission Design: Transparent lens
Material Document And Classification: L-p-349 fed spec single material response lens
Style Designator: Flat
Surface Condition: Smooth face
Surface Condition: Smooth back
Thread Class: 2a
Thread Diameter: 0.469 inches
Thread Direction: Right-hand

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
