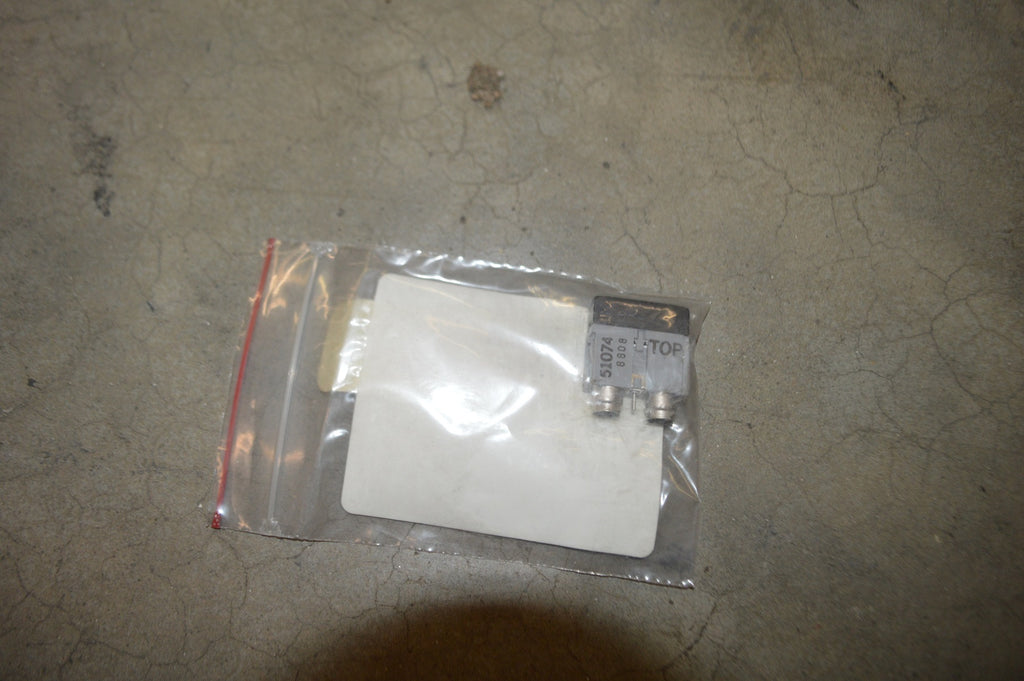

Light Indicator NSN:6210-01-141-5202 P/N:12311715-13
Please fill out the form below for a price quote and availability on this item.
Light Indicator- A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. must include or provide for the use of a lens as a part of it. for items without a lens, see lampholder, and also see light (1), panel.
| Filter Color: | Green single light 1st position horizontal full display division a |
| Filter Quantity: | 1 |
| Hazardous Locations/environmental Protection: | Fungus resistant and humidity resistant and salt spray resistant and vibration resistant |
| Material: | Aluminum alloy body |
| Mounting Method: | Bracket |
| Multilamp Circuit Type: | Two lamp common |
| Lamp Base Type Accommodated: | Midget flanged |
| Lamp Bulb Size Designator: | T-1 3/4 |
| Lamp Type Accommodated And Quantity: | 3 incandescent |
| Lens Back Surface Condition: | Smooth single light 1st position horizontal |
| Lens Color: | White single light 1st position horizontal |
| Lens Face Surface Condition: | Smooth single light 1st position horizontal |
| Lens Legend: | Nsg ready;glld on single light 1st position horizontal full display division a |
| Lens Light Transmission Characteristic: | Translucent single light 1st position horizontal |
| Lens Mounting Method: | Push in |
| Lens Quantity: | 1 |
| Lens Type: | Flat, rectangular single light 1st position horizontal |
| Overall Width: | 0.328 inches minimum and 0.358 inches maximum |
| Style Designator: | Rectangular frame type |
| Surface Treatment: | Anodize body |
| Transmitted Legend Color: | Black single light 1st position horizontal full display division a |
| Transmitted Light Color: | Green single light 1st position horizontal full display division a |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
