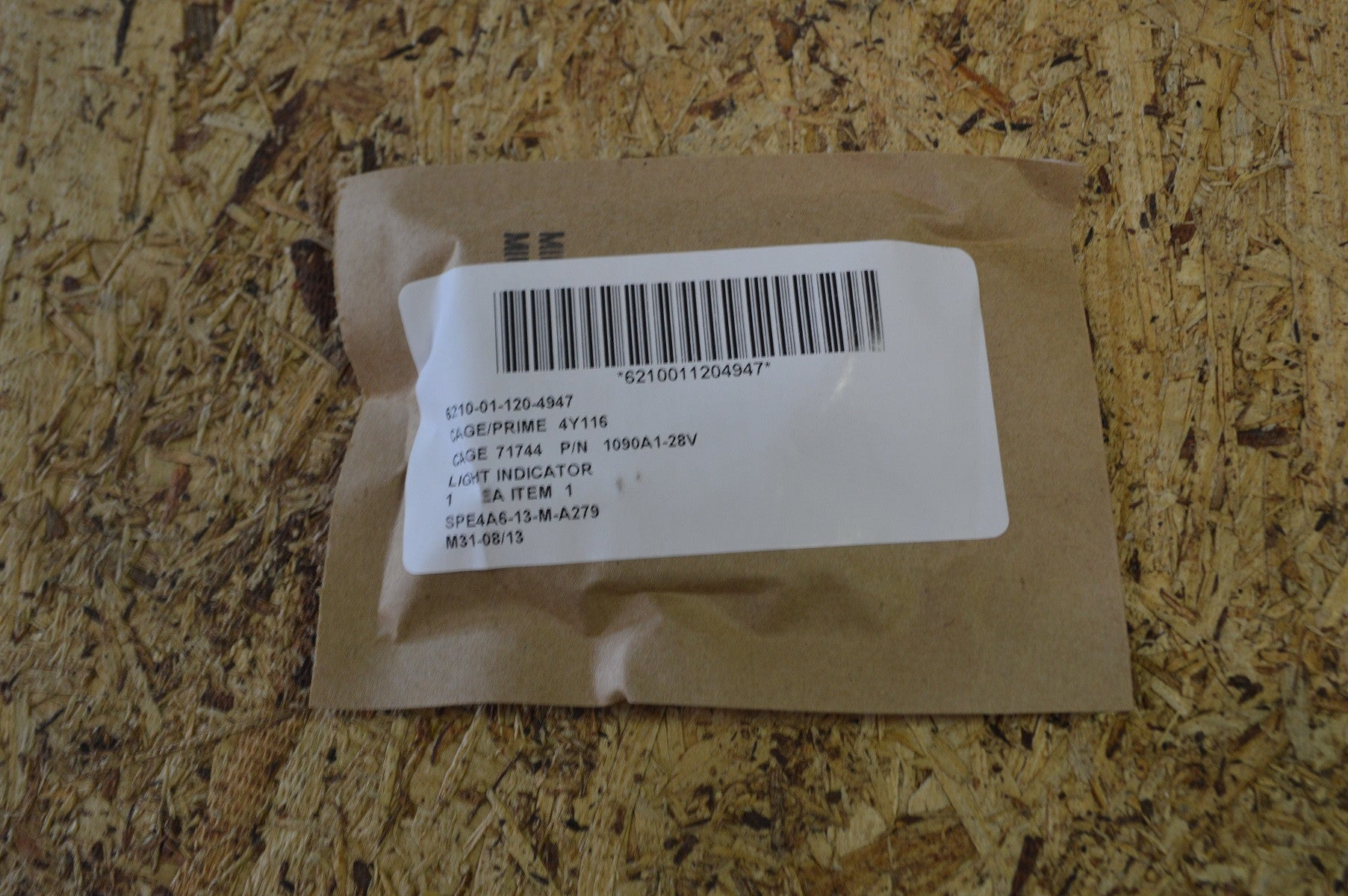

Light Indicator NSN:6210-01-120-4947 P/N:1090A1-28V
Please fill out the form below for a price quote and availability on this item.
Light Indicator- A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. must include or provide for the use of a lens as a part of it. for items without a lens, see lampholder, and also see light (1), panel.
| Material: | Plastic polyamide body |
| Mounting Method: | Friction |
| Overall Diameter: | 0.625 inches nominal |
| Overall Length: | 1.438 inches nominal |
| Lamp Type Accommodated And Quantity: | 1 incandescent |
| Lens Back Surface Condition: | Smooth single light 1st position horizontal |
| Lens Color: | Red single light 1st position horizontal |
| Lens Face Surface Condition: | Smooth single light 1st position horizontal |
| Lens Light Transmission Characteristic: | Translucent single light 1st position horizontal |
| Lens Quantity: | 1 |
| Lens Type: | Stovepipe, plain single light 1st position horizontal |
| Panel Accommodation Hole Diameter: | 0.500 inches nominal |
| Style Designator: | Round frame, round lens type |
| Terminal Type And Quantity: | 2 wire lead |
| Transmitted Light Color: | Red single light 1st position horizontal full display division a |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
