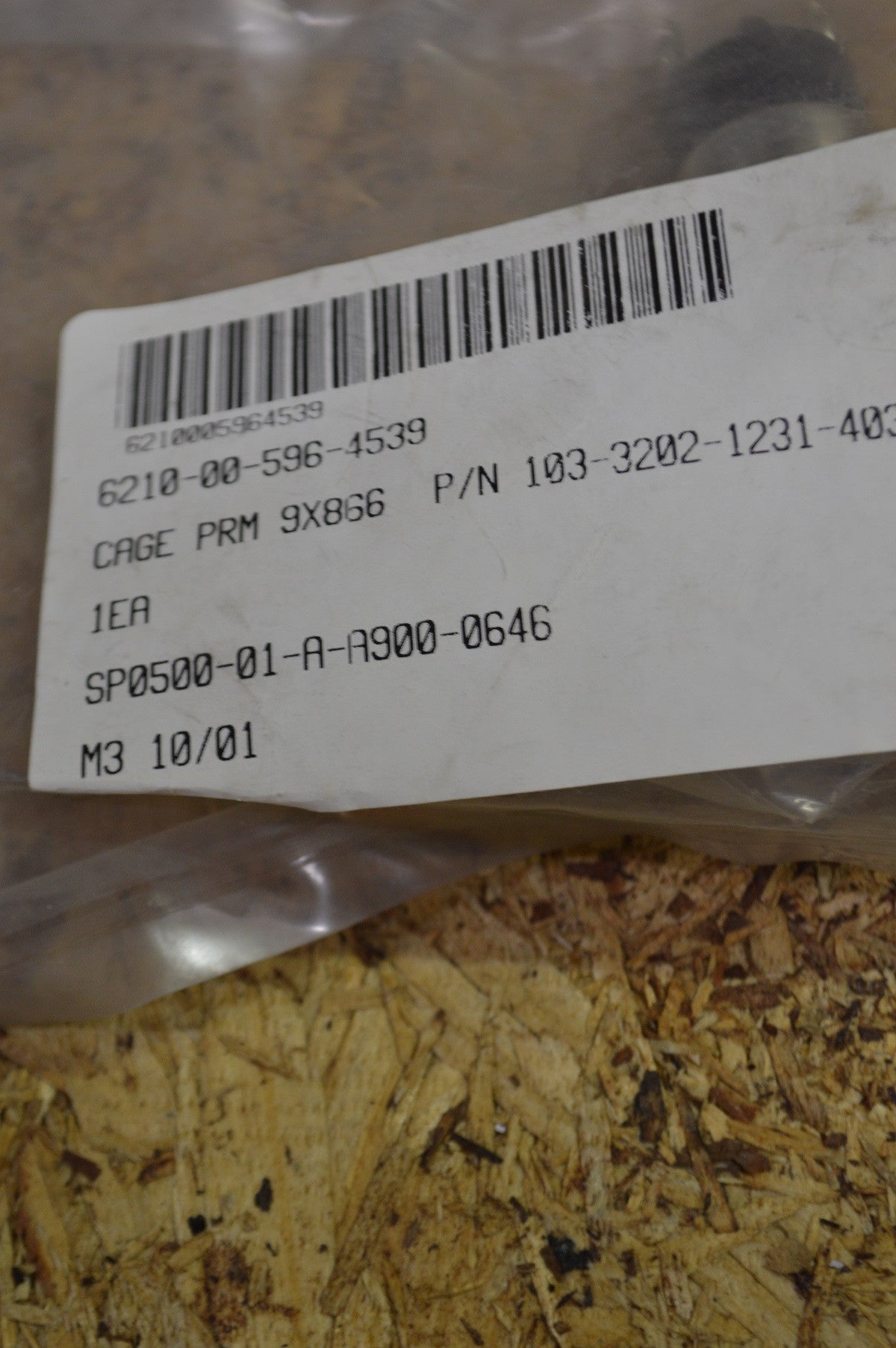

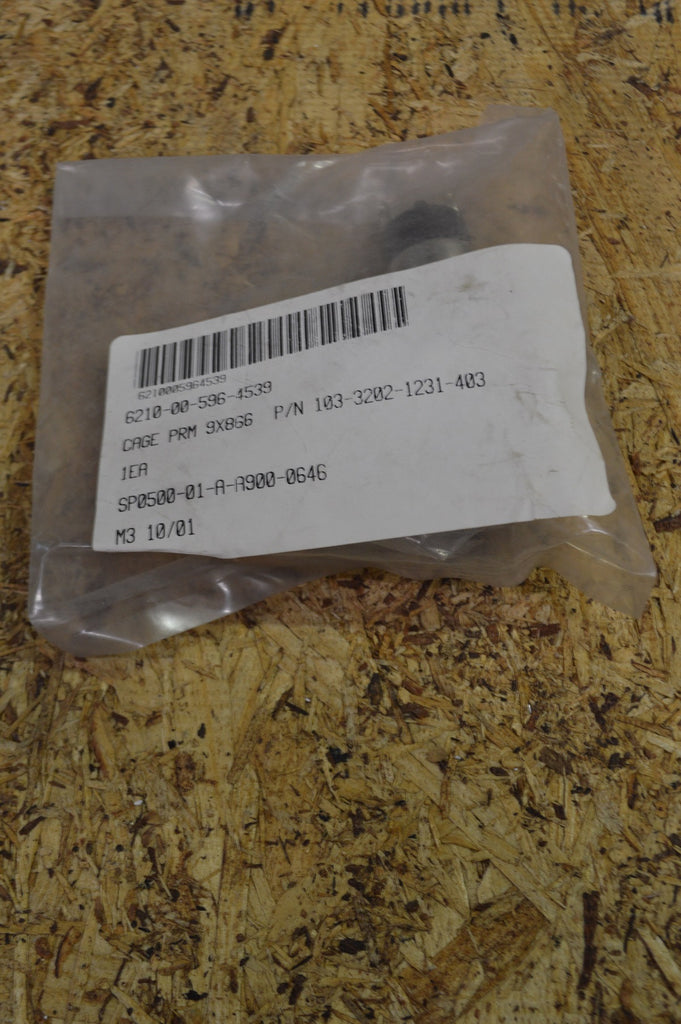

Light Indicator NSN:6210-00-596-4539 P/N:103-3203-1231-403
Please fill out the form below for a price quote and availability on this item.
Light Indicator- A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. must include or provide for the use of a lens as a part of it. for items without a lens, see lampholder, and also see light (1), panel.
|Furnished Items And Quantity:||1 hexagon nut and 1 lock washer and 2 o-ring|
|Hazardous Locations/environmental Protection:||Oiltight and watertight|
|Material:||Copper alloy body|
|Overall Diameter:||1.230 inches minimum and 1.250 inches maximum|
|Lamp Base Type Accommodated:||Double contact bayonet candelabra|
|Lamp Bulb Size Designator:||S-6|
|Lamp Type Accommodated And Quantity:||1 incandescent|
|Lens Back Surface Condition:||Frosted single light 1st position horizontal|
|Lens Color:||Red single light 1st position horizontal|
|Lens Face Surface Condition:||Smooth single light 1st position horizontal|
|Lens Light Transmission Characteristic:||Translucent single light 1st position horizontal|
|Lens Mounting Method:||Screw on|
|Lens Type:||Dome, knurled, internal thread single light 1st position horizontal|
|Overall Length:||2.937 inches nominal|
|Panel Thickness For Which Designed:||0.500 inches maximum|
|Panel Accommodation Hole Diameter:||1.000 inches nominal|
|Style Designator:||Round frame, round lens type|
|Surface Treatment:||Chromium body|
|Terminal Type And Quantity:||2 screw|
|Transmitted Light Color:||Red single light 1st position horizontal full display division a|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
