Harris Corp Light Emitting Diode NSN:5980-01-171-0731 P/N:MV5774C

Please fill out the form below for a price quote and availability on this item.

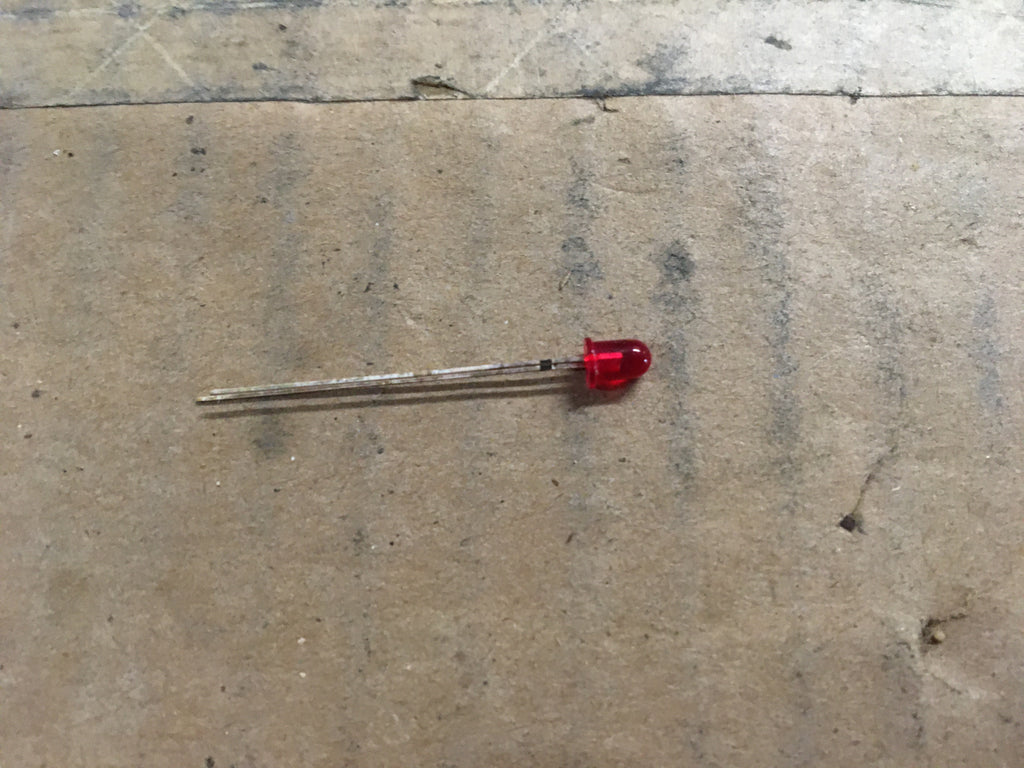

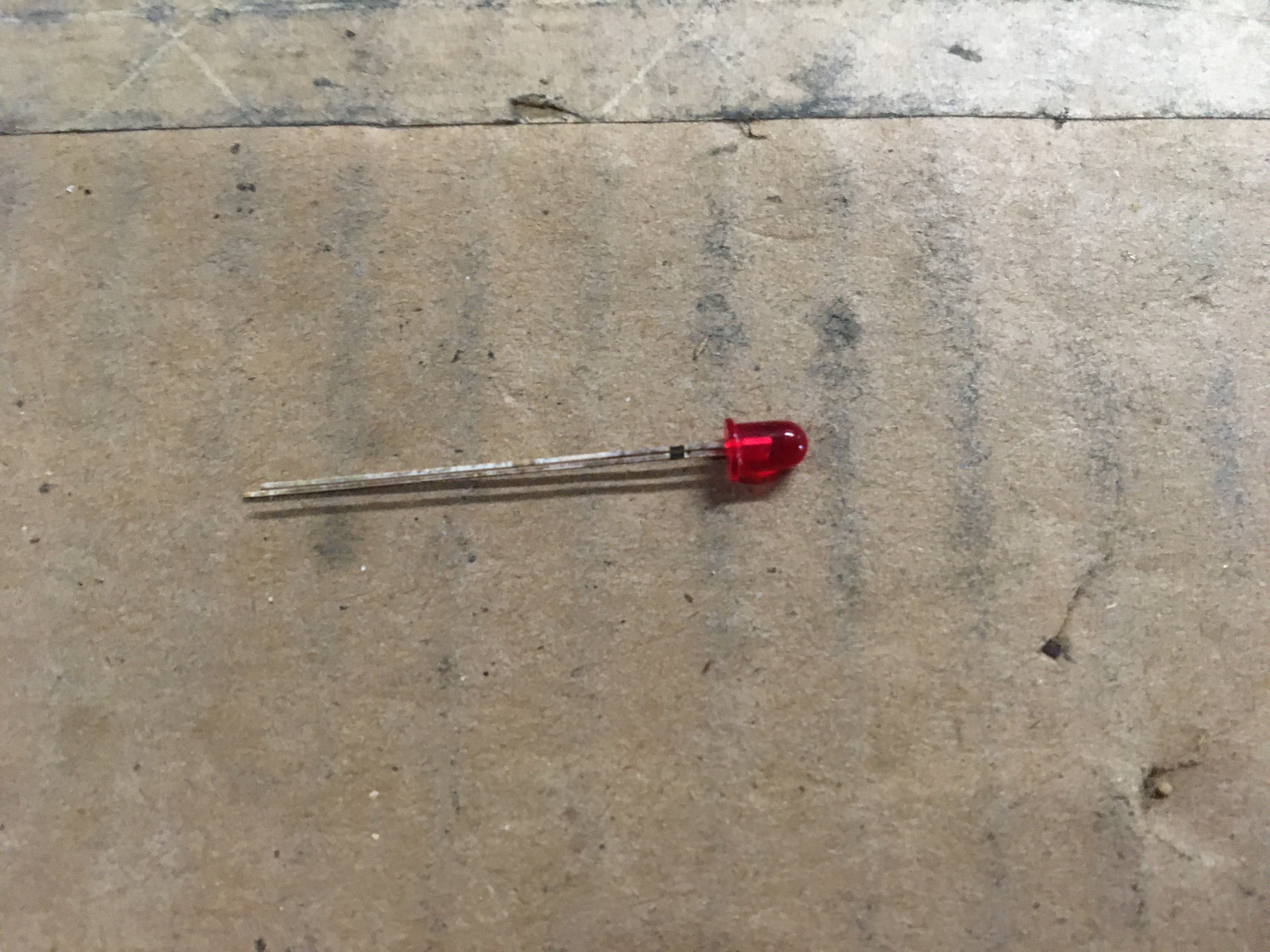

Light Emitting Diode

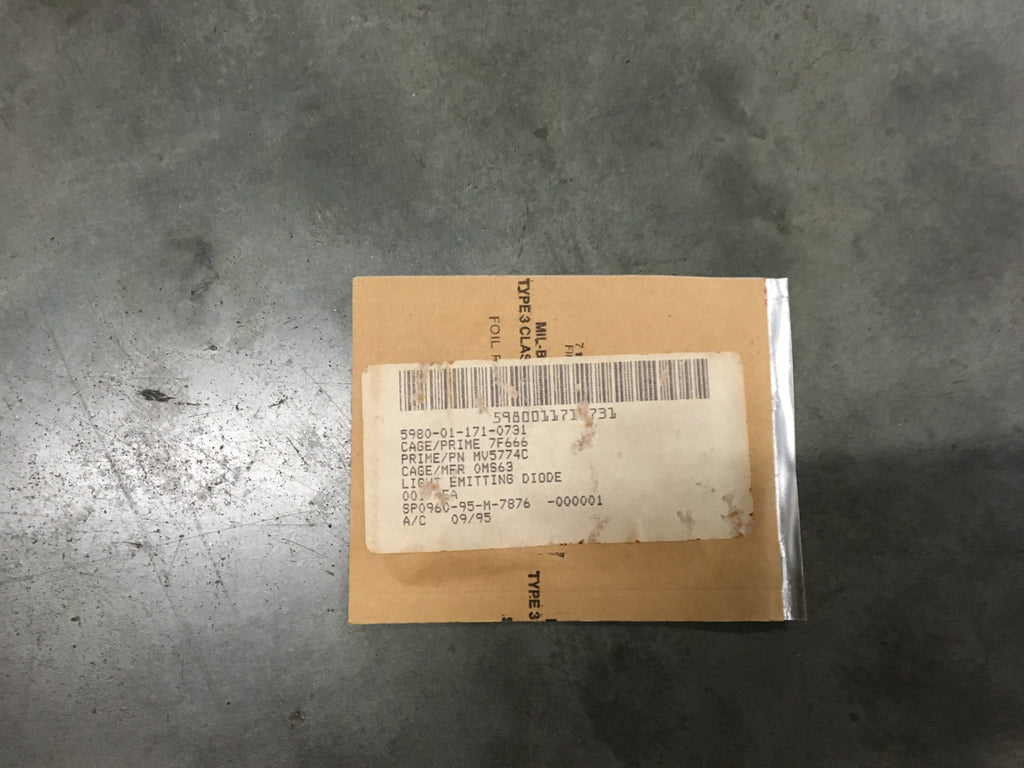

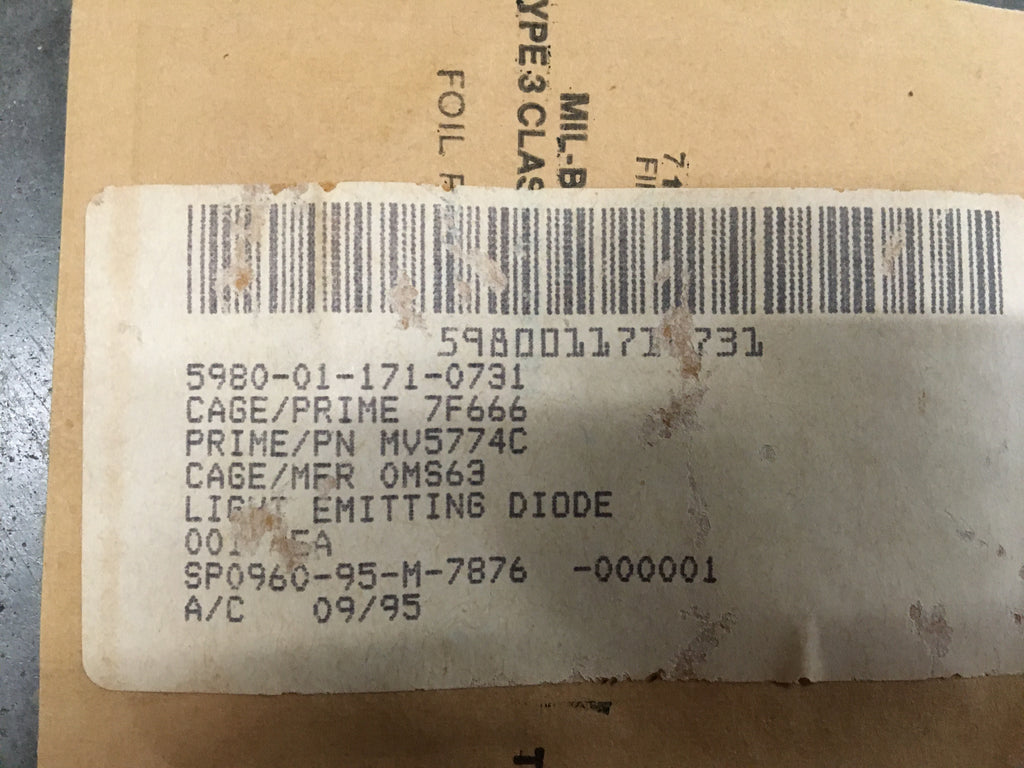

NSN: 5980-01-171-0731 | Model: MV5774C
ITAR Registered seal

A two electrode, solid state, optoelectronic device that emits visible or infrared radiant energy when electrically energized. May or may not include mounting hardware and/or heat sink. Excludes lamp, cartridge; and light, indicator. For solid state devices which are responsive to infrared or radiant energy, see semiconductor device (1), photo.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Inclosure Material
Overall Length
Between 0.190 inches and 0.210 inches
Terminal Length
1.000 inches
Overall Diameter
Between 0.150 inches and 0.160 inches
Lens Transparency
Mounting Method
Semiconductor Material
Gallium arsenic
Voltage Rating In Volts Per Characteristic
5.0 reverse voltage, dc
Current Rating Per Characteristic
1.00 amperes all primaries absolute
Power Rating Per Characteristic
105.0 milliwatts any acceptable preset
Color Tone Produced Per Source
Red lens
Maximum Operating Tempurature Per Measurement Point
100.0 degrees celsius ambient air
Terminal Type And Quantity
2 uninsulated wire lead

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
