Light Backup NSN:6220-01-341-3258 P/N:1401112

Please fill out the form below for a price quote and availability on this item.

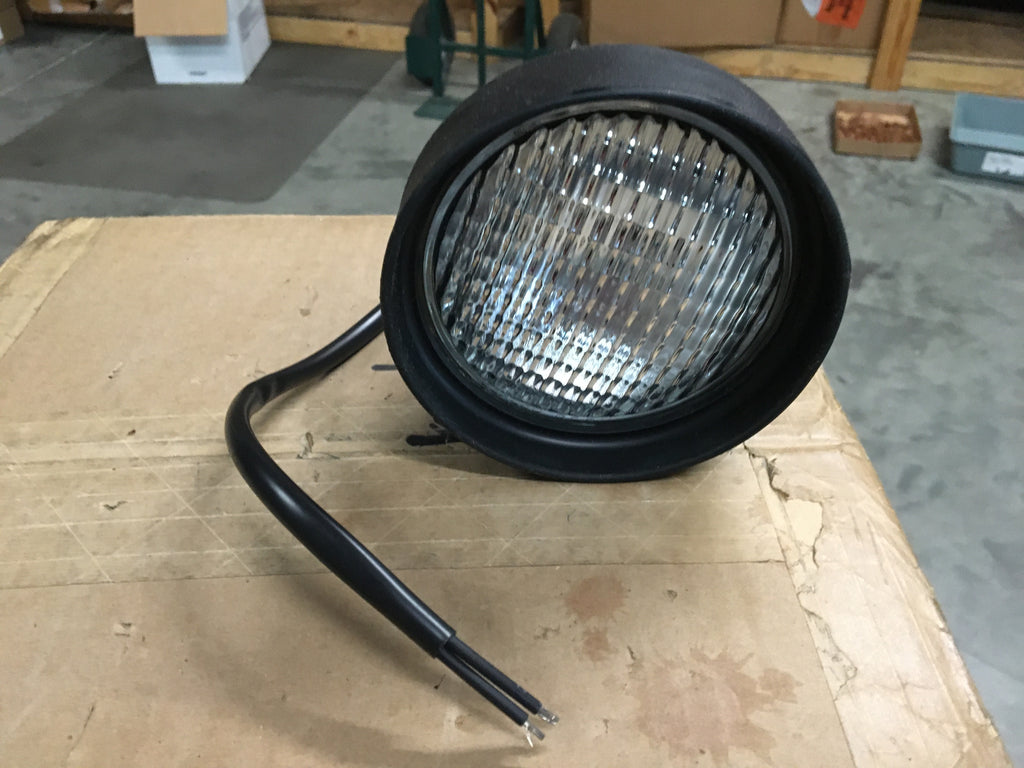

Light Backup-A light specifically designed to be mounted on the rear of a vehicle to provide illumination for backing.

NAME ITEM NAME HEADLIGHT
ABHP OVERALL LENGTH 3.250 INCHES NOMINAL
ADAV OVERALL DIAMETER 4.750 INCHES NOMINAL
AEUJ LAMP BASE TYPE ACCOMMODATED TWO SCREW TERMINALS
AEYB WIRING PROVISION METHOD CABLE
AGAV END ITEM IDENTIFICATION TRUCK TRACTOR
AHHZ WIRING PROVISION LENGTH 11.0 INCHES NOMINAL SINGLE PROVISION
ASXH VOLTAGE RATING IN VOLTS 12.0 DC NOMINAL
AXGY MOUNTING METHOD STUD
CRHX LAMP TYPE ACCOMMODATED AND QUANTITY 1 INCANDESCENT
MATT MATERIAL RUBBER SYNTHETIC BODY
PRPY PROPRIETARY CHARACTERISTICS PACS
SHPE SHAPE TAPERED
TMQY FURNISHED ITEMS AND QUANTITY 1 LAMP
TTQY TERMINAL TYPE AND QUANTITY 1 WIRE LEAD

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
