Electro Switch Corp 3100-1372 Lever Switch NSN 5930-00-001-5934

Please fill out the form below for a price quote and availability on this item.

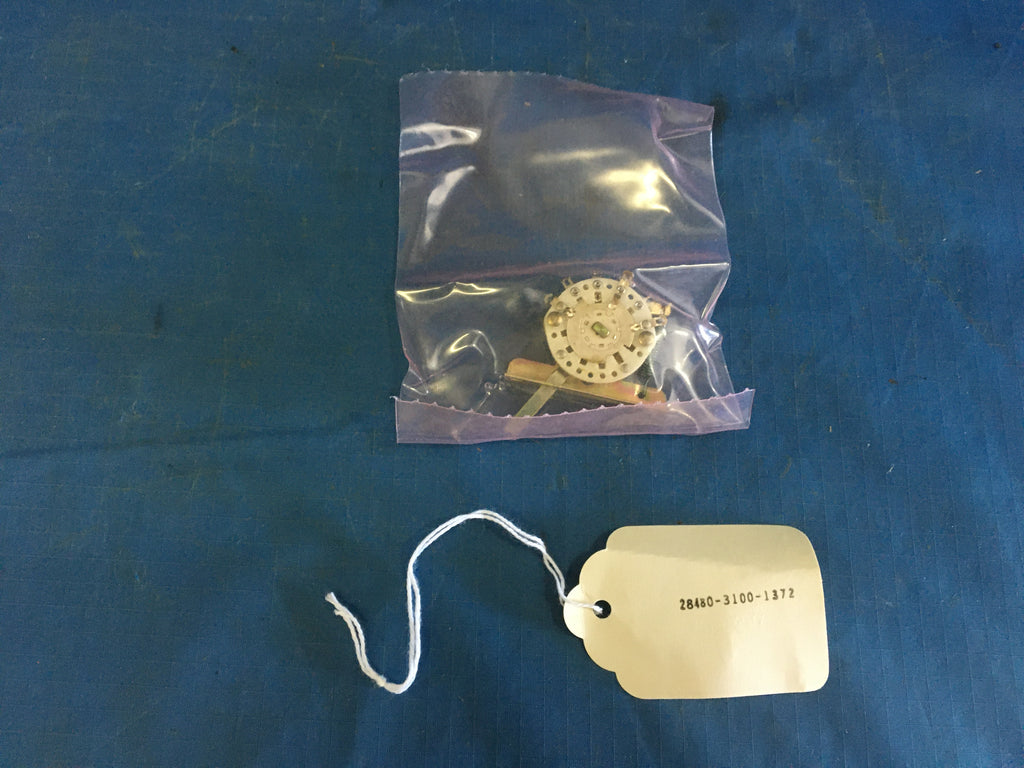

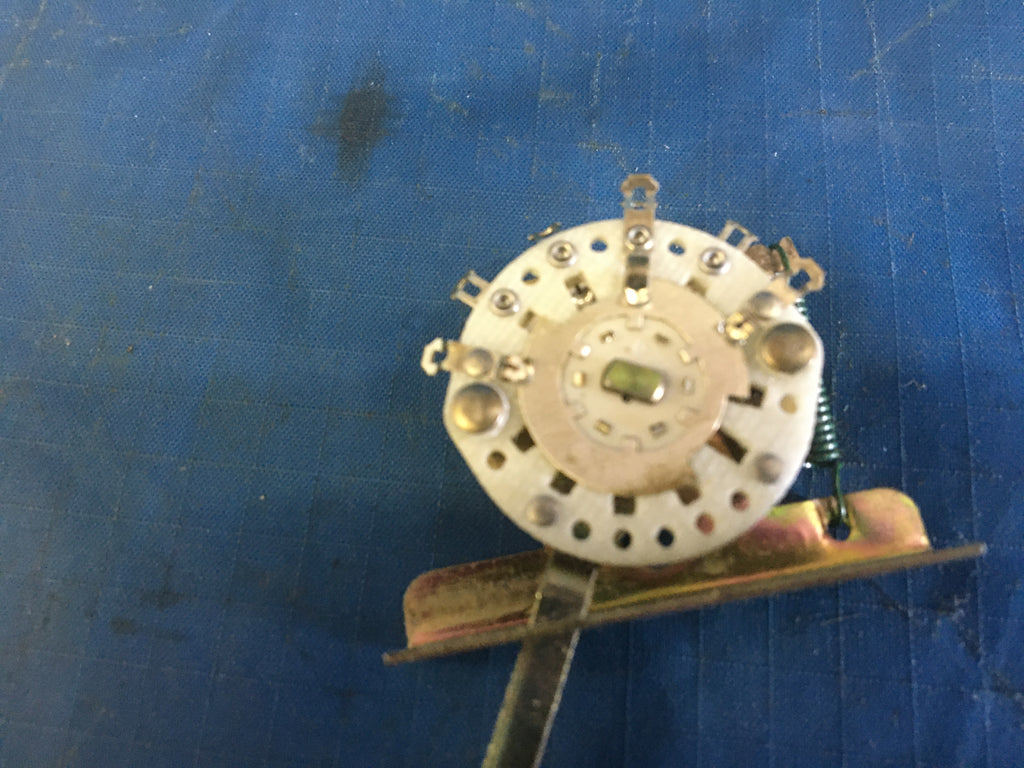

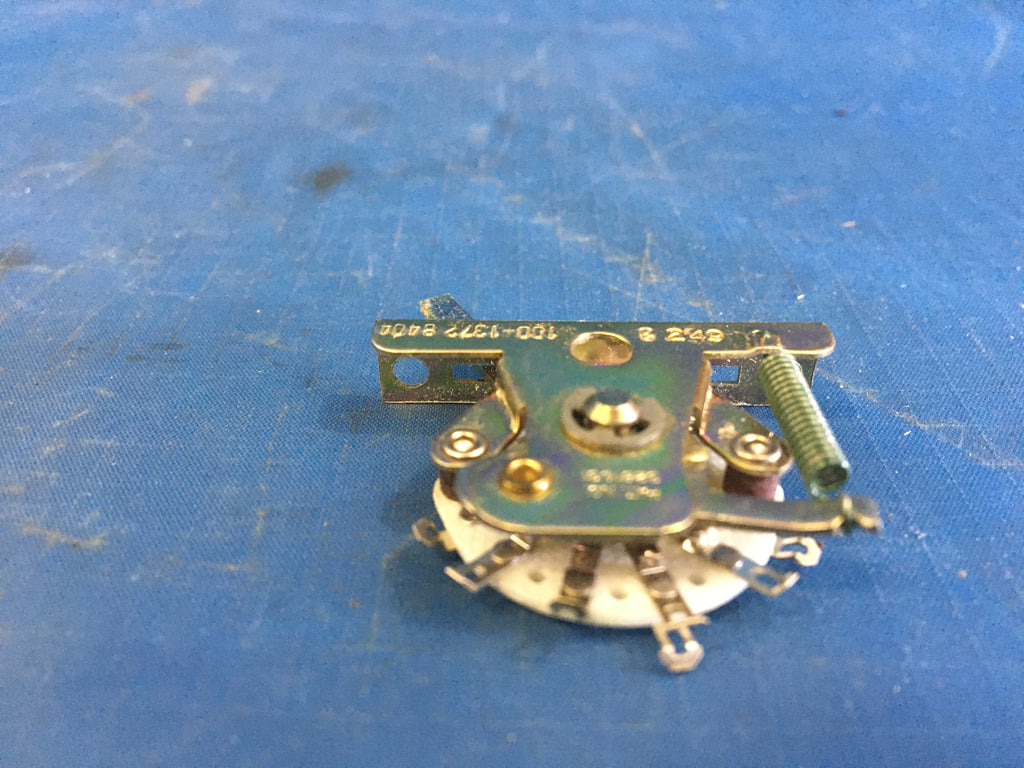

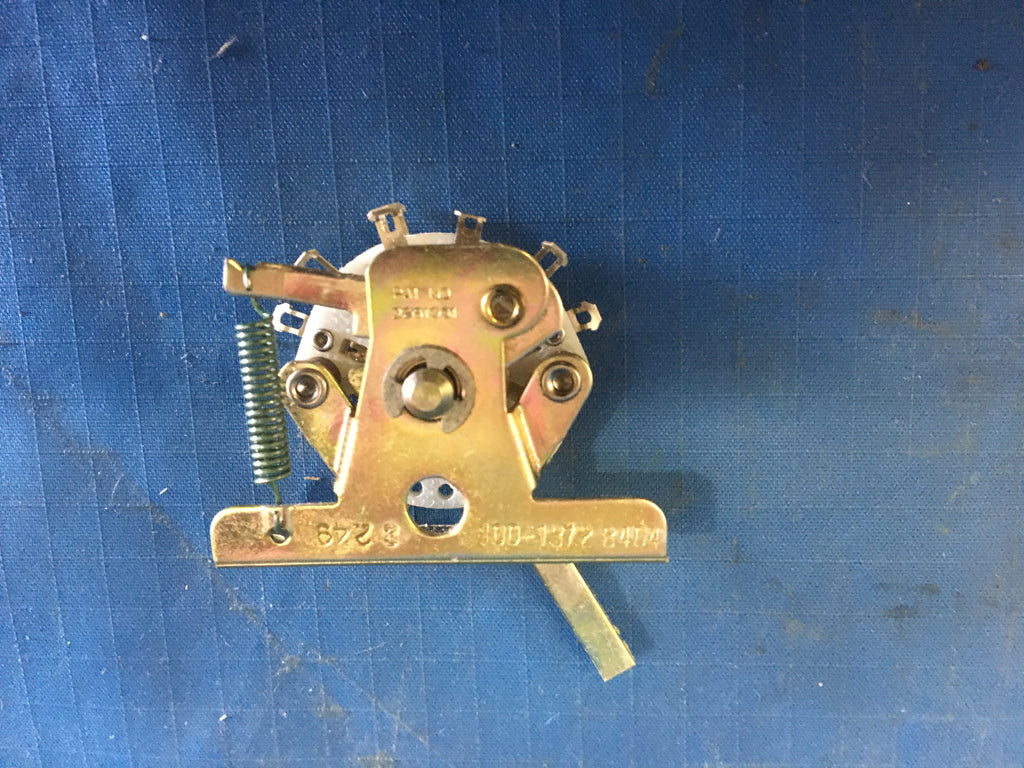

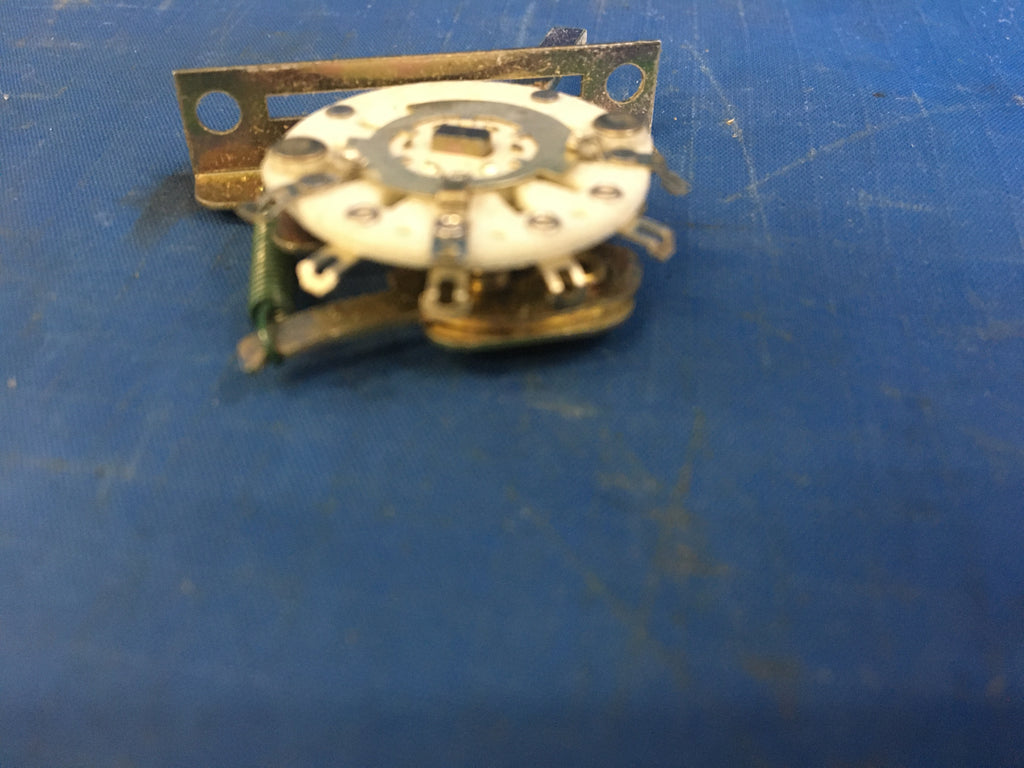

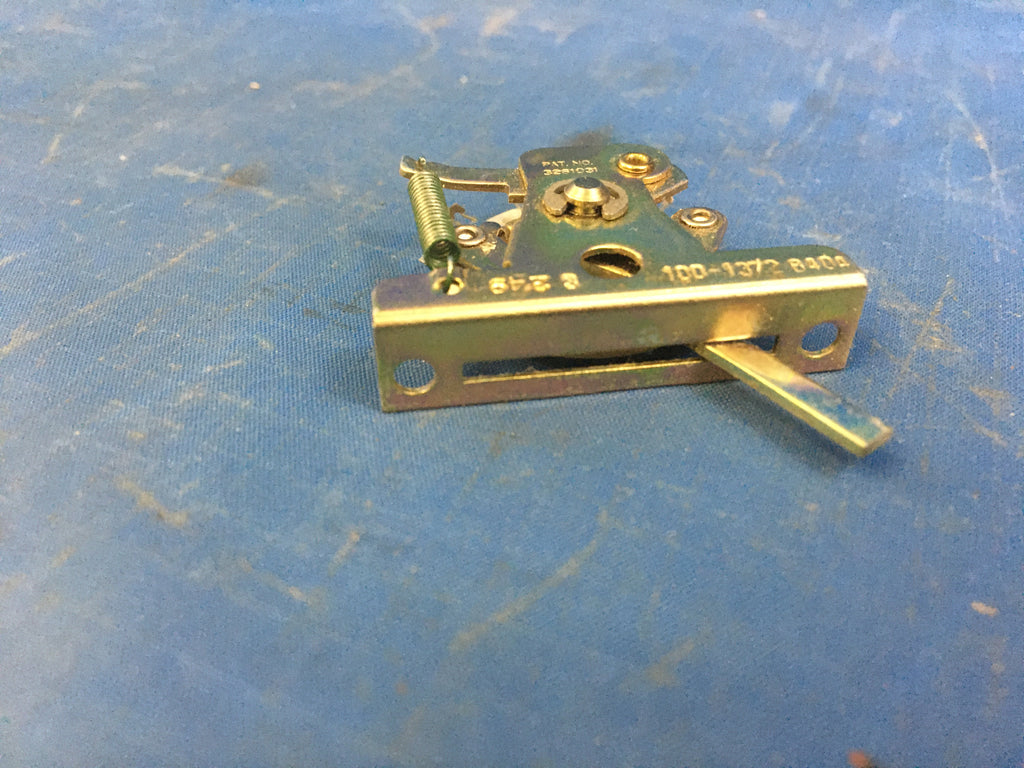

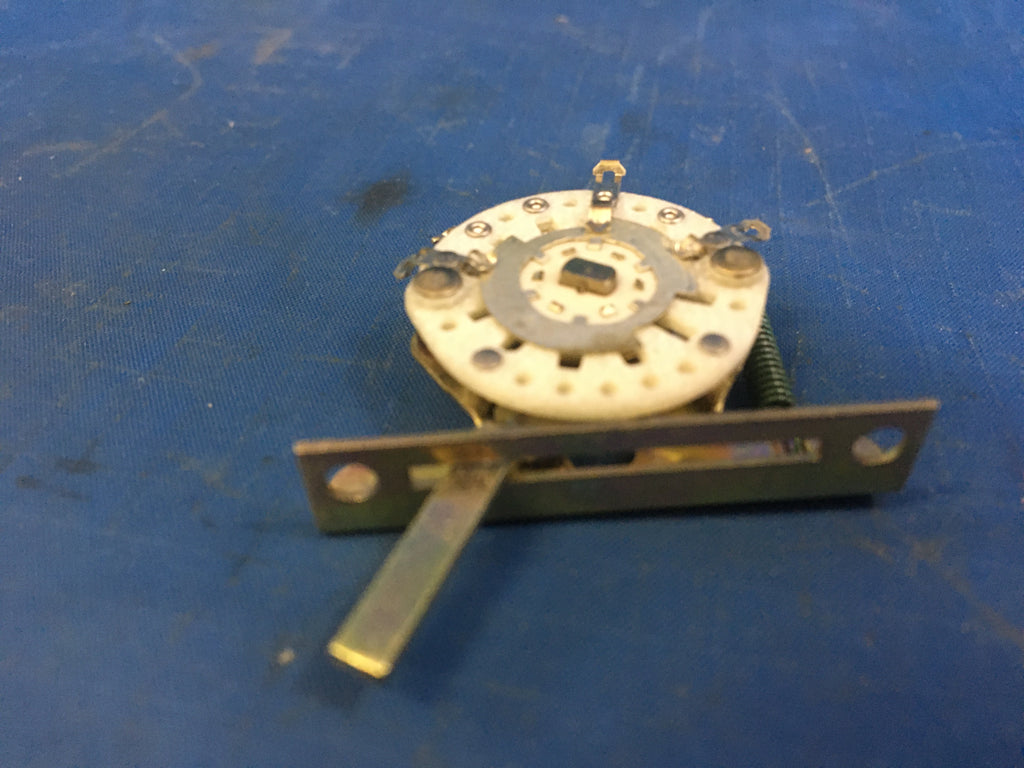

Lever Switch

NSN:5930-00-001-5934     Model:5-55454-770   P/N:3100-1372

A ITAR Registered sealswitch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes switch, toggle; switch, rotary; switch, knife; switch, sensitive; switch, box; and switch, mercury.

NSN Properties and Flags
NATO Stock Number
5930-00-001-5934
DEMIL
NO
Body Style
Hole mounted
Body Length
1.046 inches
Body Width
0.437 inches
Body Height
1.468 inches
Center To Center Distance Between Mounting Facilities Parallel To Height
1.250 inches
Actuator Style
Rectangular
Actuator Height
0.937 inches
Actuator Width
0.050 inches
Actuator Position-action Relationship
Up position maintained and down position maintained and center position maintained
Maximum Voltage Rating In Volts
110.0 ac and 28.0 dc
Inclosure Type
Uninclosed
Mounting Method
Unthreaded hole
Nonpile-up Contact Arrangement
1 pole, double throw, both positions maintained single switch unit
Contact Load Current Rating At Maximum Rated Voltage
3.000 amperes resistive dc and 2.000 amperes resistive ac
Terminal Type And Quantity
3 tab, solder lug

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
