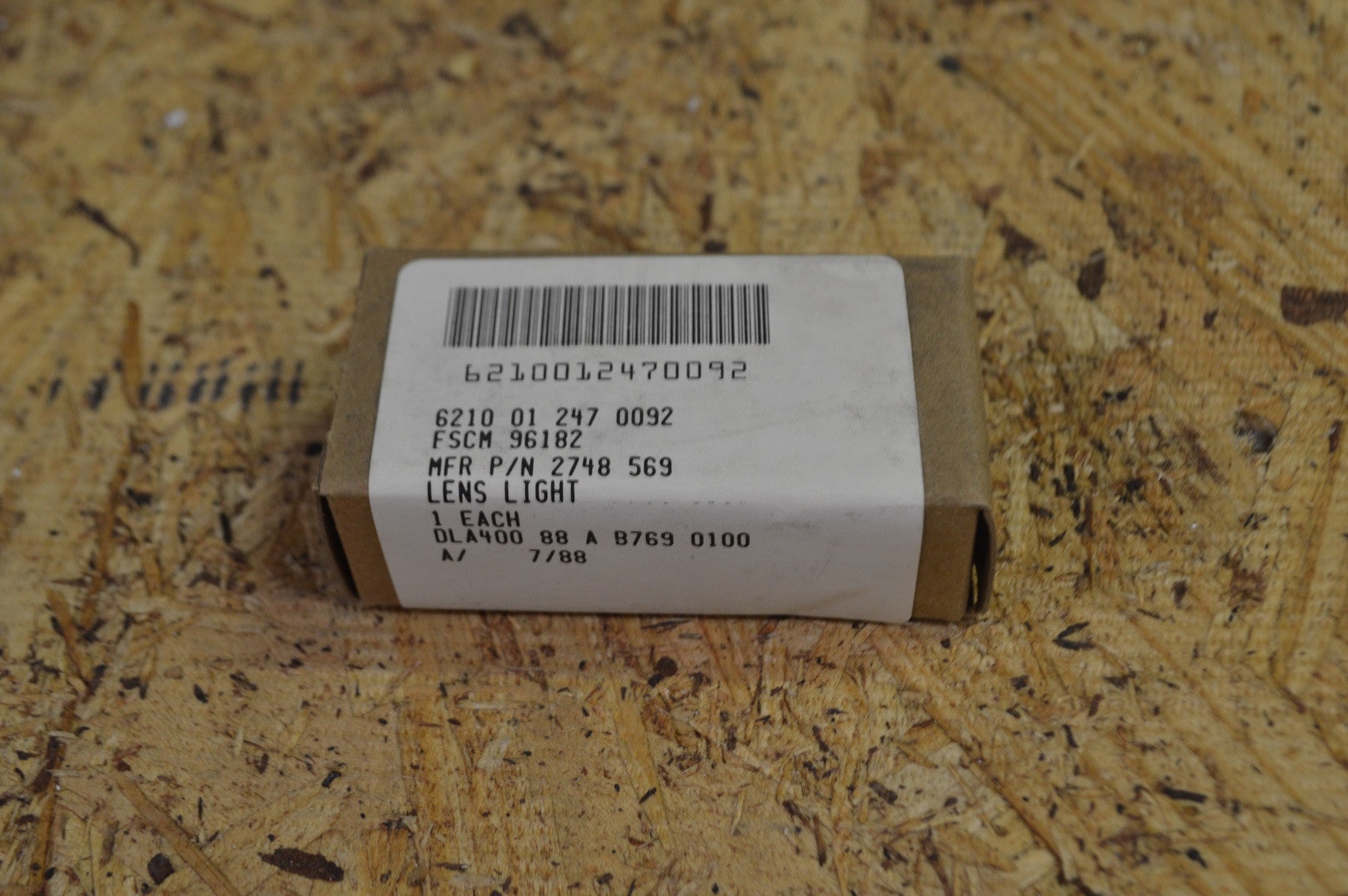

Lens Light NSN:6210-01-247-0092 P/N:5189178-569
Please fill out the form below for a price quote and availability on this item.
Lens Light- A transparent or translucent item designed to enclose or be placed in front of a light source. sections of the lens may be opaque. it may or may not include a holder. it is designed to be either a replacement unit for a specific type of light, such as light, indicator; light, navigational, marine; stop light, vehicular; and lantern, electric or that portion of a switch, (as modified) used as an actuator and having provisions for illumination. see also, window, lighting fixture; globe; electric light; and filter (2), (as modified).
| Effective Length: | 0.629 inches minimum and 0.639 inches maximum |
| Color: | Black inscription |
| Color: | White lens |
| Flange Width: | 0.011 inches minimum and 0.021 inches maximum |
| Hazardous Locations/environmental Protection: | Heat resistant |
| Material: | Plastic lens |
| Mounting Device Quantity: | 1 |
| Mounting Method: | Flange |
| Overall Height: | 0.050 inches minimum and 0.060 inches maximum |
| Overall Length: | 0.660 inches minimum and 0.670 inches maximum |
| Inscription: | File back and advance back |
| Light Transmission Design: | Transparent lens |
| Overall Width: | 0.660 inches minimum and 0.670 inches maximum |
| Style Designator: | Flat |
| Surface Condition: | Smooth face |
| Surface Condition: | Smooth back |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
