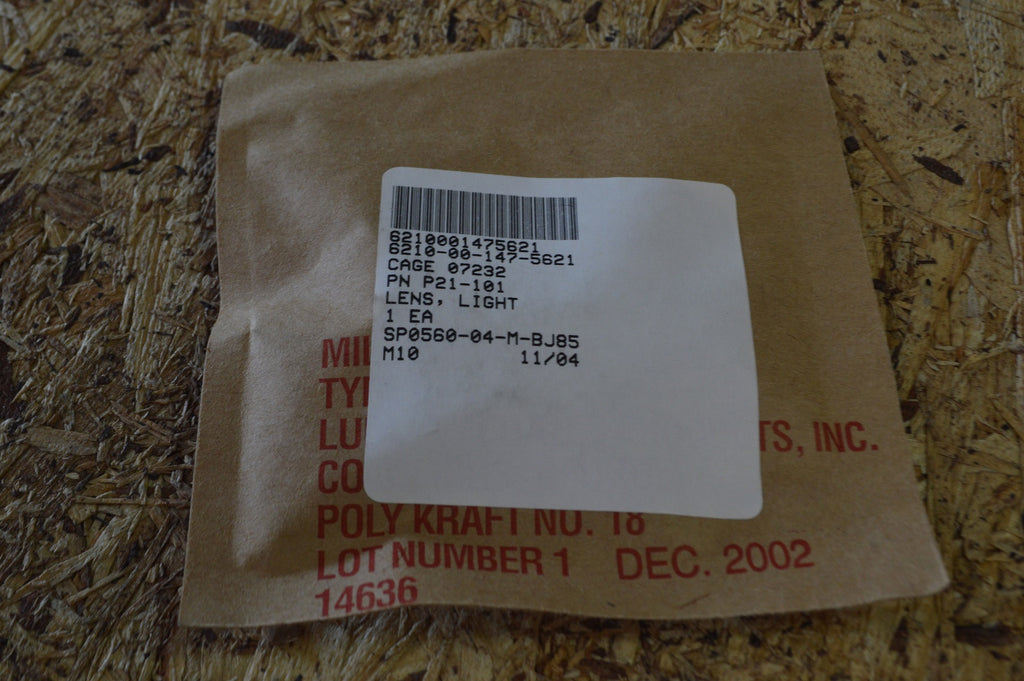

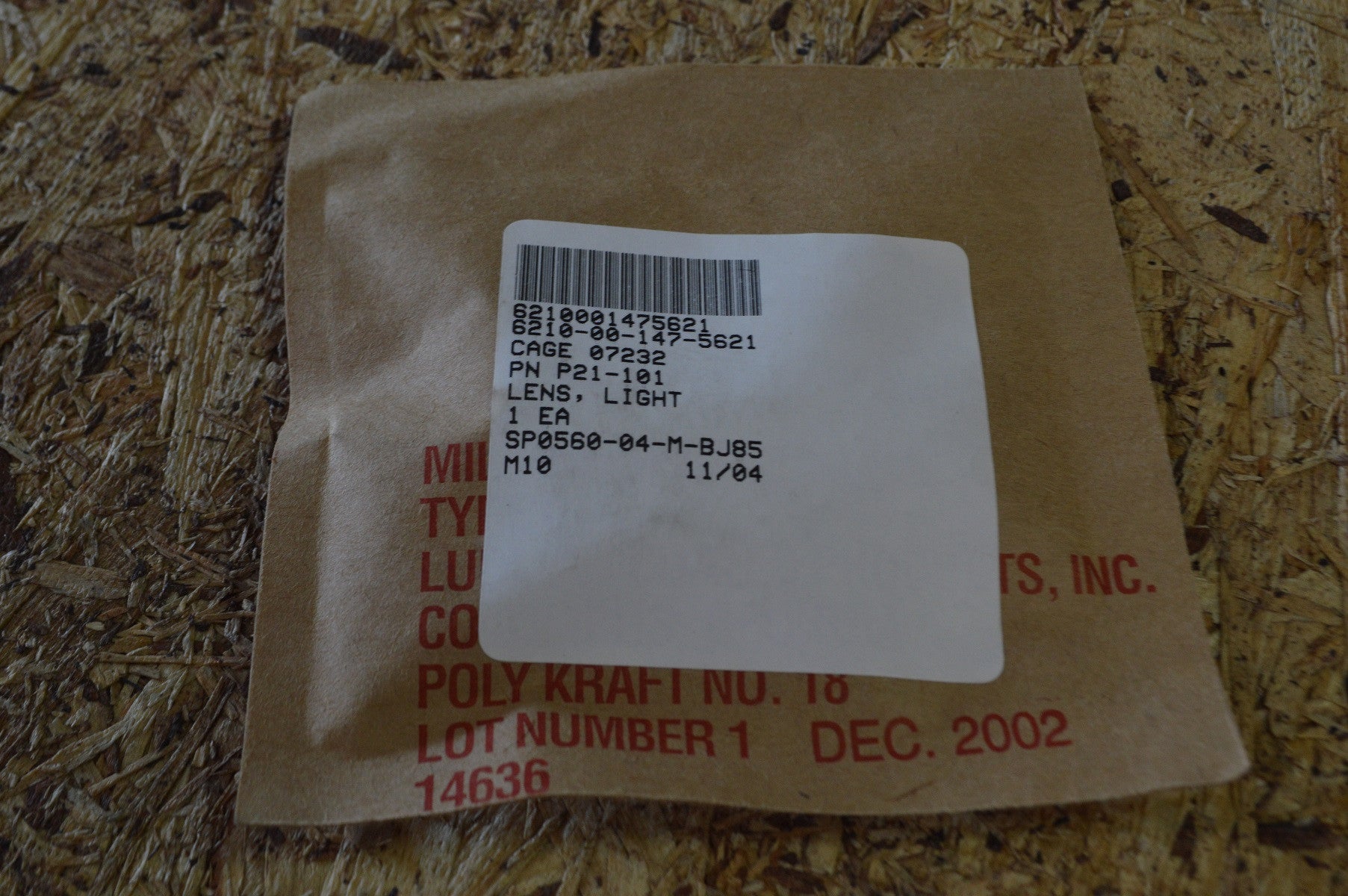

Lens Light NSN:6210-00-147-5621 P/N:379113-101

Please fill out the form below for a price quote and availability on this item.

Lens Light- A transparent or translucent item designed to enclose or be placed in front of a light source. sections of the lens may be opaque. it may or may not include a holder. it is designed to be either a replacement unit for a specific type of light, such as light, indicator; light, navigational, marine; stop light, vehicular; and lantern, electric or that portion of a switch, (as modified) used as an actuator and having provisions for illumination. see also, window, lighting fixture; globe; electric light; and filter (2), (as modified).

Effective Length: 0.255 inches nominal
Effective Diameter: 0.300 inches nominal
Color: Green inscription background
Color: White inscription
Material: Plastic lens
Mounting Device Quantity: 1
Mounting Method: External thread
Overall Length: 0.415 inches nominal
Inscription: 2 face
Light Transmission Design: Translucent lens
Material Document And Classification: L-p-349 fed spec single material response lens
Style Designator: Stovepipe
Surface Condition: Smooth face
Surface Condition: Smooth back
Thread Class: 2a
Thread Diameter: 0.216 inches
Thread Direction: Right-hand
Thread Quantity: 32 per inch
Thread Series: Unef

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
