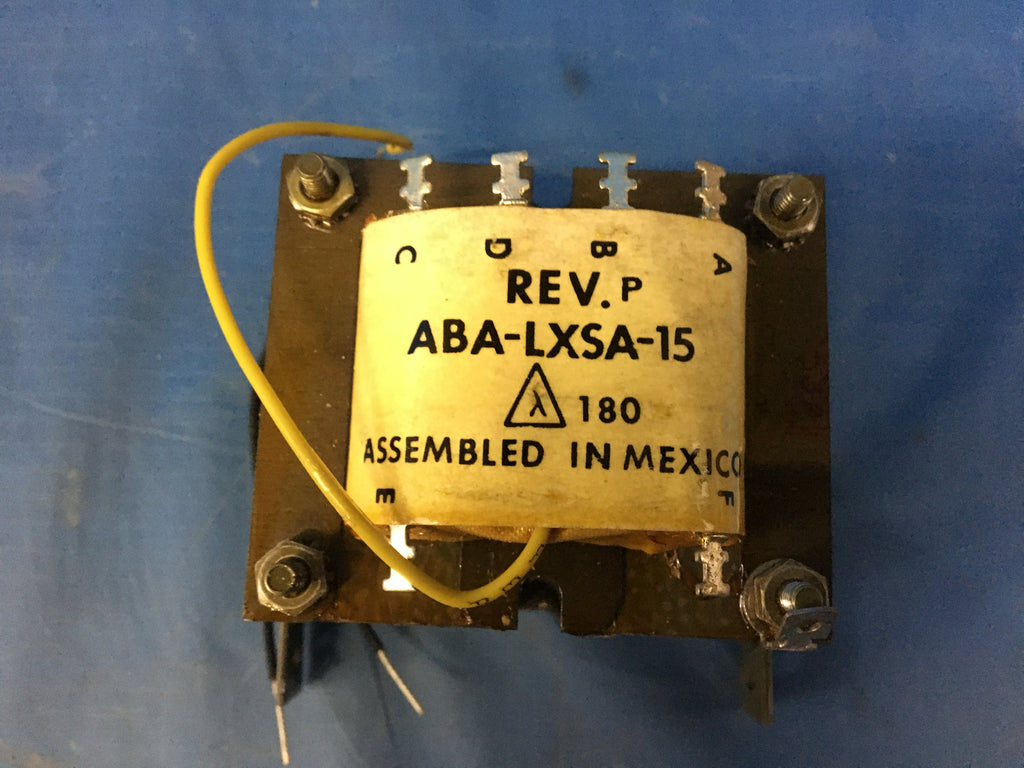

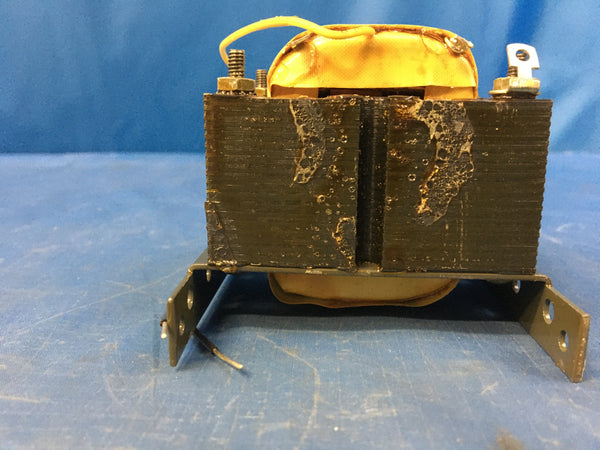

Lambda ABA-LXSA-15 Power Transformer NSN:5950-01-022-9184

Regular price $89.99

Power Transformer

NSN: 5950-01-022-9184 | Model: ABA-LXSA-15
ITAR Registered seal

A transformer consisting of one or more primary windin (s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see transformer (1), power, autotransformer. Excludes transformer (1) , pulse.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Reliability Indicator
Not established
Body Length
3.000 inches
Body Width
2.500 inches
Body Height
2.875 inches
Inclosure Type
Fully enclosed
Mounting Facility Quantity
3 all groupings

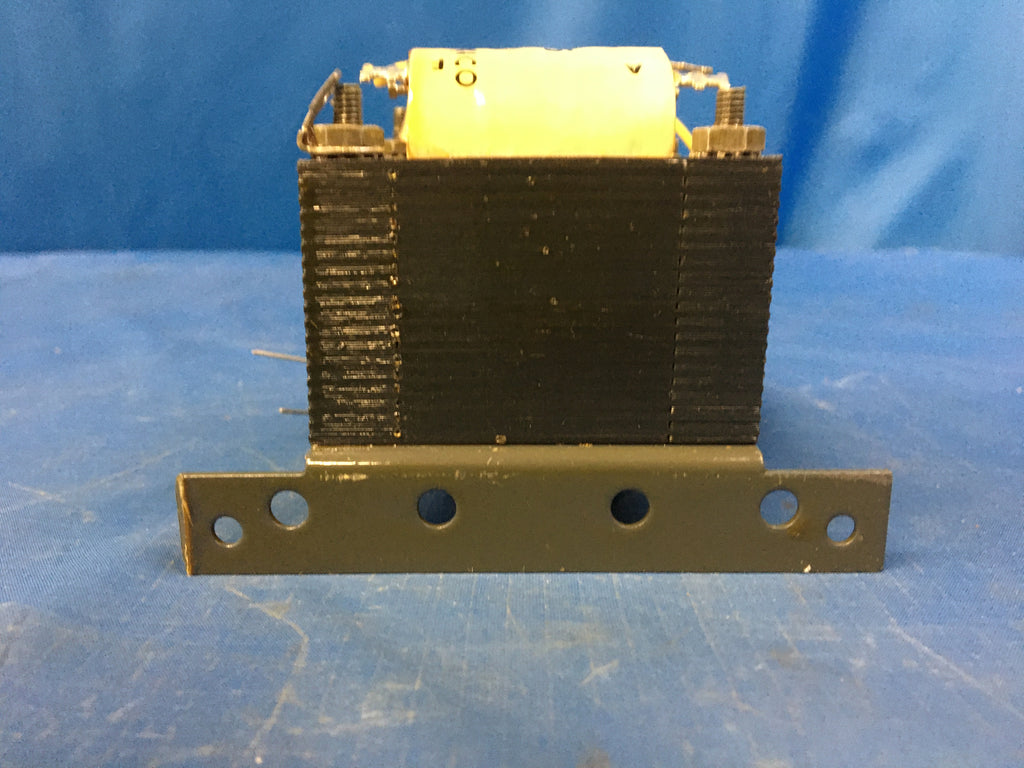

Mounting Method
Unthreaded hole all groupings
Winding Function And Quantity
1 primary single component and 3 secondary single component
Terminal Type And Quantity
6 tab, solder lug and 3 wire lead
