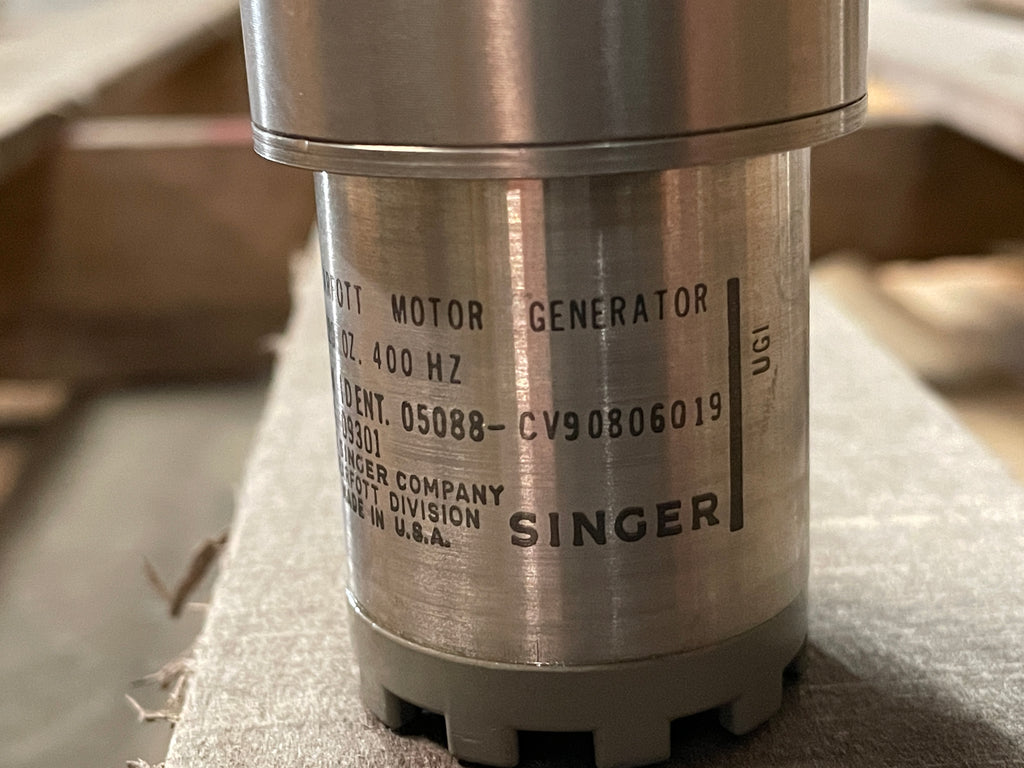

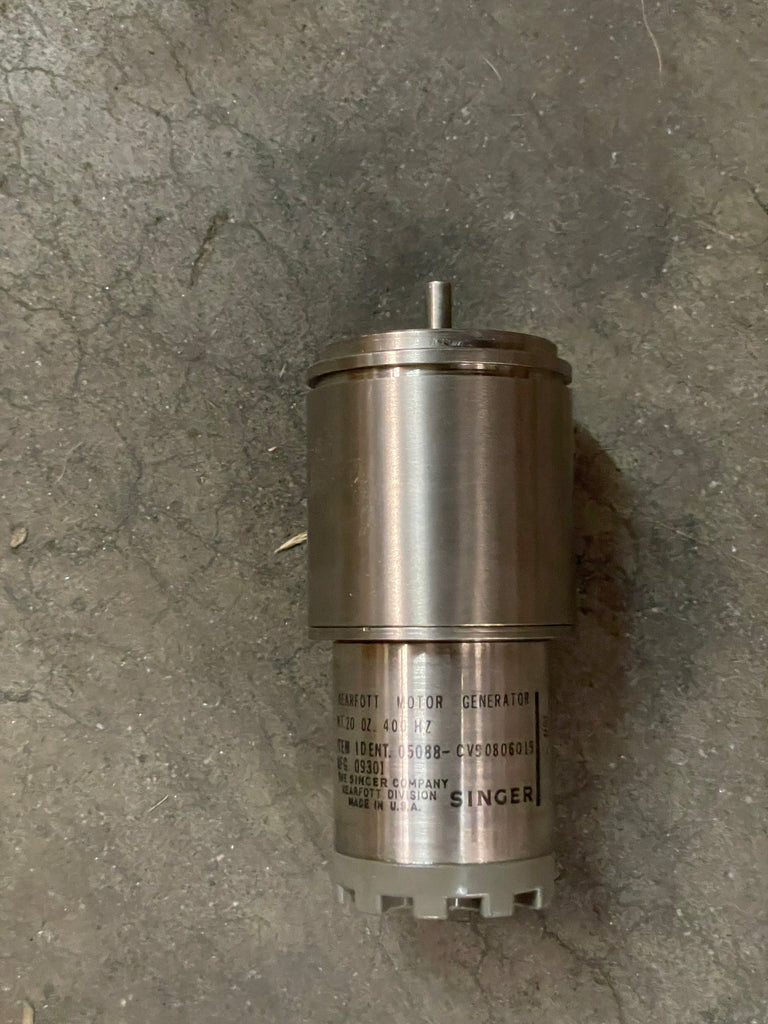

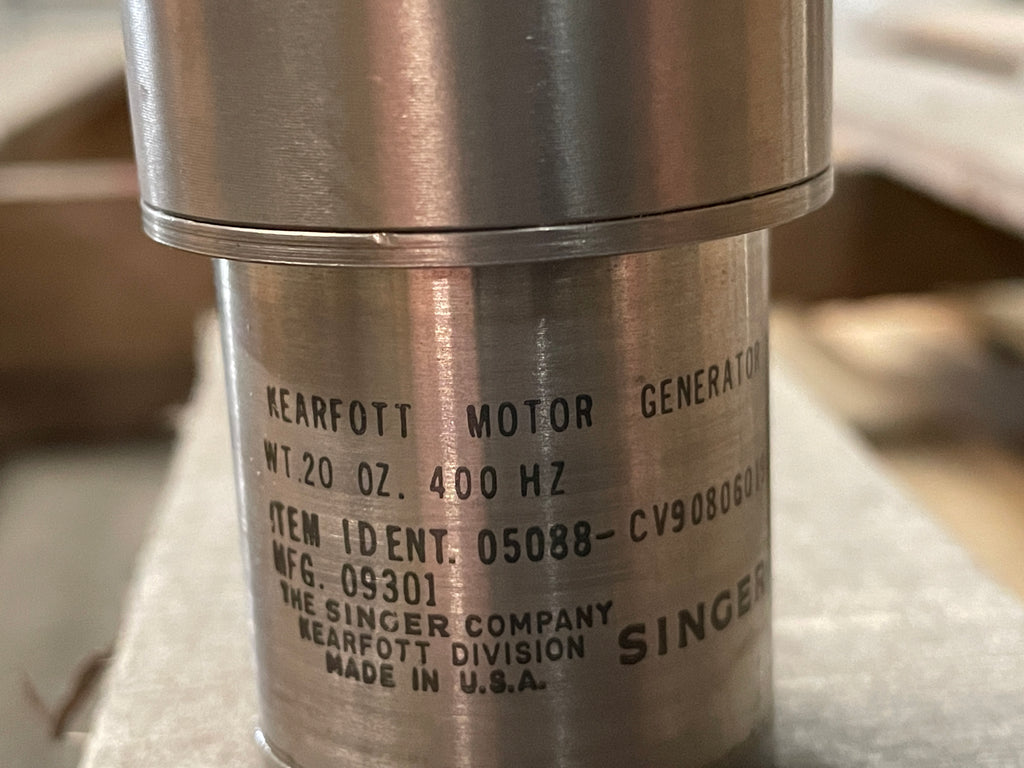

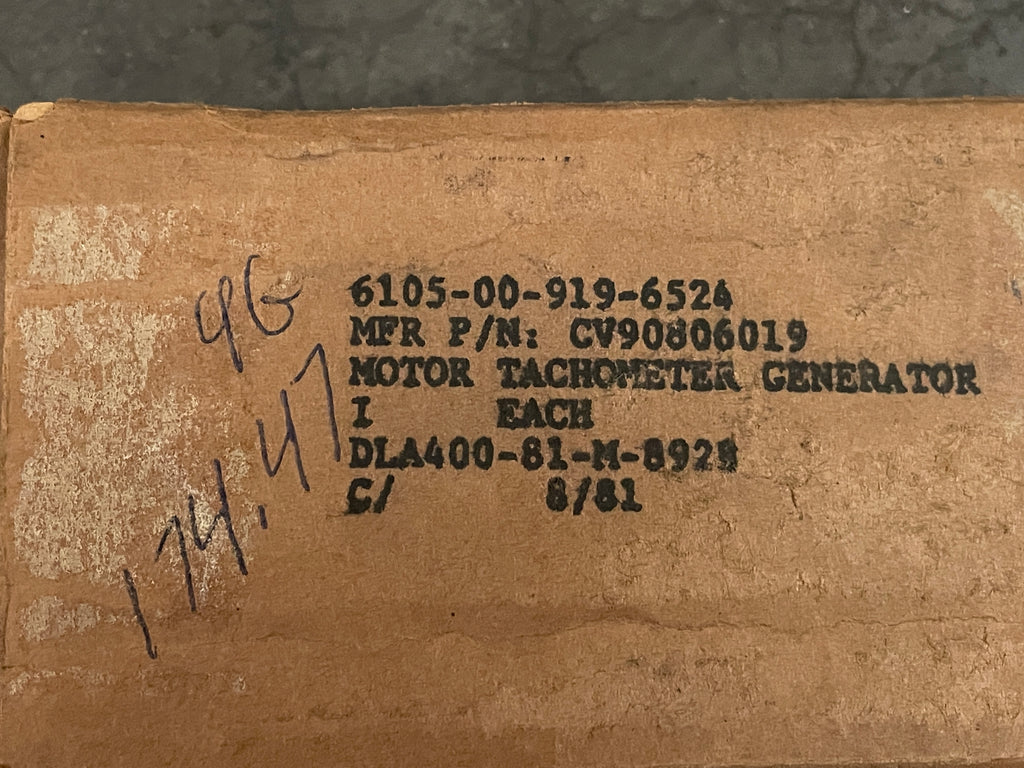

Kearfoot Motor-Tachometer Generator #CV90806019 NSN:6105-00-919-6524

Regular price $285.00

Motor-tachometer Generator

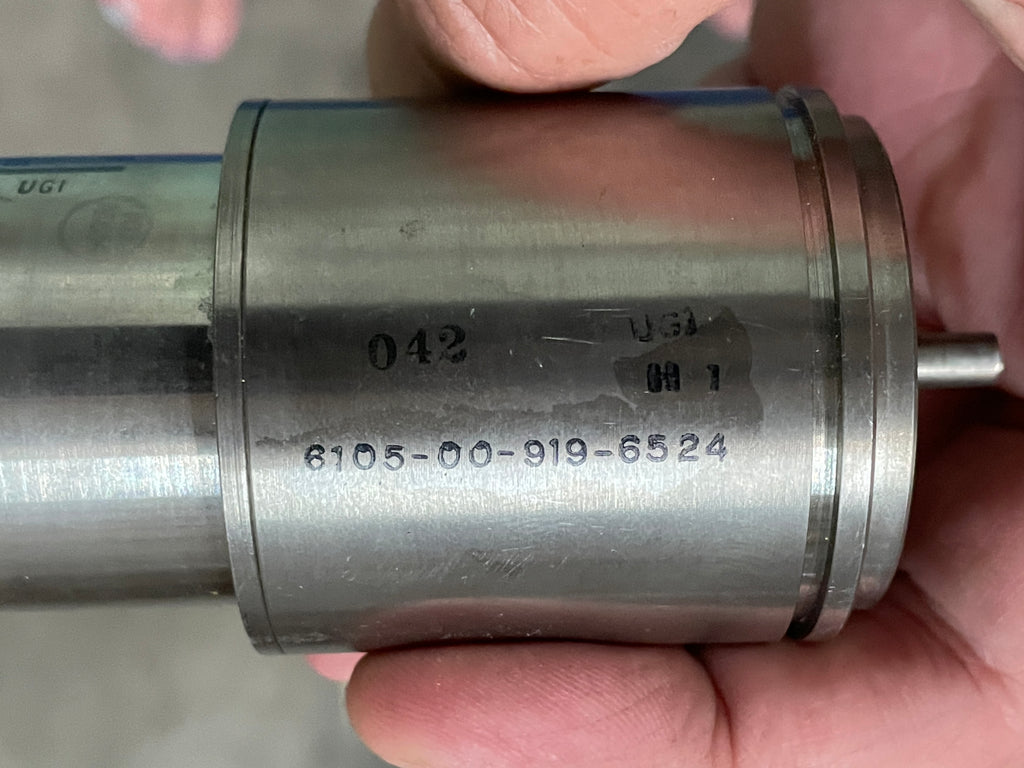

NSN:6105-00-919-6524  Model:CV90806019
ITAR Registered seal

An item which is an electrical rotating machine combining both control motor and tachometer generator action. The control motor and tachometer generator may be contained in the same or separate housings. It is designed for servo application where instant response to input signal is essential. It is generally used in circuits where the output potential from the tachometer generator is federal back to prevent excessive oscillation and for assuring high stability in a servo loop. Excludes dynamotor; and motor-generator.

NSN Properties and Flags
NATO Stock Number
Overall Height
1.750 inches
Overall Length
4.125 inches
Overall Width
1.750 inches
Shaft Diameter
0.177 inches single end
Current Type
Ac input
Inclosure Feature
Totally enclosed
Mounting Method

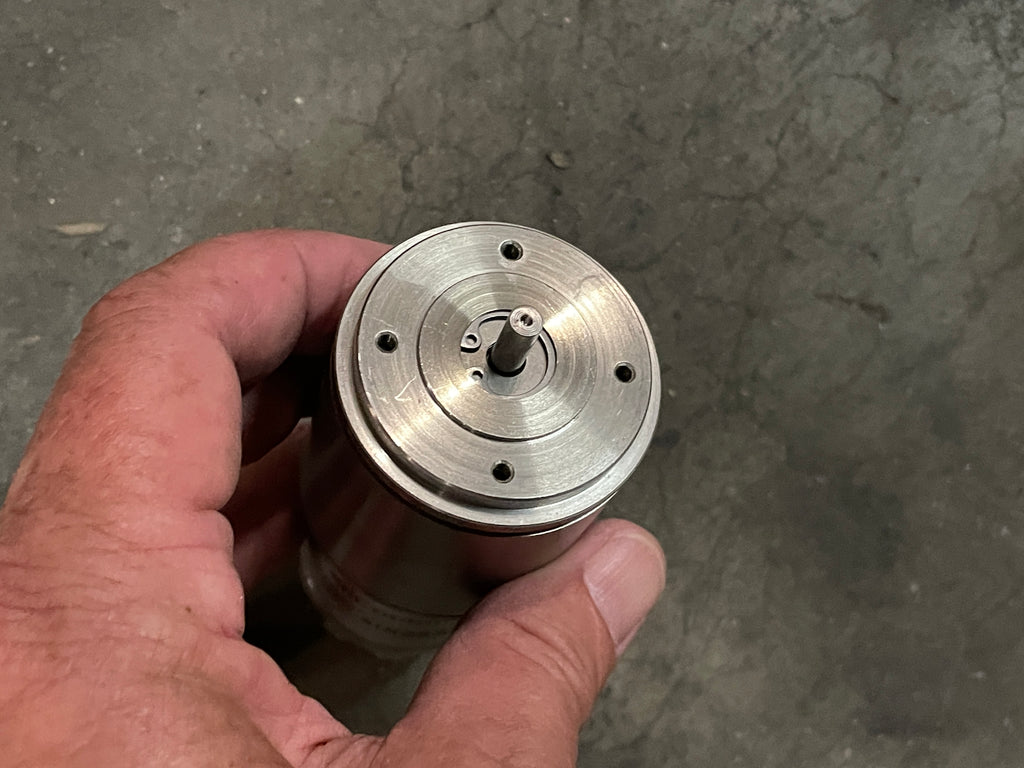

Mounting Facility Type And Quantity
4 threaded hole
Excitor Type
Separately excited
Calibration Speed In Rpm
Cooling Method
Ambient air
Calibration Voltage Output Type In Volts
3.0 ac
Torque Rating And Type
2.7 inch-ounces stalled
Inclosure Specificationification
Control Field Voltage Type And Rating In Volts
20.0 ac and 40.0 dc
Features Provided
Horizontal mounting position and vertical mounting position
Power Rating
16.300 watts output
Length Of Shaft From Housing
0.437 inches single end
Tempurature Rating
-54.0 operating degrees celsius and 165.0 operating degrees celsius
Mounting Facility Circle Diameter
1.250 inches
Rotor Speed Rating In Rpm
3000.0 low no load and 3600.0 high no load
Connection Type And Voltage Rating In Volts
115.0 konica, qh four-spline input
Shaft End Characteristic
A1 single style single end
Single input
Frequency In Hertz
400.0 output

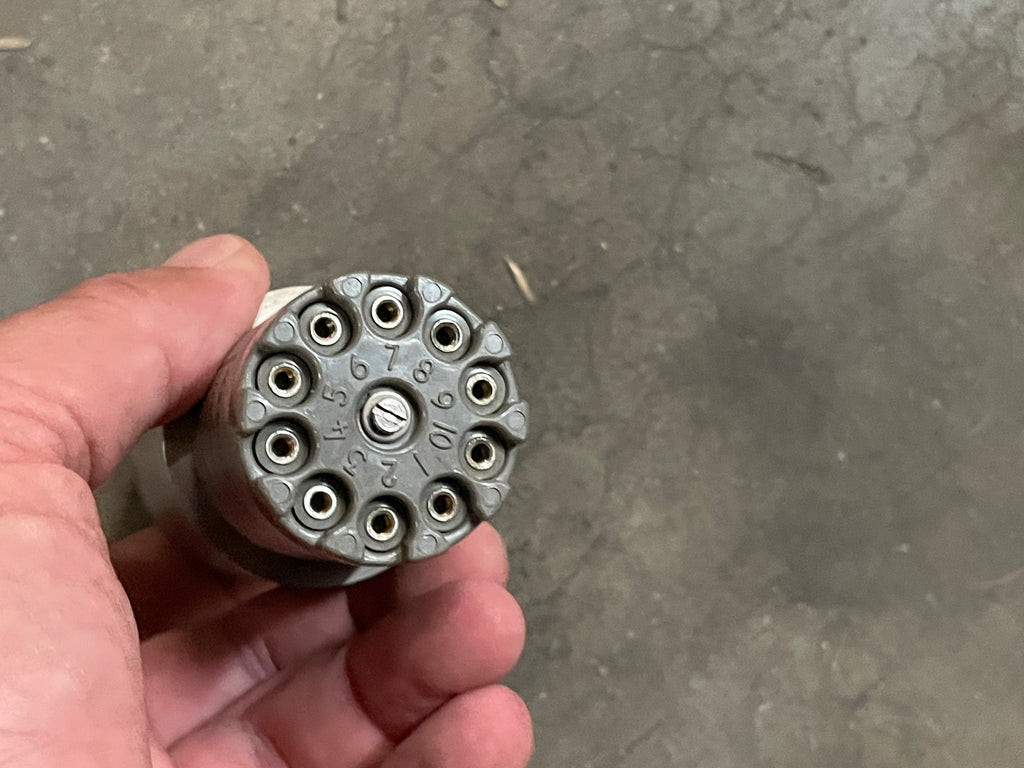

Terminal Type And Quantity
10 screw
