KDS Controls

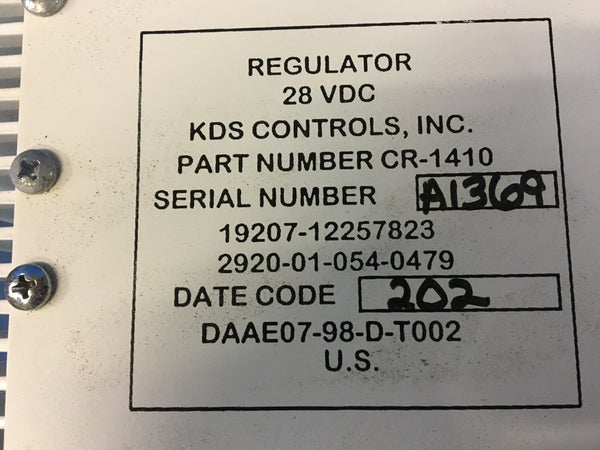

KDS Controls 12257823 Engine Generator Regulator NSN:2920-01-054-0479
Regular price
$799.99

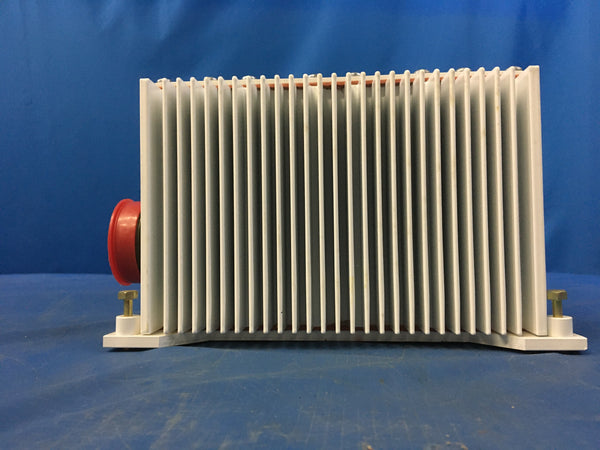

Engine Generator Regulator
NSN: 2920-01-054-0479 | Model: 12257823Replacements:
- 2920-01-054-0479 replaces 2920-00-335-4264
- 2920-01-054-0479 replaces 2920-00-335-4360
- 2920-01-054-0479 replaces 2920-00-948-0124
Schedule B & Trade:
- Schedule B: 8511802000 (NAICS 336320)
Voltage and voltage-current regulators with cut-out relays, designed for 6v, 12v, and 24v systems
- SITC: 77831
Electrical ignition or starting equipment used for spark-ignition or compression-ignition internal combustion engines; generators and cut-outs, etc.
- End Use: 30200
Engines and engine parts (carburetors, pistons, rings, and valves)
NSN Properties and Flags
NATO Stock Number
2920-01-054-0479
DEMIL
Yes - ITAR Controlled
Mounting Hole Diameter
0.250 inches
Mounting Style
Four hole rectangular
Distance Between Holes Along Length
8.922 inches
Distance Between Holes Along Width
6.547 inches
System Voltage Rating
24.0
System Ground Polarity
Negative
Voltage Regulator Unit Type
Transistor
Voltage Regulator Unit Quantity
2
