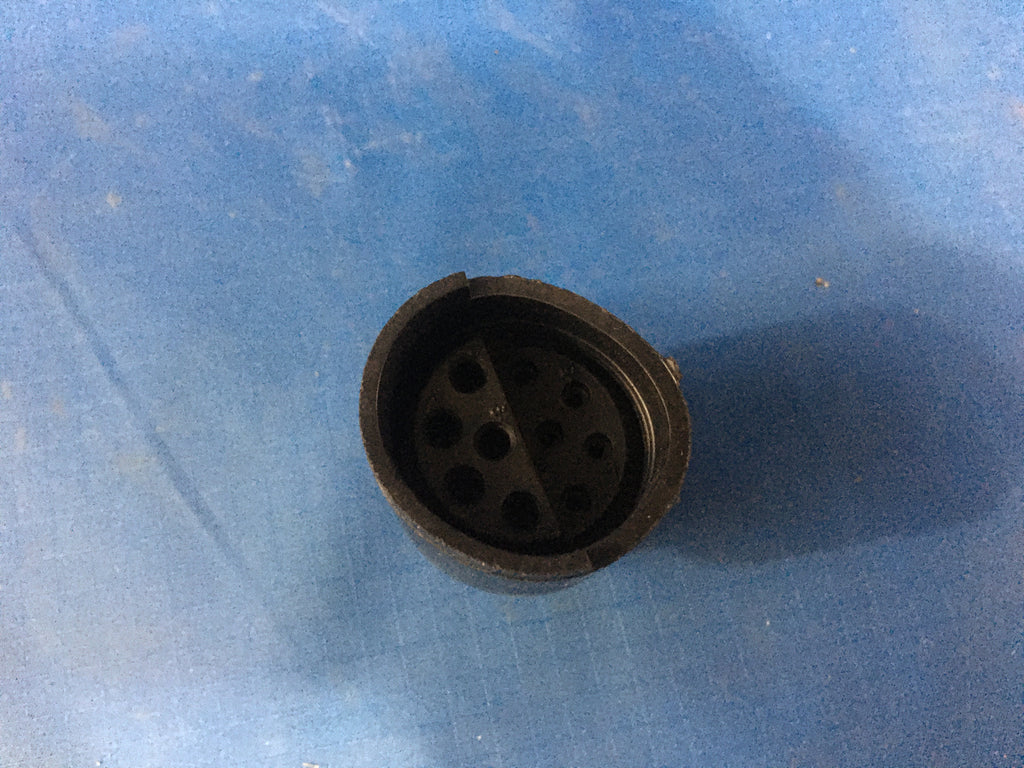

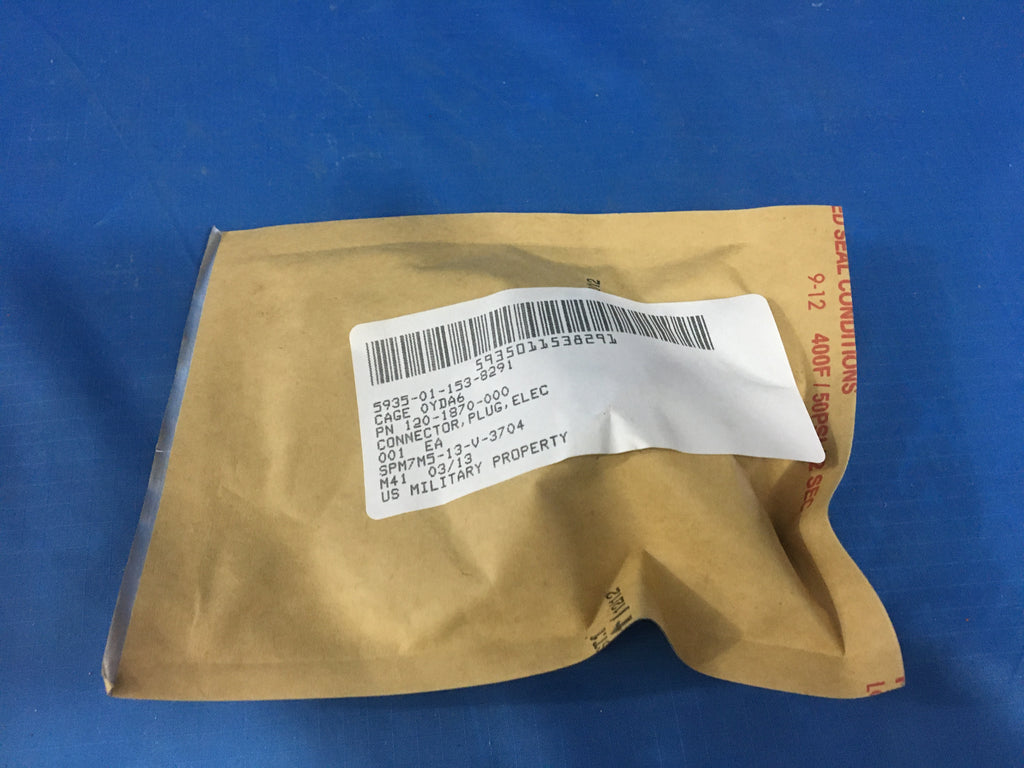

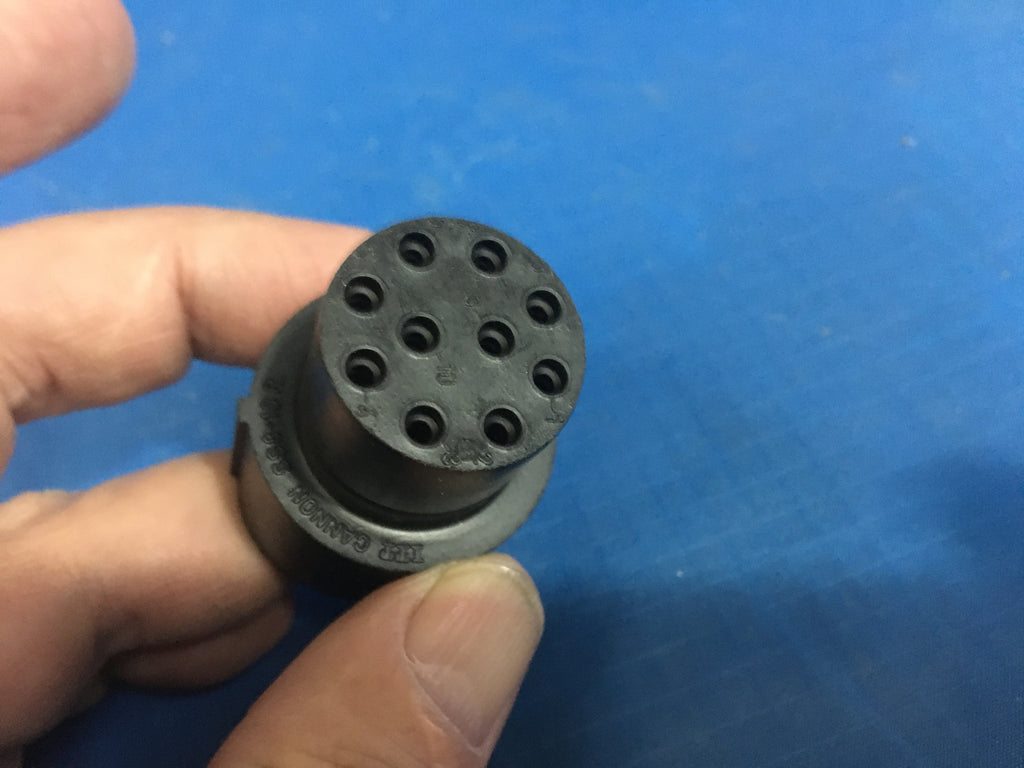

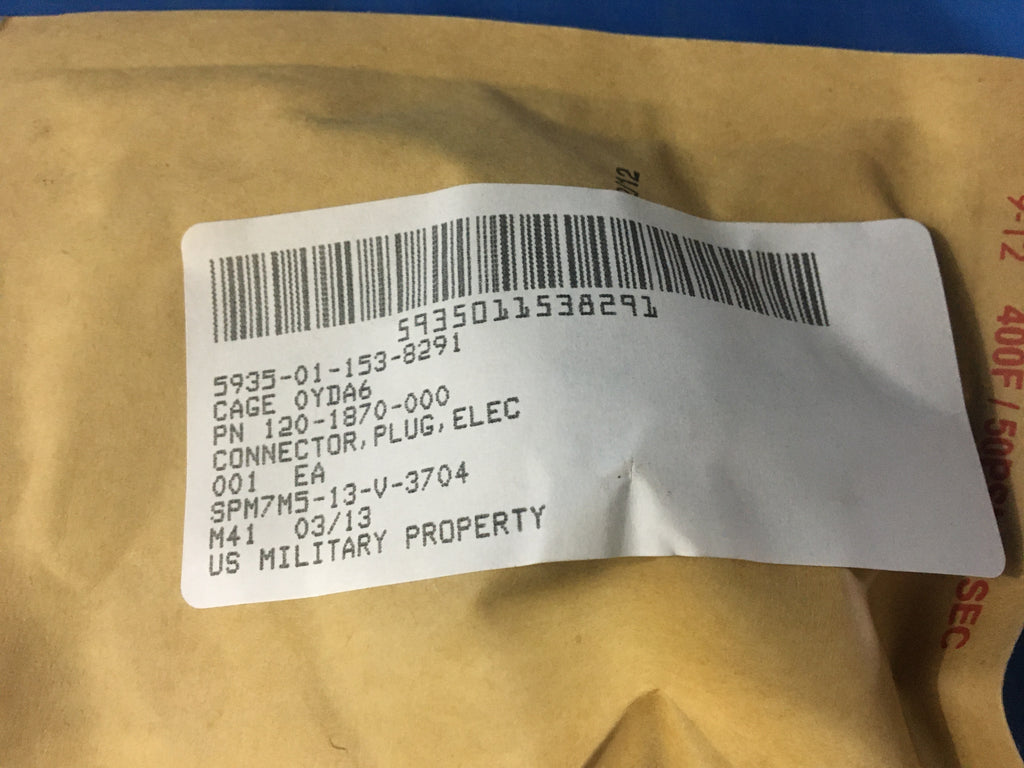

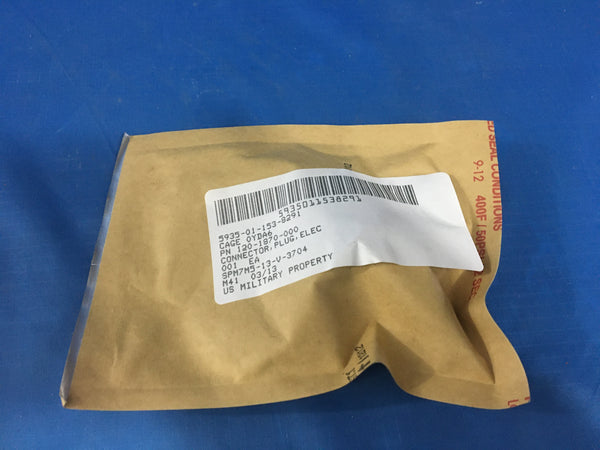

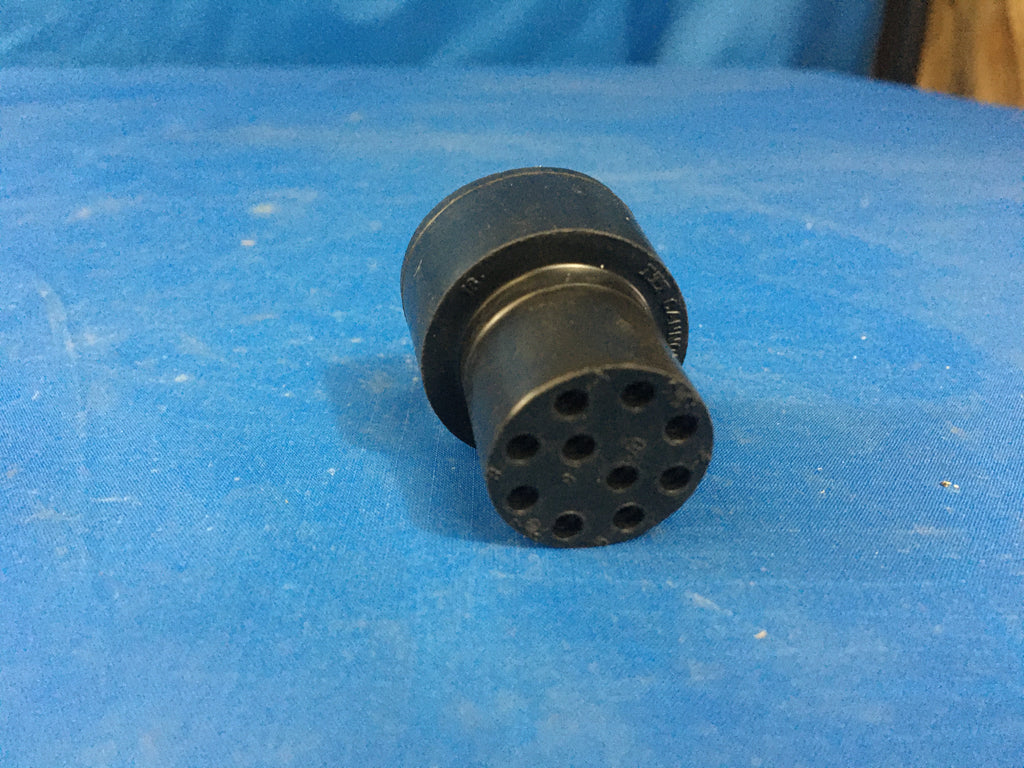

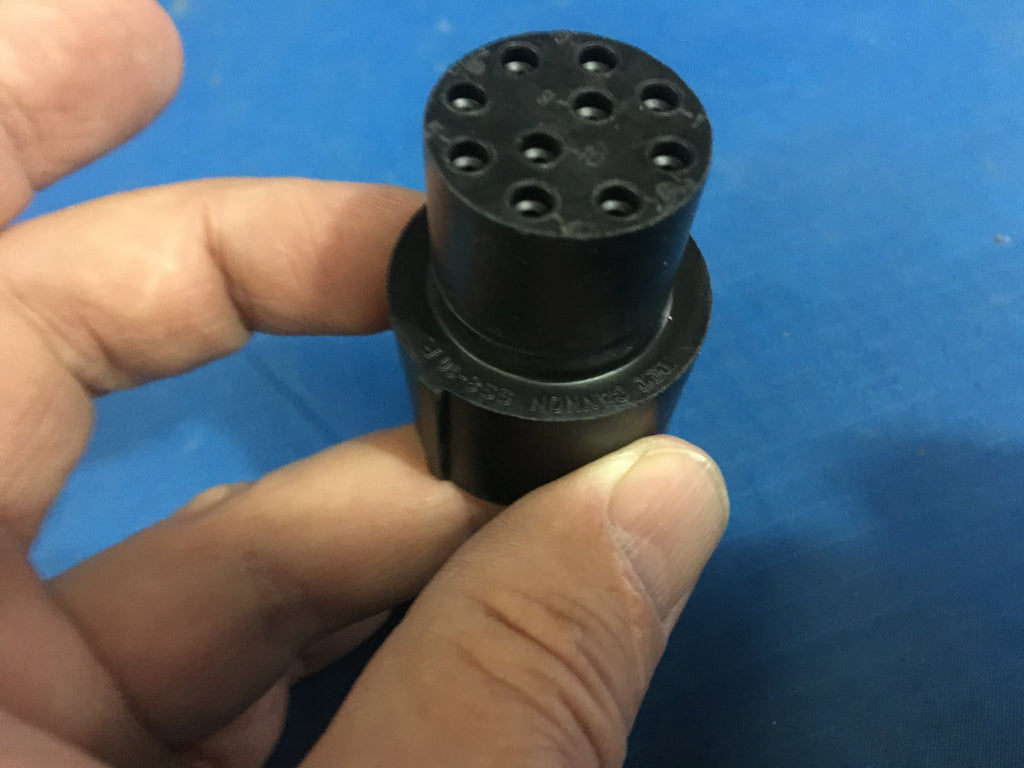

ITT Cannon Electrical Plug Connector for Mrap NSN:5935-01-153-8291 P/N:SS8-10 R Model:12258940-10
ITT CANNON

ITT Cannon Electrical Plug Connector for Mrap NSN:5935-01-153-8291 P/N:SS8-10 R Model:12258940-10

$7.99

Electrical Plug Connector

NSN: 5935-01-153-8291 | Model: 12258940-10
ITAR Registered seal

An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector (s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified) and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified) and cable assembly (as modified) . for items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-01-153-8291
DEMIL
Yes - ITAR Controlled
Body Style
Straight shape, external coupling
Overall Length
1.610 centimeters
Overall Diameter
1.285 inches
Environmental Protection
Humidity resistant and shock resistant and vibration resistant
Mating End Quantity
1
Contact Removability
Removable single mating end all contact groupings
Polarization Method
Contact
Connector Locking Method
Friction
End Application
Mrap - common nsn - used on 2 mrap variants and 13 other weapon systems
Terminal Location
Back single mating end all contact groupings
Contact Material
Copper alloy single mating end all contact groupings
Contact Surface Treatment
Lead single mating end all contact groupings and tin single mating end all contact groupings
Insert Material
Plastic single mating end
Terminal Type
Crimp single mating end all contact groupings
Included Contact Quantity
5 single mating end 2ND contact grouping
Schedule B & Trade:
  • Schedule B: 8710000090 (NAICS 336992)

    Parts of armored fighting vehicles, motorized, whether or not fitted with weapons

  • SITC: 89111

    Tanks and other armored fighting vehicles, motorized, whether or not fitted with weapons, and parts of such vehicles

  • End Use: 50030

    Military trucks, armored vehicles, etc.
