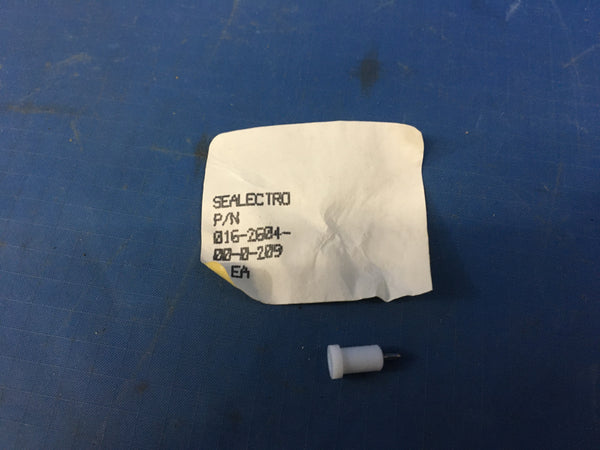

ITT Cannon 016-2604-00-0-209 Tip Jack NSN:5935-01-088-8254

Regular price $3.99

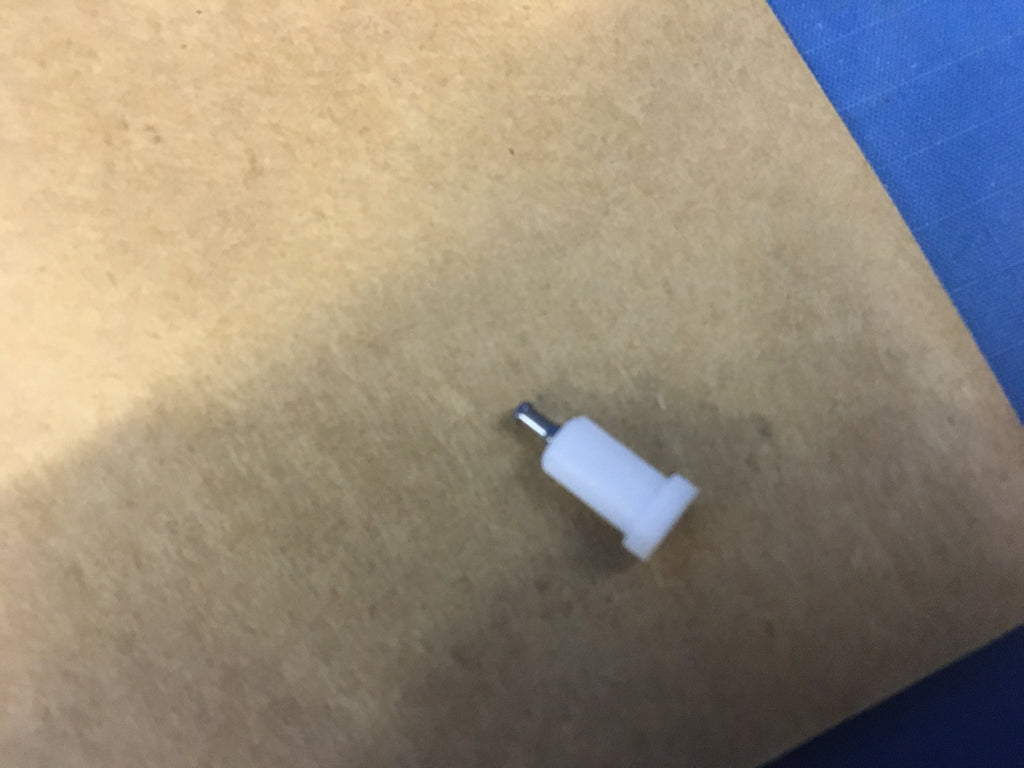

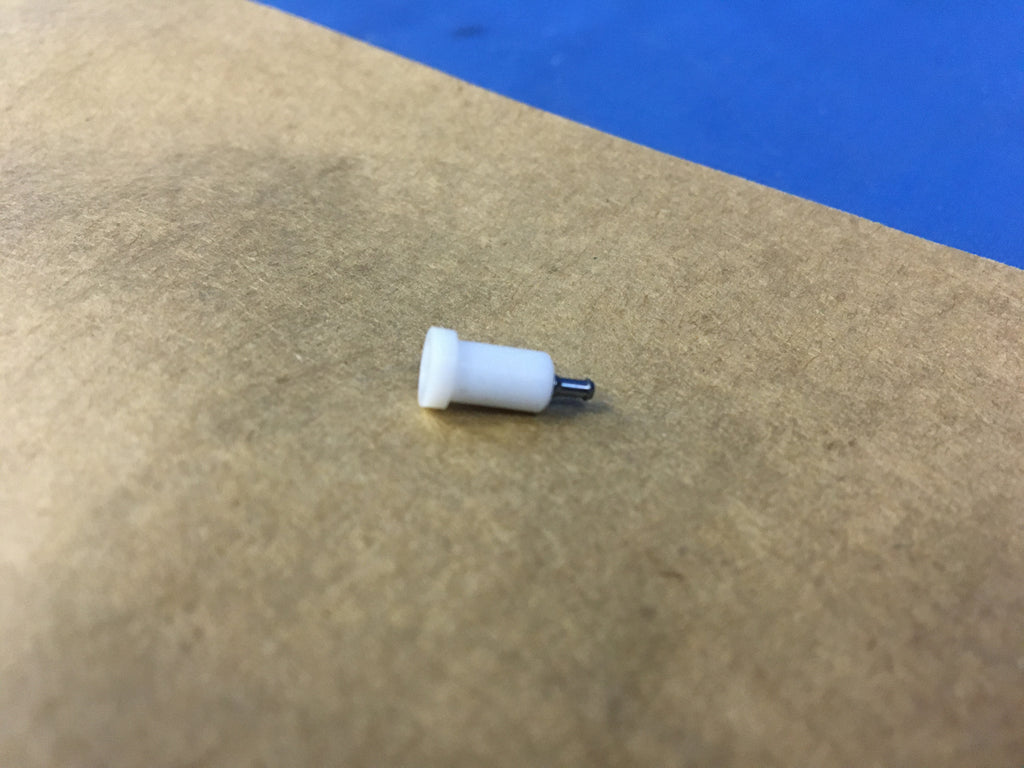

Tip Jack

NSN: 5935-01-088-8254 | Model: 016-2604-00-0-209
ITAR Registered seal
  • 5935-01-088-8254 replaces 5935-01-214-1809
Schedule B & Trade:
  • Schedule B: 8548900100 (NAICS 335999)

    Electrical parts of machinery or apparatus not specified or included elsewhere in chapter 85

  • SITC: 77813

    Waste and scrap of primary cells, primary batteries and electric accumulators; spent primary cells, etc; electric parts of mach or apps, nes

  • End Use: 20005

    Electric apparatus

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Electrical Insulation Feature
Insulated completely
Identification Code Color
Body Style
Press fit
Overall Length
0.480 inches
Body Length
0.350 inches
Overall Diameter
0.218 inches
Bushing Accommodation Hole Shape
Maximum Voltage Rating In Volts
60.0 ac
Accommodated Finger Type
Test prod single finger
Finger Accommodation Diameter
0.080 inches single finger
Finger Accommodation Length
0.562 inches single finger
Bushing Thru-hole Accommodation Diameter
0.171 inches
Current Rating In Amps
Mounting Facility Type And Quantity
1 bushing
Terminal Type
Plastic, polytetrafluoroethylene body
Plastic polytetrafluoroethylene body
Precious Material And Location
Contact surfaces gold and contact surfaces silver
Precious Material
Gold and silver
Surface Treatment
Gold and silver spring
Surface Treatment
Gold spring and silver spring
