Ward Leonard Indicator Light NSN:6210-01-503-5285 P/N:0014-00718
Please fill out the form below for a price quote and availability on this item.

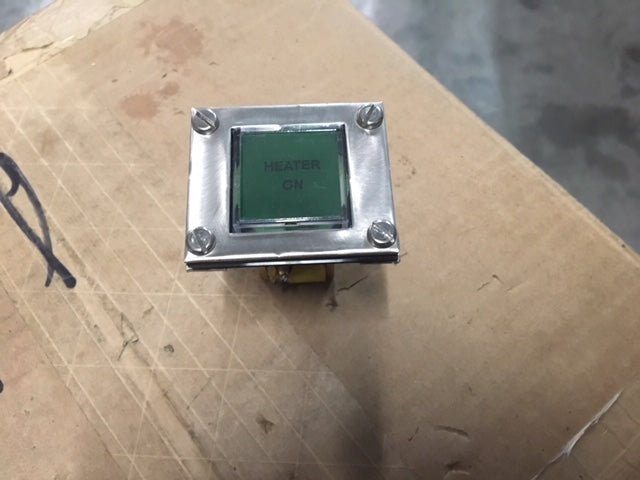

Indicator Light
NSN: 6210-01-503-5285 | Model: D-52558-01 ITEM
A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see lampholder, and also see light (1), panel.
NSN Properties and Flags
NATO Stock Number
6210-01-503-5285
DEMIL
Yes - ITAR Controlled
Overall Length
2.480 inches
Overall Height
1.920 inches
Overall Width
2.340 inches
Filter Color
Green single row 1ST position horizontal full display division a
Lamp Base Type Accommodated
Midget screw
Lamp Bulb Size Designator
T-1 3/4
Lens Quantity
1
Filter Quantity
1
Lamp Industry Number
MS15612-3
End Application
Control
Mounting Method
Bracket
Lamp Type Accommodated And Quantity
2 incandescent
Lens Legend
Heater on single row 1ST position horizontal full display division a
Part Name Assigned By Controlling Agency
Pilot light, green, heater on
Material
Plastic lens
Style Designator
Rectangular frame type
Terminal Type And Quantity
2 screw
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
