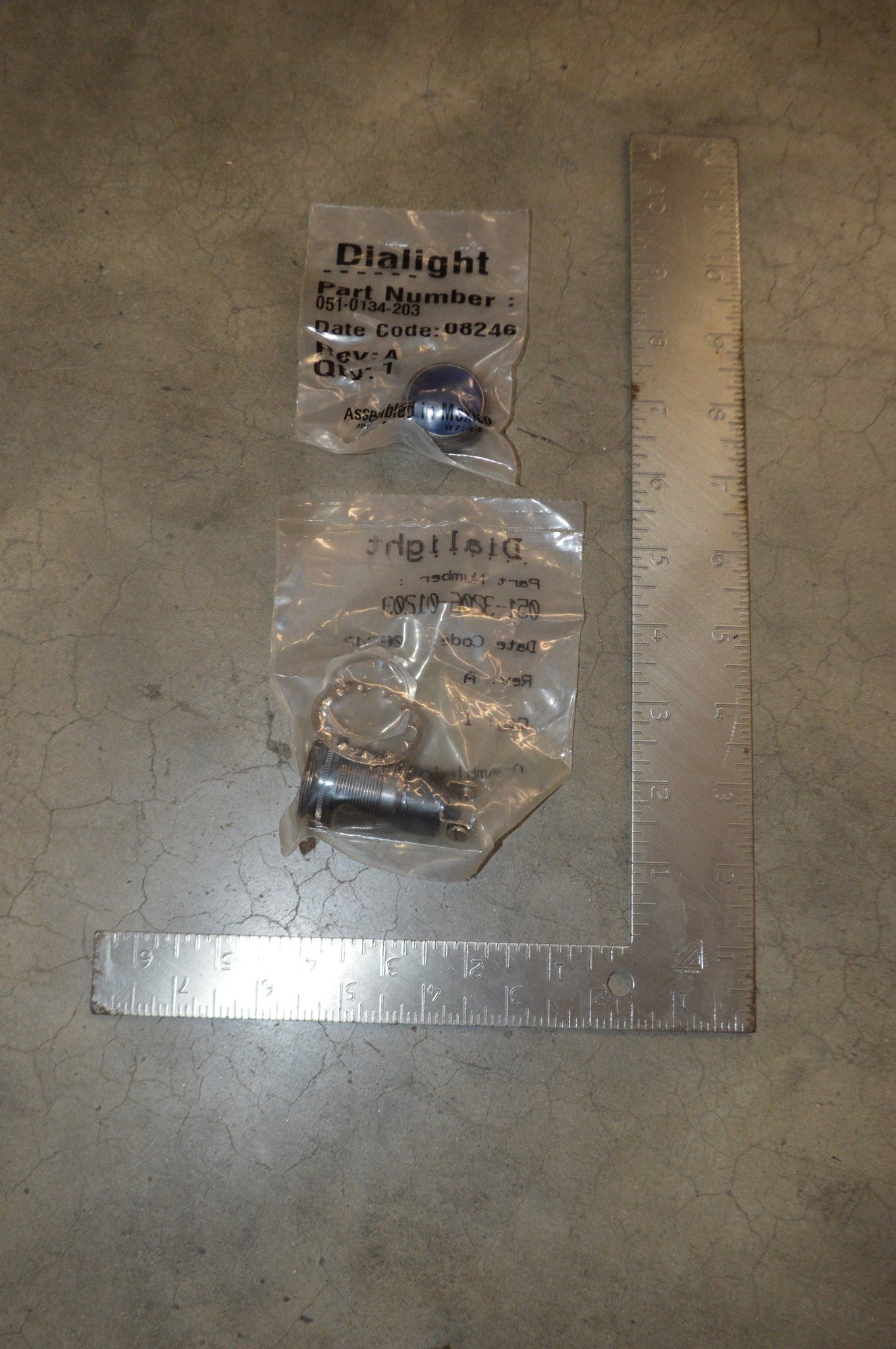

Indicator Light NSN:6210-01-158-0392 P/N:SM-A-838676-1
Please fill out the form below for a price quote and availability on this item.
Indicator Light-A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. must include or provide for the use of a lens as a part of it. for items without a lens, see lampholder, and also see light (1), panel
| Furnished Items And Quantity: | 1 hexagon nut and 1 lock washer |
| Hazardous Locations/environmental Protection: | Watertight |
| Material: | Copper alloy body |
| Mounting Method: | Panel |
| Overall Diameter: | 1.141 inches nominal |
| Lamp Base Type Accommodated: | Double contact bayonet candelabra |
| Lamp Bulb Size Designator: | G-6 |
| Lamp Type Accommodated And Quantity: | 1 incandescent |
| Lens Back Surface Condition: | Smooth single light 1st position horizontal |
| Lens Color: | Blue single light 1st position horizontal |
| Lens Face Surface Condition: | Smooth single light 1st position horizontal |
| Lens Light Transmission Characteristic: | Transparent single light 1st position horizontal |
| Lens Mounting Method: | Screw on |
| Lens Quantity: | 1 |
| Lens Type: | Convex, knurled single light 1st position horizontal |
| Overall Length: | 2.578 inches nominal |
| Panel Thickness For Which Designed: | 0.438 inches maximum |
| Panel Accommodation Hole Diameter: | 1.000 inches nominal |
| Style Designator: | Round frame, round lens type |
| Surface Treatment: | Chromium body |
| Terminal Type And Quantity: | 2 screw |
| Transmitted Light Color: | Blue single light 1st position horizontal full display division a |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
