Identification Plate NSN:9905-00-798-1208 P/N:11636534

Please fill out the form below for a price quote and availability on this item.

Identification Plate - An item which is rigid or semirigid, generally flat and smooth. its thickness is small in comparison to its length and width or diameter. it is designed to be attached to an item and indicates name and/or nomenclature of the item. see also marker, identification; plate, designation; plate, instruction; plate set, identification; and tag, marker. excludes label.



Attachment Method: Hole
Basic Shape Style: Rectangular
Color: Black inscription background
Color: White inscription
Environmental Protection: Corrosion resistant and nonphenolic grease solvent and thermal shock resistant and weather resistant
Material: Aluminum alloy

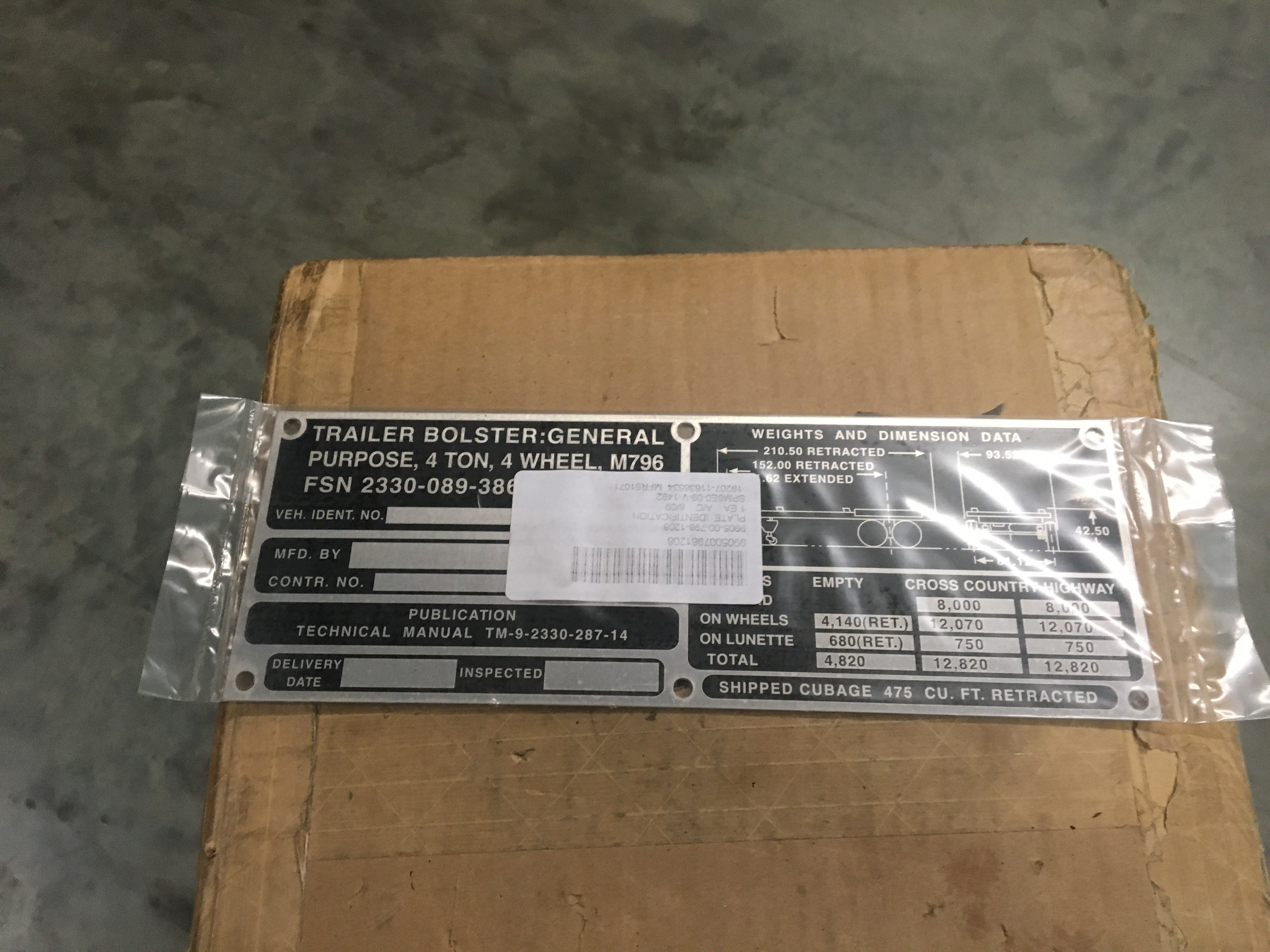

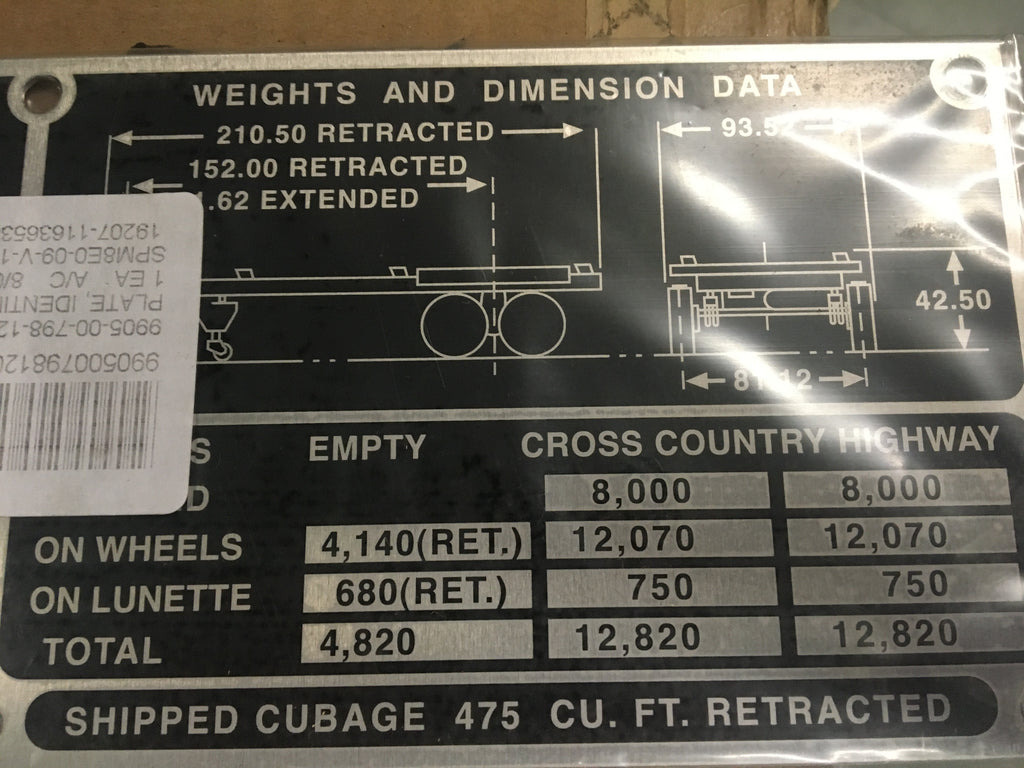

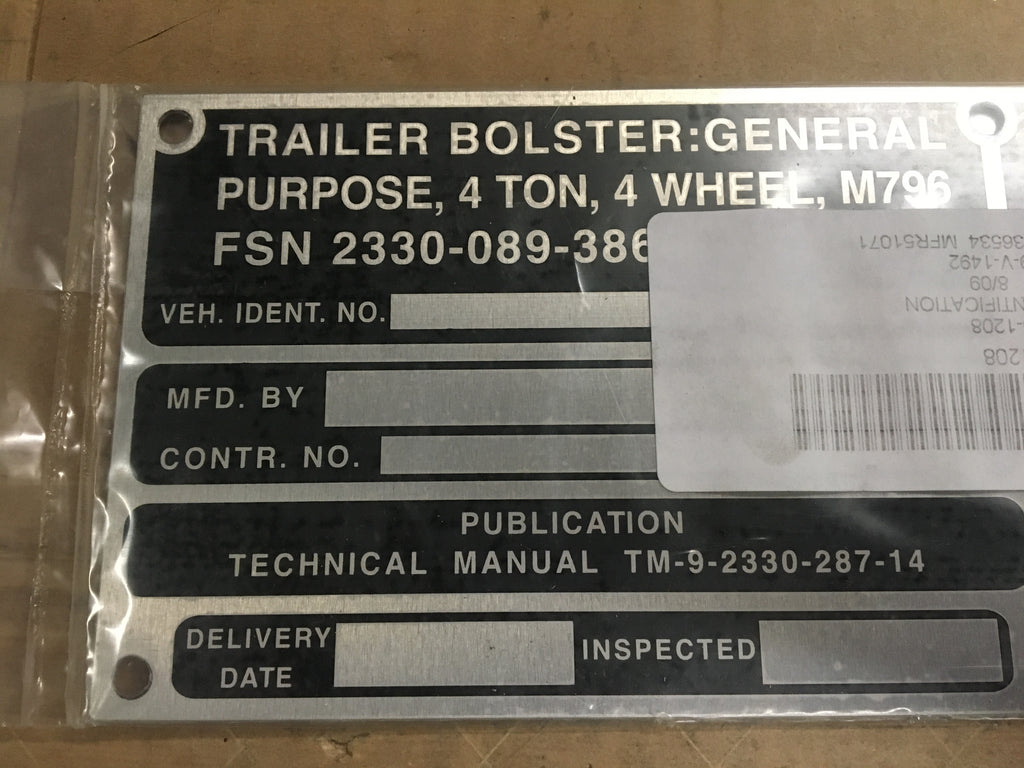

Inscription: 1st inscription: partial legend, trailer bolster' general purpose, 4 ton, 4 wheel, m796 federal stock no' 2330-089-3866, manufactured by '---, city ---, state, -; 2nd inscription: publications, technical manual pomm 9-2330-287-14, lubrication order; 3rd inscription: delivery data ---, inspected by ---,; 4th inscription: weights and dimension data ---,; 5th inscription: partial legend, weights empty crosscountry highway, payload 8000 8000, on wheels 4140 /ret/ 12,070 12,070, on lunette 680 /ret/ 750 750, total 1st side
Length: 4.250 inches nominal
Marking Designation: Legend 1st side
Material Document And Classification: Qq-a-250/1, alloy 1100, h12 fed spec single material response
Width: 12.000 inches nominal
Surface Treatment Document And Classification: Mil-a-8625, type 2, class 2 mil spec single treatment response
Surface Treatment: Anodize
Thickness: 0.020 inches nominal
