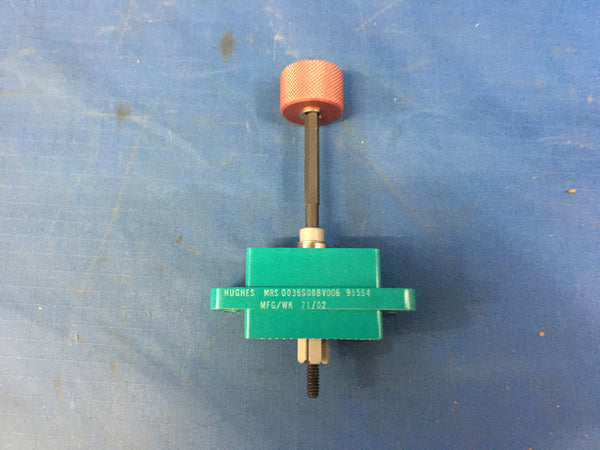

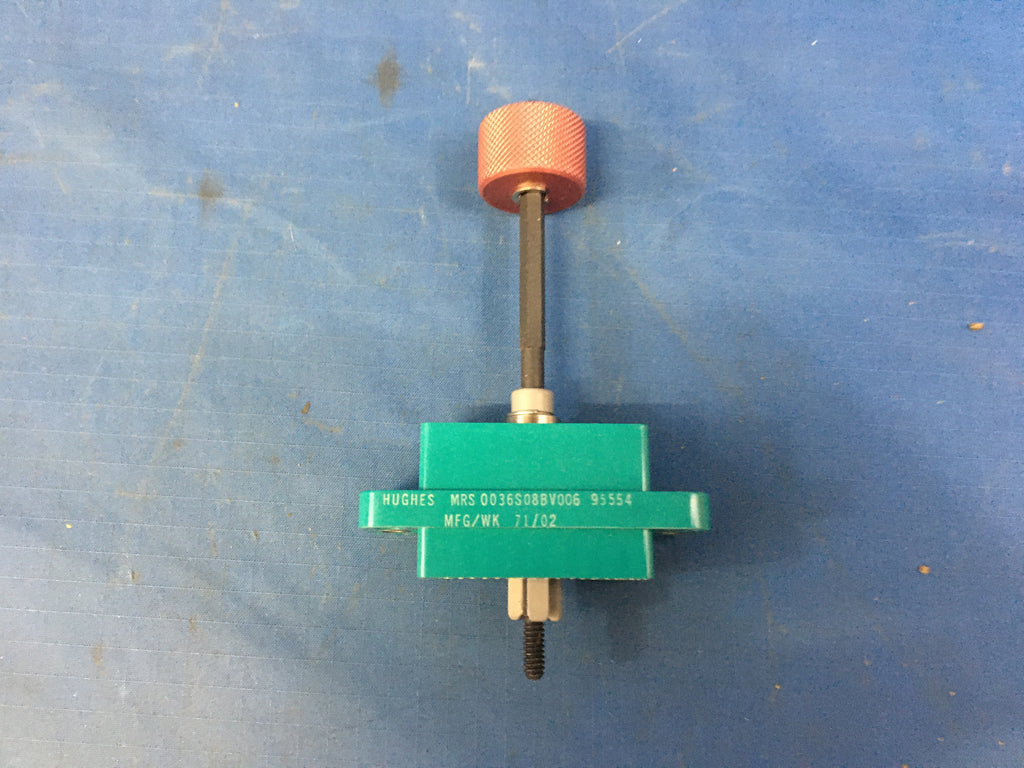

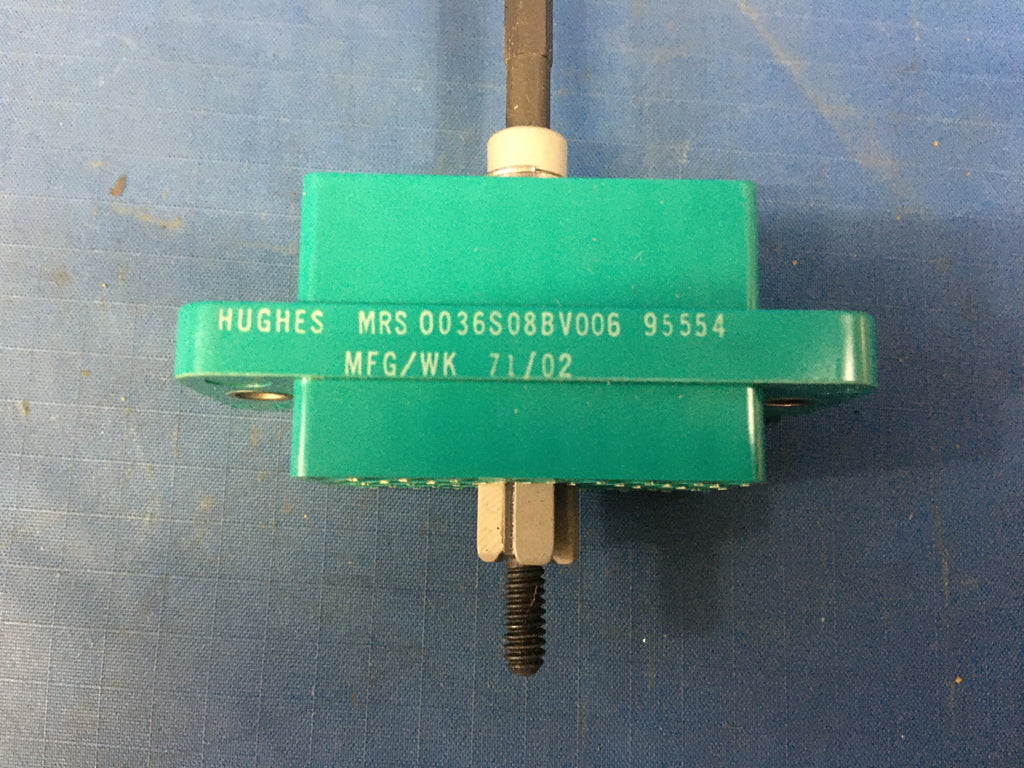

Hughes MRS0036S08BV006 Electrical Receptacle Connector Body NSN:5935-00-260-3280

Regular price $49.99

Electrical Receptacle Connector Body

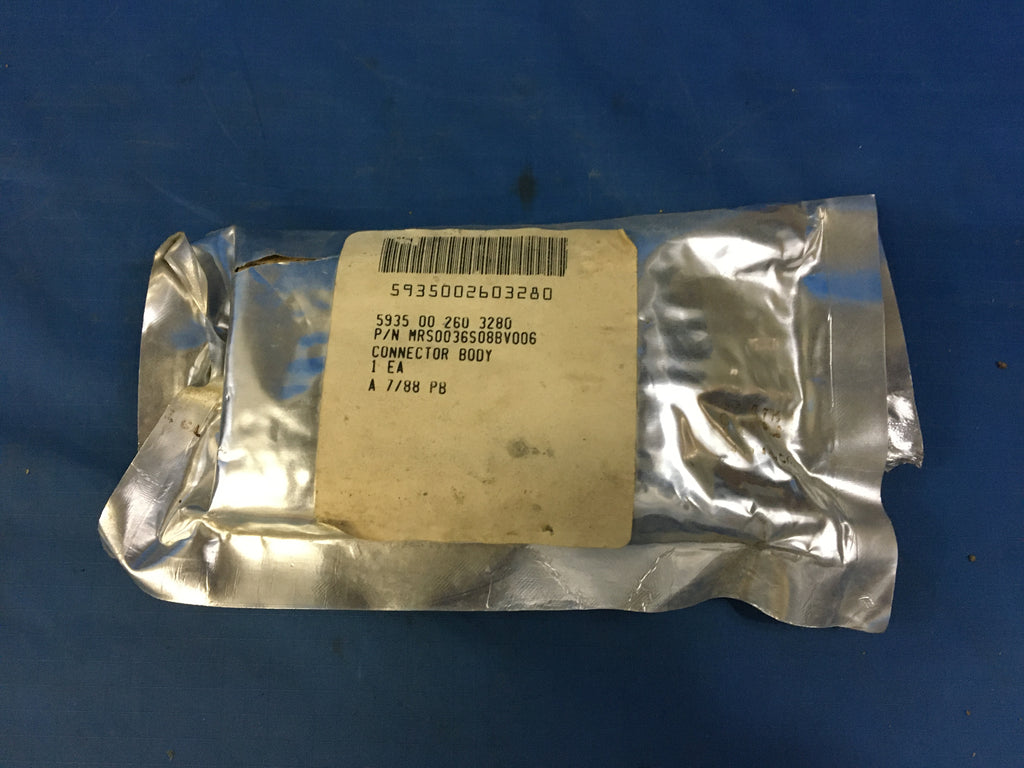

NSN:5935-00-260-3280     P/N:MRS0036S08BV006     Model:368475-8
ITAR Registered seal

The main or principal part of a connector, receptacle, electrical which includes inser (s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes connector body, modular receptacle, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Style
Straight shape w/jackscrew
Overall Length
2.125 inches
Overall Height
3.880 inches
Overall Width
0.830 inches
Environmental Protection
Moisture resistant and salt water resistant and vibration resistant
Unthreaded Mounting Hole Diameter
0.149 inches
Distance Between Mounting Facility Centers
1.750 inches
Threaded Device Type
Coupling facility
Mating End Quantity
Polarization Method
Polarization boss
Connector Locking Method
