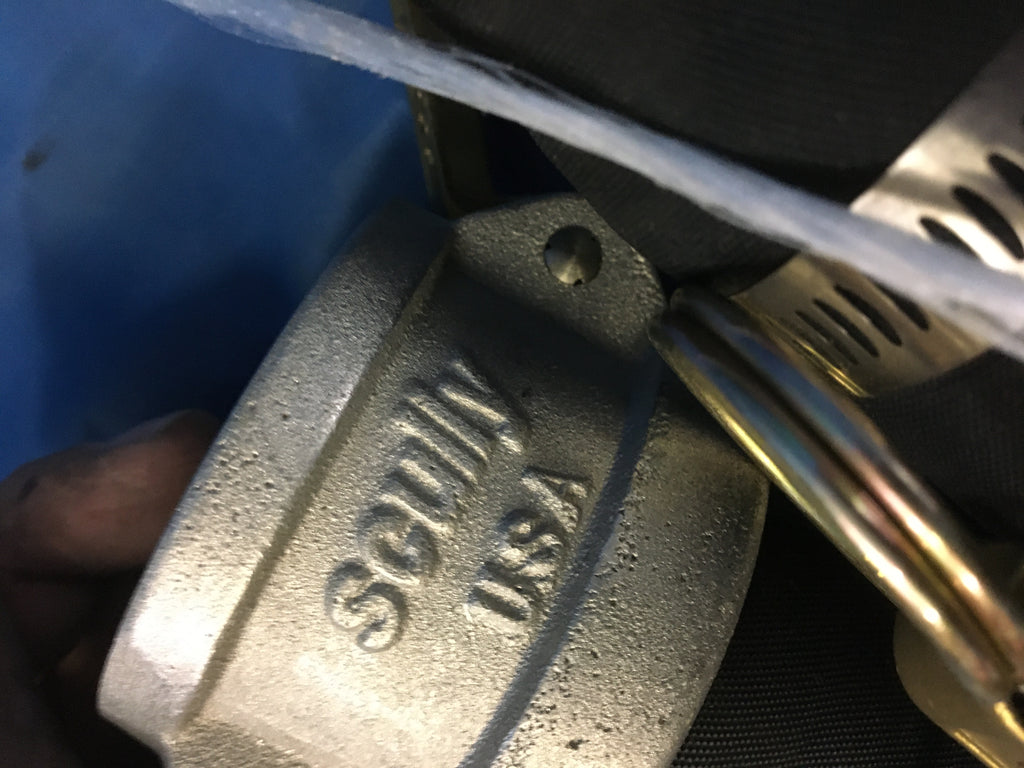

NOS Scully 6-1-9946-2 Nonmetallic Hose Ass'y 1 1/2" X 40" NSN:4720-01-297-9082
Please fill out the form below for a price quote and availability on this item.

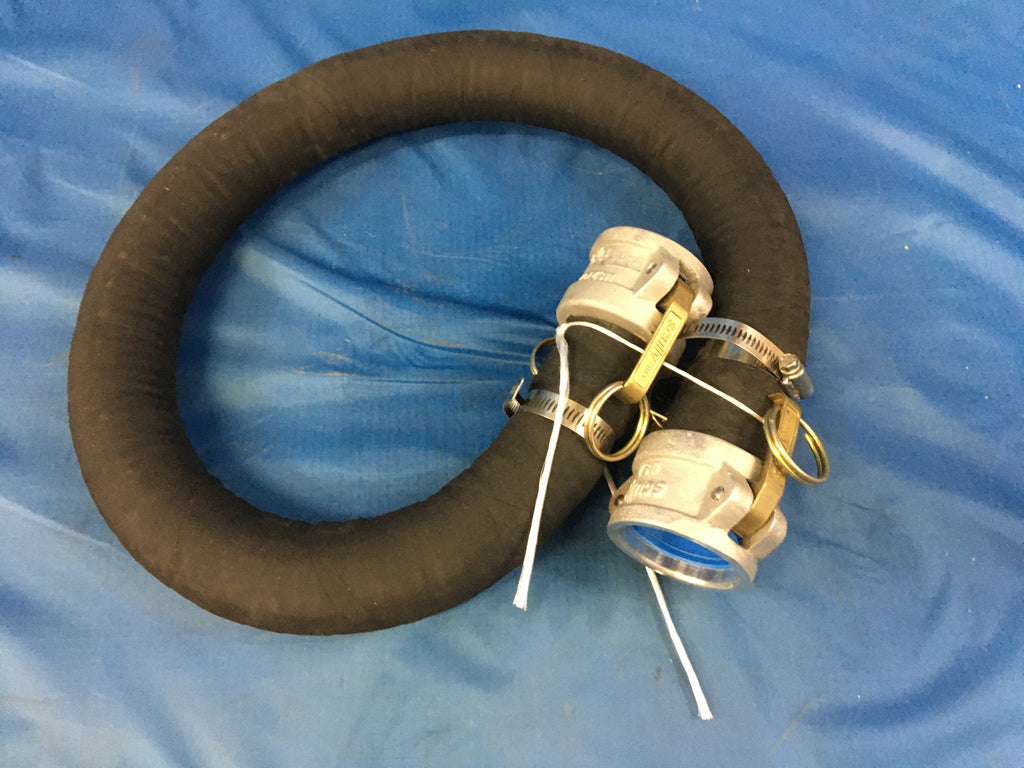

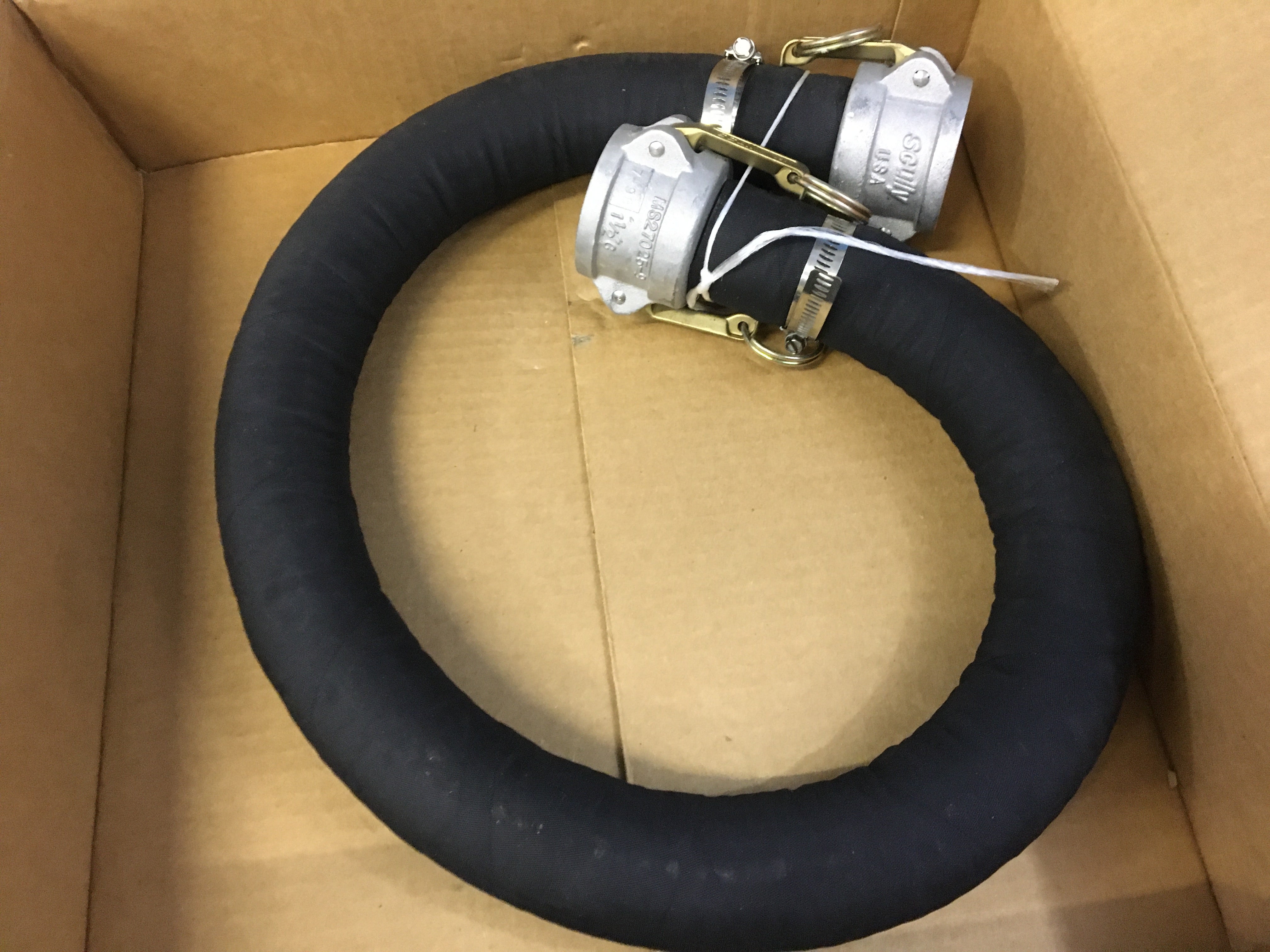

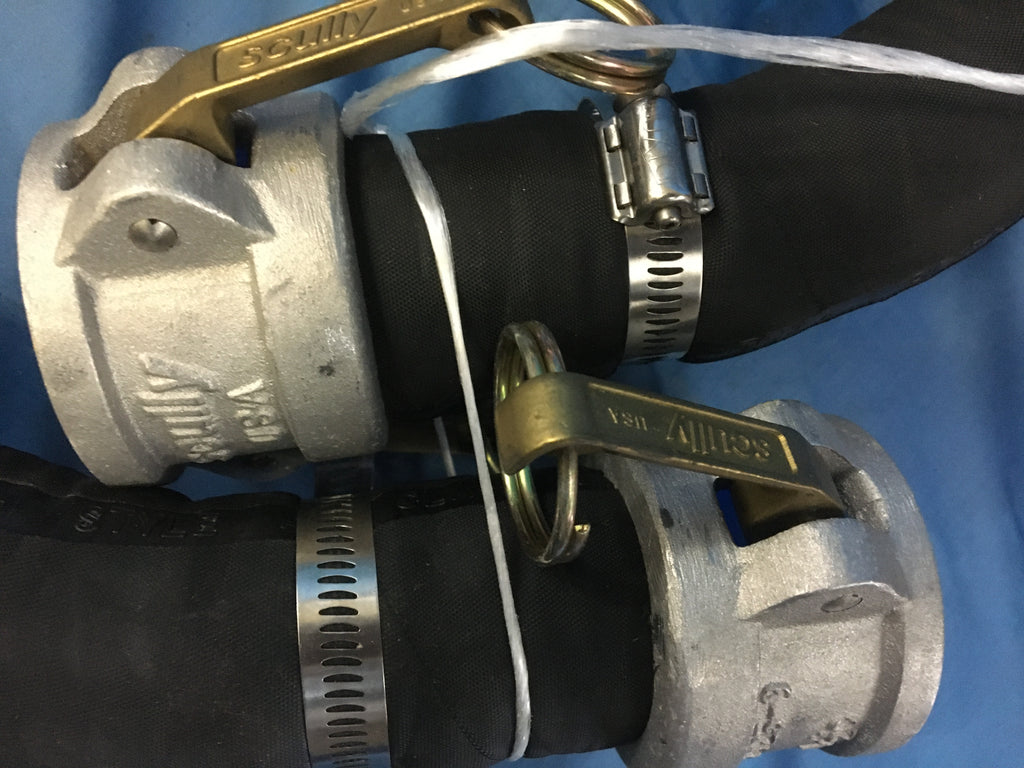

Nonmetallic Hose Assembly
NSN: 4720-01-297-9082 | Model: 6-1-9946-2
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see hose, nonmetallic. Excludes hose assembly, air duct; and hose assembly, air duct, air breathing.
NSN Properties and Flags
NATO Stock Number
4720-01-297-9082
DEMIL
Yes - ITAR Controlled
Cross Sectional Shape
Round
Inside Diameter
1.500 inches

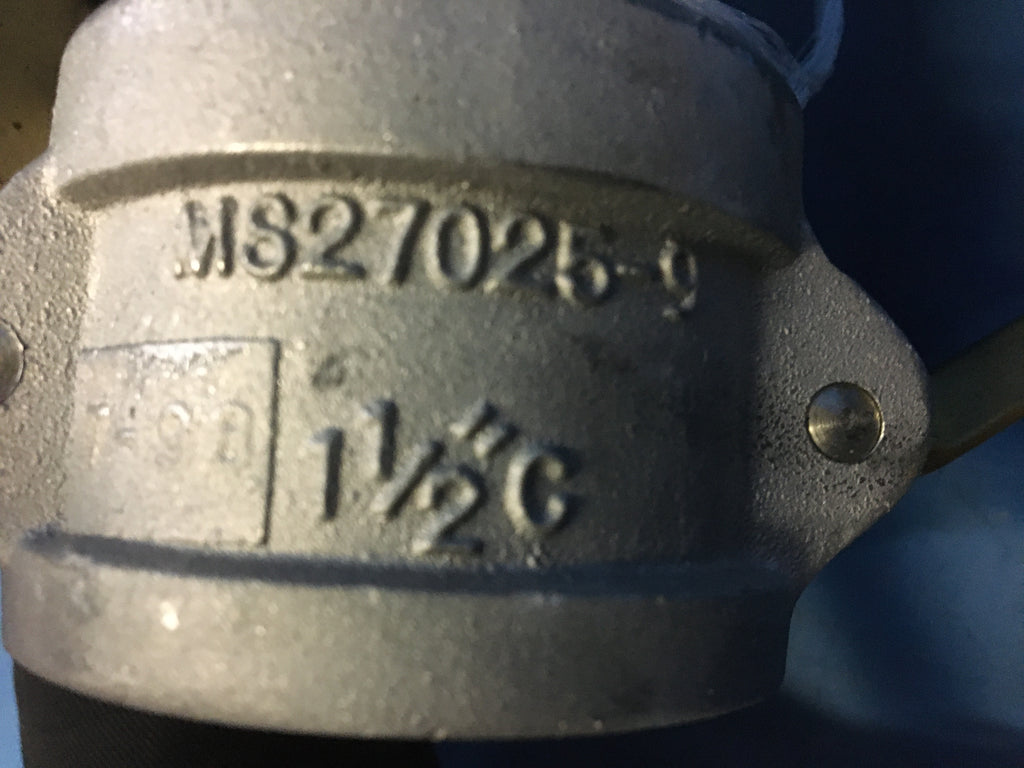

Quick Disconnect Size
1.500 inches 1st end
End Application
LAUN-DR-YUN-IT,T

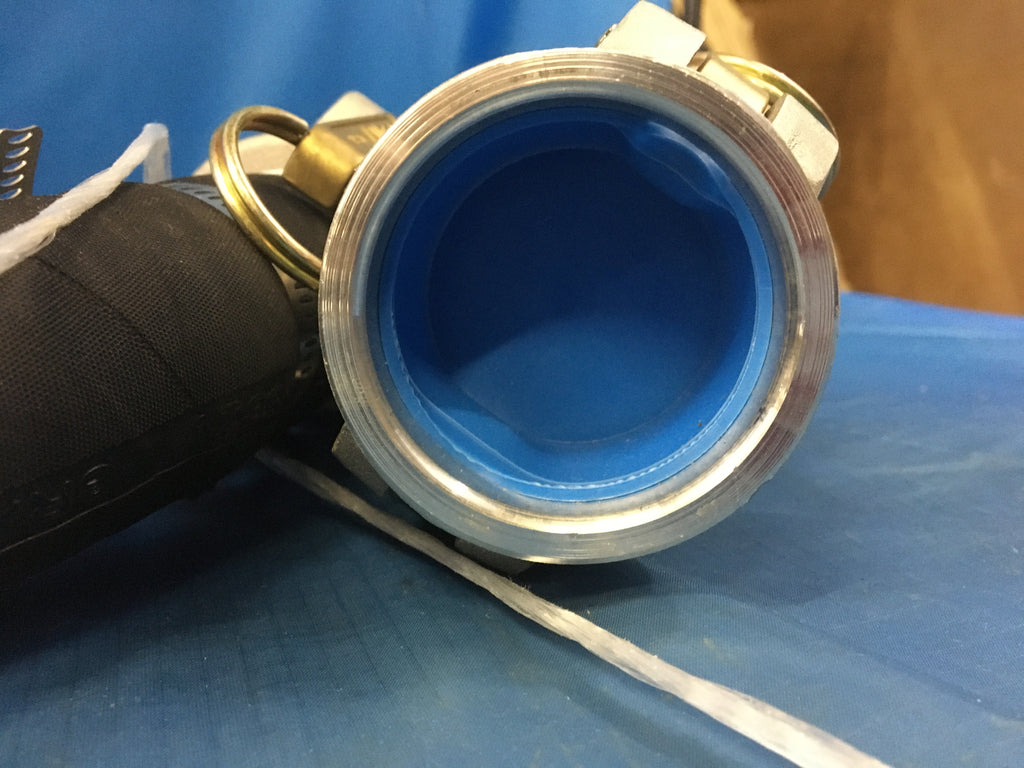

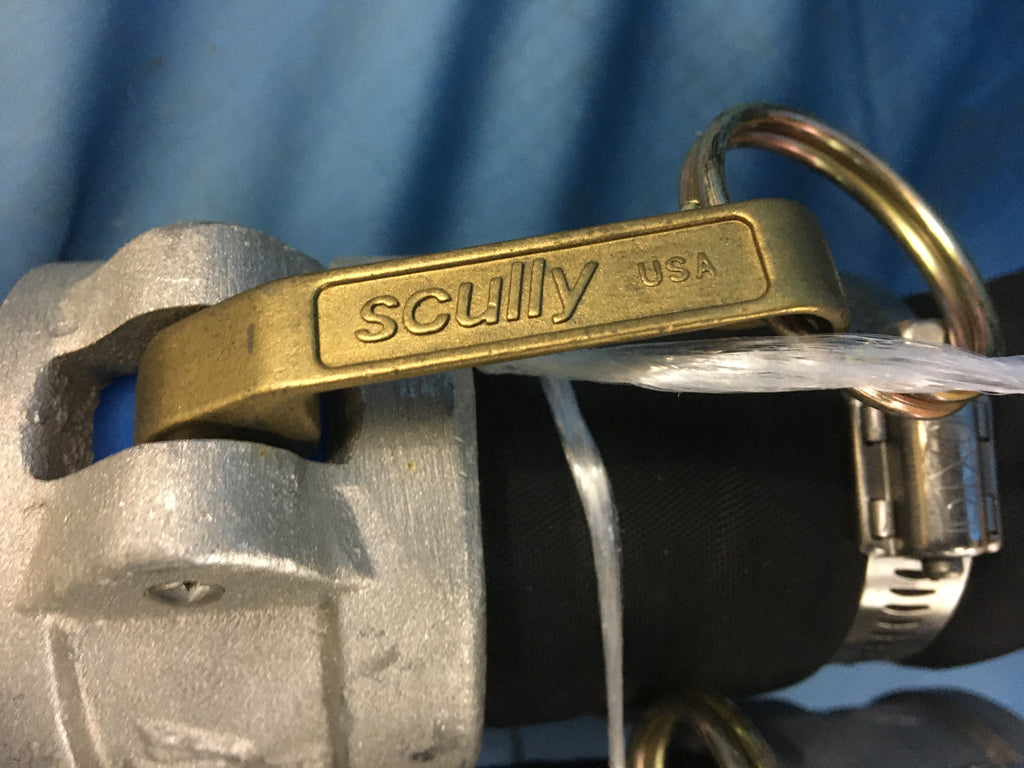

Connection Style
Cam or lever (internal) 1st end
End Connection Design
Straight 1st end
Connection Type
Internal quick disconnect 1st end
Layer Composition And Location
1st layer braided fabric and 2nd layer braided fabric and outer layer molded rubber, synthetic
Maximum Operating Pressure
100.0 pounds per square inch
Inside Surface Condition
Smooth
Measuring Method And Length
40.250 inches working
Special Features

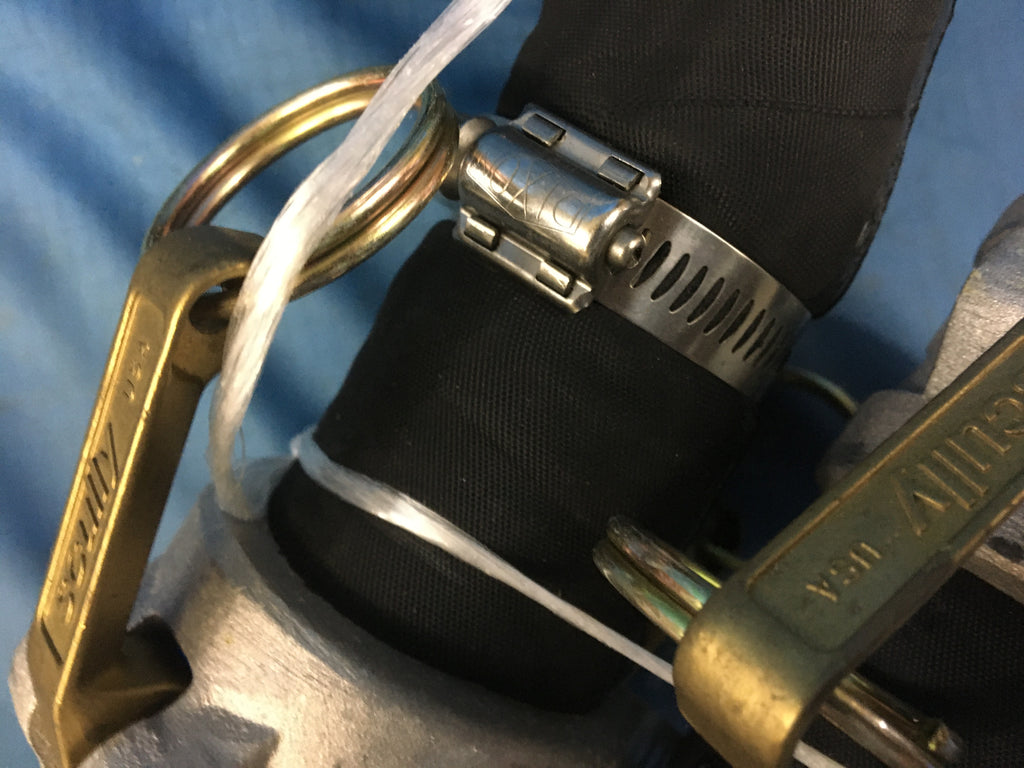

2 clamps, hose sae no. 36
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
