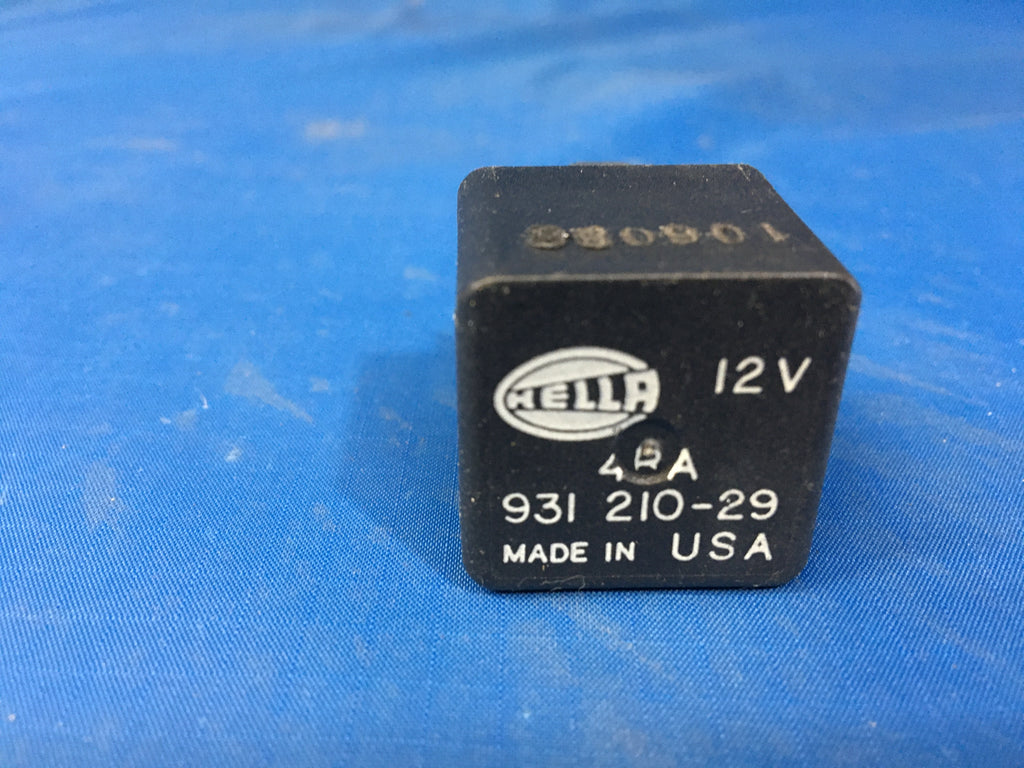

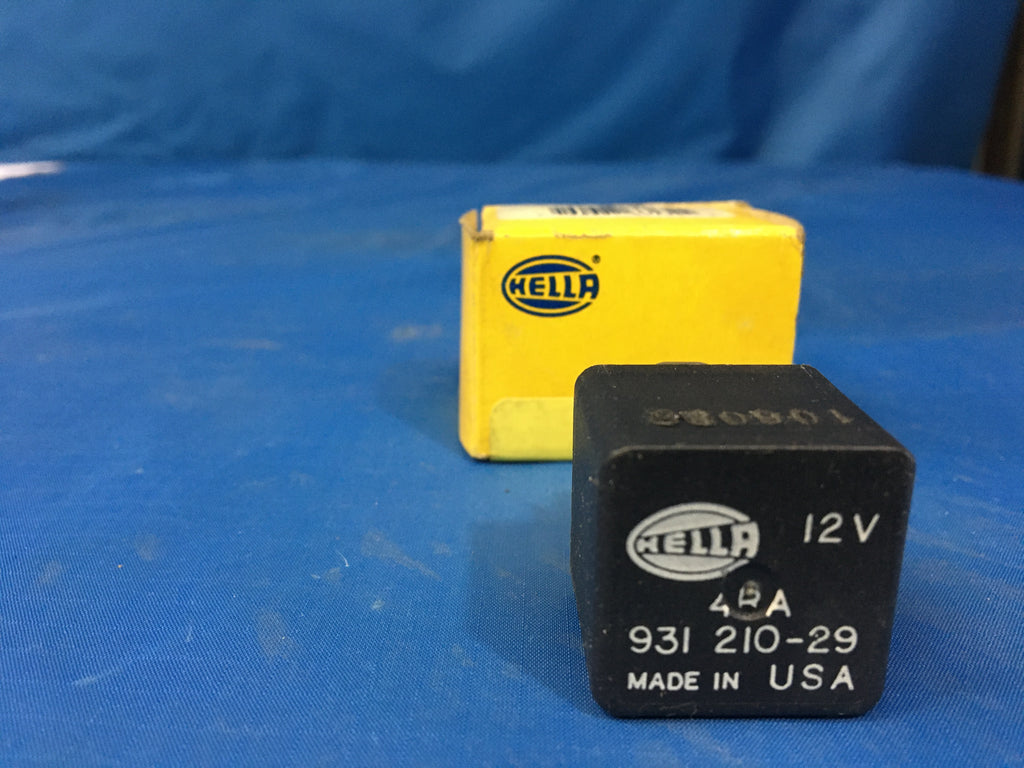

Hella HL66134 Mini Relay 12V 40A SPST with Resistor NSN:5925-01-026-5839
Regular price
$14.99
Hella HL66134 Mini Relay 12V 40A SPST with Resistor
Technical Data
- Nominal Voltage 12V
- Operating / Releasing Time ≤ 10 ms / ≤ 10 ms
- Rated Continuous Load N/O 40A at 85°C
- Dielectric Strength ≥ 1000 VDC
- Ambient Temperature -40°C...+125°C
- Max. Inrush Load 150 A
- Contact Form 1 Form A / SPST N/O
- Resistive Load / Switching Cycles 40 A, 100000 cycles
- Contact Material AgSnO2
- Inductive load / Switching Cycles 35 A steady current, 100000 cycles
- Operating / Drop out Voltage ≤ 8.0 V / ≥ 1.0 V
- Lamp Load (capacitive) / Switching Cycles 30 A steady current , 100000 cycles
- Max.Coil Voltage 16V
- Vibration 20 – 200 Hz, 50 m/s_, 6 h per axis
- Coil Resistance 85 Ohm ± 10% (excluding suppression component)
- Mechanical Shock 500 m/s_, 11 ms, period: 1 min, 1000 times
- Suppression Resistor, 680 Ohm
- IP Rating IP54 DIN IEC 60 529
- Mechanical Cycles 10,000,000

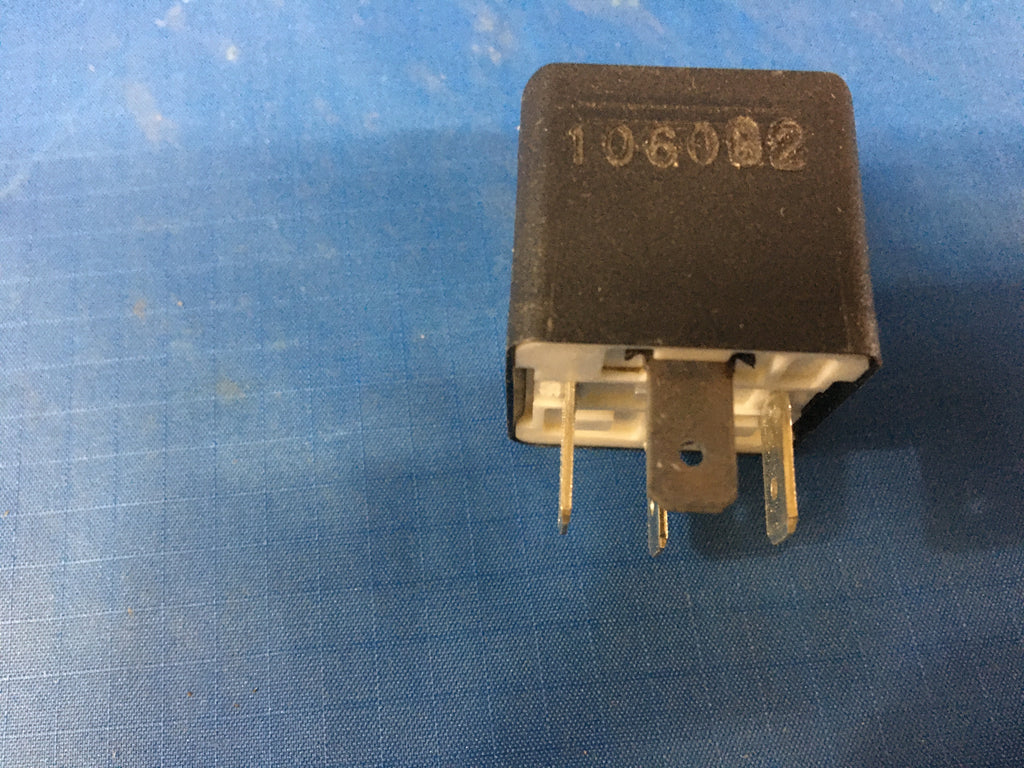

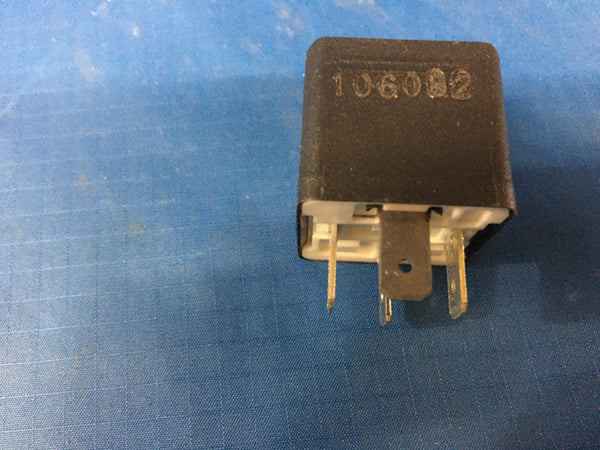

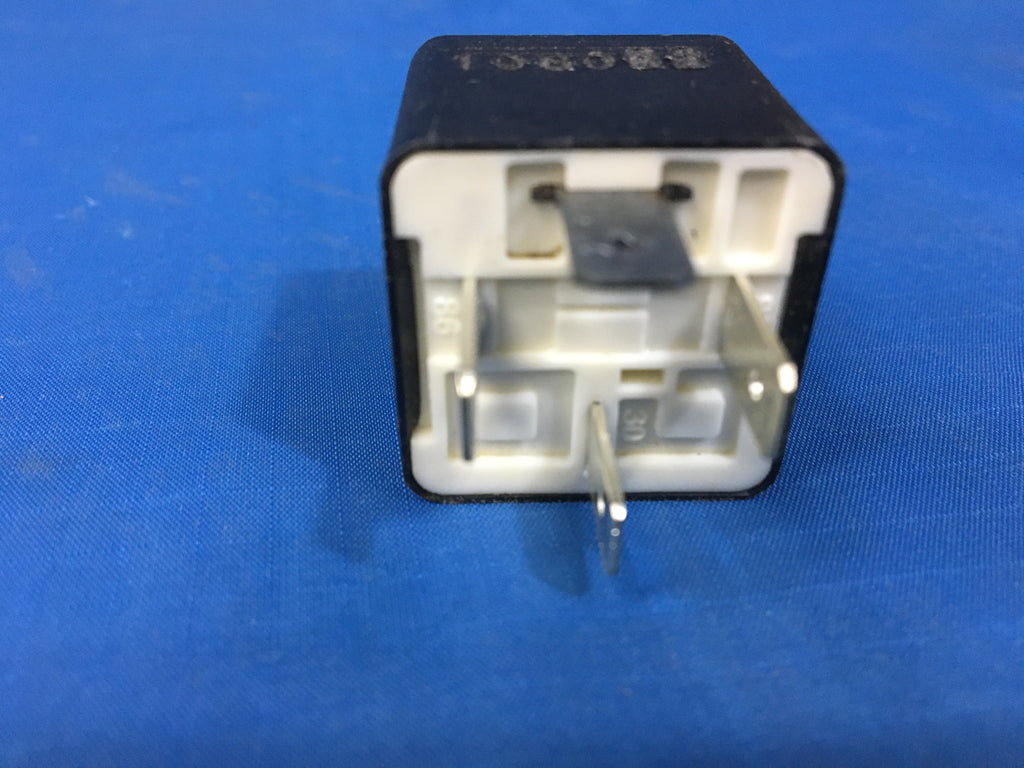

- Terminals
85, 86: ISO 8092 6,3 x 0,8, CuZn, gal Sn
30, 87: ISO 8092 6,3 x 0,8, E-Cu, gal Sn
Cross Reference
Hella
- 007791011
- 007791017
- 003510421
- H41210291
Bosch
- 0 332 019 103
Tyco
- VF4-11F11-S01
- VF4-11F21-S01
- V23134-B0052-C642
