Universal Technologies

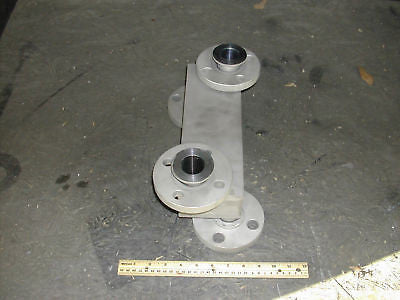

Heat Exchanger P/N: 500029G NSN: 4420-01-421-5220

Regular price $395.00

Technical Definition

Cooler, Fluid, Industrial, also referenced with federal logistics item name code 04041 - An apparatus designed to lower the temperature of a fluid by bringing it into proximity with another fluid of lower temperature so that heat transfer is effected by conduction through the walls of separating chambers. excludes air conditioning equipment, refrigeration equipment, and radiators.

Technical Characteristics

For Use With/On (AGAV):
Nimitz class cvn
Heat Transfer Method (BRXN):
Indirect
Height (HGTH):
6.190 inches nominal
Material (MATT):
Titanium housing
Special Features (FEAT):
4 ea 1000 ips 300 lb flangs, material 304 steel, design pressure 250.0 psi at 350.0 deg, hot side flow rate 10.250 gpm, cold side flow rate 20.0 gpm

National Stock Number (NSN): 4420-01-421-5220

Cage 64525

Part Number: 500029G

Heat exchanger material - Titanium housing/ 304 Stainless Steel 300lb Flanges. - NEW

Designed pressure 250 PSI @ 350 degree F.

Hot side flow rate - 10.25 gallons per minute

Cold side flow rate - 20 gallons per minute

Height: 6.190 Inches Nominal

Heat Transfer Method - Indirect

Plenty in stock / Can also sell in a lot.
